OdGsViewWrapperMinimalImpl< GsViewInterface, RedirectionBase > Class Template Reference

#include <GsInterfaceWrappers.h>

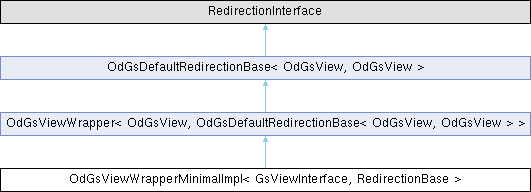

Inheritance diagram for OdGsViewWrapperMinimalImpl< GsViewInterface, RedirectionBase >:

Public Member Functions
	OdGsViewWrapperMinimalImpl (OdGsView *pRedirectionView=NULL)
OdGsDevice *	device () const
void	setDevice (OdGsDevice *pDevice)
OdGiContext *	userGiContext () const
void	setUserGiContext (OdGiContext *pUserGiContext)
double	lineweightToDcScale () const
void	setLineweightToDcScale (double scale)
void	setViewport (const OdGePoint2d &lowerLeft, const OdGePoint2d &upperRight)
void	setViewport (const OdGsDCRect &screenRect)
void	setViewport (const OdGsDCRectDouble &screenRect)
void	getViewport (OdGePoint2d &lowerLeft, OdGePoint2d &upperRight) const
void	getViewport (OdGsDCRect &screenRect) const
void	getViewport (OdGsDCRectDouble &screenRect) const
void	setViewportClipRegion (int numContours, int const *numVertices, OdGsDCPoint const *vertices)
void	setViewportClipRegion (int numContours, int const *numVertices, OdGePoint2d const *vertices)
void	viewportClipRegion (OdIntArray &counts, OdGsDCPointArray &vertices) const
void	viewportClipRegion (OdIntArray &counts, OdGePoint2dArray &vertices) const
void	setViewportBorderProperties (ODCOLORREF color, int width)
void	getViewportBorderProperties (ODCOLORREF &color, int &width) const
void	setViewportBorderVisibility (bool visible)
bool	isViewportBorderVisible () const
void	setView (const OdGePoint3d &position, const OdGePoint3d &target, const OdGeVector3d &upVector, double fieldWidth, double fieldHeight, OdGsView::Projection projectionType=OdGsView::kParallel)
OdGePoint3d	position () const
OdGePoint3d	target () const
OdGeVector3d	upVector () const
double	lensLength () const
void	setLensLength (double lensLength)
bool	isPerspective () const
double	fieldWidth () const
double	fieldHeight () const
void	setEnableFrontClip (bool enable)
bool	isFrontClipped () const
void	setFrontClip (double frontClip)
double	frontClip () const
void	setEnableBackClip (bool enable)
bool	isBackClipped () const
void	setBackClip (double backClip)
double	backClip () const
void	setMode (OdGsView::RenderMode mode)
OdGsView::RenderMode	mode () const
void	hide ()
void	show ()
bool	isVisible ()
void	setLinetypeScaleMultiplier (double linetypeScaleMultiplier)
double	linetypeScaleMultiplier () const
void	setAlternateLinetypeScaleMultiplier (double linetypeAlternateScaleMultiplier)
double	linetypeAlternateScaleMultiplier () const
void	clientViewInfo (OdGsClientViewInfo &clientViewInfo) const
void	setViewInfo (const OdGsClientViewInfo &clientViewInfo)
void	setBackground (OdDbStub *backgroundId)
OdDbStub *	background () const
void	setVisualStyle (OdDbStub *visualStyleId)
OdDbStub *	visualStyle () const
void	enableAntiAliasing (OdUInt32 nMode)
OdUInt32	antiAliasingMode () const
Public Member Functions inherited from OdGsViewWrapper< GsViewInterface, RedirectionBase >
	OdGsViewWrapper (OdGsView *pRedirectionView=NULL)
OdGsDevice *	device () const
OdGiContext *	userGiContext () const
void	setUserGiContext (OdGiContext *pUserGiContext)
double	lineweightToDcScale () const
void	setLineweightToDcScale (double scale)
void	setLineweightEnum (int numLineweights, const OdUInt8 *lineweights, const OdUInt16 *altSourceLwds=NULL)
void	setViewport (const OdGePoint2d &lowerLeft, const OdGePoint2d &upperRight)
void	setViewport (const OdGsDCRect &screenRect)
void	setViewport (const OdGsDCRectDouble &screenRect)
void	getViewport (OdGePoint2d &lowerLeft, OdGePoint2d &upperRight) const
void	getViewport (OdGsDCRect &screenRect) const
void	getViewport (OdGsDCRectDouble &screenRect) const
void	setViewportClipRegion (int numContours, int const *numVertices, OdGsDCPoint const *vertices)
void	setViewportClipRegion (int numContours, int const *numVertices, OdGePoint2d const *vertices)
void	viewportClipRegion (OdIntArray &counts, OdGsDCPointArray &vertices) const
void	viewportClipRegion (OdIntArray &counts, OdGePoint2dArray &vertices) const
void	setViewport3dClipping (const OdGiClipBoundary *pBoundary, const OdGiAbstractClipBoundary *pClipInfo=NULL)
const OdGiClipBoundary *	viewport3dClipping (const OdGiAbstractClipBoundary **ppClipInfo=NULL) const
void	setViewportBorderProperties (ODCOLORREF color, int width)
void	getViewportBorderProperties (ODCOLORREF &color, int &width) const
void	setViewportBorderVisibility (bool visible)
bool	isViewportBorderVisible () const
void	setView (const OdGePoint3d &position, const OdGePoint3d &target, const OdGeVector3d &upVector, double fieldWidth, double fieldHeight, OdGsView::Projection projectionType=OdGsView::kParallel)
OdGePoint3d	position () const
OdGePoint3d	target () const
OdGeVector3d	upVector () const
double	lensLength () const
void	setLensLength (double lensLength)
bool	isPerspective () const
double	fieldWidth () const
double	fieldHeight () const
void	setEnableFrontClip (bool enable)
bool	isFrontClipped () const
void	setFrontClip (double frontClip)
double	frontClip () const
void	setEnableBackClip (bool enable)
bool	isBackClipped () const
void	setBackClip (double backClip)
double	backClip () const
OdGeMatrix3d	viewingMatrix () const
OdGeMatrix3d	projectionMatrix () const
OdGeMatrix3d	screenMatrix () const
OdGeMatrix3d	worldToDeviceMatrix () const
OdGeMatrix3d	objectToDeviceMatrix () const
void	setMode (OdGsView::RenderMode mode)
OdGsView::RenderMode	mode () const
bool	add (OdGiDrawable *pSceneGraph, OdGsModel *pModel)
int	numRootDrawables () const
OdDbStub *	rootDrawableIdAt (int i, OdGsModelPtr *pModelReturn) const
OdGiDrawablePtr	rootDrawableAt (int i, OdGsModelPtr *pModelReturn) const
bool	erase (OdGiDrawable *sceneGraph)
void	eraseAll ()
OdGsModel *	getModel (const OdGiDrawable *pDrawable) const
OdGsModelArray	getModelList () const
void	invalidate ()
void	invalidate (const OdGsDCRect &screenRect)
bool	isValid () const
void	update ()
void	beginInteractivity (double frameRateInHz)
void	endInteractivity ()
bool	isInInteractivity () const
double	interactivityFrameRate () const
void	flush ()
void	hide ()
void	show ()
bool	isVisible ()
void	freezeLayer (OdDbStub *layerID)
void	thawLayer (OdDbStub *layerID)
void	clearFrozenLayers ()
void	invalidateCachedViewportGeometry ()
void	select (const OdGsDCPoint *pts, int nPoints, OdGsSelectionReactor *pReactor, OdGsView::SelectionMode mode=OdGsView::kCrossing)
void	dolly (const OdGeVector3d &dollyVector)
void	dolly (double xDolly, double yDolly, double zDolly)
void	roll (double rollAngle)
void	orbit (double xOrbit, double yOrbit)
void	zoom (double zoomFactor)
void	pan (double xPan, double yPan)
void	zoomExtents (const OdGePoint3d &minPt, const OdGePoint3d &maxPt)
void	zoomWindow (const OdGePoint2d &lowerLeft, const OdGePoint2d &upperRight)
bool	pointInView (const OdGePoint3d &pt) const
bool	extentsInView (const OdGePoint3d &minPt, const OdGePoint3d &maxPt) const
OdGsViewPtr	cloneView (bool cloneViewParameters=true, bool cloneGeometry=false)
void	viewParameters (OdGsView *pView) const
bool	exceededBounds ()
void	enableStereo (bool enabled)
bool	isStereoEnabled () const
void	setStereoParameters (double magnitude, double parallax)
void	getStereoParameters (double &magnitude, double &parallax) const
void	initLights (OdRxIterator *pLightsIterator)
void	setLinetypeScaleMultiplier (double linetypeScaleMultiplier)
double	linetypeScaleMultiplier () const
void	setAlternateLinetypeScaleMultiplier (double linetypeAlternateScaleMultiplier)
double	linetypeAlternateScaleMultiplier () const
void	clientViewInfo (OdGsClientViewInfo &clientViewInfo) const
void	setClearColor (OdGsView::ClearColor color)
bool	pointInViewport (const OdGePoint2d &screenPoint) const
void	getNumPixelsInUnitSquare (const OdGePoint3d &point, OdGePoint2d &pixelDensity, bool bUsePerspective=true) const
void	setBackground (OdDbStub *backgroundId)
OdDbStub *	background () const
void	setVisualStyle (OdDbStub *visualStyleId)
OdDbStub *	visualStyle () const
void	setVisualStyle (const OdGiVisualStyle &visualStyle)
bool	visualStyle (OdGiVisualStyle &visualStyle) const
void	enableDefaultLighting (bool bEnable, OdGsView::DefaultLightingType lightType=OdGsView::kTwoLights)
void	getSnapShot (OdGiRasterImagePtr &pImage, const OdGsDCRect &region)
void	collide (OdGiPathNode const *const *pInputList, OdUInt32 nInputListSize, OdGsCollisionDetectionReactor *pReactor, OdGiPathNode const *const *pCollisionWithList=NULL, OdUInt32 nCollisionWithListSize=0, const OdGsCollisionDetectionContext *pCtx=NULL)
void	rayTrace (const OdGePoint3d &rayOrigin, const OdGeVector3d &rayDirection, OdGsRayTraceReactor *pReactor, bool bSortedSelection=false, OdGiPathNode const *const *pObjectList=NULL, OdUInt32 nObjectListSize=0)
void	enableAntiAliasing (OdUInt32 nMode)
OdUInt32	antiAliasingMode () const
void	enableSSAO (bool bEnable) ODRX_OVERRIDE
bool	ssaoMode () const ODRX_OVERRIDE
Public Member Functions inherited from OdGsDefaultRedirectionBase< RedirectionBaseInterface, RedirectionInterface >
	OdGsDefaultRedirectionBase (RedirectionBaseInterface *pRedirectionObj=NULL)
bool	hasRedirection () const
const RedirectionBaseInterface *	redirection () const
RedirectionBaseInterface *	redirection ()
void	setRedirection (RedirectionBaseInterface *pRedirectionObj)
void	resetRedirection ()

Protected Attributes
OdGsDevice *	m_pDevice
OdGiContext *	m_pContext
double	m_lwdDcScale
OdGePoint2d	m_llVpt
OdGePoint2d	m_urVpt
OdGsDCRectDouble	m_dcRect
OdIntArray	m_nrcClipCounts
OdGePoint2dArray	m_nrcClipPoints
ODCOLORREF	m_borderColor
int	m_borderWidth
bool	m_bBorderVisible
OdGePoint3d	m_position
OdGePoint3d	m_target
OdGeVector3d	m_upVector
double	m_fieldsWidth
double	m_fieldsHeight
OdGsView::Projection	m_projection
double	m_lensLength
bool	m_bFrontClip
bool	m_bBackClip
double	m_frontClip
double	m_backClip
OdGsView::RenderMode	m_renderMode
bool	m_bHidden
double	m_ltpMult1
double	m_ltpMult2
OdGsClientViewInfo	m_viewInfo
OdDbStub *	m_bkgnd
OdDbStub *	m_visualStyle
OdUInt32	m_antiAliasingMode

Detailed Description

template<typename GsViewInterface = OdGsView, typename RedirectionBase = OdGsDefaultRedirectionBase<OdGsView, GsViewInterface>>
class OdGsViewWrapperMinimalImpl< GsViewInterface, RedirectionBase >

Minimal implementation for OdGsView class wrappers.

Corresponding C++ library: TD_Gs

<group OdGs_Classes>

Definition at line 2160 of file GsInterfaceWrappers.h.

Constructor & Destructor Documentation

OdGsViewWrapperMinimalImpl()

template<typename GsViewInterface = OdGsView, typename RedirectionBase = OdGsDefaultRedirectionBase<OdGsView, GsViewInterface>>

OdGsViewWrapperMinimalImpl< GsViewInterface, RedirectionBase >::OdGsViewWrapperMinimalImpl ( OdGsView * pRedirectionView = NULL )

inline

Default constructor for the OdGsViewWrapperMinimalImpl class. Sets the following data members:

member Value Description m_pDevice 0 Owning device m_pContext NULL Vectorization context m_lwdDcScale 0.0 Scale factor for displaying lineweights in the Viewport m_borderColor 0 View border color m_borderWidth 0 View border width m_borderVisible false View border visibility m_target OdGePoint3d::kOrigin + OdGeVector3d::kZAxis Camera target m_upVector OdGeVector3d::kYAxis Camera "up" vector m_fieldWidth 1.0 Camera field width m_fieldHeight 1.0 Camera field height m_projection OdGsView::kParallel Camera projection m_lensLength 50.0 Camera lens length m_bFrontClip false Flag that specifies whether front clipping is enabled m_bBackClip false Flag that specifies whether back clipping is enabled m_frontClip 0.0 Front clipping distance m_backClip 0.0 Back clipping distance m_renderMode OdGsView::k2DOptimized Render mode m_bHidden false Flag that specifies whether viewport is hidden m_ltpMult1 1.0 Multiplier that is used to scale all linetypes in the Viewport m_ltpMult2 1.0 Alternate multiplier that is used to scale all linetypes in the Viewport m_bkgnd NULL Identifier of a view background object m_visualStyle NULL Identifier of a visual style object m_antiAliasingMode 3 Anti-aliasing mode

Definition at line 2217 of file GsInterfaceWrappers.h.

Member Function Documentation

antiAliasingMode()

template<typename GsViewInterface = OdGsView, typename RedirectionBase = OdGsDefaultRedirectionBase<OdGsView, GsViewInterface>>

OdUInt32 OdGsViewWrapperMinimalImpl< GsViewInterface, RedirectionBase >::antiAliasingMode ( ) const

inline

Returns anti-aliasing mode for current Viewport object.

Definition at line 2708 of file GsInterfaceWrappers.h.

backClip()

template<typename GsViewInterface = OdGsView, typename RedirectionBase = OdGsDefaultRedirectionBase<OdGsView, GsViewInterface>>

double OdGsViewWrapperMinimalImpl< GsViewInterface, RedirectionBase >::backClip ( ) const

inline

Returns the back clip distance from the target of the wrapped viewport object.

Definition at line 2561 of file GsInterfaceWrappers.h.

background()

template<typename GsViewInterface = OdGsView, typename RedirectionBase = OdGsDefaultRedirectionBase<OdGsView, GsViewInterface>>

OdDbStub * OdGsViewWrapperMinimalImpl< GsViewInterface, RedirectionBase >::background ( ) const

inline

Returns current background object ID for the wrapped view.

See also

<link tv_working_with_attributes_view_backgrounds, Work with View Backgrounds>

Definition at line 2680 of file GsInterfaceWrappers.h.

clientViewInfo()

template<typename GsViewInterface = OdGsView, typename RedirectionBase = OdGsDefaultRedirectionBase<OdGsView, GsViewInterface>>

void OdGsViewWrapperMinimalImpl< GsViewInterface, RedirectionBase >::clientViewInfo ( OdGsClientViewInfo & clientViewInfo ) const

inline

Returns the ClientViewInfo for the wrapped viewport object.

Parameters

clientViewInfo

[out] Receives the ClientViewInfo.

Definition at line 2657 of file GsInterfaceWrappers.h.

device()

template<typename GsViewInterface = OdGsView, typename RedirectionBase = OdGsDefaultRedirectionBase<OdGsView, GsViewInterface>>

OdGsDevice * OdGsViewWrapperMinimalImpl< GsViewInterface, RedirectionBase >::device ( ) const

inline

Returns the GsDevice object associated with the wrapped viewport object.

See also

<link tv_working_with_base_classes_device, Work with Visualize Graphics Devices>

Definition at line 2251 of file GsInterfaceWrappers.h.

enableAntiAliasing()

template<typename GsViewInterface = OdGsView, typename RedirectionBase = OdGsDefaultRedirectionBase<OdGsView, GsViewInterface>>

void OdGsViewWrapperMinimalImpl< GsViewInterface, RedirectionBase >::enableAntiAliasing ( OdUInt32 nMode )

inline

Enable or disable anti-aliasing in current Viewport object.

Parameters

nLevel

[in] Anti-aliasing mode (set as 3 by default). Set as 0 to disable anti-aliasing.

Definition at line 2703 of file GsInterfaceWrappers.h.

fieldHeight()

template<typename GsViewInterface = OdGsView, typename RedirectionBase = OdGsDefaultRedirectionBase<OdGsView, GsViewInterface>>

double OdGsViewWrapperMinimalImpl< GsViewInterface, RedirectionBase >::fieldHeight ( ) const

inline

Returns the WCS projection plane (field) height for the wrapped viewport object.

Definition at line 2513 of file GsInterfaceWrappers.h.

fieldWidth()

template<typename GsViewInterface = OdGsView, typename RedirectionBase = OdGsDefaultRedirectionBase<OdGsView, GsViewInterface>>

double OdGsViewWrapperMinimalImpl< GsViewInterface, RedirectionBase >::fieldWidth ( ) const

inline

Returns the WCS projection plane (field) width for the wrapped viewport object.

Definition at line 2508 of file GsInterfaceWrappers.h.

frontClip()

template<typename GsViewInterface = OdGsView, typename RedirectionBase = OdGsDefaultRedirectionBase<OdGsView, GsViewInterface>>

double OdGsViewWrapperMinimalImpl< GsViewInterface, RedirectionBase >::frontClip ( ) const

inline

Returns the front clip distance from the target of the wrapped viewport object.

Definition at line 2537 of file GsInterfaceWrappers.h.

getViewport() [1/3]

template<typename GsViewInterface = OdGsView, typename RedirectionBase = OdGsDefaultRedirectionBase<OdGsView, GsViewInterface>>

void OdGsViewWrapperMinimalImpl< GsViewInterface, RedirectionBase >::getViewport ( OdGePoint2d & lowerLeft, OdGePoint2d & upperRight ) const

inline

Returns the size and position of the wrapped viewport object.

Parameters

lowerLeft	[out] Receives the lower-left corner in nomalized device coordinates [0.0 .. 1.0].
upperRight	[out] Receives the upper-right corner in nomalized device coordinates [0.0 .. 1.0].

Remarks

(0,0) is the lower-left corner of the owning Device object. Coordinates increase upward and to the right.

The View object may be partly or completely off screen.

Definition at line 2331 of file GsInterfaceWrappers.h.

getViewport() [2/3]

template<typename GsViewInterface = OdGsView, typename RedirectionBase = OdGsDefaultRedirectionBase<OdGsView, GsViewInterface>>

void OdGsViewWrapperMinimalImpl< GsViewInterface, RedirectionBase >::getViewport ( OdGsDCRect & screenRect ) const

inline

Returns the size and position of the wrapped viewport object.

Parameters

screenRect

[out] Receives the screen rectangle in device coordinates (pixels).

Remarks

(0,0) is the lower-left corner of the owning Device object. Coordinates increase upward and to the right.

The View object may be partly or completely off screen.

Definition at line 2344 of file GsInterfaceWrappers.h.

getViewport() [3/3]

template<typename GsViewInterface = OdGsView, typename RedirectionBase = OdGsDefaultRedirectionBase<OdGsView, GsViewInterface>>

void OdGsViewWrapperMinimalImpl< GsViewInterface, RedirectionBase >::getViewport ( OdGsDCRectDouble & screenRect ) const

inline

Returns the size and position of the wrapped viewport object.

Parameters

screenRect

[out] Receives the screen rectangle in device coordinates (pixels).

Remarks

(0,0) is the lower-left corner of the owning Device object. Coordinates increase upward and to the right. The View object may be partly or completely off screen.

Definition at line 2353 of file GsInterfaceWrappers.h.

getViewportBorderProperties()

template<typename GsViewInterface = OdGsView, typename RedirectionBase = OdGsDefaultRedirectionBase<OdGsView, GsViewInterface>>

void OdGsViewWrapperMinimalImpl< GsViewInterface, RedirectionBase >::getViewportBorderProperties ( ODCOLORREF & color, int & width ) const

inline

Returns the color and width of the border for the wrapped viewport object.

Parameters

color	[out] Receives the border color.
width	[out] Receives the border width in pixels.

Definition at line 2429 of file GsInterfaceWrappers.h.

hide()

template<typename GsViewInterface = OdGsView, typename RedirectionBase = OdGsDefaultRedirectionBase<OdGsView, GsViewInterface>>

void OdGsViewWrapperMinimalImpl< GsViewInterface, RedirectionBase >::hide ( )

inline

Hides the wrapped viewport object.

Definition at line 2608 of file GsInterfaceWrappers.h.

isBackClipped()

template<typename GsViewInterface = OdGsView, typename RedirectionBase = OdGsDefaultRedirectionBase<OdGsView, GsViewInterface>>

bool OdGsViewWrapperMinimalImpl< GsViewInterface, RedirectionBase >::isBackClipped ( ) const

inline

Checks whether back clipping is enabled for the wrapped viewport object.

Returns

true if back clipping is enabled, false otherwise.

Definition at line 2550 of file GsInterfaceWrappers.h.

isFrontClipped()

template<typename GsViewInterface = OdGsView, typename RedirectionBase = OdGsDefaultRedirectionBase<OdGsView, GsViewInterface>>

bool OdGsViewWrapperMinimalImpl< GsViewInterface, RedirectionBase >::isFrontClipped ( ) const

inline

Checks whether front clipping is enabled for the wrapped viewport object.

Returns

true if front clipping is enabled, false otherwise.

Definition at line 2526 of file GsInterfaceWrappers.h.

isPerspective()

template<typename GsViewInterface = OdGsView, typename RedirectionBase = OdGsDefaultRedirectionBase<OdGsView, GsViewInterface>>

bool OdGsViewWrapperMinimalImpl< GsViewInterface, RedirectionBase >::isPerspective ( ) const

inline

Checks whether the projection type for the wrapped viewport object is kPerspective.

Returns

true if projection type is kPerspective, false otherwise.

Definition at line 2503 of file GsInterfaceWrappers.h.

isViewportBorderVisible()

template<typename GsViewInterface = OdGsView, typename RedirectionBase = OdGsDefaultRedirectionBase<OdGsView, GsViewInterface>>

bool OdGsViewWrapperMinimalImpl< GsViewInterface, RedirectionBase >::isViewportBorderVisible ( ) const

inline

Checks whether the border is visible.

Returns

true if the border is visible for the wrapped viewport object, false otherwise.

Definition at line 2443 of file GsInterfaceWrappers.h.

isVisible()

template<typename GsViewInterface = OdGsView, typename RedirectionBase = OdGsDefaultRedirectionBase<OdGsView, GsViewInterface>>

bool OdGsViewWrapperMinimalImpl< GsViewInterface, RedirectionBase >::isVisible ( )

inline

Checks whether the wrapped viewport object is not hidden.

Returns

true if the wrapped viewport is visible, false otherwise.

Definition at line 2620 of file GsInterfaceWrappers.h.

lensLength()

template<typename GsViewInterface = OdGsView, typename RedirectionBase = OdGsDefaultRedirectionBase<OdGsView, GsViewInterface>>

double OdGsViewWrapperMinimalImpl< GsViewInterface, RedirectionBase >::lensLength ( ) const

inline

Returns the perspective lens length for the wrapped viewport object.

Definition at line 2490 of file GsInterfaceWrappers.h.

linetypeAlternateScaleMultiplier()

template<typename GsViewInterface = OdGsView, typename RedirectionBase = OdGsDefaultRedirectionBase<OdGsView, GsViewInterface>>

double OdGsViewWrapperMinimalImpl< GsViewInterface, RedirectionBase >::linetypeAlternateScaleMultiplier ( ) const

inline

Returns current alternate linetype scale multiplier value.

See also

<exref target="https://docs.opendesign.com/td/db_linetype.html">Working with Linetypes</exref>

Definition at line 2650 of file GsInterfaceWrappers.h.

linetypeScaleMultiplier()

template<typename GsViewInterface = OdGsView, typename RedirectionBase = OdGsDefaultRedirectionBase<OdGsView, GsViewInterface>>

double OdGsViewWrapperMinimalImpl< GsViewInterface, RedirectionBase >::linetypeScaleMultiplier ( ) const

inline

Returns current linetype scale multiplier value.

See also

<exref target="https://docs.opendesign.com/td/db_linetype.html">Working with Linetypes</exref>

Definition at line 2634 of file GsInterfaceWrappers.h.

lineweightToDcScale()

template<typename GsViewInterface = OdGsView, typename RedirectionBase = OdGsDefaultRedirectionBase<OdGsView, GsViewInterface>>

double OdGsViewWrapperMinimalImpl< GsViewInterface, RedirectionBase >::lineweightToDcScale ( ) const

inline

Returns the scale factor for displaying Lineweights in the wrapped viewport object.

See also

<link tv_working_with_attributes_lineweights, Work with Lineweights>

Definition at line 2277 of file GsInterfaceWrappers.h.

mode()

template<typename GsViewInterface = OdGsView, typename RedirectionBase = OdGsDefaultRedirectionBase<OdGsView, GsViewInterface>>

OdGsView::RenderMode OdGsViewWrapperMinimalImpl< GsViewInterface, RedirectionBase >::mode ( ) const

inline

Sets the render mode for the wrapped viewport object.

Remarks

mode must be one of the following:

Value Description kBoundingBox -1 Bounding box. For internal use only. k2DOptimized 0 Standard display. Optimized for 2D. kWireframe 1 Standard display. Uses 3D pipeline. kHiddenLine 2 Wireframe display. Hidden lines removed. kFlatShaded 3 Faceted display. One color per face. kGouraudShaded 4 Smooth shaded display. Colors interpolated between vertices. kFlatShadedWithWireframe 5 Faceted display with wireframe overlay. kGouraudShadedWithWireframe 6 Smooth shaded display with wireframe overlay.

Definition at line 2603 of file GsInterfaceWrappers.h.

position()

template<typename GsViewInterface = OdGsView, typename RedirectionBase = OdGsDefaultRedirectionBase<OdGsView, GsViewInterface>>

OdGePoint3d OdGsViewWrapperMinimalImpl< GsViewInterface, RedirectionBase >::position ( ) const

inline

Returns the WCS camera position for the wrapped viewport object.

Definition at line 2475 of file GsInterfaceWrappers.h.

setAlternateLinetypeScaleMultiplier()

template<typename GsViewInterface = OdGsView, typename RedirectionBase = OdGsDefaultRedirectionBase<OdGsView, GsViewInterface>>

void OdGsViewWrapperMinimalImpl< GsViewInterface, RedirectionBase >::setAlternateLinetypeScaleMultiplier ( double linetypeAlternateScaleMultiplier )

inline

Sets a multiplier that could be used as an alternate scale factor for linetypes in the wrapped viewport object.

Parameters

linetypeAlternateScaleMultiplier

[in] Alternate linetype scale multiplier.

See also

<exref target="https://docs.opendesign.com/td/db_linetype.html">Working with Linetypes</exref>

Definition at line 2643 of file GsInterfaceWrappers.h.

setBackClip()

template<typename GsViewInterface = OdGsView, typename RedirectionBase = OdGsDefaultRedirectionBase<OdGsView, GsViewInterface>>

void OdGsViewWrapperMinimalImpl< GsViewInterface, RedirectionBase >::setBackClip ( double backClip )

inline

Sets the back clip distance from the target of the wrapped viewport object.

Parameters

backClip

[in] Back clip distance.

Definition at line 2556 of file GsInterfaceWrappers.h.

setBackground()

template<typename GsViewInterface = OdGsView, typename RedirectionBase = OdGsDefaultRedirectionBase<OdGsView, GsViewInterface>>

void OdGsViewWrapperMinimalImpl< GsViewInterface, RedirectionBase >::setBackground ( OdDbStub * backgroundId )

inline

Sets background object for the wrapped view.

Parameters

backgroundId

[in] New background object ID.

See also

<link tv_working_with_attributes_view_backgrounds, Work with View Backgrounds>

Definition at line 2673 of file GsInterfaceWrappers.h.

setDevice()

template<typename GsViewInterface = OdGsView, typename RedirectionBase = OdGsDefaultRedirectionBase<OdGsView, GsViewInterface>>

void OdGsViewWrapperMinimalImpl< GsViewInterface, RedirectionBase >::setDevice ( OdGsDevice * pDevice )

inline

Sets the owning device for the wrapped viewport.

See also

<link tv_working_with_base_classes_device, Work with Visualize Graphics Devices>

Definition at line 2258 of file GsInterfaceWrappers.h.

setEnableBackClip()

template<typename GsViewInterface = OdGsView, typename RedirectionBase = OdGsDefaultRedirectionBase<OdGsView, GsViewInterface>>

void OdGsViewWrapperMinimalImpl< GsViewInterface, RedirectionBase >::setEnableBackClip ( bool enable )

inline

Controls the back clipping of the wrapped viewport object.

Parameters

enable

[in] Enable back clipping.

Definition at line 2543 of file GsInterfaceWrappers.h.

setEnableFrontClip()

template<typename GsViewInterface = OdGsView, typename RedirectionBase = OdGsDefaultRedirectionBase<OdGsView, GsViewInterface>>

void OdGsViewWrapperMinimalImpl< GsViewInterface, RedirectionBase >::setEnableFrontClip ( bool enable )

inline

Controls the front clipping of the wrapped viewport object.

Parameters

enable

[in] Enable front clipping.

Definition at line 2519 of file GsInterfaceWrappers.h.

setFrontClip()

template<typename GsViewInterface = OdGsView, typename RedirectionBase = OdGsDefaultRedirectionBase<OdGsView, GsViewInterface>>

void OdGsViewWrapperMinimalImpl< GsViewInterface, RedirectionBase >::setFrontClip ( double frontClip )

inline

Sets the front clip distance from the target of the wrapped viewport object.

Parameters

frontClip

[in] Front clip distance.

Definition at line 2532 of file GsInterfaceWrappers.h.

setLensLength()

template<typename GsViewInterface = OdGsView, typename RedirectionBase = OdGsDefaultRedirectionBase<OdGsView, GsViewInterface>>

void OdGsViewWrapperMinimalImpl< GsViewInterface, RedirectionBase >::setLensLength ( double lensLength )

inline

Sets the perspective lens length for the wrapped viewport object.

Parameters

lensLength

[in] Perspective lens length.

Definition at line 2496 of file GsInterfaceWrappers.h.

setLinetypeScaleMultiplier()

template<typename GsViewInterface = OdGsView, typename RedirectionBase = OdGsDefaultRedirectionBase<OdGsView, GsViewInterface>>

void OdGsViewWrapperMinimalImpl< GsViewInterface, RedirectionBase >::setLinetypeScaleMultiplier ( double linetypeScaleMultiplier )

inline

Sets a multiplier that is used to scale all linetypes in the wrapped viewport object.

Parameters

linetypeScaleMultiplier

[in] Linetype scale multiplier.

Definition at line 2627 of file GsInterfaceWrappers.h.

setLineweightToDcScale()

template<typename GsViewInterface = OdGsView, typename RedirectionBase = OdGsDefaultRedirectionBase<OdGsView, GsViewInterface>>

void OdGsViewWrapperMinimalImpl< GsViewInterface, RedirectionBase >::setLineweightToDcScale ( double scale )

inline

Sets the scale factor for displaying Lineweights in the wrapped viewport object.

Parameters

scale

[in] Scale factor.

See also

<link tv_working_with_attributes_lineweights, Work with Lineweights>

Definition at line 2285 of file GsInterfaceWrappers.h.

setMode()

template<typename GsViewInterface = OdGsView, typename RedirectionBase = OdGsDefaultRedirectionBase<OdGsView, GsViewInterface>>

void OdGsViewWrapperMinimalImpl< GsViewInterface, RedirectionBase >::setMode ( OdGsView::RenderMode mode )

inline

Sets the render mode for the wrapped viewport object.

Parameters

mode	[in] Render mode.

Remarks

mode must be one of the following:

Value Description kBoundingBox -1 Bounding box. For internal use only. k2DOptimized 0 Standard display. Optimized for 2D. kWireframe 1 Standard display. Uses 3D pipeline. kHiddenLine 2 Wireframe display. Hidden lines removed. kFlatShaded 3 Faceted display. One color per face. kGouraudShaded 4 Smooth shaded display. Colors interpolated between vertices. kFlatShadedWithWireframe 5 Faceted display with wireframe overlay. kGouraudShadedWithWireframe 6 Smooth shaded display with wireframe overlay.

Definition at line 2583 of file GsInterfaceWrappers.h.

setUserGiContext()

template<typename GsViewInterface = OdGsView, typename RedirectionBase = OdGsDefaultRedirectionBase<OdGsView, GsViewInterface>>

void OdGsViewWrapperMinimalImpl< GsViewInterface, RedirectionBase >::setUserGiContext ( OdGiContext * pUserGiContext )

inline

Sets the User Context object associated with the wrapped viewport object.

Parameters

pUserGiContext

[in] Pointer to the User Context.

Definition at line 2270 of file GsInterfaceWrappers.h.

setView()

template<typename GsViewInterface = OdGsView, typename RedirectionBase = OdGsDefaultRedirectionBase<OdGsView, GsViewInterface>>

void OdGsViewWrapperMinimalImpl< GsViewInterface, RedirectionBase >::setView ( const OdGePoint3d & position, const OdGePoint3d & target, const OdGeVector3d & upVector, double fieldWidth, double fieldHeight, OdGsView::Projection projectionType = OdGsView::kParallel )

inline

Sets the camera parameters for the wrapped viewport object.

Parameters

position	[in] Camera position.
target	[in] Camera target.
upVector	[in] Camera up vector.
fieldWidth	[in] Projection plane (field) width.
fieldHeight	[in] Projection plane (field) height.
projectionType	[in] Projection type.

Remarks

This method defines the transfomation from WCS coordinates to normalized device coordinates. All parameters are in WCS coordinates. projectionType must be one of the following:

Value kParallel 0 kPerspective 1

Definition at line 2465 of file GsInterfaceWrappers.h.

setViewInfo()

template<typename GsViewInterface = OdGsView, typename RedirectionBase = OdGsDefaultRedirectionBase<OdGsView, GsViewInterface>>

void OdGsViewWrapperMinimalImpl< GsViewInterface, RedirectionBase >::setViewInfo ( const OdGsClientViewInfo & clientViewInfo )

inline

Sets the ClientViewInfo for the wrapped viewport object.

Parameters

clientViewInfo

[out] Receives the ClientViewInfo.

Definition at line 2664 of file GsInterfaceWrappers.h.

setViewport() [1/3]

template<typename GsViewInterface = OdGsView, typename RedirectionBase = OdGsDefaultRedirectionBase<OdGsView, GsViewInterface>>

void OdGsViewWrapperMinimalImpl< GsViewInterface, RedirectionBase >::setViewport ( const OdGePoint2d & lowerLeft, const OdGePoint2d & upperRight )

inline

Sets the size and position of the wrapped viewport object.

Parameters

lowerLeft	[in] Lower-left corner in nomalized device coordinates [0.0 .. 1.0].
upperRight	[in] Upper-right corner in nomalized device coordinates [0.0 .. 1.0].

Remarks

(0,0) is the lower-left corner of the owning Device object. Coordinates increase upward and to the right. The View object can be partly or completely off screen.

Definition at line 2296 of file GsInterfaceWrappers.h.

setViewport() [2/3]

template<typename GsViewInterface = OdGsView, typename RedirectionBase = OdGsDefaultRedirectionBase<OdGsView, GsViewInterface>>

void OdGsViewWrapperMinimalImpl< GsViewInterface, RedirectionBase >::setViewport ( const OdGsDCRect & screenRect )

inline

Sets the size and position of the wrapped viewport object.

Parameters

screenRect

[in] Screen rectangle in device coordinates (pixels).

Remarks

(0,0) is the lower-left corner of the owning Device object. Coordinates increase upward and to the right.

The View object can be partly or completely off screen.

Definition at line 2308 of file GsInterfaceWrappers.h.

setViewport() [3/3]

template<typename GsViewInterface = OdGsView, typename RedirectionBase = OdGsDefaultRedirectionBase<OdGsView, GsViewInterface>>

void OdGsViewWrapperMinimalImpl< GsViewInterface, RedirectionBase >::setViewport ( const OdGsDCRectDouble & screenRect )

inline

Sets the size and position of the wrapped viewport object.

Parameters

screenRect

[in] Screen rectangle in device coordinates (pixels).

Remarks

(0,0) is the lower-left corner of the owning Device object. Coordinates increase upward and to the right. The View object can be partly or completely off screen.

Definition at line 2318 of file GsInterfaceWrappers.h.

setViewportBorderProperties()

template<typename GsViewInterface = OdGsView, typename RedirectionBase = OdGsDefaultRedirectionBase<OdGsView, GsViewInterface>>

void OdGsViewWrapperMinimalImpl< GsViewInterface, RedirectionBase >::setViewportBorderProperties ( ODCOLORREF color, int width )

inline

Sets the color and width of the border for the wrapped viewport object.

Parameters

color	[in] Border color.
width	[in] Border width in pixels.

Definition at line 2421 of file GsInterfaceWrappers.h.

setViewportBorderVisibility()

template<typename GsViewInterface = OdGsView, typename RedirectionBase = OdGsDefaultRedirectionBase<OdGsView, GsViewInterface>>

void OdGsViewWrapperMinimalImpl< GsViewInterface, RedirectionBase >::setViewportBorderVisibility ( bool visible )

inline

Controls the border visibility for the wrapped viewport object.

Parameters

visible

[in] Controls visibility.

Definition at line 2436 of file GsInterfaceWrappers.h.

setViewportClipRegion() [1/2]

template<typename GsViewInterface = OdGsView, typename RedirectionBase = OdGsDefaultRedirectionBase<OdGsView, GsViewInterface>>

void OdGsViewWrapperMinimalImpl< GsViewInterface, RedirectionBase >::setViewportClipRegion ( int numContours, int const * numVertices, OdGePoint2d const * vertices )

inline

Defines a polygonal clip region for the wrapped viewport object.

Parameters

numCoutours	[in] Number of polygonal contours.
numVertices	[in] Array of the number of vertices in each polygonal contour.
vertices	[in] Array of device coordinate (pixel) vertices defining the polygonal contours.

Definition at line 2380 of file GsInterfaceWrappers.h.

setViewportClipRegion() [2/2]

template<typename GsViewInterface = OdGsView, typename RedirectionBase = OdGsDefaultRedirectionBase<OdGsView, GsViewInterface>>

void OdGsViewWrapperMinimalImpl< GsViewInterface, RedirectionBase >::setViewportClipRegion ( int numContours, int const * numVertices, OdGsDCPoint const * vertices )

inline

Defines a polygonal clip region for the wrapped viewport object.

Parameters

numCoutours	[in] Number of polygonal contours.
numVertices	[in] Array of the number of vertices in each polygonal contour.
vertices	[in] Array of device coordinate (pixel) vertices defining the polygonal contours.

Definition at line 2362 of file GsInterfaceWrappers.h.

setVisualStyle()

template<typename GsViewInterface = OdGsView, typename RedirectionBase = OdGsDefaultRedirectionBase<OdGsView, GsViewInterface>>

void OdGsViewWrapperMinimalImpl< GsViewInterface, RedirectionBase >::setVisualStyle ( OdDbStub * visualStyleId )

inline

Sets visual style object for the wrapped view.

Parameters

visualStyleId

[in] New visual style object ID.

See also

<link tv_working_with_attributes_visual_styles, Work with Visual Styles>

Definition at line 2689 of file GsInterfaceWrappers.h.

show()

template<typename GsViewInterface = OdGsView, typename RedirectionBase = OdGsDefaultRedirectionBase<OdGsView, GsViewInterface>>

void OdGsViewWrapperMinimalImpl< GsViewInterface, RedirectionBase >::show ( )

inline

Un-hides the wrapped viewport object.

Definition at line 2613 of file GsInterfaceWrappers.h.

target()

template<typename GsViewInterface = OdGsView, typename RedirectionBase = OdGsDefaultRedirectionBase<OdGsView, GsViewInterface>>

OdGePoint3d OdGsViewWrapperMinimalImpl< GsViewInterface, RedirectionBase >::target ( ) const

inline

Returns the WCS camera target for the wrapped viewport object.

Definition at line 2480 of file GsInterfaceWrappers.h.

upVector()

template<typename GsViewInterface = OdGsView, typename RedirectionBase = OdGsDefaultRedirectionBase<OdGsView, GsViewInterface>>

OdGeVector3d OdGsViewWrapperMinimalImpl< GsViewInterface, RedirectionBase >::upVector ( ) const

inline

Returns the WCS camera up vector for the wrapped viewport object.

Definition at line 2485 of file GsInterfaceWrappers.h.

userGiContext()

template<typename GsViewInterface = OdGsView, typename RedirectionBase = OdGsDefaultRedirectionBase<OdGsView, GsViewInterface>>

OdGiContext * OdGsViewWrapperMinimalImpl< GsViewInterface, RedirectionBase >::userGiContext ( ) const

inline

Returns pointer to the GiContext object associated with the wrapped viewport object.

Definition at line 2263 of file GsInterfaceWrappers.h.

viewportClipRegion() [1/2]

template<typename GsViewInterface = OdGsView, typename RedirectionBase = OdGsDefaultRedirectionBase<OdGsView, GsViewInterface>>

void OdGsViewWrapperMinimalImpl< GsViewInterface, RedirectionBase >::viewportClipRegion ( OdIntArray & counts, OdGePoint2dArray & vertices ) const

inline

Returns a polygonal clip region for the wrapped viewport object.

Parameters

counts	[out] Array of the number of vertices in each polygonal contour.
vertices	[out] Array of device coordinate (pixel) vertices defining the polygonal contours.

Definition at line 2413 of file GsInterfaceWrappers.h.

viewportClipRegion() [2/2]

template<typename GsViewInterface = OdGsView, typename RedirectionBase = OdGsDefaultRedirectionBase<OdGsView, GsViewInterface>>

void OdGsViewWrapperMinimalImpl< GsViewInterface, RedirectionBase >::viewportClipRegion ( OdIntArray & counts, OdGsDCPointArray & vertices ) const

inline

Returns a polygonal clip region for the wrapped viewport object.

Parameters

counts	[out] Array of the number of vertices in each polygonal contour.
vertices	[out] Array of device coordinate (pixel) vertices defining the polygonal contours.

Definition at line 2397 of file GsInterfaceWrappers.h.

visualStyle()

template<typename GsViewInterface = OdGsView, typename RedirectionBase = OdGsDefaultRedirectionBase<OdGsView, GsViewInterface>>

OdDbStub * OdGsViewWrapperMinimalImpl< GsViewInterface, RedirectionBase >::visualStyle ( ) const

inline

Returns current visual style object ID for the wrapped view.

See also

<link tv_working_with_attributes_visual_styles, Work with Visual Styles>

Definition at line 2696 of file GsInterfaceWrappers.h.

Member Data Documentation

m_antiAliasingMode

template<typename GsViewInterface = OdGsView, typename RedirectionBase = OdGsDefaultRedirectionBase<OdGsView, GsViewInterface>>

OdUInt32 OdGsViewWrapperMinimalImpl< GsViewInterface, RedirectionBase >::m_antiAliasingMode

protected

Definition at line 2185 of file GsInterfaceWrappers.h.

m_backClip

template<typename GsViewInterface = OdGsView, typename RedirectionBase = OdGsDefaultRedirectionBase<OdGsView, GsViewInterface>>

double OdGsViewWrapperMinimalImpl< GsViewInterface, RedirectionBase >::m_backClip

protected

Definition at line 2179 of file GsInterfaceWrappers.h.

m_bBackClip

template<typename GsViewInterface = OdGsView, typename RedirectionBase = OdGsDefaultRedirectionBase<OdGsView, GsViewInterface>>

bool OdGsViewWrapperMinimalImpl< GsViewInterface, RedirectionBase >::m_bBackClip

protected

Definition at line 2178 of file GsInterfaceWrappers.h.

m_bBorderVisible

template<typename GsViewInterface = OdGsView, typename RedirectionBase = OdGsDefaultRedirectionBase<OdGsView, GsViewInterface>>

bool OdGsViewWrapperMinimalImpl< GsViewInterface, RedirectionBase >::m_bBorderVisible

protected

Definition at line 2172 of file GsInterfaceWrappers.h.

m_bFrontClip

template<typename GsViewInterface = OdGsView, typename RedirectionBase = OdGsDefaultRedirectionBase<OdGsView, GsViewInterface>>

bool OdGsViewWrapperMinimalImpl< GsViewInterface, RedirectionBase >::m_bFrontClip

protected

Definition at line 2178 of file GsInterfaceWrappers.h.

m_bHidden

template<typename GsViewInterface = OdGsView, typename RedirectionBase = OdGsDefaultRedirectionBase<OdGsView, GsViewInterface>>

bool OdGsViewWrapperMinimalImpl< GsViewInterface, RedirectionBase >::m_bHidden

protected

Definition at line 2181 of file GsInterfaceWrappers.h.

m_bkgnd

template<typename GsViewInterface = OdGsView, typename RedirectionBase = OdGsDefaultRedirectionBase<OdGsView, GsViewInterface>>

OdDbStub* OdGsViewWrapperMinimalImpl< GsViewInterface, RedirectionBase >::m_bkgnd

protected

Definition at line 2184 of file GsInterfaceWrappers.h.

m_borderColor

template<typename GsViewInterface = OdGsView, typename RedirectionBase = OdGsDefaultRedirectionBase<OdGsView, GsViewInterface>>

ODCOLORREF OdGsViewWrapperMinimalImpl< GsViewInterface, RedirectionBase >::m_borderColor

protected

Definition at line 2170 of file GsInterfaceWrappers.h.

m_borderWidth

template<typename GsViewInterface = OdGsView, typename RedirectionBase = OdGsDefaultRedirectionBase<OdGsView, GsViewInterface>>

int OdGsViewWrapperMinimalImpl< GsViewInterface, RedirectionBase >::m_borderWidth

protected

Definition at line 2171 of file GsInterfaceWrappers.h.

m_dcRect

template<typename GsViewInterface = OdGsView, typename RedirectionBase = OdGsDefaultRedirectionBase<OdGsView, GsViewInterface>>

OdGsDCRectDouble OdGsViewWrapperMinimalImpl< GsViewInterface, RedirectionBase >::m_dcRect

protected

Definition at line 2167 of file GsInterfaceWrappers.h.

m_fieldsHeight

template<typename GsViewInterface = OdGsView, typename RedirectionBase = OdGsDefaultRedirectionBase<OdGsView, GsViewInterface>>

double OdGsViewWrapperMinimalImpl< GsViewInterface, RedirectionBase >::m_fieldsHeight

protected

Definition at line 2175 of file GsInterfaceWrappers.h.

m_fieldsWidth

template<typename GsViewInterface = OdGsView, typename RedirectionBase = OdGsDefaultRedirectionBase<OdGsView, GsViewInterface>>

double OdGsViewWrapperMinimalImpl< GsViewInterface, RedirectionBase >::m_fieldsWidth

protected

Definition at line 2175 of file GsInterfaceWrappers.h.

m_frontClip

template<typename GsViewInterface = OdGsView, typename RedirectionBase = OdGsDefaultRedirectionBase<OdGsView, GsViewInterface>>

double OdGsViewWrapperMinimalImpl< GsViewInterface, RedirectionBase >::m_frontClip

protected

Definition at line 2179 of file GsInterfaceWrappers.h.

m_lensLength

template<typename GsViewInterface = OdGsView, typename RedirectionBase = OdGsDefaultRedirectionBase<OdGsView, GsViewInterface>>

double OdGsViewWrapperMinimalImpl< GsViewInterface, RedirectionBase >::m_lensLength

protected

Definition at line 2177 of file GsInterfaceWrappers.h.

m_llVpt

template<typename GsViewInterface = OdGsView, typename RedirectionBase = OdGsDefaultRedirectionBase<OdGsView, GsViewInterface>>

OdGePoint2d OdGsViewWrapperMinimalImpl< GsViewInterface, RedirectionBase >::m_llVpt

protected

Definition at line 2166 of file GsInterfaceWrappers.h.

m_ltpMult1

template<typename GsViewInterface = OdGsView, typename RedirectionBase = OdGsDefaultRedirectionBase<OdGsView, GsViewInterface>>

double OdGsViewWrapperMinimalImpl< GsViewInterface, RedirectionBase >::m_ltpMult1

protected

Definition at line 2182 of file GsInterfaceWrappers.h.

m_ltpMult2

template<typename GsViewInterface = OdGsView, typename RedirectionBase = OdGsDefaultRedirectionBase<OdGsView, GsViewInterface>>

double OdGsViewWrapperMinimalImpl< GsViewInterface, RedirectionBase >::m_ltpMult2

protected

Definition at line 2182 of file GsInterfaceWrappers.h.

m_lwdDcScale

template<typename GsViewInterface = OdGsView, typename RedirectionBase = OdGsDefaultRedirectionBase<OdGsView, GsViewInterface>>

double OdGsViewWrapperMinimalImpl< GsViewInterface, RedirectionBase >::m_lwdDcScale

protected

Definition at line 2165 of file GsInterfaceWrappers.h.

m_nrcClipCounts

template<typename GsViewInterface = OdGsView, typename RedirectionBase = OdGsDefaultRedirectionBase<OdGsView, GsViewInterface>>

OdIntArray OdGsViewWrapperMinimalImpl< GsViewInterface, RedirectionBase >::m_nrcClipCounts

protected

Definition at line 2168 of file GsInterfaceWrappers.h.

m_nrcClipPoints

template<typename GsViewInterface = OdGsView, typename RedirectionBase = OdGsDefaultRedirectionBase<OdGsView, GsViewInterface>>

OdGePoint2dArray OdGsViewWrapperMinimalImpl< GsViewInterface, RedirectionBase >::m_nrcClipPoints

protected

Definition at line 2169 of file GsInterfaceWrappers.h.

m_pContext

template<typename GsViewInterface = OdGsView, typename RedirectionBase = OdGsDefaultRedirectionBase<OdGsView, GsViewInterface>>

OdGiContext* OdGsViewWrapperMinimalImpl< GsViewInterface, RedirectionBase >::m_pContext

protected

Definition at line 2164 of file GsInterfaceWrappers.h.

m_pDevice

template<typename GsViewInterface = OdGsView, typename RedirectionBase = OdGsDefaultRedirectionBase<OdGsView, GsViewInterface>>

OdGsDevice* OdGsViewWrapperMinimalImpl< GsViewInterface, RedirectionBase >::m_pDevice

protected

Definition at line 2163 of file GsInterfaceWrappers.h.

m_position

template<typename GsViewInterface = OdGsView, typename RedirectionBase = OdGsDefaultRedirectionBase<OdGsView, GsViewInterface>>

OdGePoint3d OdGsViewWrapperMinimalImpl< GsViewInterface, RedirectionBase >::m_position

protected

Definition at line 2173 of file GsInterfaceWrappers.h.

m_projection

template<typename GsViewInterface = OdGsView, typename RedirectionBase = OdGsDefaultRedirectionBase<OdGsView, GsViewInterface>>

OdGsView::Projection OdGsViewWrapperMinimalImpl< GsViewInterface, RedirectionBase >::m_projection

protected

Definition at line 2176 of file GsInterfaceWrappers.h.

m_renderMode

template<typename GsViewInterface = OdGsView, typename RedirectionBase = OdGsDefaultRedirectionBase<OdGsView, GsViewInterface>>

OdGsView::RenderMode OdGsViewWrapperMinimalImpl< GsViewInterface, RedirectionBase >::m_renderMode

protected

Definition at line 2180 of file GsInterfaceWrappers.h.

m_target

template<typename GsViewInterface = OdGsView, typename RedirectionBase = OdGsDefaultRedirectionBase<OdGsView, GsViewInterface>>

OdGePoint3d OdGsViewWrapperMinimalImpl< GsViewInterface, RedirectionBase >::m_target

protected

Definition at line 2173 of file GsInterfaceWrappers.h.

m_upVector

template<typename GsViewInterface = OdGsView, typename RedirectionBase = OdGsDefaultRedirectionBase<OdGsView, GsViewInterface>>

OdGeVector3d OdGsViewWrapperMinimalImpl< GsViewInterface, RedirectionBase >::m_upVector

protected

Definition at line 2174 of file GsInterfaceWrappers.h.

m_urVpt

template<typename GsViewInterface = OdGsView, typename RedirectionBase = OdGsDefaultRedirectionBase<OdGsView, GsViewInterface>>

OdGePoint2d OdGsViewWrapperMinimalImpl< GsViewInterface, RedirectionBase >::m_urVpt

protected

Definition at line 2166 of file GsInterfaceWrappers.h.

m_viewInfo

template<typename GsViewInterface = OdGsView, typename RedirectionBase = OdGsDefaultRedirectionBase<OdGsView, GsViewInterface>>

OdGsClientViewInfo OdGsViewWrapperMinimalImpl< GsViewInterface, RedirectionBase >::m_viewInfo

protected

Definition at line 2183 of file GsInterfaceWrappers.h.

m_visualStyle

template<typename GsViewInterface = OdGsView, typename RedirectionBase = OdGsDefaultRedirectionBase<OdGsView, GsViewInterface>>

OdDbStub * OdGsViewWrapperMinimalImpl< GsViewInterface, RedirectionBase >::m_visualStyle

protected

Definition at line 2184 of file GsInterfaceWrappers.h.

---

The documentation for this class was generated from the following file:

• GsInterfaceWrappers.h
