OdDbUnitsFormatter Class Reference

#include <DbUnitsFormatter.h>

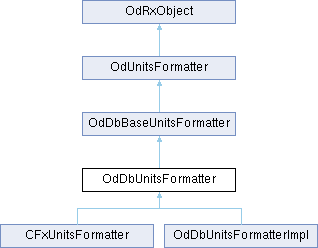

Inheritance diagram for OdDbUnitsFormatter:

Public Member Functions
	ODRX_DECLARE_MEMBERS (OdDbUnitsFormatter)
virtual double	toUserAngle (double wcsAngle) const =0
virtual double	fromUserAngle (double ucsAngle) const =0
virtual OdString	formatPoint (const OdGePoint3d &value) const =0
virtual OdGePoint3d	unformatPoint (const OdString &string) const =0
virtual OdGePoint3d	toUCS (const OdGePoint3d &wcsPt) const =0
virtual OdGePoint3d	fromUCS (const OdGePoint3d &ucsPt) const =0
virtual void	UCS2WCS (OdGeMatrix3d &ucs2wcs) const =0
Public Member Functions inherited from OdDbBaseUnitsFormatter
	ODRX_DECLARE_MEMBERS (OdDbBaseUnitsFormatter)
virtual OdString	formatCmColor (const OdCmColorBase &value) const
virtual OdSharedPtr< OdCmColorBase >	unformatCmColor (const OdString &string) const
virtual OdString	formatLinear (double value) const
virtual double	unformatLinear (const OdString &string) const
virtual OdString	formatAngle (double value) const
virtual double	unformatAngle (const OdString &string) const
Public Member Functions inherited from OdUnitsFormatter
	ODRX_DECLARE_MEMBERS (OdUnitsFormatter)
Public Member Functions inherited from OdRxObject
	ODRX_HEAP_OPERATORS ()
	OdRxObject ()
virtual	~OdRxObject ()
virtual OdRxObject *	queryX (const OdRxClass *pClass) const
virtual OdRxObject *	x (const OdRxClass *pClass) const
virtual OdRxClass *	isA () const
virtual void	addRef ()=0
virtual void	release ()=0
virtual long	numRefs () const
bool	isKindOf (const OdRxClass *pClass) const
virtual OdRxObjectPtr	clone () const
virtual void	copyFrom (const OdRxObject *pSource)
virtual OdRx::Ordering	comparedTo (const OdRxObject *pOther) const
virtual bool	isEqualTo (const OdRxObject *pOther) const

Static Public Member Functions
static OdString	formatColor (const OdCmColor &value)
static OdCmColor	unformatColor (const OdString &string)
Static Public Member Functions inherited from OdUnitsFormatter
static bool	isZeroFeetSuppressed (int dimzin)
static bool	isZeroInchesSuppressed (int dimzin)
static bool	isZeroFeetSuppressed2 (int dimzin)
static bool	isZeroInchesSuppressed2 (int dimzin)
static OdString	formatL (double value, LUnits lUnits, int precision, int dimzin, int unitMode, const OdChar *decsep=0, const OdChar *thsep=0, bool useStdRound=true)
static OdString	formatArea (double value, LUnits lUnits, int precision, int dimzin, int unitMode, const OdChar *decsep=0, const OdChar *thsep=0)
static double	unformatL (const OdString &string)
static OdString	formatA (double value, AUnits aUnits, int precision, int dimazin, int unitMode, const OdChar *decsep=0)
static OdString	formatA_unnorm (double value, AUnits aUnits, int precision, int dimazin, int unitMode, const OdChar *decsep=0)
static double	unformatA (const OdString &string)
static double	unformatA_unnorm (const OdString &string, bool refuseDots=false)
Static Public Member Functions inherited from OdRxObject
static OdRxObjectPtr	cast (const OdRxObject *pointer)
static OdRxClass *	desc ()
static void	rxInit ()
static void	rxUninit ()

Additional Inherited Members
Public Types inherited from OdUnitsFormatter
enum	LUnits {   kScientific = 1 , kDecimal = 2 , kEngineering = 3 , kArchitectural = 4 ,   kFractional = 5 , kWindowsDesktop = 6 }
enum	AUnits {   kDegrees = 0 , kDegMinSec = 1 , kGrads = 2 , kRadians = 3 ,   kSurveyors = 4 }
Protected Member Functions inherited from OdDbBaseUnitsFormatter
	OdDbBaseUnitsFormatter ()
Static Protected Member Functions inherited from OdDbBaseUnitsFormatter
static bool	unformatTo (const OdString &string, OdCmColorBase &color, enum OdCmEntityColor::ColorMethod withMethodOnly=(enum OdCmEntityColor::ColorMethod) 0)

Detailed Description

This class defines the interface for a Units Formatter. <group OdDb_Classes>

Definition at line 40 of file DbUnitsFormatter.h.

Member Function Documentation

formatColor()

static OdString OdDbUnitsFormatter::formatColor ( const OdCmColor & value )

static

Returns the specified color value or OdDbColor object as a string.

Parameters

value

[in] Value to format.

formatPoint()

virtual OdString OdDbUnitsFormatter::formatPoint ( const OdGePoint3d & value ) const

pure virtual

Returns the specified 3D point value as a string.

Parameters

value

[in] Value to format.

Remarks

The returned value depends on the DIMZIN, LUNITS, LUPREC, and UNITMODE system variables.

Implemented in CFxUnitsFormatter, and OdDbUnitsFormatterImpl.

fromUCS()

virtual OdGePoint3d OdDbUnitsFormatter::fromUCS ( const OdGePoint3d & ucsPt ) const

pure virtual

Returns the specified UCS point as a WCS point.

Parameters

ucsPt

[in] UCS point.

Implemented in CFxUnitsFormatter, and OdDbUnitsFormatterImpl.

fromUserAngle()

virtual double OdDbUnitsFormatter::fromUserAngle ( double ucsAngle ) const

pure virtual

Returns the specified UCS angle as an angle in the WCS.

Parameters

ucsAngle

[in] UCS angle.

Remarks

All angles are expressed in radians.

Implemented in CFxUnitsFormatter, and OdDbUnitsFormatterImpl.

ODRX_DECLARE_MEMBERS()

OdDbUnitsFormatter::ODRX_DECLARE_MEMBERS

(

OdDbUnitsFormatter

)

toUCS()

virtual OdGePoint3d OdDbUnitsFormatter::toUCS ( const OdGePoint3d & wcsPt ) const

pure virtual

Returns the specified WCS point as a UCS point.

Parameters

wcsPt

[in] WCS point.

Implemented in CFxUnitsFormatter, and OdDbUnitsFormatterImpl.

toUserAngle()

virtual double OdDbUnitsFormatter::toUserAngle ( double wcsAngle ) const

pure virtual

Returns the specified WCS angle as an angle in the UCS.

Parameters

wcsAngle

[in] WCS angle.

Remarks

All angles are expressed in radians.

Implemented in CFxUnitsFormatter, and OdDbUnitsFormatterImpl.

UCS2WCS()

virtual void OdDbUnitsFormatter::UCS2WCS ( OdGeMatrix3d & ucs2wcs ) const

pure virtual

Returns UCS orientation (origin and X,Y,Z axes) of active viewport as OdGeMatrix3d.

Parameters

ucs2wcs

[out] function sets this parameter to UCS-to-WCS transform.

See also

<link OdDbDatabase::getUCSORG(), OdDbDatabase::getUCSXDIR(), OdDbDatabase::getUCSYDIR(), OdDbDatabase::getPUCSORG(), OdDbDatabase::getPUCSXDIR(), OdDbDatabase::getPUCSYDIR()>

Implemented in CFxUnitsFormatter, and OdDbUnitsFormatterImpl.

unformatColor()

static OdCmColor OdDbUnitsFormatter::unformatColor ( const OdString & string )

static

Returns the specified string as an OdCmColor object.

Parameters

string

[in] String to unformat.

unformatPoint()

virtual OdGePoint3d OdDbUnitsFormatter::unformatPoint ( const OdString & string ) const

pure virtual

Returns the specified string as a point value.

Parameters

string

[in] String to unformat.

Implemented in CFxUnitsFormatter, and OdDbUnitsFormatterImpl.

---

The documentation for this class was generated from the following file:

• DbUnitsFormatter.h
