#include <IfcConstraintAutoImpl.h>

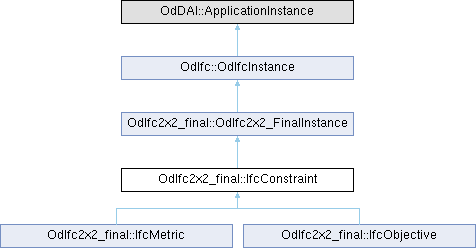

Inheritance diagram for OdIfc2x2_final::IfcConstraint:

Public Member Functions
const OdAnsiString &	getName () const

void	setName (const OdAnsiString &Name)

const OdAnsiString &	getDescription () const

void	setDescription (const OdAnsiString &Description)

IfcConstraintEnum	getConstraintGrade () const

void	setConstraintGrade (IfcConstraintEnum ConstraintGrade)

const OdAnsiString &	getConstraintSource () const

void	setConstraintSource (const OdAnsiString &ConstraintSource)

IfcActorSelect	creatingActor ()

IfcDateTimeSelect	creationTime ()

const OdAnsiString &	getUserDefinedGrade () const

void	setUserDefinedGrade (const OdAnsiString &UserDefinedGrade)

void	getInvClassifiedAs (OdDAIObjectIds &ClassifiedAs) const

void	getInvRelatesConstraints (OdDAIObjectIds &RelatesConstraints) const

void	getInvIsRelatedWith (OdDAIObjectIds &IsRelatedWith) const

void	getInvPropertiesForConstraint (OdDAIObjectIds &PropertiesForConstraint) const

void	getInvAggregates (OdDAIObjectIds &Aggregates) const

void	getInvIsAggregatedIn (OdDAIObjectIds &IsAggregatedIn) const

	IfcConstraint ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
OdAnsiString	m_Name

OdAnsiString	m_Description

OdDAI::Enum	m_ConstraintGrade

OdAnsiString	m_ConstraintSource

OdDAI::Select	m_CreatingActor

OdDAI::Select	m_CreationTime

OdAnsiString	m_UserDefinedGrade

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Friends
class	IfcConstraintClassificationRelationship

class	IfcConstraintRelationship

class	IfcPropertyConstraintRelationship

class	IfcConstraintAggregationRelationship

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

An IfcConstraint is used to define a constraint or limiting value or boundary condition that can be applied to an object or to the value of a property.

Constraints can be subdivided into user-defined constraints and system-defined constraints. User-defined constraints are applied by a user and are restricted to high-level definitions such as object properties. System-defined constraints can apply to any object attribute, are typically defined by an application to enforce data validation or parametric behavior, and are intended to be enforced by applications but not to be directly editable by an end-user.

Remarks: This definition may not be instantiated.

Definition at line 54 of file Ifc2x2_Final/IfcConstraintAutoImpl.h.

Constructor & Destructor Documentation

◆ IfcConstraint()

OdIfc2x2_final::IfcConstraint::IfcConstraint ( )

Default constructor for the IfcConstraint class.

Member Function Documentation

◆ creatingActor()

IfcActorSelect OdIfc2x2_final::IfcConstraint::creatingActor ( )

Returns the value of CreatingActor attribute. This attribute represents person and/or organization that has created the constraint.

Returns: Returns the value of CreatingActor attribute.

◆ creationTime()

IfcDateTimeSelect OdIfc2x2_final::IfcConstraint::creationTime ( )

Returns the value of CreationTime attribute. This attribute represents time when information specifying the constraint instance was created.

Returns: Returns the value of CreationTime attribute.

◆ getAttr() [1/2]

virtual OdRxValue OdIfc2x2_final::IfcConstraint::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented in OdIfc2x2_final::IfcMetric, and OdIfc2x2_final::IfcObjective.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc2x2_final::IfcConstraint::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc2x2_final::IfcMetric, and OdIfc2x2_final::IfcObjective.

◆ getConstraintGrade()

IfcConstraintEnum OdIfc2x2_final::IfcConstraint::getConstraintGrade ( ) const

Returns the value of ConstraintGrade attribute. This attribute represents enumeration that qualifies the type of constraint.

Returns: Returns the value of ConstraintGrade attribute.

◆ getConstraintSource()

const OdAnsiString & OdIfc2x2_final::IfcConstraint::getConstraintSource ( ) const

Returns the value of ConstraintSource attribute. This attribute represents any source material, such as a code or standard, from which the constraint originated.

Returns: Returns the value of ConstraintSource attribute.

◆ getDescription()

const OdAnsiString & OdIfc2x2_final::IfcConstraint::getDescription ( ) const

Returns the value of Description attribute. This attribute represents a human-readable description that can apply additional information about a constraint.

Returns: Returns the value of Description attribute.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc2x2_final::IfcConstraint::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented in OdIfc2x2_final::IfcMetric, and OdIfc2x2_final::IfcObjective.

◆ getInvAggregates()

void OdIfc2x2_final::IfcConstraint::getInvAggregates ( OdDAIObjectIds & Aggregates ) const

Returns the value of PropertiesForConstraint attribute. This attribute represents reference to the relationships that collect other constraints into this aggregate constraint.

Parameters

Aggregates [out] Receives the value of Aggregates attribute.

◆ getInvClassifiedAs()

void OdIfc2x2_final::IfcConstraint::getInvClassifiedAs ( OdDAIObjectIds & ClassifiedAs ) const

Gets the value of ClassifiedAs attribute. This attribute represents reference to the constraint classifications through objectified relationship.

Parameters

ClassifiedAs [out] Receives the ClassifiedAs attribute.

◆ getInvIsAggregatedIn()

void OdIfc2x2_final::IfcConstraint::getInvIsAggregatedIn ( OdDAIObjectIds & IsAggregatedIn ) const

Returns the value of IsAggregatedIn attribute. This attribute represents reference to the relationships that relate this constraint into aggregate constraints.

Parameters

IsAggregatedIn [out] Receives the value of IsAggregatedIn attribute.

◆ getInvIsRelatedWith()

void OdIfc2x2_final::IfcConstraint::getInvIsRelatedWith ( OdDAIObjectIds & IsRelatedWith ) const

Gets the value of IsRelatedWith attribute. This attribute references to the objectified relationships that relate this constraint with other constraints.

Parameters

IsRelatedWith [out] Receives the IsRelatedWith attribute.

◆ getInvPropertiesForConstraint()

void OdIfc2x2_final::IfcConstraint::getInvPropertiesForConstraint ( OdDAIObjectIds & PropertiesForConstraint ) const

Returns the value of PropertiesForConstraint attribute. This attribute represents reference to the properties to which the constraint is applied.

Parameters

PropertiesForConstraint [out] Receives the value of PropertiesForConstraint attribute.

◆ getInvRelatesConstraints()

void OdIfc2x2_final::IfcConstraint::getInvRelatesConstraints ( OdDAIObjectIds & RelatesConstraints ) const

Gets the value of RelatesConstraints attribute. This attribute references to the objectified relationships that relate other constraints with this constraint.

Parameters

RelatesConstraints [out] Receives the RelatesConstraints attribute.

◆ getName()

const OdAnsiString & OdIfc2x2_final::IfcConstraint::getName ( ) const

Returns the value of Name attribute. This attribute represents a human-readable name that is used for the constraint.

Returns: Returns the value of Name attribute.

◆ getUserDefinedGrade()

const OdAnsiString & OdIfc2x2_final::IfcConstraint::getUserDefinedGrade ( ) const

Returns the value of UserDefinedGrade attribute. This attribute allows specification of user-defined grade of the constraint beyond the enumeration values provided by ConstraintGrade attribute of type IfcConstraintEnum. When a value is provided for attribute UserDefinedGrade in parallel the attribute ConstraintGrade has enumeration value USERDEFINED.

Returns: Returns the value of UserDefinedGrade attribute.

◆ inFields()

virtual OdResult OdIfc2x2_final::IfcConstraint::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented in OdIfc2x2_final::IfcMetric, and OdIfc2x2_final::IfcObjective.

◆ isKindOf()

virtual bool OdIfc2x2_final::IfcConstraint::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc2x2_final::IfcMetric, and OdIfc2x2_final::IfcObjective.

◆ outFields()

virtual OdResult OdIfc2x2_final::IfcConstraint::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented in OdIfc2x2_final::IfcMetric, and OdIfc2x2_final::IfcObjective.

◆ putAttr() [1/2]

virtual bool OdIfc2x2_final::IfcConstraint::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc2x2_final::IfcMetric, and OdIfc2x2_final::IfcObjective.

◆ putAttr() [2/2]

virtual bool OdIfc2x2_final::IfcConstraint::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc2x2_final::IfcMetric, and OdIfc2x2_final::IfcObjective.

◆ setConstraintGrade()

void OdIfc2x2_final::IfcConstraint::setConstraintGrade ( IfcConstraintEnum ConstraintGrade )

Sets the value of ConstraintGrade attribute. This attribute represents enumeration that qualifies the type of constraint.

Parameters

ConstraintGrade [in] Constraint grade to set.

◆ setConstraintSource()

void OdIfc2x2_final::IfcConstraint::setConstraintSource ( const OdAnsiString & ConstraintSource )

Sets the value of ConstraintSource attribute. This attribute represents any source material, such as a code or standard, from which the constraint originated.

Parameters

ConstraintSource [in] Constraint source to set.

◆ setDescription()

void OdIfc2x2_final::IfcConstraint::setDescription ( const OdAnsiString & Description )

Sets the value of Description attribute. This attribute represents a human-readable description that can apply additional information about a constraint.

Parameters

Description [in] Description to set.

◆ setName()

void OdIfc2x2_final::IfcConstraint::setName ( const OdAnsiString & Name )

Sets the value of Name attribute. This attribute represents a human-readable name that is used for the constraint.

Parameters

Name	[in] Name to set.

◆ setUserDefinedGrade()

void OdIfc2x2_final::IfcConstraint::setUserDefinedGrade ( const OdAnsiString & UserDefinedGrade )

Sets the value of UserDefinedGrade attribute. This attribute allows specification of user-defined grade of the constraint beyond the enumeration values provided by ConstraintGrade attribute of type IfcConstraintEnum. When a value is provided for attribute UserDefinedGrade in parallel the attribute ConstraintGrade has enumeration value USERDEFINED.

Parameters

UserDefinedGrade [in] User-defined grade to set.

◆ testAttr() [1/2]

virtual bool OdIfc2x2_final::IfcConstraint::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc2x2_final::IfcMetric, and OdIfc2x2_final::IfcObjective.

◆ testAttr() [2/2]

virtual bool OdIfc2x2_final::IfcConstraint::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc2x2_final::IfcMetric, and OdIfc2x2_final::IfcObjective.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc2x2_final::IfcConstraint::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc2x2_final::IfcMetric, and OdIfc2x2_final::IfcObjective.
