#include <IfcRectangleProfileDefAutoImpl.h>

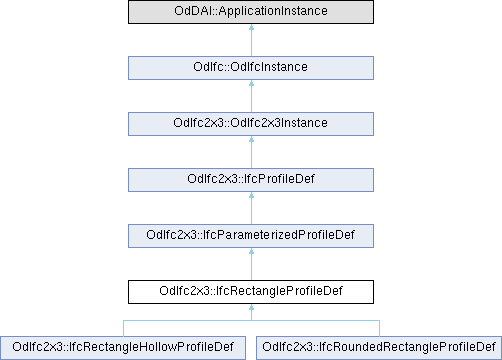

Inheritance diagram for OdIfc2x3::IfcRectangleProfileDef:

Public Member Functions
double	getXDim () const

void	setXDim (double XDim)

double	getYDim () const

void	setYDim (double YDim)

	IfcRectangleProfileDef ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual bool	comparedToEarlyImpl (const OdDAI::ApplicationInstance *pOther, OdRx::Ordering &ordering) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc2x3::IfcParameterizedProfileDef
const OdDAIObjectId &	getPosition () const

void	setPosition (const OdDAIObjectId &Position)

Public Member Functions inherited from OdIfc2x3::IfcProfileDef
IfcProfileTypeEnum	getProfileType () const

void	setProfileType (IfcProfileTypeEnum ProfileType)

const OdAnsiString &	getProfileName () const

void	setProfileName (const OdAnsiString &ProfileName)

	IfcProfileDef ()

Public Member Functions inherited from OdIfc2x3::OdIfc2x3Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
IfcPositiveLengthMeasure	m_XDim

IfcPositiveLengthMeasure	m_YDim

Protected Attributes inherited from OdIfc2x3::IfcParameterizedProfileDef
OdDAIObjectId	m_Position

Protected Attributes inherited from OdIfc2x3::IfcProfileDef
OdDAI::Enum	m_ProfileType

OdAnsiString	m_ProfileName

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

IfcRectangleProfileDef defines a rectangle as the profile definition used by the swept surface geometry or the swept area solid. It is specified by its X extent and its Y extent, and placed within the 2D position coordinate system, established by the Position attribute. It is placed centric within the position coordinate system.

The parameterized profile defines its own position coordinate system. The underlying coordinate system is defined by the swept surface or swept area solid that uses the profile definition. It is the xy plane of either: IfcSweptSurface.Position IfcSweptAreaSolid.Position

or in case of sectioned spines the xy plane of each list member of IfcSectionedSpine.CrossSectionPositions. By using offsets of the position location, the parameterized profile can be positioned centric (using x,y offsets = 0.), or at any position relative to the profile. Explicit coordinate offsets are used to define cardinal points (for example, upper-left bound).

Definition at line 53 of file Ifc2x3/IfcRectangleProfileDefAutoImpl.h.

Constructor & Destructor Documentation

◆ IfcRectangleProfileDef()

OdIfc2x3::IfcRectangleProfileDef::IfcRectangleProfileDef ( )

Default constructor for the IfcRectangleProfileDef class.

Member Function Documentation

◆ comparedToEarlyImpl()

virtual bool OdIfc2x3::IfcRectangleProfileDef::comparedToEarlyImpl	(	const OdDAI::ApplicationInstance *	pOther,
		OdRx::Ordering &	ordering ) const

overridevirtual

Early-bound version of instances comparison.

Parameters

pOther	[in] Other application instance.
ordering	[out] Receives the ordering (comparison) status.

Returns: true if comparison was performed, false if method has no implementation, so late-bound version could be applied.

Remarks

If the method returns true, the ordering parameter can receive one of the following statuses:

Value Description kLessThan -1 This object < Other Object. kEqual 0 This object = Other Object. kGreaterThan 1 This object > Other Object. kNotOrderable 2 This class is not orderable.

Reimplemented from OdIfc2x3::IfcParameterizedProfileDef.

Reimplemented in OdIfc2x3::IfcRectangleHollowProfileDef, and OdIfc2x3::IfcRoundedRectangleProfileDef.

◆ getAttr() [1/2]

virtual OdRxValue OdIfc2x3::IfcRectangleProfileDef::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc2x3::IfcParameterizedProfileDef.

Reimplemented in OdIfc2x3::IfcRectangleHollowProfileDef, and OdIfc2x3::IfcRoundedRectangleProfileDef.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc2x3::IfcRectangleProfileDef::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc2x3::IfcParameterizedProfileDef.

Reimplemented in OdIfc2x3::IfcRectangleHollowProfileDef, and OdIfc2x3::IfcRoundedRectangleProfileDef.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc2x3::IfcRectangleProfileDef::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc2x3::IfcParameterizedProfileDef.

Reimplemented in OdIfc2x3::IfcRectangleHollowProfileDef, and OdIfc2x3::IfcRoundedRectangleProfileDef.

◆ getXDim()

double OdIfc2x3::IfcRectangleProfileDef::getXDim ( ) const

Returns the value of XDim attribute. This attribute represents the extent of the rectangle in the direction of the x-axis.

Returns: Returns the value of XDim attribute.

◆ getYDim()

double OdIfc2x3::IfcRectangleProfileDef::getYDim ( ) const

Returns the value of YDim attribute. This attribute represents the extent of the rectangle in the direction of the y-axis.

Returns: Returns the value of YDim attribute.

◆ inFields()

virtual OdResult OdIfc2x3::IfcRectangleProfileDef::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc2x3::IfcParameterizedProfileDef.

Reimplemented in OdIfc2x3::IfcRectangleHollowProfileDef, and OdIfc2x3::IfcRoundedRectangleProfileDef.

◆ isKindOf()

virtual bool OdIfc2x3::IfcRectangleProfileDef::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc2x3::IfcParameterizedProfileDef.

Reimplemented in OdIfc2x3::IfcRectangleHollowProfileDef, and OdIfc2x3::IfcRoundedRectangleProfileDef.

◆ outFields()

virtual OdResult OdIfc2x3::IfcRectangleProfileDef::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc2x3::IfcParameterizedProfileDef.

Reimplemented in OdIfc2x3::IfcRectangleHollowProfileDef, and OdIfc2x3::IfcRoundedRectangleProfileDef.

◆ putAttr() [1/2]

virtual bool OdIfc2x3::IfcRectangleProfileDef::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc2x3::IfcParameterizedProfileDef.

Reimplemented in OdIfc2x3::IfcRectangleHollowProfileDef, and OdIfc2x3::IfcRoundedRectangleProfileDef.

◆ putAttr() [2/2]

virtual bool OdIfc2x3::IfcRectangleProfileDef::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc2x3::IfcParameterizedProfileDef.

Reimplemented in OdIfc2x3::IfcRectangleHollowProfileDef, and OdIfc2x3::IfcRoundedRectangleProfileDef.

◆ setXDim()

void OdIfc2x3::IfcRectangleProfileDef::setXDim ( double XDim )

Sets the value of XDim attribute. This attribute represents the extent of the rectangle in the direction of the x-axis.

Parameters

XDim	[in] XDim to set.

◆ setYDim()

void OdIfc2x3::IfcRectangleProfileDef::setYDim ( double YDim )

Sets the value of YDim attribute. This attribute represents the extent of the rectangle in the direction of the y-axis.

Parameters

YDim	[in] YDim to set.

◆ testAttr() [1/2]

virtual bool OdIfc2x3::IfcRectangleProfileDef::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc2x3::IfcParameterizedProfileDef.

Reimplemented in OdIfc2x3::IfcRectangleHollowProfileDef, and OdIfc2x3::IfcRoundedRectangleProfileDef.

◆ testAttr() [2/2]

virtual bool OdIfc2x3::IfcRectangleProfileDef::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc2x3::IfcParameterizedProfileDef.

Reimplemented in OdIfc2x3::IfcRectangleHollowProfileDef, and OdIfc2x3::IfcRoundedRectangleProfileDef.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc2x3::IfcRectangleProfileDef::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc2x3::IfcParameterizedProfileDef.

Reimplemented in OdIfc2x3::IfcRectangleHollowProfileDef, and OdIfc2x3::IfcRoundedRectangleProfileDef.
