#include <IfcSubContractResourceAutoImpl.h>

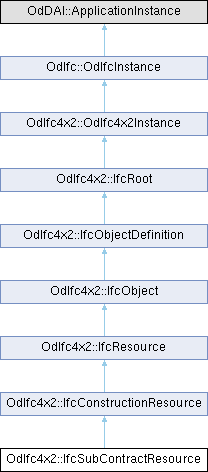

Inheritance diagram for OdIfc4x2::IfcSubContractResource:

Public Member Functions
IfcSubContractResourceTypeEnum	getPredefinedType () const

void	setPredefinedType (IfcSubContractResourceTypeEnum PredefinedType)

	IfcSubContractResource ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc4x2::IfcConstructionResource
const OdDAIObjectId &	getUsage () const

void	setUsage (const OdDAIObjectId &Usage)

void	getBaseCosts (OdDAIObjectIds &BaseCosts) const

OdDAI::ListOfOdDAIObjectId &	baseCosts ()

const OdDAIObjectId &	getBaseQuantity () const

void	setBaseQuantity (const OdDAIObjectId &BaseQuantity)

Public Member Functions inherited from OdIfc4x2::IfcResource
const OdAnsiString &	getIdentification () const

void	setIdentification (const OdAnsiString &Identification)

const OdAnsiString &	getLongDescription () const

void	setLongDescription (const OdAnsiString &LongDescription)

void	getInvResourceOf (OdDAIObjectIds &ResourceOf) const

	IfcResource ()

Public Member Functions inherited from OdIfc4x2::IfcObject
const OdAnsiString &	getObjectType () const

void	setObjectType (const OdAnsiString &ObjectType)

void	getInvIsDeclaredBy (OdDAIObjectIds &IsDeclaredBy) const

void	getInvDeclares (OdDAIObjectIds &Declares) const

void	getInvIsTypedBy (OdDAIObjectIds &IsTypedBy) const

void	getInvIsDefinedBy (OdDAIObjectIds &IsDefinedBy) const

	IfcObject ()

Public Member Functions inherited from OdIfc4x2::IfcObjectDefinition
void	getInvHasAssignments (OdDAIObjectIds &HasAssignments) const

void	getInvNests (OdDAIObjectIds &Nests) const

void	getInvIsNestedBy (OdDAIObjectIds &IsNestedBy) const

void	getInvHasContext (OdDAIObjectIds &HasContext) const

void	getInvIsDecomposedBy (OdDAIObjectIds &IsDecomposedBy) const

void	getInvDecomposes (OdDAIObjectIds &Decomposes) const

void	getInvHasAssociations (OdDAIObjectIds &HasAssociations) const

Public Member Functions inherited from OdIfc4x2::IfcRoot
OdDAI::CompressedGUID	getGlobalId () const

void	setGlobalId (OdDAI::CompressedGUID GlobalId)

const OdDAIObjectId &	getOwnerHistory () const

void	setOwnerHistory (const OdDAIObjectId &OwnerHistory)

const OdAnsiString &	getName () const

void	setName (const OdAnsiString &Name)

const OdAnsiString &	getDescription () const

void	setDescription (const OdAnsiString &Description)

	IfcRoot ()

Public Member Functions inherited from OdIfc4x2::OdIfc4x2Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
OdDAI::Enum	m_PredefinedType

Protected Attributes inherited from OdIfc4x2::IfcConstructionResource
OdDAIObjectId	m_Usage

OdDAI::ListOfOdDAIObjectId	m_BaseCosts

OdDAIObjectId	m_BaseQuantity

Protected Attributes inherited from OdIfc4x2::IfcResource
OdAnsiString	m_Identification

OdAnsiString	m_LongDescription

Protected Attributes inherited from OdIfc4x2::IfcObject
OdAnsiString	m_ObjectType

Protected Attributes inherited from OdIfc4x2::IfcRoot
OdDAI::CompressedGUID	m_GlobalId

OdDAIObjectId	m_OwnerHistory

OdAnsiString	m_Name

OdAnsiString	m_Description

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

IfcSubContractResource is a construction resource needed in a construction process that represents a sub-contractor.

An IfcSubContractResource can be used in cost estimating and work planning with or without specifying the subcontractor and contract agreement. The purpose of an IfcSubContractResource is to indicate work of a particular type that is that is to be engaged through the use of a sub-contract. Its aim is to identify the description of the sub-contract work required. It can be used to identify the generic type of sub-contract resource that is required for a purpose without having to be specific about the actor (person or organization) providing the resource occurrence. It can be particularly useful when creating an overall plan for a process or processes. For instance, within maintenance or work planning there can be a known task that needs to be done which is planned to require an 'insulation specialist'.

A subcontract resource can be described at various stages and levels of detail through its assignments: Subcontract resource designated for particular tasks Actors identified to request bids Cost schedules (bids) received from actors Project order (work order, change order, etc.) executed

Object Typing - This concept can be applied to the following resources: IfcSubContractResourceType
Resource Assignment - This concept can be applied to the following resources: IfcActor - Indicates a specific organization to be considered to fulfill the resource or invited to bid on the resource.

\changes

IFC4 changes: The attribute SubContractor has been deleted; use IfcRelAssignsToResource to assign an IfcActor to fulfill the role as the subcontractor The attribute JobDescription has been deleted; use LongDescription to describe the job Name of the SubContractor attribute changed to PredefinedType Type of the SubContractor attribute changed from "IfcActorSelect" to "IfcSubContractResourceTypeEnum"

Definition at line 71 of file Ifc4x2/IfcSubContractResourceAutoImpl.h.

Constructor & Destructor Documentation

◆ IfcSubContractResource()

OdIfc4x2::IfcSubContractResource::IfcSubContractResource ( )

Default constructor for the IfcSubContractResource class.

Member Function Documentation

◆ getAttr() [1/2]

virtual OdRxValue OdIfc4x2::IfcSubContractResource::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4x2::IfcConstructionResource.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc4x2::IfcSubContractResource::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4x2::IfcConstructionResource.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc4x2::IfcSubContractResource::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc4x2::IfcConstructionResource.

◆ getPredefinedType()

IfcSubContractResourceTypeEnum OdIfc4x2::IfcSubContractResource::getPredefinedType ( ) const

Returns the value of PredefinedType attribute. This attribute represents defines types of subcontract resources.

Returns: Returns the value of PredefinedType attribute.

◆ inFields()

virtual OdResult OdIfc4x2::IfcSubContractResource::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4x2::IfcConstructionResource.

◆ isKindOf()

virtual bool OdIfc4x2::IfcSubContractResource::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc4x2::IfcConstructionResource.

◆ outFields()

virtual OdResult OdIfc4x2::IfcSubContractResource::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4x2::IfcConstructionResource.

◆ putAttr() [1/2]

virtual bool OdIfc4x2::IfcSubContractResource::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4x2::IfcConstructionResource.

◆ putAttr() [2/2]

virtual bool OdIfc4x2::IfcSubContractResource::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4x2::IfcConstructionResource.

◆ setPredefinedType()

void OdIfc4x2::IfcSubContractResource::setPredefinedType ( IfcSubContractResourceTypeEnum PredefinedType )

Sets the value of PredefinedType attribute. This attribute represents defines types of subcontract resources.

Parameters

PredefinedType [in] Predefined type to set.

◆ testAttr() [1/2]

virtual bool OdIfc4x2::IfcSubContractResource::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4x2::IfcConstructionResource.

◆ testAttr() [2/2]

virtual bool OdIfc4x2::IfcSubContractResource::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4x2::IfcConstructionResource.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc4x2::IfcSubContractResource::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc4x2::IfcConstructionResource.

◆ unsetAttr() [1/2]

virtual void OdIfc4x2::IfcSubContractResource::unsetAttr ( const char * explicitAttrName )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrName [in] Explicit name of the attribute to reset.

Reimplemented from OdIfc4x2::IfcConstructionResource.

◆ unsetAttr() [2/2]

virtual void OdIfc4x2::IfcSubContractResource::unsetAttr ( const OdIfc::OdIfcAttribute explicitAttrDef )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrDef [in] Explicit definition that represents an attribute to reset.

Reimplemented from OdIfc4x2::IfcConstructionResource.

Member Data Documentation

◆ m_PredefinedType

OdDAI::Enum OdIfc4x2::IfcSubContractResource::m_PredefinedType

protected

Definition at line 210 of file Ifc4x2/IfcSubContractResourceAutoImpl.h.

The documentation for this class was generated from the following file:

Ifc4x2/IfcSubContractResourceAutoImpl.h

Public Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ IfcSubContractResource()

Member Function Documentation

◆ getAttr() [1/2]

◆ getAttr() [2/2]

◆ getInstanceType()

◆ getPredefinedType()

◆ inFields()

◆ isKindOf()

◆ outFields()

◆ putAttr() [1/2]

◆ putAttr() [2/2]

◆ setPredefinedType()

◆ testAttr() [1/2]

◆ testAttr() [2/2]

◆ type()

◆ unsetAttr() [1/2]

◆ unsetAttr() [2/2]

Member Data Documentation

◆ m_PredefinedType
