OdIfc2x3::IfcAnnotationSurfaceOccurrence Class Reference

#include <IfcAnnotationSurfaceOccurrenceAutoImpl.h>

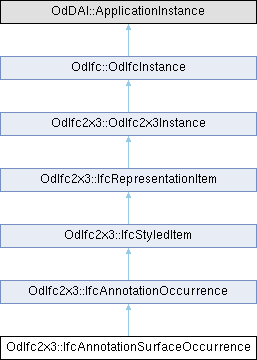

Inheritance diagram for OdIfc2x3::IfcAnnotationSurfaceOccurrence:

Public Member Functions
virtual OdDAI::Entity *	getInstanceType () const override
virtual bool	comparedToEarlyImpl (const OdDAI::ApplicationInstance *pOther, OdRx::Ordering &ordering) const override
virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override
virtual OdIfc::OdIfcEntityType	type () const override
Public Member Functions inherited from OdIfc2x3::IfcStyledItem
const OdDAIObjectId &	getItem () const
void	setItem (const OdDAIObjectId &Item)
void	getStyles (OdDAIObjectIds &Styles) const
OdDAI::SetOfOdDAIObjectId &	styles ()
const OdAnsiString &	getName () const
void	setName (const OdAnsiString &Name)
	IfcStyledItem ()
virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override
virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override
virtual void	setInverseCounterParts () override
virtual OdRxValue	getAttr (const char *attrName) const override
virtual void	unsetAttr (const char *explicitAttrName) override
virtual bool	testAttr (const char *explicitAttrName) const override
virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override
virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override
virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override
virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override
virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override
Public Member Functions inherited from OdIfc2x3::IfcRepresentationItem
void	getInvLayerAssignments (OdDAIObjectIds &LayerAssignments) const
void	getInvStyledByItem (OdDAIObjectIds &StyledByItem) const
Public Member Functions inherited from OdIfc2x3::OdIfc2x3Instance
void	setInverseCounterParts () override
Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)
	OdIfcInstance ()
	~OdIfcInstance ()
bool	isInstanceOf (OdIfcEntityType entityType) const
IfcOpResult	resolved ()
void	resolve (IfcOpResult resolved, void *resPtr)
void	unresolve ()
virtual void	setGsNode (OdGsCache *pGsNode)
virtual OdGsCache *	gsNode () const
virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const
virtual bool	subWorldDraw (OdGiWorldDraw *wd) const
virtual OdDbStub *	ownerId () const

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)
static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)
static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)
static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)
static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)
static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)
static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)
static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)
Protected Attributes inherited from OdIfc2x3::IfcStyledItem
OdDAIObjectId	m_Item
OdDAI::SetOfOdDAIObjectId	m_Styles
OdAnsiString	m_Name
Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr
IfcOpResult	m_resolved

Detailed Description

The IfcAnnotationSurfaceOccurrence is only used within a material or paper space dependent representation (note: paper space is not yet supported within this IFC release). Styled surfaces or solids within model space use IfcStyledItem as the instance to link the geometric surface, solid or annotation surface (for texture maps) representation item to the (shared) style information.

Definition at line 43 of file Ifc2x3/IfcAnnotationSurfaceOccurrenceAutoImpl.h.

Member Function Documentation

comparedToEarlyImpl()

virtual bool OdIfc2x3::IfcAnnotationSurfaceOccurrence::comparedToEarlyImpl ( const OdDAI::ApplicationInstance * pOther, OdRx::Ordering & ordering ) const

overridevirtual

Early-bound version of instances comparison.

Parameters

pOther	[in] Other application instance.
ordering	[out] Receives the ordering (comparison) status.

Returns

true if comparison was performed, false if method has no implementation, so late-bound version could be applied.

Remarks

If the method returns true, the ordering parameter can receive one of the following statuses: Value Description kLessThan -1 This object < Other Object. kEqual 0 This object = Other Object. kGreaterThan 1 This object > Other Object. kNotOrderable 2 This class is not orderable.

Reimplemented from OdIfc2x3::IfcAnnotationOccurrence.

getInstanceType()

virtual OdDAI::Entity * OdIfc2x3::IfcAnnotationSurfaceOccurrence::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns

Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc2x3::IfcAnnotationOccurrence.

isKindOf()

virtual bool OdIfc2x3::IfcAnnotationSurfaceOccurrence::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType

[in] Entity to check.

Returns

true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc2x3::IfcAnnotationOccurrence.

type()

virtual OdIfc::OdIfcEntityType OdIfc2x3::IfcAnnotationSurfaceOccurrence::type ( ) const

overridevirtual

Returns the type of this entity.

Returns

A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc2x3::IfcAnnotationOccurrence.

---

The documentation for this class was generated from the following file:

• Ifc2x3/IfcAnnotationSurfaceOccurrenceAutoImpl.h
