#include <IfcLaborResourceAutoImpl.h>

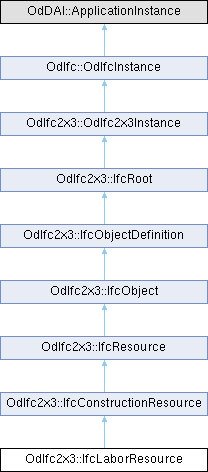

Inheritance diagram for OdIfc2x3::IfcLaborResource:

Public Member Functions
const OdAnsiString &	getSkillSet () const

void	setSkillSet (const OdAnsiString &SkillSet)

	IfcLaborResource ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual bool	comparedToEarlyImpl (const OdDAI::ApplicationInstance *pOther, OdRx::Ordering &ordering) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc2x3::IfcConstructionResource
const OdAnsiString &	getResourceIdentifier () const

void	setResourceIdentifier (const OdAnsiString &ResourceIdentifier)

const OdAnsiString &	getResourceGroup () const

void	setResourceGroup (const OdAnsiString &ResourceGroup)

IfcResourceConsumptionEnum	getResourceConsumption () const

void	setResourceConsumption (IfcResourceConsumptionEnum ResourceConsumption)

const OdDAIObjectId &	getBaseQuantity () const

void	setBaseQuantity (const OdDAIObjectId &BaseQuantity)

	IfcConstructionResource ()

Public Member Functions inherited from OdIfc2x3::IfcResource
void	getInvResourceOf (OdDAIObjectIds &ResourceOf) const

Public Member Functions inherited from OdIfc2x3::IfcObject
const OdAnsiString &	getObjectType () const

void	setObjectType (const OdAnsiString &ObjectType)

void	getInvIsDefinedBy (OdDAIObjectIds &IsDefinedBy) const

	IfcObject ()

Public Member Functions inherited from OdIfc2x3::IfcObjectDefinition
void	getInvHasAssignments (OdDAIObjectIds &HasAssignments) const

void	getInvIsDecomposedBy (OdDAIObjectIds &IsDecomposedBy) const

void	getInvDecomposes (OdDAIObjectIds &Decomposes) const

void	getInvHasAssociations (OdDAIObjectIds &HasAssociations) const

Public Member Functions inherited from OdIfc2x3::IfcRoot
OdDAI::CompressedGUID	getGlobalId () const

void	setGlobalId (OdDAI::CompressedGUID GlobalId)

const OdDAIObjectId &	getOwnerHistory () const

void	setOwnerHistory (const OdDAIObjectId &OwnerHistory)

const OdAnsiString &	getName () const

void	setName (const OdAnsiString &Name)

const OdAnsiString &	getDescription () const

void	setDescription (const OdAnsiString &Description)

	IfcRoot ()

Public Member Functions inherited from OdIfc2x3::OdIfc2x3Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
OdAnsiString	m_SkillSet

Protected Attributes inherited from OdIfc2x3::IfcConstructionResource
OdAnsiString	m_ResourceIdentifier

OdAnsiString	m_ResourceGroup

OdDAI::Enum	m_ResourceConsumption

OdDAIObjectId	m_BaseQuantity

Protected Attributes inherited from OdIfc2x3::IfcObject
OdAnsiString	m_ObjectType

Protected Attributes inherited from OdIfc2x3::IfcRoot
OdDAI::CompressedGUID	m_GlobalId

OdDAIObjectId	m_OwnerHistory

OdAnsiString	m_Name

OdAnsiString	m_Description

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Protected Member Functions inherited from OdIfc2x3::IfcResource
virtual OdRxValue	getAttr (const char *attrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

Detailed Description

An IfcLaborResource is used in construction with particular skills or crafts required to perform certain types of construction or management-related work.

The purpose of an IfcLaborResource is to identify a skillset that can be required or used. The skillset identified can be (for instance) charge-hand, foreman, laborer, plumbers mate etc. and provides a designation of a particular level of skill. It can be used to identify the generic type of labor resource that is required for a purpose without having to be specific about the actor (person or organization) providing the resource occurrence. It can be particularly useful when creating an overall plan for a process or processes. For instance, within maintenance or work planning there can be a known task that needs to be done which is planned to require a 'chargehand pipe fitter'. There can be several such labor resources available and so the need to identify which will be used is not necessary at the planning stage.

Object Typing - This concept can be applied to the following resources: IfcLaborResourceType
Quantity Sets - This concept can be applied to the following resources: Qto_LaborResourceBaseQuantities
Resource Assignment - This concept can be applied to the following resources: IfcActor - Indicates specific people manifesting the resource such as laborers.
Resource Cost - This concept can be applied with the following combinations:

CostType

CostName ValueType IfcCostValue Standard IfcMonetaryMeasure IfcCostValue Overtime IfcMonetaryMeasure

Resource Quantity - This concept can be applied with the following combinations:

QuantityType

QuantityName IfcQuantityTime Labor

Definition at line 78 of file Ifc2x3/IfcLaborResourceAutoImpl.h.

Constructor & Destructor Documentation

◆ IfcLaborResource()

OdIfc2x3::IfcLaborResource::IfcLaborResource ( )

Default constructor for the IfcLaborResource class.

Member Function Documentation

◆ comparedToEarlyImpl()

virtual bool OdIfc2x3::IfcLaborResource::comparedToEarlyImpl	(	const OdDAI::ApplicationInstance *	pOther,
		OdRx::Ordering &	ordering ) const

overridevirtual

Early-bound version of instances comparison.

Parameters

pOther	[in] Other application instance.
ordering	[out] Receives the ordering (comparison) status.

Returns: true if comparison was performed, false if method has no implementation, so late-bound version could be applied.

Remarks

If the method returns true, the ordering parameter can receive one of the following statuses:

Value Description kLessThan -1 This object < Other Object. kEqual 0 This object = Other Object. kGreaterThan 1 This object > Other Object. kNotOrderable 2 This class is not orderable.

Reimplemented from OdIfc2x3::IfcConstructionResource.

◆ getAttr() [1/2]

virtual OdRxValue OdIfc2x3::IfcLaborResource::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc2x3::IfcConstructionResource.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc2x3::IfcLaborResource::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc2x3::IfcConstructionResource.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc2x3::IfcLaborResource::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc2x3::IfcConstructionResource.

◆ getSkillSet()

const OdAnsiString & OdIfc2x3::IfcLaborResource::getSkillSet ( ) const

Returns the value of SkillSet attribute. This attribute represents the skill set required for this type of labor.

Returns: Returns the value of SkillSet attribute.

◆ inFields()

virtual OdResult OdIfc2x3::IfcLaborResource::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc2x3::IfcConstructionResource.

◆ isKindOf()

virtual bool OdIfc2x3::IfcLaborResource::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc2x3::IfcConstructionResource.

◆ outFields()

virtual OdResult OdIfc2x3::IfcLaborResource::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc2x3::IfcConstructionResource.

◆ putAttr() [1/2]

virtual bool OdIfc2x3::IfcLaborResource::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc2x3::IfcConstructionResource.

◆ putAttr() [2/2]

virtual bool OdIfc2x3::IfcLaborResource::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc2x3::IfcConstructionResource.

◆ setSkillSet()

void OdIfc2x3::IfcLaborResource::setSkillSet ( const OdAnsiString & SkillSet )

Sets the value of SkillSet attribute. This attribute represents the skill set required for this type of labor.

Parameters

SkillSet [in] SkillSet attribute to set.

◆ testAttr() [1/2]

virtual bool OdIfc2x3::IfcLaborResource::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc2x3::IfcConstructionResource.

◆ testAttr() [2/2]

virtual bool OdIfc2x3::IfcLaborResource::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc2x3::IfcConstructionResource.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc2x3::IfcLaborResource::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc2x3::IfcConstructionResource.

◆ unsetAttr() [1/2]

virtual void OdIfc2x3::IfcLaborResource::unsetAttr ( const char * explicitAttrName )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrName [in] Explicit name of the attribute to reset.

Reimplemented from OdIfc2x3::IfcConstructionResource.

◆ unsetAttr() [2/2]

virtual void OdIfc2x3::IfcLaborResource::unsetAttr ( const OdIfc::OdIfcAttribute explicitAttrDef )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrDef [in] Explicit definition that represents an attribute to reset.

Reimplemented from OdIfc2x3::IfcConstructionResource.

Member Data Documentation

◆ m_SkillSet

OdAnsiString OdIfc2x3::IfcLaborResource::m_SkillSet

protected

Definition at line 236 of file Ifc2x3/IfcLaborResourceAutoImpl.h.

The documentation for this class was generated from the following file:

Ifc2x3/IfcLaborResourceAutoImpl.h

Public Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ IfcLaborResource()

Member Function Documentation

◆ comparedToEarlyImpl()

◆ getAttr() [1/2]

◆ getAttr() [2/2]

◆ getInstanceType()

◆ getSkillSet()

◆ inFields()

◆ isKindOf()

◆ outFields()

◆ putAttr() [1/2]

◆ putAttr() [2/2]

◆ setSkillSet()

◆ testAttr() [1/2]

◆ testAttr() [2/2]

◆ type()

◆ unsetAttr() [1/2]

◆ unsetAttr() [2/2]

Member Data Documentation

◆ m_SkillSet
