OdIfc2x2_final::IfcSolidModel Class Reference

#include <IfcSolidModelAutoImpl.h>

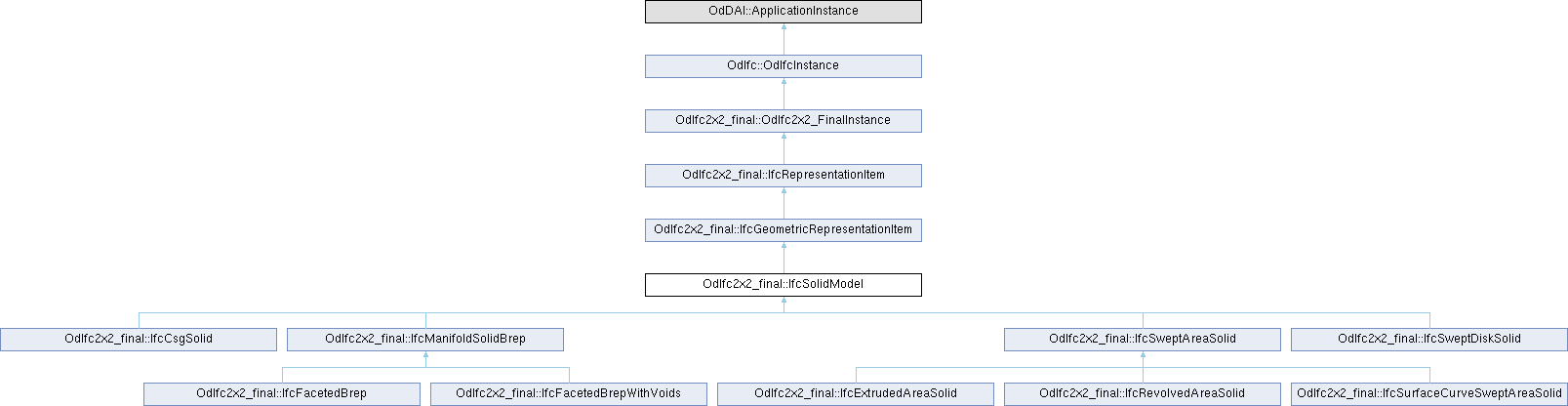

Inheritance diagram for OdIfc2x2_final::IfcSolidModel:

Public Member Functions
virtual OdDAI::Entity *	getInstanceType () const override
virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override
virtual OdIfc::OdIfcEntityType	type () const override
Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)
	OdIfcInstance ()
	~OdIfcInstance ()
bool	isInstanceOf (OdIfcEntityType entityType) const
virtual OdRxValue	getAttr (const OdIfcAttribute attrDef) const
virtual bool	testAttr (const char *explicitAttrName) const
virtual bool	testAttr (const OdIfcAttribute explicitAttrDef) const
virtual void	unsetAttr (const char *explicitAttrName)
virtual void	unsetAttr (const OdIfcAttribute explicitAttrDef)
virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val)
virtual bool	putAttr (const OdIfcAttribute explicitAttrDef, const OdRxValue &val)
IfcOpResult	resolved ()
void	resolve (IfcOpResult resolved, void *resPtr)
void	unresolve ()
virtual void	setGsNode (OdGsCache *pGsNode)
virtual OdGsCache *	gsNode () const
virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const
virtual bool	subWorldDraw (OdGiWorldDraw *wd) const
virtual OdDbStub *	ownerId () const

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)
static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)
static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)
static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)
static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)
static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)
static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)
static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)
Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr
IfcOpResult	m_resolved

Detailed Description

An IfcSolidModel represents the 3D shape by different types of solid model representations. It is the common abstract supertype of Boundary representation, CSG representation, Sweeping representation and other suitable solid representation schemes.

Remarks

This definition may not be instantiated.

Definition at line 45 of file Ifc2x2_Final/IfcSolidModelAutoImpl.h.

Member Function Documentation

getInstanceType()

virtual OdDAI::Entity * OdIfc2x2_final::IfcSolidModel::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns

Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc2x2_final::IfcGeometricRepresentationItem.

Reimplemented in OdIfc2x2_final::IfcCsgSolid, OdIfc2x2_final::IfcExtrudedAreaSolid, OdIfc2x2_final::IfcFacetedBrep, OdIfc2x2_final::IfcFacetedBrepWithVoids, OdIfc2x2_final::IfcManifoldSolidBrep, OdIfc2x2_final::IfcRevolvedAreaSolid, OdIfc2x2_final::IfcSurfaceCurveSweptAreaSolid, OdIfc2x2_final::IfcSweptAreaSolid, and OdIfc2x2_final::IfcSweptDiskSolid.

isKindOf()

virtual bool OdIfc2x2_final::IfcSolidModel::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType

[in] Entity to check.

Returns

true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc2x2_final::IfcGeometricRepresentationItem.

Reimplemented in OdIfc2x2_final::IfcCsgSolid, OdIfc2x2_final::IfcExtrudedAreaSolid, OdIfc2x2_final::IfcFacetedBrep, OdIfc2x2_final::IfcFacetedBrepWithVoids, OdIfc2x2_final::IfcManifoldSolidBrep, OdIfc2x2_final::IfcRevolvedAreaSolid, OdIfc2x2_final::IfcSurfaceCurveSweptAreaSolid, OdIfc2x2_final::IfcSweptAreaSolid, and OdIfc2x2_final::IfcSweptDiskSolid.

type()

virtual OdIfc::OdIfcEntityType OdIfc2x2_final::IfcSolidModel::type ( ) const

overridevirtual

Returns the type of this entity.

Returns

A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc2x2_final::IfcGeometricRepresentationItem.

Reimplemented in OdIfc2x2_final::IfcCsgSolid, OdIfc2x2_final::IfcExtrudedAreaSolid, OdIfc2x2_final::IfcFacetedBrep, OdIfc2x2_final::IfcFacetedBrepWithVoids, OdIfc2x2_final::IfcManifoldSolidBrep, OdIfc2x2_final::IfcRevolvedAreaSolid, OdIfc2x2_final::IfcSurfaceCurveSweptAreaSolid, OdIfc2x2_final::IfcSweptAreaSolid, and OdIfc2x2_final::IfcSweptDiskSolid.

---

The documentation for this class was generated from the following file:

• Ifc2x2_Final/IfcSolidModelAutoImpl.h
