#include <IfcPropertyTableValueAutoImpl.h>

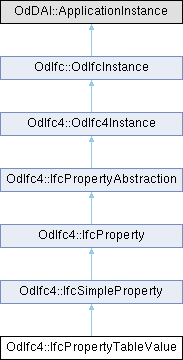

Inheritance diagram for OdIfc4::IfcPropertyTableValue:

Public Member Functions
void	getDefiningValues (OdArray< OdDAI::Select > &DefiningValues) const

void	getDefiningValuesWrapperArray (OdArray< IfcValue > &DefiningValues) const

OdDAI::ListOfSelect &	definingValues ()

void	getDefinedValues (OdArray< OdDAI::Select > &DefinedValues) const

void	getDefinedValuesWrapperArray (OdArray< IfcValue > &DefinedValues) const

OdDAI::ListOfSelect &	definedValues ()

const OdAnsiString &	getExpression () const

void	setExpression (const OdAnsiString &Expression)

IfcUnit	definingUnit ()

IfcUnit	definedUnit ()

IfcCurveInterpolationEnum	getCurveInterpolation () const

void	setCurveInterpolation (IfcCurveInterpolationEnum CurveInterpolation)

	IfcPropertyTableValue ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual bool	comparedToEarlyImpl (const OdDAI::ApplicationInstance *pOther, OdRx::Ordering &ordering) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc4::IfcProperty
const OdAnsiString &	getName () const

void	setName (const OdAnsiString &Name)

const OdAnsiString &	getDescription () const

void	setDescription (const OdAnsiString &Description)

void	getInvPartOfPset (OdDAIObjectIds &PartOfPset) const

void	getInvPropertyForDependance (OdDAIObjectIds &PropertyForDependance) const

void	getInvPropertyDependsOn (OdDAIObjectIds &PropertyDependsOn) const

void	getInvPartOfComplex (OdDAIObjectIds &PartOfComplex) const

void	getInvHasConstraints (OdDAIObjectIds &HasConstraints) const

void	getInvHasApprovals (OdDAIObjectIds &HasApprovals) const

	IfcProperty ()

Public Member Functions inherited from OdIfc4::IfcPropertyAbstraction
void	getInvHasExternalReferences (OdDAIObjectIds &HasExternalReferences) const

Public Member Functions inherited from OdIfc4::OdIfc4Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
OdDAI::ListOfSelect	m_DefiningValues

OdDAI::ListOfSelect	m_DefinedValues

OdAnsiString	m_Expression

OdDAI::Select	m_DefiningUnit

OdDAI::Select	m_DefinedUnit

OdDAI::Enum	m_CurveInterpolation

Protected Attributes inherited from OdIfc4::IfcProperty
OdAnsiString	m_Name

OdAnsiString	m_Description

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

IfcPropertyTableValue is a property with a value range defined by a property object which has two lists of (numeric or descriptive) values assigned. The values specify a table with two columns. The defining values provide the first column and establish the scope for the defined values (the second column). An optional Expression attribute can give the equation used for deriving the range value, which is for information purposes only.

If the Unit attribute is not specified, than the unit is already implied by the type of IfcMeasureValue or IfcDerivedMeasureValue.
The associated unit can be found at the IfcUnitAssignment globally defined at the project level (IfcProject.UnitsInContext).
If the Unit attribute is specified, the unit assigned by the Unit attribute overrides the globally assigned unit.

Remarks: The IfcPropertyTableValue only captures properties that can be expressed by a table with two columns. Use IfcPropertyReferenceValue with the PropertyReference being an IfcTable to express all those properties that require a table with tree or more columns.

\changes

IFC4 changes: DefiningValues: The attribute has been made optional with upward compatibility for file-based exchange. DefinedValues: The attribute has been made optional with upward compatibility for file-based exchange.

Definition at line 56 of file Ifc4/IfcPropertyTableValueAutoImpl.h.

Constructor & Destructor Documentation

◆ IfcPropertyTableValue()

OdIfc4::IfcPropertyTableValue::IfcPropertyTableValue ( )

Default constructor for the IfcPropertyTableValue class.

Member Function Documentation

◆ comparedToEarlyImpl()

virtual bool OdIfc4::IfcPropertyTableValue::comparedToEarlyImpl	(	const OdDAI::ApplicationInstance *	pOther,
		OdRx::Ordering &	ordering ) const

overridevirtual

Early-bound version of instances comparison.

Parameters

pOther	[in] Other application instance.
ordering	[out] Receives the ordering (comparison) status.

Returns: true if comparison was performed, false if method has no implementation, so late-bound version could be applied.

Remarks

If the method returns true, the ordering parameter can receive one of the following statuses:

Value Description kLessThan -1 This object < Other Object. kEqual 0 This object = Other Object. kGreaterThan 1 This object > Other Object. kNotOrderable 2 This class is not orderable.

Reimplemented from OdIfc4::IfcSimpleProperty.

◆ definedUnit()

IfcUnit OdIfc4::IfcPropertyTableValue::definedUnit ( )

Returns the value of DefinedUnit attribute that represents the unit for the defined values. If not specified, the default value for the measure type is used as defined by the global unit assignment at IfcProject.

Returns: Returns the value of DefinedUnit attribute.

◆ definedValues()

OdDAI::ListOfSelect & OdIfc4::IfcPropertyTableValue::definedValues ( )

Returns the value of DefinedValues attribute. DefinedValues is defined values which are applicable for the scope as defined by the defining values.

Returns: Returns a list of OdDAI::Select values representing the DefinedValues attribute.

◆ definingUnit()

IfcUnit OdIfc4::IfcPropertyTableValue::definingUnit ( )

Returns the value of DefiningUnit attribute that represents the unit for the defining values. If not specified, the default value for the measure type is used as defined by the global unit assignment at IfcProject.

Returns: Returns the value of DefiningUnit attribute.

◆ definingValues()

OdDAI::ListOfSelect & OdIfc4::IfcPropertyTableValue::definingValues ( )

Returns the value of DefiningValues attribute. DefiningValues is list of defining values, which determine the defined values. This list has unique values only.

Returns: Returns a list of OdDAI::Select values representing the DefiningValues attribute.

◆ getAttr() [1/2]

virtual OdRxValue OdIfc4::IfcPropertyTableValue::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4::IfcProperty.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc4::IfcPropertyTableValue::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4::IfcProperty.

◆ getCurveInterpolation()

IfcCurveInterpolationEnum OdIfc4::IfcPropertyTableValue::getCurveInterpolation ( ) const

Returns the value of CurveInterpolation attribute. CurveInterpolation is interpolation of the curve between two defining and defined values that are provided. If not provided, a linear interpolation is assumed.

Returns: Returns the value from the IfcCurveInterpolationEnum enumeration representing the CurveInterpolation attribute.

◆ getDefinedValues()

void OdIfc4::IfcPropertyTableValue::getDefinedValues ( OdArray< OdDAI::Select > & DefinedValues ) const

Returns the value of DefinedValues attribute. DefinedValues is defined values which are applicable for the scope as defined by the defining values.

Parameters

DefinedValues [out] Receives an array of OdDAI::Select values representing the DefinedValues attribute.

◆ getDefinedValuesWrapperArray()

void OdIfc4::IfcPropertyTableValue::getDefinedValuesWrapperArray ( OdArray< IfcValue > & DefinedValues ) const

Returns the value of DefinedValues attribute. DefinedValues is defined values which are applicable for the scope as defined by the defining values.

Parameters

DefinedValues [out] Receives an array of OdDAI::Select values representing the DefinedValues attribute.

◆ getDefiningValues()

void OdIfc4::IfcPropertyTableValue::getDefiningValues ( OdArray< OdDAI::Select > & DefiningValues ) const

Returns the value of DefiningValues attribute. DefiningValues is list of defining values, which determine the defined values. This list has unique values only.

Parameters

DefiningValues [out] Receives an array of OdDAI::Select values representing the DefiningValues attribute.

◆ getDefiningValuesWrapperArray()

void OdIfc4::IfcPropertyTableValue::getDefiningValuesWrapperArray ( OdArray< IfcValue > & DefiningValues ) const

Returns the value of DefiningValues attribute. DefiningValues is list of defining values, which determine the defined values. This list has unique values only.

Parameters

DefiningValues [out] Receives an array of OdDAI::Select values representing the DefiningValues attribute.

◆ getExpression()

const OdAnsiString & OdIfc4::IfcPropertyTableValue::getExpression ( ) const

Returns the value of Expression attribute. Expression is expression for the derivation of defined values from the defining values, the expression is given for information only, i.e. no automatic processing can be expected from the expression.

Returns: Returns the value of Expression attribute.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc4::IfcPropertyTableValue::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc4::IfcSimpleProperty.

◆ inFields()

virtual OdResult OdIfc4::IfcPropertyTableValue::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4::IfcProperty.

◆ isKindOf()

virtual bool OdIfc4::IfcPropertyTableValue::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc4::IfcSimpleProperty.

◆ outFields()

virtual OdResult OdIfc4::IfcPropertyTableValue::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4::IfcProperty.

◆ putAttr() [1/2]

virtual bool OdIfc4::IfcPropertyTableValue::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4::IfcProperty.

◆ putAttr() [2/2]

virtual bool OdIfc4::IfcPropertyTableValue::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4::IfcProperty.

◆ setCurveInterpolation()

void OdIfc4::IfcPropertyTableValue::setCurveInterpolation ( IfcCurveInterpolationEnum CurveInterpolation )

Sets the value of CurveInterpolation attribute. CurveInterpolation is interpolation of the curve between two defining and defined values that are provided. If not provided, a linear interpolation is assumed.

Parameters

CurveInterpolation [in] value from the IfcCurveInterpolationEnum enumeration representing the CurveInterpolation attribute.

◆ setExpression()

void OdIfc4::IfcPropertyTableValue::setExpression ( const OdAnsiString & Expression )

Sets the value of Expression attribute. Expression is expression for the derivation of defined values from the defining values, the expression is given for information only, i.e. no automatic processing can be expected from the expression.

Parameters

Expression [in] Expression to set.

◆ testAttr() [1/2]

virtual bool OdIfc4::IfcPropertyTableValue::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4::IfcProperty.

◆ testAttr() [2/2]

virtual bool OdIfc4::IfcPropertyTableValue::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4::IfcProperty.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc4::IfcPropertyTableValue::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc4::IfcSimpleProperty.

◆ unsetAttr() [1/2]

virtual void OdIfc4::IfcPropertyTableValue::unsetAttr ( const char * explicitAttrName )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrName [in] Explicit name of the attribute to reset.

Reimplemented from OdIfc4::IfcProperty.

◆ unsetAttr() [2/2]

virtual void OdIfc4::IfcPropertyTableValue::unsetAttr ( const OdIfc::OdIfcAttribute explicitAttrDef )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrDef [in] Explicit definition that represents an attribute to reset.

Reimplemented from OdIfc4::IfcProperty.

Member Data Documentation

◆ m_CurveInterpolation

OdDAI::Enum OdIfc4::IfcPropertyTableValue::m_CurveInterpolation

protected

Definition at line 293 of file Ifc4/IfcPropertyTableValueAutoImpl.h.

◆ m_DefinedUnit

OdDAI::Select OdIfc4::IfcPropertyTableValue::m_DefinedUnit

protected

Definition at line 292 of file Ifc4/IfcPropertyTableValueAutoImpl.h.

◆ m_DefinedValues

OdDAI::ListOfSelect OdIfc4::IfcPropertyTableValue::m_DefinedValues

protected

Definition at line 288 of file Ifc4/IfcPropertyTableValueAutoImpl.h.

◆ m_DefiningUnit

OdDAI::Select OdIfc4::IfcPropertyTableValue::m_DefiningUnit

protected

Definition at line 291 of file Ifc4/IfcPropertyTableValueAutoImpl.h.

◆ m_DefiningValues

OdDAI::ListOfSelect OdIfc4::IfcPropertyTableValue::m_DefiningValues

protected

Definition at line 286 of file Ifc4/IfcPropertyTableValueAutoImpl.h.

◆ m_Expression

OdAnsiString OdIfc4::IfcPropertyTableValue::m_Expression

protected

Definition at line 290 of file Ifc4/IfcPropertyTableValueAutoImpl.h.

The documentation for this class was generated from the following file:

Ifc4/IfcPropertyTableValueAutoImpl.h

Public Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ IfcPropertyTableValue()

Member Function Documentation

◆ comparedToEarlyImpl()

◆ definedUnit()

◆ definedValues()

◆ definingUnit()

◆ definingValues()

◆ getAttr() [1/2]

◆ getAttr() [2/2]

◆ getCurveInterpolation()

◆ getDefinedValues()

◆ getDefinedValuesWrapperArray()

◆ getDefiningValues()

◆ getDefiningValuesWrapperArray()

◆ getExpression()

◆ getInstanceType()

◆ inFields()

◆ isKindOf()

◆ outFields()

◆ putAttr() [1/2]

◆ putAttr() [2/2]

◆ setCurveInterpolation()

◆ setExpression()

◆ testAttr() [1/2]

◆ testAttr() [2/2]

◆ type()

◆ unsetAttr() [1/2]

◆ unsetAttr() [2/2]

Member Data Documentation

◆ m_CurveInterpolation

◆ m_DefinedUnit

◆ m_DefinedValues

◆ m_DefiningUnit

◆ m_DefiningValues

◆ m_Expression
