#include <IfcAxis2PlacementLinearAutoImpl.h>

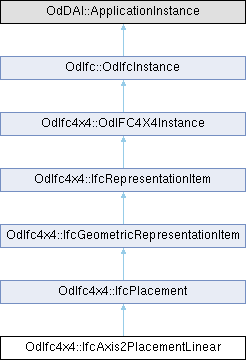

Inheritance diagram for OdIfc4x4::IfcAxis2PlacementLinear:

Public Member Functions
const OdDAIObjectId &	getAxis () const

void	setAxis (const OdDAIObjectId &Axis)

const OdDAIObjectId &	getRefDirection () const

void	setRefDirection (const OdDAIObjectId &RefDirection)

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual bool	comparedToEarlyImpl (const OdDAI::ApplicationInstance *pOther, OdRx::Ordering &ordering) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc4x4::IfcPlacement
const OdDAIObjectId &	getLocation () const

void	setLocation (const OdDAIObjectId &Location)

Public Member Functions inherited from OdIfc4x4::IfcRepresentationItem
void	getInvLayerAssignment (OdDAIObjectIds &LayerAssignment) const

void	getInvStyledByItem (OdDAIObjectIds &StyledByItem) const

Public Member Functions inherited from OdIfc4x4::OdIFC4X4Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
OdDAIObjectId	m_Axis

OdDAIObjectId	m_RefDirection

Protected Attributes inherited from OdIfc4x4::IfcPlacement
OdDAIObjectId	m_Location

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

The IfcAxis2PlacementLinear provides location and orientation to place items in a three-dimensional space confined to the context of a curve. Relative placement axes (Axis and RefDirection) are relative to the curve used for linear referencing provided in IfcPlacement Location (IfcPointByDistanceExpression BasisCurve), maintaining the relationship to the tangent of the curve.

Definition at line 43 of file IFC4X4/IfcAxis2PlacementLinearAutoImpl.h.

Member Function Documentation

◆ comparedToEarlyImpl()

virtual bool OdIfc4x4::IfcAxis2PlacementLinear::comparedToEarlyImpl	(	const OdDAI::ApplicationInstance *	pOther,
		OdRx::Ordering &	ordering ) const

overridevirtual

Early-bound version of instances comparison.

Parameters

pOther	[in] Other application instance.
ordering	[out] Receives the ordering (comparison) status.

Returns: true if comparison was performed, false if method has no implementation, so late-bound version could be applied.

Remarks

If the method returns true, the ordering parameter can receive one of the following statuses:

Value Description kLessThan -1 This object < Other Object. kEqual 0 This object = Other Object. kGreaterThan 1 This object > Other Object. kNotOrderable 2 This class is not orderable.

Reimplemented from OdIfc4x4::IfcPlacement.

◆ getAttr() [1/2]

virtual OdRxValue OdIfc4x4::IfcAxis2PlacementLinear::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4x4::IfcPlacement.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc4x4::IfcAxis2PlacementLinear::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4x4::IfcPlacement.

◆ getAxis()

const OdDAIObjectId & OdIfc4x4::IfcAxis2PlacementLinear::getAxis ( ) const

Returns the value of Axis attribute. This attribute represents the direction of the local Z Axis.

Returns: Returns the value of Axis attribute.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc4x4::IfcAxis2PlacementLinear::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc4x4::IfcPlacement.

◆ getRefDirection()

const OdDAIObjectId & OdIfc4x4::IfcAxis2PlacementLinear::getRefDirection ( ) const

Returns the value of RefDirection attribute. This attribute represents the direction that defines the local X Axis. In case if both Axis and RefDirection are set and not perpendicular, an adjustment is necessary to maintain orthogonality to the Axis direction. If RefDirection is omitted, the direction is taken from the curve tangent at Location.

Returns: Returns the value of RefDirection attribute.

◆ inFields()

virtual OdResult OdIfc4x4::IfcAxis2PlacementLinear::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4x4::IfcPlacement.

◆ isKindOf()

virtual bool OdIfc4x4::IfcAxis2PlacementLinear::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc4x4::IfcPlacement.

◆ outFields()

virtual OdResult OdIfc4x4::IfcAxis2PlacementLinear::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4x4::IfcPlacement.

◆ putAttr() [1/2]

virtual bool OdIfc4x4::IfcAxis2PlacementLinear::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4x4::IfcPlacement.

◆ putAttr() [2/2]

virtual bool OdIfc4x4::IfcAxis2PlacementLinear::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4x4::IfcPlacement.

◆ setAxis()

void OdIfc4x4::IfcAxis2PlacementLinear::setAxis ( const OdDAIObjectId & Axis )

Sets the value of Axis attribute. This attribute represents the direction of the local Z Axis.

Parameters

Axis	[in] Axis to set.

◆ setRefDirection()

void OdIfc4x4::IfcAxis2PlacementLinear::setRefDirection ( const OdDAIObjectId & RefDirection )

Sets the value of RefDirection attribute. This attribute represents the direction that defines the local X Axis. In case if both Axis and RefDirection are set and not perpendicular, an adjustment is necessary to maintain orthogonality to the Axis direction. If RefDirection is omitted, the direction is taken from the curve tangent at Location.

Parameters

RefDirection [in] RefDirection to set.

◆ testAttr() [1/2]

virtual bool OdIfc4x4::IfcAxis2PlacementLinear::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4x4::IfcPlacement.

◆ testAttr() [2/2]

virtual bool OdIfc4x4::IfcAxis2PlacementLinear::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4x4::IfcPlacement.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc4x4::IfcAxis2PlacementLinear::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc4x4::IfcPlacement.

◆ unsetAttr() [1/2]

virtual void OdIfc4x4::IfcAxis2PlacementLinear::unsetAttr ( const char * explicitAttrName )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrName [in] Explicit name of the attribute to reset.

Reimplemented from OdIfc4x4::IfcPlacement.

◆ unsetAttr() [2/2]

virtual void OdIfc4x4::IfcAxis2PlacementLinear::unsetAttr ( const OdIfc::OdIfcAttribute explicitAttrDef )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrDef [in] Explicit definition that represents an attribute to reset.

Reimplemented from OdIfc4x4::IfcPlacement.

Member Data Documentation

◆ m_Axis

OdDAIObjectId OdIfc4x4::IfcAxis2PlacementLinear::m_Axis

protected

Definition at line 217 of file IFC4X4/IfcAxis2PlacementLinearAutoImpl.h.

◆ m_RefDirection

OdDAIObjectId OdIfc4x4::IfcAxis2PlacementLinear::m_RefDirection

protected

Definition at line 218 of file IFC4X4/IfcAxis2PlacementLinearAutoImpl.h.

The documentation for this class was generated from the following file:

IFC4X4/IfcAxis2PlacementLinearAutoImpl.h
