#include <IfcGradientCurveAutoImpl.h>

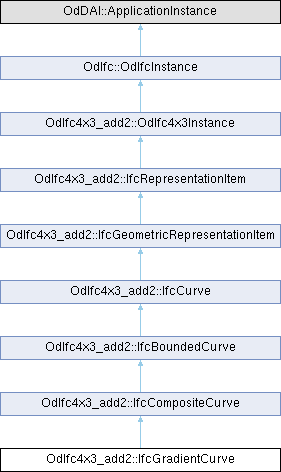

Inheritance diagram for OdIfc4x3_add2::IfcGradientCurve:

Public Member Functions
const OdDAIObjectId &	getBaseCurve () const

void	setBaseCurve (const OdDAIObjectId &BaseCurve)

const OdDAIObjectId &	getEndPoint () const

void	setEndPoint (const OdDAIObjectId &EndPoint)

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual bool	comparedToEarlyImpl (const OdDAI::ApplicationInstance *pOther, OdRx::Ordering &ordering) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc4x3_add2::IfcCompositeCurve
void	getSegments (OdDAIObjectIds &Segments) const

OdDAI::ListOfOdDAIObjectId &	segments ()

OdDAI::Logical	getSelfIntersect () const

void	setSelfIntersect (OdDAI::Logical SelfIntersect)

virtual void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc4x3_add2::IfcRepresentationItem
void	getInvLayerAssignment (OdDAIObjectIds &LayerAssignment) const

void	getInvStyledByItem (OdDAIObjectIds &StyledByItem) const

Public Member Functions inherited from OdIfc4x3_add2::OdIfc4x3Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
OdDAIObjectId	m_BaseCurve

OdDAIObjectId	m_EndPoint

Protected Attributes inherited from OdIfc4x3_add2::IfcCompositeCurve
OdDAI::ListOfOdDAIObjectId	m_Segments

OdDAI::Logical	m_SelfIntersect

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

Gradient curve is a type of 3D curve representation that is based on its 2D projection (BaseCurve) and a height defined by its gradient segments which can be derived from a function that retrieves it from the segment start height, its placement and the ParentCurve instance and the type of the ParentCurve. The parametrization of the gradient curve is based on the underlying segments of its BaseCurve. The value of the parameter equals the parameter value of BaseCurve.

Definition at line 46 of file Ifc4x3/IfcGradientCurveAutoImpl.h.

Member Function Documentation

◆ comparedToEarlyImpl()

virtual bool OdIfc4x3_add2::IfcGradientCurve::comparedToEarlyImpl	(	const OdDAI::ApplicationInstance *	pOther,
		OdRx::Ordering &	ordering ) const

overridevirtual

Early-bound version of instances comparison.

Parameters

pOther	[in] Other application instance.
ordering	[out] Receives the ordering (comparison) status.

Returns: true if comparison was performed, false if method has no implementation, so late-bound version could be applied.

Remarks

If the method returns true, the ordering parameter can receive one of the following statuses:

Value Description kLessThan -1 This object < Other Object. kEqual 0 This object = Other Object. kGreaterThan 1 This object > Other Object. kNotOrderable 2 This class is not orderable.

Reimplemented from OdIfc4x3_add2::IfcCompositeCurve.

◆ getAttr() [1/2]

virtual OdRxValue OdIfc4x3_add2::IfcGradientCurve::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4x3_add2::IfcCompositeCurve.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc4x3_add2::IfcGradientCurve::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4x3_add2::IfcCompositeCurve.

◆ getBaseCurve()

const OdDAIObjectId & OdIfc4x3_add2::IfcGradientCurve::getBaseCurve ( ) const

Returns the value of BaseCurve attribute. BaseCurve attribute represents a base curve and also the 2D projection of gradient curve.

Returns: Object identifier of a base curve.

◆ getEndPoint()

const OdDAIObjectId & OdIfc4x3_add2::IfcGradientCurve::getEndPoint ( ) const

Returns the value of EndPoint attribute. EndPoint attribute represents the end point of gradient curve.

Returns: Object identifier of the end point of gradient curve.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc4x3_add2::IfcGradientCurve::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc4x3_add2::IfcCompositeCurve.

◆ inFields()

virtual OdResult OdIfc4x3_add2::IfcGradientCurve::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4x3_add2::IfcCompositeCurve.

◆ isKindOf()

virtual bool OdIfc4x3_add2::IfcGradientCurve::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc4x3_add2::IfcCompositeCurve.

◆ outFields()

virtual OdResult OdIfc4x3_add2::IfcGradientCurve::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4x3_add2::IfcCompositeCurve.

◆ putAttr() [1/2]

virtual bool OdIfc4x3_add2::IfcGradientCurve::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4x3_add2::IfcCompositeCurve.

◆ putAttr() [2/2]

virtual bool OdIfc4x3_add2::IfcGradientCurve::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4x3_add2::IfcCompositeCurve.

◆ setBaseCurve()

void OdIfc4x3_add2::IfcGradientCurve::setBaseCurve ( const OdDAIObjectId & BaseCurve )

Sets the value of BaseCurve attribute. BaseCurve attribute represents a base curve and also the 2D projection of gradient curve.

Parameters

BaseCurve [in] Object identifier of a base curve to set.

◆ setEndPoint()

void OdIfc4x3_add2::IfcGradientCurve::setEndPoint ( const OdDAIObjectId & EndPoint )

Sets the value of EndPoint attribute. EndPoint attribute represents the end point of gradient curve.

Parameters

EndPoint [in] Object identifier of the end point to set.

◆ testAttr() [1/2]

virtual bool OdIfc4x3_add2::IfcGradientCurve::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4x3_add2::IfcCompositeCurve.

◆ testAttr() [2/2]

virtual bool OdIfc4x3_add2::IfcGradientCurve::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4x3_add2::IfcCompositeCurve.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc4x3_add2::IfcGradientCurve::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc4x3_add2::IfcCompositeCurve.

◆ unsetAttr() [1/2]

virtual void OdIfc4x3_add2::IfcGradientCurve::unsetAttr ( const char * explicitAttrName )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrName [in] Explicit name of the attribute to reset.

Reimplemented from OdIfc4x3_add2::IfcCompositeCurve.

◆ unsetAttr() [2/2]

virtual void OdIfc4x3_add2::IfcGradientCurve::unsetAttr ( const OdIfc::OdIfcAttribute explicitAttrDef )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrDef [in] Explicit definition that represents an attribute to reset.

Reimplemented from OdIfc4x3_add2::IfcCompositeCurve.

Member Data Documentation

◆ m_BaseCurve

OdDAIObjectId OdIfc4x3_add2::IfcGradientCurve::m_BaseCurve

protected

Definition at line 210 of file Ifc4x3/IfcGradientCurveAutoImpl.h.

◆ m_EndPoint

OdDAIObjectId OdIfc4x3_add2::IfcGradientCurve::m_EndPoint

protected

Definition at line 211 of file Ifc4x3/IfcGradientCurveAutoImpl.h.

The documentation for this class was generated from the following file:

Ifc4x3/IfcGradientCurveAutoImpl.h
