#include <GiSectionGeometryOutput.h>

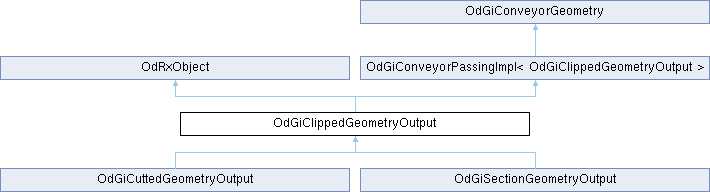

Inheritance diagram for OdGiClippedGeometryOutput:

Classes
struct	ClippedGeometryOutputInterface

class	WrapTraitsProc

Public Member Functions
OdGiConveyorGeometry &	destGeometry ()

OdGiConveyorContext &	drawContext ()

	OdGiClippedGeometryOutput ()

virtual void	copyFrom (const OdRxObject *pSource)

ClippedGeometryOutputInterface *	getInterface ()

void	setInterface (ClippedGeometryOutputInterface *pInterface)

OdGiClippedGeometryOutputCallback *	geometryProcessingCallback ()

void	setGeometryProcessingCallback (OdGiClippedGeometryOutputCallback *pCallback)

bool	isProcessingEnabled () const

void	setProcessingEnabled (bool bSet)

bool	isNonSectionableGeometryClipping () const

void	setNonSectionableGeometryClipping (bool bSet)

void	setTraitsOverrideFlags (OdUInt32 nFlags)

OdUInt32	traitsOverrideFlags () const

void	setTraitsOverrides (const OdGiSubEntityTraitsData &pData)

OdGiSubEntityTraitsData &	traitsOverrides ()

const OdGiSubEntityTraitsData &	traitsOverrides () const

virtual void	setupDrawableProcessing ()

virtual void	setupTraits (OdGiConveyorContext &context)

virtual void	releaseTraits (OdGiConveyorContext &context)

void	plineProc (const OdGiPolyline &polyline, const OdGeMatrix3d *pXfm=0, OdUInt32 fromIndex=0, OdUInt32 numSegs=0)

void	polylineProc (OdInt32 numPoints, const OdGePoint3d vertexList, const OdGeVector3d pNormal=0, const OdGeVector3d *pExtrusion=0, OdGsMarker baseSubEntMarker=-1)

void	polygonProc (OdInt32 numPoints, const OdGePoint3d vertexList, const OdGeVector3d pNormal=0, const OdGeVector3d *pExtrusion=0)

void	xlineProc (const OdGePoint3d &firstPoint, const OdGePoint3d &secondPoint)

void	rayProc (const OdGePoint3d &basePoint, const OdGePoint3d &throughPoint)

void	meshProc (OdInt32 numRows, OdInt32 numColumns, const OdGePoint3d vertexList, const OdGiEdgeData pEdgeData=0, const OdGiFaceData pFaceData=0, const OdGiVertexData pVertexData=0)

void	shellProc (OdInt32 numVertices, const OdGePoint3d vertexList, OdInt32 faceListSize, const OdInt32 faceList, const OdGiEdgeData pEdgeData=0, const OdGiFaceData pFaceData=0, const OdGiVertexData *pVertexData=0)

void	circleProc (const OdGePoint3d &center, double radius, const OdGeVector3d &normal, const OdGeVector3d *pExtrusion=0)

void	circleProc2 (const OdGePoint3d &center, double radius, const OdGeVector3d &normal, const OdGeVector3d &startVector, const OdGeVector3d *pExtrusion=0)

void	circleProc (const OdGePoint3d &firstPoint, const OdGePoint3d &secondPoint, const OdGePoint3d &thirdPoint, const OdGeVector3d *pExtrusion=0)

void	circularArcProc (const OdGePoint3d &center, double radius, const OdGeVector3d &normal, const OdGeVector3d &startVector, double sweepAngle, OdGiArcType arcType=kOdGiArcSimple, const OdGeVector3d *pExtrusion=0)

void	circularArcProc (const OdGePoint3d &firstPoint, const OdGePoint3d &secondPoint, const OdGePoint3d &thirdPoint, OdGiArcType arcType=kOdGiArcSimple, const OdGeVector3d *pExtrusion=0)

void	ellipArcProc (const OdGeEllipArc3d &ellipArc, const OdGePoint3d endPointOverrides=0, OdGiArcType arcType=kOdGiArcSimple, const OdGeVector3d pExtrusion=0)

void	nurbsProc (const OdGeNurbCurve3d &nurbsCurve)

void	textProc (const OdGePoint3d &position, const OdGeVector3d &direction, const OdGeVector3d &upVector, const OdChar msg, OdInt32 numBytes, bool raw, const OdGiTextStyle pTextStyle, const OdGeVector3d *pExtrusion=0)

void	textProc2 (const OdGePoint3d &position, const OdGeVector3d &direction, const OdGeVector3d &upVector, const OdChar msg, OdInt32 numBytes, bool raw, const OdGiTextStyle pTextStyle, const OdGeVector3d pExtrusion=0, const OdGeExtents3d extentsBox=0)

void	shapeProc (const OdGePoint3d &position, const OdGeVector3d &direction, const OdGeVector3d &upVector, int shapeNumber, const OdGiTextStyle pTextStyle, const OdGeVector3d pExtrusion=0)

void	rasterImageProc (const OdGePoint3d &origin, const OdGeVector3d &u, const OdGeVector3d &v, const OdGiRasterImage pImage, const OdGePoint2d uvBoundary, OdUInt32 numBoundPts, bool transparency=false, double brightness=50.0, double contrast=50.0, double fade=0.0)

void	metafileProc (const OdGePoint3d &origin, const OdGeVector3d &u, const OdGeVector3d &v, const OdGiMetafile *pMetafile, bool dcAligned=true, bool allowClipping=false)

void	xlineProc2 (const OdGePoint3d &basePoint, const OdGeVector3d &direction)

void	rayProc2 (const OdGePoint3d &basePoint, const OdGeVector3d &direction)

void	ttfPolyDrawProc (OdInt32 numVertices, const OdGePoint3d vertexList, OdInt32 faceListSize, const OdInt32 faceList, const OdUInt8 pBezierTypes, const OdGiFaceData pFaceData=0)

void	polypointProc (OdInt32 numPoints, const OdGePoint3d vertexList, const OdCmEntityColor pColors, const OdCmTransparency pTransparency=0, const OdGeVector3d pNormals=0, const OdGeVector3d pExtrusions=0, const OdGsMarker pSubEntMarkers=0, OdInt32 nPointSize=0)

void	rowOfDotsProc (OdInt32 numPoints, const OdGePoint3d &startPoint, const OdGeVector3d &dirToNextPoint)

void	pointCloudProc (const OdGiPointCloud &pCloud, const OdGiPointCloudFilter *pFilter)

void	edgeProc (const OdGiEdge2dArray &edges, const OdGeMatrix3d *pXform=0)

Public Member Functions inherited from OdRxObject
	ODRX_HEAP_OPERATORS ()

	OdRxObject ()

virtual	~OdRxObject ()

virtual OdRxObject *	queryX (const OdRxClass *pClass) const

virtual OdRxObject *	x (const OdRxClass *pClass) const

virtual OdRxClass *	isA () const

virtual void	addRef ()=0

virtual void	release ()=0

virtual long	numRefs () const

bool	isKindOf (const OdRxClass *pClass) const

virtual OdRxObjectPtr	clone () const

virtual OdRx::Ordering	comparedTo (const OdRxObject *pOther) const

virtual bool	isEqualTo (const OdRxObject *pOther) const

Public Member Functions inherited from OdGiConveyorPassingImpl< OdGiClippedGeometryOutput >
void	plineProc (const OdGiPolyline &polyline, const OdGeMatrix3d *pXfm=0, OdUInt32 fromIndex=0, OdUInt32 numSegs=0)

void	polylineProc (OdInt32 numPoints, const OdGePoint3d vertexList, const OdGeVector3d pNormal=0, const OdGeVector3d *pExtrusion=0, OdGsMarker baseSubEntMarker=-1)

void	polygonProc (OdInt32 numPoints, const OdGePoint3d vertexList, const OdGeVector3d pNormal=0, const OdGeVector3d *pExtrusion=0)

void	xlineProc (const OdGePoint3d &firstPoint, const OdGePoint3d &secondPoint)

void	rayProc (const OdGePoint3d &basePoint, const OdGePoint3d &throughPoint)

void	meshProc (OdInt32 numRows, OdInt32 numColumns, const OdGePoint3d vertexList, const OdGiEdgeData pEdgeData=0, const OdGiFaceData pFaceData=0, const OdGiVertexData pVertexData=0)

void	shellProc (OdInt32 numVertices, const OdGePoint3d vertexList, OdInt32 faceListSize, const OdInt32 faceList, const OdGiEdgeData pEdgeData=0, const OdGiFaceData pFaceData=0, const OdGiVertexData *pVertexData=0)

void	circleProc (const OdGePoint3d &center, double radius, const OdGeVector3d &normal, const OdGeVector3d *pExtrusion=0)

void	circleProc (const OdGePoint3d &firstPoint, const OdGePoint3d &secondPoint, const OdGePoint3d &thirdPoint, const OdGeVector3d *pExtrusion=0)

void	circleProc2 (const OdGePoint3d &center, double radius, const OdGeVector3d &normal, const OdGeVector3d &startVector, const OdGeVector3d *pExtrusion=0)

void	circularArcProc (const OdGePoint3d &center, double radius, const OdGeVector3d &normal, const OdGeVector3d &startVector, double sweepAngle, OdGiArcType arcType=kOdGiArcSimple, const OdGeVector3d *pExtrusion=0)

void	circularArcProc (const OdGePoint3d &firstPoint, const OdGePoint3d &secondPoint, const OdGePoint3d &thirdPoint, OdGiArcType arcType=kOdGiArcSimple, const OdGeVector3d *pExtrusion=0)

void	ellipArcProc (const OdGeEllipArc3d &ellipArc, const OdGePoint3d endPointOverrides=0, OdGiArcType arcType=kOdGiArcSimple, const OdGeVector3d pExtrusion=0)

void	nurbsProc (const OdGeNurbCurve3d &nurbsCurve)

void	textProc (const OdGePoint3d &position, const OdGeVector3d &direction, const OdGeVector3d &upVector, const OdChar msg, OdInt32 numBytes, bool raw, const OdGiTextStyle pTextStyle, const OdGeVector3d *pExtrusion=0)

void	textProc2 (const OdGePoint3d &position, const OdGeVector3d &direction, const OdGeVector3d &upVector, const OdChar msg, OdInt32 numBytes, bool raw, const OdGiTextStyle pTextStyle, const OdGeVector3d pExtrusion=0, const OdGeExtents3d extentsBox=0)

void	shapeProc (const OdGePoint3d &position, const OdGeVector3d &direction, const OdGeVector3d &upVector, int shapeNumber, const OdGiTextStyle pTextStyle, const OdGeVector3d pExtrusion=0)

void	rasterImageProc (const OdGePoint3d &origin, const OdGeVector3d &u, const OdGeVector3d &v, const OdGiRasterImage pImage, const OdGePoint2d uvBoundary, OdUInt32 numBoundPts, bool transparency=false, double brightness=50.0, double contrast=50.0, double fade=0.0)

void	metafileProc (const OdGePoint3d &origin, const OdGeVector3d &u, const OdGeVector3d &v, const OdGiMetafile *pMetafile, bool dcAligned=true, bool allowClipping=false)

void	xlineProc2 (const OdGePoint3d &basePoint, const OdGeVector3d &direction)

void	rayProc2 (const OdGePoint3d &basePoint, const OdGeVector3d &direction)

void	ttfPolyDrawProc (OdInt32 numVertices, const OdGePoint3d vertexList, OdInt32 faceListSize, const OdInt32 faceList, const OdUInt8 pBezierTypes, const OdGiFaceData pFaceData=0)

void	polypointProc (OdInt32 numPoints, const OdGePoint3d vertexList, const OdCmEntityColor pColors, const OdCmTransparency pTransparency=0, const OdGeVector3d pNormals=0, const OdGeVector3d pExtrusions=0, const OdGsMarker pSubEntMarkers=0, OdInt32 nPointSize=0)

void	rowOfDotsProc (OdInt32 numPoints, const OdGePoint3d &startPoint, const OdGeVector3d &dirToNextPoint)

void	pointCloudProc (const OdGiPointCloud &pCloud, const OdGiPointCloudFilter *pFilter=NULL)

void	edgeProc (const OdGiEdge2dArray &edges, const OdGeMatrix3d *pXform=0)

virtual void	conveyorBoundaryInfoProc (const OdGeBoundBlock3d &boundBlock, OdUInt32 &outputFlags)

Public Member Functions inherited from OdGiConveyorGeometry
virtual	~OdGiConveyorGeometry ()

virtual void	setExtentsProc (const OdGePoint3d *, bool=true)

virtual int	ttfCharProcFlags () const

virtual bool	ttfCharProc (OdChar, bool, const OdGePoint3d &, const OdGeBoundBlock3d *)

void	polypointProc2 (OdGiConveyorContext pContext, OdInt32 numPoints, const OdGePoint3d vertexList, const OdCmEntityColor pColors=0, const OdCmTransparency pTransparency=0, const OdGeVector3d pNormals=0, const OdGeVector3d pExtrusions=0, const OdGsMarker *pSubEntMarkers=0, OdInt32 nPointSize=0)

void	rowOfDotsProc2 (OdInt32 numPoints, const OdGePoint3d &startPoint, const OdGeVector3d &dirToNextPoint)

void	polyPolygonProc2 (OdGiConveyorContext pContext, OdUInt32 numIndices, const OdUInt32 pNumPositions, const OdGePoint3d pPositions, const OdUInt32 pNumPoints, const OdGePoint3d pPoints, const OdCmEntityColor pOutlineColors=NULL, const OdUInt32 pOutlinePsLinetypes=NULL, const OdCmEntityColor pFillColors=NULL, const OdCmTransparency *pFillTransparencies=NULL)

void	pointCloudProc2 (OdGiConveyorContext pContext, const OdGiPointCloud &pCloud, const OdGiPointCloudFilter pFilter)

Protected Types
enum	Flags { kProcessingEnabled = 1 , kNonSectionableGeometryClip = 2 , kLastGenericFlag = kNonSectionableGeometryClip }

Protected Attributes
ClippedGeometryOutputInterface *	m_pIface

OdGiClippedGeometryOutputCallbackPtr	m_pDrawCallback

OdUInt32	m_flags

OdUInt32	m_overrideFlags

OdGiSubEntityTraitsData	m_overrides

OdGiSubEntityTraitsData	m_traits

Additional Inherited Members
Public Types inherited from OdGiConveyorGeometry
enum	ETtfCharProcFlags { kTtfCharProcEnable = 1 , kTtfCharProcBoundBlock = 2 }

enum	EConveyorBoundaryInfoFlags { kBoundaryProcXform = 1 , kBoundaryProcXformNonUni = 2 , kBoundaryProcProjection = 4 , kBoundaryProcClip = 8 , kBoundaryProcClipFull = 16 }

Static Public Member Functions inherited from OdRxObject
static OdRxObjectPtr	cast (const OdRxObject *pointer)

static OdRxClass *	desc ()

static void	rxInit ()

static void	rxUninit ()

Detailed Description

This class is an default implementation of OdGiConveyorGeometry that provides generic output of clipped geometry.

See also: <link gi_geometry_sectioning_callback, Work with Geometry Sectioning Callback>

Definition at line 73 of file GiSectionGeometryOutput.h.

Member Enumeration Documentation

◆ Flags

enum OdGiClippedGeometryOutput::Flags

protected

Enumerator
kProcessingEnabled
kNonSectionableGeometryClip
kLastGenericFlag

Definition at line 98 of file GiSectionGeometryOutput.h.

Constructor & Destructor Documentation

◆ OdGiClippedGeometryOutput()

OdGiClippedGeometryOutput::OdGiClippedGeometryOutput ( )

inline

Default constructor for the OdGiClippedGeometryOutput class. Sets the associated clipped geometry output interface to NULL, sets kProcessingEnabled and kNonSectionableGeometryClip flags.

Definition at line 141 of file GiSectionGeometryOutput.h.

Member Function Documentation

◆ circleProc() [1/2]

void OdGiClippedGeometryOutput::circleProc	(	const OdGePoint3d &	center,
		double	radius,
		const OdGeVector3d &	normal,
		const OdGeVector3d *	pExtrusion = 0 )

inlinevirtual

Process circle data.

Parameters

center	[in] Center point.
radius	[in] Radius.
normal	[in] Normal vector.
pExtrusion	[in] Pointer to the extrusion vector.

Remarks: The extrusion vector specifies the direction and distance of the extrusion.

Implements OdGiConveyorGeometry.

Definition at line 425 of file GiSectionGeometryOutput.h.

◆ circleProc() [2/2]

void OdGiClippedGeometryOutput::circleProc	(	const OdGePoint3d &	firstPoint,
		const OdGePoint3d &	secondPoint,
		const OdGePoint3d &	thirdPoint,
		const OdGeVector3d *	pExtrusion = 0 )

inlinevirtual

Process circle data.

Parameters

firstPoint	[in] First point of a 3-point circle.
secondPoint	[in] Second point of a 3-point circle.
thirdPoint	[in] Third point of a 3-point circle.
pExtrusion	[in] Pointer to the extrusion vector.

Remarks: If firstPoint, secondPoint, and thirdPoint are specified, they cannot be colinear and no two can be coincident.

Implements OdGiConveyorGeometry.

Definition at line 457 of file GiSectionGeometryOutput.h.

◆ circleProc2()

void OdGiClippedGeometryOutput::circleProc2	(	const OdGePoint3d &	center,
		double	radius,
		const OdGeVector3d &	normal,
		const OdGeVector3d &	startVector,
		const OdGeVector3d *	pExtrusion = 0 )

inlinevirtual

Process circle data.

Parameters

center	[in] Center point.
radius	[in] Radius.
normal	[in] Normal vector.
startVector	[in] Start vector of the arc. Not used.
pExtrusion	[in] Pointer to the extrusion vector.

Remarks: The extrusion vector specifies the direction and distance of the extrusion.

Reimplemented from OdGiConveyorGeometry.

Definition at line 441 of file GiSectionGeometryOutput.h.

◆ circularArcProc() [1/2]

void OdGiClippedGeometryOutput::circularArcProc	(	const OdGePoint3d &	center,
		double	radius,
		const OdGeVector3d &	normal,
		const OdGeVector3d &	startVector,
		double	sweepAngle,
		OdGiArcType	arcType = kOdGiArcSimple,
		const OdGeVector3d *	pExtrusion = 0 )

inlinevirtual

Processes circular arc data.

Parameters

center	[in] Center point.
radius	[in] Radius.
normal	[in] Normal vector.
startVector	[in] Defines the start of this arc.
sweepAngle	[in] Angle that defines the arc.
arcType	[in] Arc type.
pExtrusion	[in] Pointer to the extrusion vector.

Remarks: arcType must be one of the following:

Value Description kOdGiArcSimple 0 Unfilled. kOdGiArcSector 1 Filled area bounded by the arc and its center. kOdGiArcChord 2 Filled area bounded by the arc and its end points

The extrusion vector specifies the direction and distance of the extrusion.

Remarks: All angles are expressed in radians.

Implements OdGiConveyorGeometry.

Definition at line 485 of file GiSectionGeometryOutput.h.

◆ circularArcProc() [2/2]

void OdGiClippedGeometryOutput::circularArcProc	(	const OdGePoint3d &	firstPoint,
		const OdGePoint3d &	secondPoint,
		const OdGePoint3d &	thirdPoint,
		OdGiArcType	arcType = kOdGiArcSimple,
		const OdGeVector3d *	pExtrusion = 0 )

inlinevirtual

Processes circular arc data.

Parameters

firstPoint	[in] First point of a 3-point arc.
secondPoint	[in] Second point of a 3-point arc.
thirdPoint	[in] Third point of a 3-point arc.
arcType	[in] Arc type.
pExtrusion	[in] Pointer to the extrusion vector.

Remarks: If firstPoint, secondPoint, and thirdPoint are specified, they cannot be colinear and no two can be coincident.

Implements OdGiConveyorGeometry.

Definition at line 504 of file GiSectionGeometryOutput.h.

◆ copyFrom()

virtual void OdGiClippedGeometryOutput::copyFrom ( const OdRxObject * pSource )

inlinevirtual

details Copies the contents of the specified object into this object.

Parameters

pSource [in] Pointer to the object from which to copy the data. /remarks If you create nested class, based onto OdGiClippedGeometryOutput, you should implement this method override, elsewhere it will not support multithreaded regeneration.

Reimplemented from OdRxObject.

Reimplemented in OdGiCuttedGeometryOutput, and OdGiSectionGeometryOutput.

Definition at line 150 of file GiSectionGeometryOutput.h.

◆ destGeometry()

OdGiConveyorGeometry & OdGiClippedGeometryOutput::destGeometry ( )

inline

Retrieves the destination geometry.

Returns: a reference to the destination geometry or throws an error if there is no associated conveyor geometry output interface or it is NULL.

Definition at line 119 of file GiSectionGeometryOutput.h.

◆ drawContext()

OdGiConveyorContext & OdGiClippedGeometryOutput::drawContext ( )

inline

Retrieves the drawing context.

Returns: a reference to the drawing context or throws an error if there is no associated conveyor geometry output interface or it is NULL.

Definition at line 126 of file GiSectionGeometryOutput.h.

◆ edgeProc()

void OdGiClippedGeometryOutput::edgeProc	(	const OdGiEdge2dArray &	edges,
		const OdGeMatrix3d *	pXform = 0 )

inlinevirtual

Processes hatch boundary.

Parameters

edges	[in] 2d curves array.
pXform	[in] Optional boundary transform matrix.

Implements OdGiConveyorGeometry.

Definition at line 733 of file GiSectionGeometryOutput.h.

◆ ellipArcProc()

void OdGiClippedGeometryOutput::ellipArcProc	(	const OdGeEllipArc3d &	ellipArc,
		const OdGePoint3d *	endPointOverrides = 0,
		OdGiArcType	arcType = kOdGiArcSimple,
		const OdGeVector3d *	pExtrusion = 0 )

inlinevirtual

Processes OdGeEllipArc3d data.

Parameters

ellipArc	[in] Elliptical arc.
endPointOverrides	[in] Array of points to be used as the first and last points of the vectorized arc.
arcType	[in] Arc type.
pExtrusion	[in] Pointer to the extrusion vector.

Remarks: arcType must be one of the following:

Value Description kOdGiArcSimple 0 Unfilled. kOdGiArcSector 1 Filled area bounded by the arc and its center. kOdGiArcChord 3 Filled area bounded by the arc and its end points

The extrusion vector specifies the direction and distance of the extrusion.

Implements OdGiConveyorGeometry.

Definition at line 528 of file GiSectionGeometryOutput.h.

◆ geometryProcessingCallback()

OdGiClippedGeometryOutputCallback * OdGiClippedGeometryOutput::geometryProcessingCallback ( )

inline

Retrieves geometry output callback interface.

Returns: pointer to the output geometry callback interface.

Remarks: Called internally by OdGiOrthoClipperEx conveyor node.

Definition at line 182 of file GiSectionGeometryOutput.h.

◆ getInterface()

ClippedGeometryOutputInterface * OdGiClippedGeometryOutput::getInterface ( )

inline

Retrieves conveyor geometry output interface.

Returns: pointer to the ClippedGeometryOutputInterface that represent geometry output interface for this object.

Definition at line 166 of file GiSectionGeometryOutput.h.

◆ isNonSectionableGeometryClipping()

bool OdGiClippedGeometryOutput::isNonSectionableGeometryClipping ( ) const

inline

Checks whether clipping of non-sectionable geometry is enabled.

Returns: true if clipping of non-sectionable geometry enabled, false otherwise.

Definition at line 205 of file GiSectionGeometryOutput.h.

◆ isProcessingEnabled()

bool OdGiClippedGeometryOutput::isProcessingEnabled ( ) const

inline

Checks whether processing of this geometry output is enabled.

Returns: true if processing of this geometry output is enabled, false otherwise.

Definition at line 193 of file GiSectionGeometryOutput.h.

◆ meshProc()

void OdGiClippedGeometryOutput::meshProc	(	OdInt32	numRows,
		OdInt32	numColumns,
		const OdGePoint3d *	vertexList,
		const OdGiEdgeData *	pEdgeData = 0,
		const OdGiFaceData *	pFaceData = 0,
		const OdGiVertexData *	pVertexData = 0 )

inlinevirtual

Processes mesh data.

Parameters

numRows	[in] Number of rows.
numColumns	[in] Number of columns.
vertexList	[in] Array of vertices.
pEdgeData	[in] Pointer to additional edge data.
pFaceData	[in] Pointer to additional face data.
pVertexData	[in] Pointer to additional vertex data.

Implements OdGiConveyorGeometry.

Definition at line 392 of file GiSectionGeometryOutput.h.

◆ metafileProc()

void OdGiClippedGeometryOutput::metafileProc	(	const OdGePoint3d &	origin,
		const OdGeVector3d &	u,
		const OdGeVector3d &	v,
		const OdGiMetafile *	pMetafile,
		bool	dcAligned = true,
		bool	allowClipping = false )

inlinevirtual

Processes metafile data.

Parameters

origin	[in] Metafile origin.
u	[in] Metafile width vector.
v	[in] Metafile height vector.
pMetafile	[in] Pointer to the metafile object.
dcAligned	[in] reserved.
allowClipping	[in] reserved.

Implements OdGiConveyorGeometry.

Definition at line 633 of file GiSectionGeometryOutput.h.

◆ nurbsProc()

void OdGiClippedGeometryOutput::nurbsProc ( const OdGeNurbCurve3d & nurbsCurve )

inlinevirtual

Processes OdGeNurbCurve3d data.

Parameters

nurbsCurve [in] NURBS curve data.

Implements OdGiConveyorGeometry.

Definition at line 538 of file GiSectionGeometryOutput.h.

◆ plineProc()

void OdGiClippedGeometryOutput::plineProc	(	const OdGiPolyline &	polyline,
		const OdGeMatrix3d *	pXfm = 0,
		OdUInt32	fromIndex = 0,
		OdUInt32	numSegs = 0 )

inlinevirtual

Processes OdGiPolyline data.

Parameters

polyline	[in] Polyline data to be processed.
pXfm	[in] Pointer to a transformation matrix.
fromIndex	[in] Index of the first segment to be processed.
numSegs	[in] Number of segments to be processed.

Remarks: numSegs == 0 indicates all segments starting at fromIndex are to be processed.

Implements OdGiConveyorGeometry.

Definition at line 317 of file GiSectionGeometryOutput.h.

◆ pointCloudProc()

void OdGiClippedGeometryOutput::pointCloudProc	(	const OdGiPointCloud &	pCloud,
		const OdGiPointCloudFilter *	pFilter )

inlinevirtual

Processes point cloud object.

Parameters

pCloud	[in] Point cloud object.
pFilter	[in] Optional set of point cloud object conveyor filters.

Implements OdGiConveyorGeometry.

Definition at line 722 of file GiSectionGeometryOutput.h.

◆ polygonProc()

void OdGiClippedGeometryOutput::polygonProc	(	OdInt32	numPoints,
		const OdGePoint3d *	vertexList,
		const OdGeVector3d *	pNormal = 0,
		const OdGeVector3d *	pExtrusion = 0 )

inlinevirtual

Processes polygon data.

Parameters

numPoints	[in] Number of points.
vertexList	[in] Array of vertices.
pNormal	[in] Pointer to the normal vector.
pExtrusion	[in] Pointer to the extrusion vector.

Remarks: The extrusion vector specifies the direction and distance of the extrusion.

Implements OdGiConveyorGeometry.

Definition at line 349 of file GiSectionGeometryOutput.h.

◆ polylineProc()

void OdGiClippedGeometryOutput::polylineProc	(	OdInt32	numPoints,
		const OdGePoint3d *	vertexList,
		const OdGeVector3d *	pNormal = 0,
		const OdGeVector3d *	pExtrusion = 0,
		OdGsMarker	baseSubEntMarker = -1 )

inlinevirtual

Processes simple polyline data.

Parameters

numPoints	[in] Number of points.
vertexList	[in] Array of vertices.
pNormal	[in] Pointer to the normal vector.
pExtrusion	[in] Pointer to the extrusion vector.
baseSubEntMarker	[in] Currently unused.

Remarks: The extrusion vector specifies the direction and distance of the extrusion.

Implements OdGiConveyorGeometry.

Reimplemented in OdGiSectionGeometryOutput.

Definition at line 333 of file GiSectionGeometryOutput.h.

◆ polypointProc()

void OdGiClippedGeometryOutput::polypointProc	(	OdInt32	numPoints,
		const OdGePoint3d *	vertexList,
		const OdCmEntityColor *	pColors,
		const OdCmTransparency *	pTransparency = 0,
		const OdGeVector3d *	pNormals = 0,
		const OdGeVector3d *	pExtrusions = 0,
		const OdGsMarker *	pSubEntMarkers = 0,
		OdInt32	nPointSize = 0 )

inlinevirtual

Processes an array of points.

Parameters

numPoints	[in] Number of points.
vertexList	[in] Pointer to an array of vertices.
pColors	[in] Pointer to point colors.
pTransparency	[in] Pointer to point transparency.
pNormals	[in] Array of normal vectors.
pExtrusions	[in] Array of vectors that defines extrusions.
pSubEntMarkers	[in] Array of sub-entity markers.
nPointSize	[in] Points size.

Implements OdGiConveyorGeometry.

Definition at line 698 of file GiSectionGeometryOutput.h.

◆ rasterImageProc()

void OdGiClippedGeometryOutput::rasterImageProc	(	const OdGePoint3d &	origin,
		const OdGeVector3d &	u,
		const OdGeVector3d &	v,
		const OdGiRasterImage *	pImage,
		const OdGePoint2d *	uvBoundary,
		OdUInt32	numBoundPts,
		bool	transparency = false,
		double	brightness = 50.0,
		double	contrast = 50.0,
		double	fade = 0.0 )

inlinevirtual

Processes raster images data.

Parameters

origin	[in] Lower-left corner.
u	[in] Image width vector.
v	[in] Image height vector.
pImage	[in] Pointer to the RasterImage object.
uvBoundary	[in] Array of image boundary points (may not be null).
numBoundPts	[in] Number of boundary points.
transparency	[in] True if and only if image transparency is on.
brightness	[in] Image brightness [0.0 .. 100.0].
contrast	[in] Image contrast [0.0 .. 100.0].
fade	[in] Image fade value [0.0 .. 100.0].

Implements OdGiConveyorGeometry.

Definition at line 616 of file GiSectionGeometryOutput.h.

◆ rayProc()

void OdGiClippedGeometryOutput::rayProc	(	const OdGePoint3d &	basePoint,
		const OdGePoint3d &	throughPoint )

inlinevirtual

Processes Ray data.

Parameters

basePoint	[in] Base point.
throughPoint	[in] Through point

Remarks: A Ray is a semi-infinite line that starts at the basePoint, and passes through the throughPoint.

Implements OdGiConveyorGeometry.

Definition at line 377 of file GiSectionGeometryOutput.h.

◆ rayProc2()

void OdGiClippedGeometryOutput::rayProc2	(	const OdGePoint3d &	basePoint,
		const OdGeVector3d &	direction )

inlinevirtual

Processes Ray data.

Parameters

basePoint	[in] Base point.
direction	[in] Direction of a ray.

Remarks: A Ray is a semi-infinite line that starts at the basePoint, and extends through the specified direction.

Reimplemented from OdGiConveyorGeometry.

Definition at line 662 of file GiSectionGeometryOutput.h.

◆ releaseTraits()

virtual void OdGiClippedGeometryOutput::releaseTraits ( OdGiConveyorContext & context )

inlinevirtual

Called to release output geometry traits.

Parameters

context [in] Geometry conveyor context.

Remarks: Override to implement own traits processing.

Definition at line 294 of file GiSectionGeometryOutput.h.

◆ rowOfDotsProc()

void OdGiClippedGeometryOutput::rowOfDotsProc	(	OdInt32	numPoints,
		const OdGePoint3d &	startPoint,
		const OdGeVector3d &	dirToNextPoint )

inlinevirtual

Processes a row of points.

Parameters

numPoints	[in] Number of points.
startPoint	[in] First point to draw.
dirToNextPoint	[in] Offset to next point.

Implements OdGiConveyorGeometry.

Definition at line 711 of file GiSectionGeometryOutput.h.

◆ setGeometryProcessingCallback()

void OdGiClippedGeometryOutput::setGeometryProcessingCallback ( OdGiClippedGeometryOutputCallback * pCallback )

inline

Setup geometry output callback interface.

Parameters

pCallback [in] Geometry output callback interface pointer.

Definition at line 187 of file GiSectionGeometryOutput.h.

◆ setInterface()

void OdGiClippedGeometryOutput::setInterface ( ClippedGeometryOutputInterface * pInterface )

inline

Sets conveyor geometry output interface.

Parameters

pInterface [in] Pointer onto conveyor geometry output interface.

Remarks: Called internally by OdGiOrthoClipperEx conveyor node.

Definition at line 173 of file GiSectionGeometryOutput.h.

◆ setNonSectionableGeometryClipping()

void OdGiClippedGeometryOutput::setNonSectionableGeometryClipping ( bool bSet )

inline

Enables or disables clipping of non-sectionable geometry.

Parameters

bSet	[in] New state of non-sectionable geometry clipping.

Definition at line 210 of file GiSectionGeometryOutput.h.

◆ setProcessingEnabled()

void OdGiClippedGeometryOutput::setProcessingEnabled ( bool bSet )

inline

Enables or disables processing of this geometry output.

Parameters

bSet	[in] New processing state for this geometry output.

Definition at line 198 of file GiSectionGeometryOutput.h.

◆ setTraitsOverrideFlags()

void OdGiClippedGeometryOutput::setTraitsOverrideFlags ( OdUInt32 nFlags )

inline

Setup traits override flags.

Parameters

nFlags [in] Traits override flags.

Definition at line 216 of file GiSectionGeometryOutput.h.

◆ setTraitsOverrides()

void OdGiClippedGeometryOutput::setTraitsOverrides ( const OdGiSubEntityTraitsData & pData )

inline

Setup traits overrides.

Parameters

pData [in] Traits overrides.

Definition at line 234 of file GiSectionGeometryOutput.h.

◆ setupDrawableProcessing()

virtual void OdGiClippedGeometryOutput::setupDrawableProcessing ( )

inlinevirtual

Called by vectorizer to setup geometry output configuration for current conveyor drawable and state.

Remarks: Override to implement own settings processing.

Definition at line 262 of file GiSectionGeometryOutput.h.

◆ setupTraits()

virtual void OdGiClippedGeometryOutput::setupTraits ( OdGiConveyorContext & context )

inlinevirtual

Called to setup output geometry traits.

Parameters

context [in] Geometry conveyor context.

Remarks: Override to implement own traits processing.

Definition at line 274 of file GiSectionGeometryOutput.h.

◆ shapeProc()

void OdGiClippedGeometryOutput::shapeProc	(	const OdGePoint3d &	position,
		const OdGeVector3d &	direction,
		const OdGeVector3d &	upVector,
		int	shapeNumber,
		const OdGiTextStyle *	pTextStyle,
		const OdGeVector3d *	pExtrusion = 0 )

inlinevirtual

Processes shape data.

Parameters

position	[in] Position of the shape.
direction	[in] Baseline direction of the shape.
upVector	[in] Up vector for the shape.
shapeNumber	[in] Shape number.
pTextStyle	[in] Pointer to the TextStyle for the shape.
pExtrusion	[in] Pointer to the extrusion vector.

Remarks: The extrusion vector specifies the direction and distance of the extrusion.

Implements OdGiConveyorGeometry.

Definition at line 596 of file GiSectionGeometryOutput.h.

◆ shellProc()

void OdGiClippedGeometryOutput::shellProc	(	OdInt32	numVertices,
		const OdGePoint3d *	vertexList,
		OdInt32	faceListSize,
		const OdInt32 *	faceList,
		const OdGiEdgeData *	pEdgeData = 0,
		const OdGiFaceData *	pFaceData = 0,
		const OdGiVertexData *	pVertexData = 0 )

inlinevirtual

Processes shell data.

Parameters

numVertices	[in] Number of vertices.
vertexList	[in] Array of vertices.
faceListSize	[in] Number of entries in faceList.
faceList	[in] Array of numbers that define the faces.
pEdgeData	[in] Pointer to additional edge data.
pFaceData	[in] Pointer to additional face data.
pVertexData	[in] Pointer to additional vertex data.

Implements OdGiConveyorGeometry.

Reimplemented in OdGiSectionGeometryOutput.

Definition at line 409 of file GiSectionGeometryOutput.h.

◆ textProc()

void OdGiClippedGeometryOutput::textProc	(	const OdGePoint3d &	position,
		const OdGeVector3d &	direction,
		const OdGeVector3d &	upVector,
		const OdChar *	msg,
		OdInt32	numBytes,
		bool	raw,
		const OdGiTextStyle *	pTextStyle,
		const OdGeVector3d *	pExtrusion = 0 )

inlinevirtual

Processes text data.

Parameters

position	[in] Position of the text.
direction	[in] Baseline direction of the text.
upVector	[in] Up vector for the text.
msg	[in] Text string.
numBytes	[in] Number of bytes in msg.
raw	[in] If and only if true, escape sequences, such as %P, will not be converted to special characters.
pTextStyle	[in] Pointer to the TextStyle for the text.
pExtrusion	[in] Pointer to the extrusion vector.

Remarks: The extrusion vector specifies the direction and distance of the extrusion.

Implements OdGiConveyorGeometry.

Definition at line 558 of file GiSectionGeometryOutput.h.

◆ textProc2()

void OdGiClippedGeometryOutput::textProc2	(	const OdGePoint3d &	position,
		const OdGeVector3d &	direction,
		const OdGeVector3d &	upVector,
		const OdChar *	msg,
		OdInt32	numBytes,
		bool	raw,
		const OdGiTextStyle *	pTextStyle,
		const OdGeVector3d *	pExtrusion = 0,
		const OdGeExtents3d *	extentsBox = 0 )

inlinevirtual

Processes text data.

Parameters

position	[in] Position of the text.
direction	[in] Baseline direction of the text.
upVector	[in] Up vector for the text.
msg	[in] Text string.
numBytes	[in] Number of bytes in msg.
raw	[in] Flag that specifies whether escape sequences, such as %P, should not be converted to special characters.
pTextStyle	[in] Pointer to the TextStyle for the text.
pExtrusion	[in] Pointer to the extrusion vector.

Remarks: The extrusion vector specifies the direction and distance of the extrusion.

Reimplemented from OdGiConveyorGeometry.

Definition at line 578 of file GiSectionGeometryOutput.h.

◆ traitsOverrideFlags()

OdUInt32 OdGiClippedGeometryOutput::traitsOverrideFlags ( ) const

inline

Retrieves traits override flags.

Returns: a set of traits override flags as OdUInt32 value.

Definition at line 225 of file GiSectionGeometryOutput.h.

◆ traitsOverrides() [1/2]

OdGiSubEntityTraitsData & OdGiClippedGeometryOutput::traitsOverrides ( )

inline

Retrieves traits overrides (for changing).

Returns: subentity traits overrides as OdGiSubEntityTraitsData instance.

Definition at line 243 of file GiSectionGeometryOutput.h.

◆ traitsOverrides() [2/2]

const OdGiSubEntityTraitsData & OdGiClippedGeometryOutput::traitsOverrides ( ) const

inline

Returns traits overrides.

Returns: reference to subentity traits overrides.

Definition at line 252 of file GiSectionGeometryOutput.h.

◆ ttfPolyDrawProc()

void OdGiClippedGeometryOutput::ttfPolyDrawProc	(	OdInt32	numVertices,
		const OdGePoint3d *	vertexList,
		OdInt32	faceListSize,
		const OdInt32 *	faceList,
		const OdUInt8 *	pBezierTypes,
		const OdGiFaceData *	pFaceData = 0 )

inlinevirtual

Processes TrueType font characters in dynamic polyDraw mode which is similar to shellProc() method, except here additional information about bezier data is passed for processing.

Parameters

numVertices	[in] Number of vertices.
vertexList	[in] Array of vertices.
faceListSize	[in] Number of entries in faceList.
faceList	[in] Array of numbers that define the faces.
pBezierTypes	[in] Bezier types.
pFaceData	[in] Pointer to additional face data.
pVertexData	[in] Pointer to additional vertex data.

Reimplemented from OdGiConveyorGeometry.

Definition at line 680 of file GiSectionGeometryOutput.h.

◆ xlineProc()

void OdGiClippedGeometryOutput::xlineProc	(	const OdGePoint3d &	firstPoint,
		const OdGePoint3d &	secondPoint )

inlinevirtual

Processes Xline data.

Parameters

firstPoint	[in] First point.
secondPoint	[in] Second point.

Remarks: An Xline is an infinite line passing through the specified points.

Implements OdGiConveyorGeometry.

Definition at line 363 of file GiSectionGeometryOutput.h.

◆ xlineProc2()

void OdGiClippedGeometryOutput::xlineProc2	(	const OdGePoint3d &	basePoint,
		const OdGeVector3d &	direction )

inlinevirtual

Processes Xline data.

Parameters

basePoint	[in] Base point.
direction	[in] Direction of an xline.

Remarks: An Xline is an infinite line passing through the specified basePoint along the passed direction.

Reimplemented from OdGiConveyorGeometry.

Definition at line 648 of file GiSectionGeometryOutput.h.

Member Data Documentation

◆ m_flags

OdUInt32 OdGiClippedGeometryOutput::m_flags

protected

Definition at line 109 of file GiSectionGeometryOutput.h.

◆ m_overrideFlags

OdUInt32 OdGiClippedGeometryOutput::m_overrideFlags

protected

Definition at line 110 of file GiSectionGeometryOutput.h.

◆ m_overrides

OdGiSubEntityTraitsData OdGiClippedGeometryOutput::m_overrides

protected

Definition at line 111 of file GiSectionGeometryOutput.h.

◆ m_pDrawCallback

OdGiClippedGeometryOutputCallbackPtr OdGiClippedGeometryOutput::m_pDrawCallback

protected

Definition at line 108 of file GiSectionGeometryOutput.h.

◆ m_pIface

ClippedGeometryOutputInterface* OdGiClippedGeometryOutput::m_pIface

protected

Definition at line 107 of file GiSectionGeometryOutput.h.

◆ m_traits

OdGiSubEntityTraitsData OdGiClippedGeometryOutput::m_traits

protected

Definition at line 112 of file GiSectionGeometryOutput.h.

The documentation for this class was generated from the following file:

GiSectionGeometryOutput.h

Classes

Public Member Functions

Protected Types

Protected Attributes

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ Flags

Constructor & Destructor Documentation

◆ OdGiClippedGeometryOutput()

Member Function Documentation

◆ circleProc() [1/2]

◆ circleProc() [2/2]

◆ circleProc2()

◆ circularArcProc() [1/2]

◆ circularArcProc() [2/2]

◆ copyFrom()

◆ destGeometry()

◆ drawContext()

◆ edgeProc()

◆ ellipArcProc()

◆ geometryProcessingCallback()

◆ getInterface()

◆ isNonSectionableGeometryClipping()

◆ isProcessingEnabled()

◆ meshProc()

◆ metafileProc()

◆ nurbsProc()

◆ plineProc()

◆ pointCloudProc()

◆ polygonProc()

◆ polylineProc()

◆ polypointProc()

◆ rasterImageProc()

◆ rayProc()

◆ rayProc2()

◆ releaseTraits()

◆ rowOfDotsProc()

◆ setGeometryProcessingCallback()

◆ setInterface()

◆ setNonSectionableGeometryClipping()

◆ setProcessingEnabled()

◆ setTraitsOverrideFlags()

◆ setTraitsOverrides()

◆ setupDrawableProcessing()

◆ setupTraits()

◆ shapeProc()

◆ shellProc()

◆ textProc()

◆ textProc2()

◆ traitsOverrideFlags()

◆ traitsOverrides() [1/2]

◆ traitsOverrides() [2/2]

◆ ttfPolyDrawProc()

◆ xlineProc()

◆ xlineProc2()

Member Data Documentation

◆ m_flags

◆ m_overrideFlags

◆ m_overrides

◆ m_pDrawCallback

◆ m_pIface

◆ m_traits
