#include <IfcCircleProfileDefAutoImpl.h>

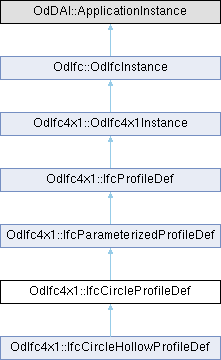

Inheritance diagram for OdIfc4x1::IfcCircleProfileDef:

Public Member Functions
double	getRadius () const

void	setRadius (double Radius)

	IfcCircleProfileDef ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc4x1::IfcParameterizedProfileDef
const OdDAIObjectId &	getPosition () const

void	setPosition (const OdDAIObjectId &Position)

Public Member Functions inherited from OdIfc4x1::IfcProfileDef
IfcProfileTypeEnum	getProfileType () const

void	setProfileType (IfcProfileTypeEnum ProfileType)

const OdAnsiString &	getProfileName () const

void	setProfileName (const OdAnsiString &ProfileName)

void	getInvHasExternalReference (OdDAIObjectIds &HasExternalReference) const

void	getInvHasProperties (OdDAIObjectIds &HasProperties) const

	IfcProfileDef ()

Public Member Functions inherited from OdIfc4x1::OdIfc4x1Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
IfcPositiveLengthMeasure	m_Radius

Protected Attributes inherited from OdIfc4x1::IfcParameterizedProfileDef
OdDAIObjectId	m_Position

Protected Attributes inherited from OdIfc4x1::IfcProfileDef
OdDAI::Enum	m_ProfileType

OdAnsiString	m_ProfileName

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

IfcCircleProfileDef defines a circle as the profile definition used by the swept surface geometry or by the swept area solid. It is specified by its Radius attribute and placed within the 2D position coordinate system, established by the Position attribute. The image below illustrates parameters for the circle profile definition. The parameterized profile defines its own position coordinate system. The underlying coordinate system is defined by the swept surface or swept area solid that uses the profile definition. It is the xy plane of either: IfcSweptSurface.Position IfcSweptAreaSolid.Position

Or in case of sectioned spines, it is the xy plane of each list member of IfcSectionedSpine.CrossSectionPositions. By using offsets of the position, the parameterized profile can be positioned centric (using x,y offsets = 0.), or at any position relative to the profile. Explicit coordinate offsets are used to define cardinal points (e.g. upper-left bound). The Position attribute defines the 2D position coordinate system of the circle. The Radius attribute defines the radius of the circle.

Definition at line 54 of file Ifc4x1/IfcCircleProfileDefAutoImpl.h.

Constructor & Destructor Documentation

◆ IfcCircleProfileDef()

OdIfc4x1::IfcCircleProfileDef::IfcCircleProfileDef ( )

Default constructor for the IfcCircleProfileDef class.

Member Function Documentation

◆ getAttr() [1/2]

virtual OdRxValue OdIfc4x1::IfcCircleProfileDef::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4x1::IfcParameterizedProfileDef.

Reimplemented in OdIfc4x1::IfcCircleHollowProfileDef.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc4x1::IfcCircleProfileDef::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4x1::IfcParameterizedProfileDef.

Reimplemented in OdIfc4x1::IfcCircleHollowProfileDef.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc4x1::IfcCircleProfileDef::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc4x1::IfcParameterizedProfileDef.

Reimplemented in OdIfc4x1::IfcCircleHollowProfileDef.

◆ getRadius()

double OdIfc4x1::IfcCircleProfileDef::getRadius ( ) const

Returns the value of Radius attribute. This attribute represents the radius of the circle.

Returns: Returns the value of Radius attribute.

◆ inFields()

virtual OdResult OdIfc4x1::IfcCircleProfileDef::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4x1::IfcParameterizedProfileDef.

Reimplemented in OdIfc4x1::IfcCircleHollowProfileDef.

◆ isKindOf()

virtual bool OdIfc4x1::IfcCircleProfileDef::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc4x1::IfcParameterizedProfileDef.

Reimplemented in OdIfc4x1::IfcCircleHollowProfileDef.

◆ outFields()

virtual OdResult OdIfc4x1::IfcCircleProfileDef::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4x1::IfcParameterizedProfileDef.

Reimplemented in OdIfc4x1::IfcCircleHollowProfileDef.

◆ putAttr() [1/2]

virtual bool OdIfc4x1::IfcCircleProfileDef::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4x1::IfcParameterizedProfileDef.

Reimplemented in OdIfc4x1::IfcCircleHollowProfileDef.

◆ putAttr() [2/2]

virtual bool OdIfc4x1::IfcCircleProfileDef::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4x1::IfcParameterizedProfileDef.

Reimplemented in OdIfc4x1::IfcCircleHollowProfileDef.

◆ setRadius()

void OdIfc4x1::IfcCircleProfileDef::setRadius ( double Radius )

Sets the value of Radius attribute. This attribute represents the radius of the circle.

Parameters

Radius [in] Radius to set.

◆ testAttr() [1/2]

virtual bool OdIfc4x1::IfcCircleProfileDef::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4x1::IfcParameterizedProfileDef.

Reimplemented in OdIfc4x1::IfcCircleHollowProfileDef.

◆ testAttr() [2/2]

virtual bool OdIfc4x1::IfcCircleProfileDef::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4x1::IfcParameterizedProfileDef.

Reimplemented in OdIfc4x1::IfcCircleHollowProfileDef.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc4x1::IfcCircleProfileDef::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc4x1::IfcParameterizedProfileDef.

Reimplemented in OdIfc4x1::IfcCircleHollowProfileDef.
