#include <IfcRelConnectsElementsAutoImpl.h>

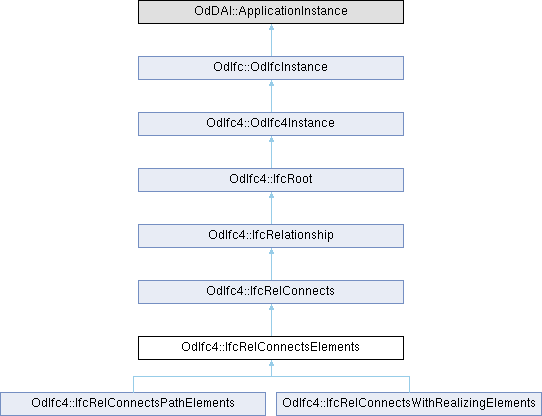

Inheritance diagram for OdIfc4::IfcRelConnectsElements:

Public Member Functions
const OdDAIObjectId &	getConnectionGeometry () const

void	setConnectionGeometry (const OdDAIObjectId &ConnectionGeometry)

const OdDAIObjectId &	getRelatingElement () const

void	setRelatingElement (const OdDAIObjectId &RelatingElement)

const OdDAIObjectId &	getRelatedElement () const

void	setRelatedElement (const OdDAIObjectId &RelatedElement)

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual void	setInverseCounterParts () override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual bool	comparedToEarlyImpl (const OdDAI::ApplicationInstance *pOther, OdRx::Ordering &ordering) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc4::IfcRoot
OdDAI::CompressedGUID	getGlobalId () const

void	setGlobalId (OdDAI::CompressedGUID GlobalId)

const OdDAIObjectId &	getOwnerHistory () const

void	setOwnerHistory (const OdDAIObjectId &OwnerHistory)

const OdAnsiString &	getName () const

void	setName (const OdAnsiString &Name)

const OdAnsiString &	getDescription () const

void	setDescription (const OdAnsiString &Description)

	IfcRoot ()

Public Member Functions inherited from OdIfc4::OdIfc4Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
OdDAIObjectId	m_ConnectionGeometry

OdDAIObjectId	m_RelatingElement

OdDAIObjectId	m_RelatedElement

Protected Attributes inherited from OdIfc4::IfcRoot
OdDAI::CompressedGUID	m_GlobalId

OdDAIObjectId	m_OwnerHistory

OdAnsiString	m_Name

OdAnsiString	m_Description

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

This objectified relationship provides the generalization of the connectivity between elements. It is a 1 to 1 relationship. The concept of two elements being physically or logically connected is described independently from the connecting elements. The connectivity can be related to the shape representation of the connected entities by providing a connection geometry. In this case the geometrical constraints of the connection are provided by the optional relationship to the IfcConnectionGeometry. The connection geometry is provided as a point, curve or surface within the local placement coordinate systems of the connecting elements. If the connection geometry is omitted then the connection is provided as a logical connection. Under this circumstance, the connection point, curve or surface has to be recalculated by the receiving application.

Definition at line 48 of file Ifc4/IfcRelConnectsElementsAutoImpl.h.

Member Function Documentation

◆ comparedToEarlyImpl()

virtual bool OdIfc4::IfcRelConnectsElements::comparedToEarlyImpl	(	const OdDAI::ApplicationInstance *	pOther,
		OdRx::Ordering &	ordering ) const

overridevirtual

Early-bound version of instances comparison.

Parameters

pOther	[in] Other application instance.
ordering	[out] Receives the ordering (comparison) status.

Returns: true if comparison was performed, false if method has no implementation, so late-bound version could be applied.

Remarks

If the method returns true, the ordering parameter can receive one of the following statuses:

Value Description kLessThan -1 This object < Other Object. kEqual 0 This object = Other Object. kGreaterThan 1 This object > Other Object. kNotOrderable 2 This class is not orderable.

Reimplemented from OdIfc4::IfcRelConnects.

Reimplemented in OdIfc4::IfcRelConnectsPathElements, and OdIfc4::IfcRelConnectsWithRealizingElements.

◆ getAttr() [1/2]

virtual OdRxValue OdIfc4::IfcRelConnectsElements::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4::IfcRoot.

Reimplemented in OdIfc4::IfcRelConnectsPathElements, and OdIfc4::IfcRelConnectsWithRealizingElements.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc4::IfcRelConnectsElements::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4::IfcRoot.

Reimplemented in OdIfc4::IfcRelConnectsPathElements, and OdIfc4::IfcRelConnectsWithRealizingElements.

◆ getConnectionGeometry()

const OdDAIObjectId & OdIfc4::IfcRelConnectsElements::getConnectionGeometry ( ) const

Returns the value of ConnectionGeometry attribute. This attribute represents the geometric shape representation of the connection geometry that is provided in the object coordinate system of the RelatingElement (mandatory) and in the object coordinate system of the RelatedElement (optionally).

Returns: Returns the value of ConnectionGeometry attribute.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc4::IfcRelConnectsElements::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc4::IfcRelConnects.

Reimplemented in OdIfc4::IfcRelConnectsPathElements, and OdIfc4::IfcRelConnectsWithRealizingElements.

◆ getRelatedElement()

const OdDAIObjectId & OdIfc4::IfcRelConnectsElements::getRelatedElement ( ) const

Returns the value of RelatedElement attribute. This attribute represents reference to a subtype of IfcElement that is connected by the connection relationship in the role of RelatedElement.

Returns: Returns the value of RelatedElement attribute.

◆ getRelatingElement()

const OdDAIObjectId & OdIfc4::IfcRelConnectsElements::getRelatingElement ( ) const

Returns the value of RelatingElement attribute. This attribute represents reference to a subtype of IfcElement that is connected by the connection relationship in the role of RelatingElement.

Returns: Returns the value of RelatingElement attribute.

◆ inFields()

virtual OdResult OdIfc4::IfcRelConnectsElements::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4::IfcRoot.

Reimplemented in OdIfc4::IfcRelConnectsPathElements, and OdIfc4::IfcRelConnectsWithRealizingElements.

◆ isKindOf()

virtual bool OdIfc4::IfcRelConnectsElements::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc4::IfcRelConnects.

Reimplemented in OdIfc4::IfcRelConnectsPathElements, and OdIfc4::IfcRelConnectsWithRealizingElements.

◆ outFields()

virtual OdResult OdIfc4::IfcRelConnectsElements::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4::IfcRoot.

Reimplemented in OdIfc4::IfcRelConnectsPathElements, and OdIfc4::IfcRelConnectsWithRealizingElements.

◆ putAttr() [1/2]

virtual bool OdIfc4::IfcRelConnectsElements::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4::IfcRoot.

Reimplemented in OdIfc4::IfcRelConnectsPathElements, and OdIfc4::IfcRelConnectsWithRealizingElements.

◆ putAttr() [2/2]

virtual bool OdIfc4::IfcRelConnectsElements::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4::IfcRoot.

Reimplemented in OdIfc4::IfcRelConnectsPathElements, and OdIfc4::IfcRelConnectsWithRealizingElements.

◆ setConnectionGeometry()

void OdIfc4::IfcRelConnectsElements::setConnectionGeometry ( const OdDAIObjectId & ConnectionGeometry )

Sets the value of ConnectionGeometry attribute. This attribute represents the geometric shape representation of the connection geometry that is provided in the object coordinate system of the RelatingElement (mandatory) and in the object coordinate system of the RelatedElement (optionally).

Parameters

ConnectionGeometry [in] Connection geometry to set.

◆ setInverseCounterParts()

virtual void OdIfc4::IfcRelConnectsElements::setInverseCounterParts ( )

overridevirtual

Sets the object ID of this instance to inverse attributes of related instances according to schema specification of inverse attributes.

Reimplemented in OdIfc4::IfcRelConnectsWithRealizingElements.

◆ setRelatedElement()

void OdIfc4::IfcRelConnectsElements::setRelatedElement ( const OdDAIObjectId & RelatedElement )

Sets the value of RelatedElement attribute. This attribute represents reference to a subtype of IfcElement that is connected by the connection relationship in the role of RelatedElement.

Parameters

RelatedElement [in] Related element to set.

◆ setRelatingElement()

void OdIfc4::IfcRelConnectsElements::setRelatingElement ( const OdDAIObjectId & RelatingElement )

Sets the value of RelatingElement attribute. This attribute represents reference to a subtype of IfcElement that is connected by the connection relationship in the role of RelatingElement.

Parameters

RelatingElement [in] Relating element to set.

◆ testAttr() [1/2]

virtual bool OdIfc4::IfcRelConnectsElements::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4::IfcRoot.

Reimplemented in OdIfc4::IfcRelConnectsPathElements, and OdIfc4::IfcRelConnectsWithRealizingElements.

◆ testAttr() [2/2]

virtual bool OdIfc4::IfcRelConnectsElements::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4::IfcRoot.

Reimplemented in OdIfc4::IfcRelConnectsPathElements, and OdIfc4::IfcRelConnectsWithRealizingElements.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc4::IfcRelConnectsElements::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc4::IfcRelConnects.

Reimplemented in OdIfc4::IfcRelConnectsPathElements, and OdIfc4::IfcRelConnectsWithRealizingElements.

◆ unsetAttr() [1/2]

virtual void OdIfc4::IfcRelConnectsElements::unsetAttr ( const char * explicitAttrName )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrName [in] Explicit name of the attribute to reset.

Reimplemented from OdIfc4::IfcRoot.

Reimplemented in OdIfc4::IfcRelConnectsPathElements, and OdIfc4::IfcRelConnectsWithRealizingElements.

◆ unsetAttr() [2/2]

virtual void OdIfc4::IfcRelConnectsElements::unsetAttr ( const OdIfc::OdIfcAttribute explicitAttrDef )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrDef [in] Explicit definition that represents an attribute to reset.

Reimplemented from OdIfc4::IfcRoot.

Reimplemented in OdIfc4::IfcRelConnectsPathElements, and OdIfc4::IfcRelConnectsWithRealizingElements.

Member Data Documentation

◆ m_ConnectionGeometry

OdDAIObjectId OdIfc4::IfcRelConnectsElements::m_ConnectionGeometry

protected

Definition at line 238 of file Ifc4/IfcRelConnectsElementsAutoImpl.h.

◆ m_RelatedElement

OdDAIObjectId OdIfc4::IfcRelConnectsElements::m_RelatedElement

protected

Definition at line 240 of file Ifc4/IfcRelConnectsElementsAutoImpl.h.

◆ m_RelatingElement

OdDAIObjectId OdIfc4::IfcRelConnectsElements::m_RelatingElement

protected

Definition at line 239 of file Ifc4/IfcRelConnectsElementsAutoImpl.h.

The documentation for this class was generated from the following file:

Ifc4/IfcRelConnectsElementsAutoImpl.h

Public Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ comparedToEarlyImpl()

◆ getAttr() [1/2]

◆ getAttr() [2/2]

◆ getConnectionGeometry()

◆ getInstanceType()

◆ getRelatedElement()

◆ getRelatingElement()

◆ inFields()

◆ isKindOf()

◆ outFields()

◆ putAttr() [1/2]

◆ putAttr() [2/2]

◆ setConnectionGeometry()

◆ setInverseCounterParts()

◆ setRelatedElement()

◆ setRelatingElement()

◆ testAttr() [1/2]

◆ testAttr() [2/2]

◆ type()

◆ unsetAttr() [1/2]

◆ unsetAttr() [2/2]

Member Data Documentation

◆ m_ConnectionGeometry

◆ m_RelatedElement

◆ m_RelatingElement
