#include <IfcRelSpaceBoundaryAutoImpl.h>

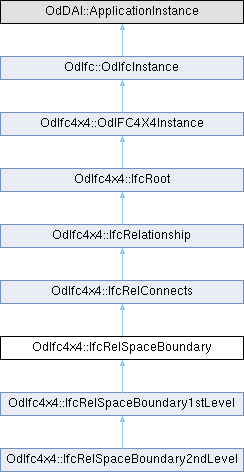

Inheritance diagram for OdIfc4x4::IfcRelSpaceBoundary:

Public Member Functions
IfcSpaceBoundarySelect	relatingSpace ()

const OdDAIObjectId &	getRelatedBuildingElement () const

void	setRelatedBuildingElement (const OdDAIObjectId &RelatedBuildingElement)

const OdDAIObjectId &	getConnectionGeometry () const

void	setConnectionGeometry (const OdDAIObjectId &ConnectionGeometry)

IfcPhysicalOrVirtualEnum	getPhysicalOrVirtualBoundary () const

void	setPhysicalOrVirtualBoundary (IfcPhysicalOrVirtualEnum PhysicalOrVirtualBoundary)

IfcInternalOrExternalEnum	getInternalOrExternalBoundary () const

void	setInternalOrExternalBoundary (IfcInternalOrExternalEnum InternalOrExternalBoundary)

	IfcRelSpaceBoundary ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual void	setInverseCounterParts () override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual bool	comparedToEarlyImpl (const OdDAI::ApplicationInstance *pOther, OdRx::Ordering &ordering) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc4x4::IfcRoot
OdDAI::CompressedGUID	getGlobalId () const

void	setGlobalId (OdDAI::CompressedGUID GlobalId)

const OdDAIObjectId &	getOwnerHistory () const

void	setOwnerHistory (const OdDAIObjectId &OwnerHistory)

const OdAnsiString &	getName () const

void	setName (const OdAnsiString &Name)

const OdAnsiString &	getDescription () const

void	setDescription (const OdAnsiString &Description)

	IfcRoot ()

Public Member Functions inherited from OdIfc4x4::OdIFC4X4Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
OdDAI::Select	m_RelatingSpace

OdDAIObjectId	m_RelatedBuildingElement

OdDAIObjectId	m_ConnectionGeometry

OdDAI::Enum	m_PhysicalOrVirtualBoundary

OdDAI::Enum	m_InternalOrExternalBoundary

Protected Attributes inherited from OdIfc4x4::IfcRoot
OdDAI::CompressedGUID	m_GlobalId

OdDAIObjectId	m_OwnerHistory

OdAnsiString	m_Name

OdAnsiString	m_Description

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

The space boundary defines the physical or virtual delimiter of a space by the relationship IfcRelSpaceBoundary to the surrounding elements.

The IfcRelSpaceBoundary is defined as an objectified relationship that handles the element to space relationship by objectifying the relationship between an element and the space it bounds. It is given as a one-to-one relationship, but allows each element (including virtual elements and openings) to define many such relationship and each space to be defined by many such relationships.

1st level space boundary: defined as boundaries of the space, not taking into account any change in building element or spaces on the other side. 2nd level space boundary: defined as boundary taking any change in building element or spaces on the other side into account. It can be further distinguished into: 2nd level type A: There is a space on the other side. 2nd level type B: There is a building element on the other side.

The exact definition of how space boundaries are broken down depends on the view definition, more detailed conventions on how space boundaries are decomposed can only be given at the domain or application type level. In an architectural or FM related view, a space boundary is defined totally from inside the space. This is a 1st level space boundary. In a thermal view, the decomposition of the space boundary depends on the material of the providing building element and the adjacent spaces behind. This is a 2nd level space boundary.

Examples - Space boundary at first level:

Space boundary at second level:

Space boundary at second level type A:

Space boundary at second level type B:

The differences between the 1st and 2nd level space boundaries is identified by: 1st level: SELF\IfcRoot.Name = "1stLevel" SELF\IfcRootDescription = NIL 2nd level: SELF\IfcRoot.Name = "2ndLevel" SELF\IfcRootDescription = "2a", or "2b"

As shown on the image below, if the IfcRelSpaceBoundary is used to express a virtual boundary, the attribute PhysicalOrVirtualBoundary has to be set to VIRTUAL. The attribute RelatedBuildingElement shall point to an instance of IfcVirtualElement. If the correct location is of interest, the attribute ConnectionGeometry is required.

As shown on the image below, if the IfcRelSpaceBoundary is used to express a physical boundary between two spaces, the attribute PhysicalOrVirtualBoundary has to be set to PHYSICAL. The attribute RelatedBuildingElement has to be given and points to the element providing the space boundary. The attribute ConnectionGeometry can be inserted, in this case it describes the physical space boundary geometically, or it can be omitted, in that case it describes a physical space boundary logically.

The IfcRelSpaceBoundary can have geometry attached. If geometry is not attached, the relationship between space and building element is handled only on a logical level. If geometry is attached, it is given within the local coordinate systems of the space.

\changes

IFC2X_FINAL changes: The data type of the attribute_RelatedBuildingElement_ has been changed from IfcBuildingElement to its supertype IfcElement. The data type of the attribute ConnectionGeometry has been changed from IfcConnectionSurfaceGeometry to its supertype IfcConnectionGeometry. IFC4 changes: The attribute RelatedBuildingElement has been made mandatory. For virtual boundaries the reference to IfcVirtualElement is now mandatory. The RelatedBuildingElement attribute is no longer optional. Type of the RelatingSpace attribute changed from IfcSpace to IfcSpaceBoundarySelect.

Definition at line 105 of file IFC4X4/IfcRelSpaceBoundaryAutoImpl.h.

Constructor & Destructor Documentation

◆ IfcRelSpaceBoundary()

OdIfc4x4::IfcRelSpaceBoundary::IfcRelSpaceBoundary ( )

Default constructor for the IfcRelSpaceBoundary class.

Member Function Documentation

◆ comparedToEarlyImpl()

virtual bool OdIfc4x4::IfcRelSpaceBoundary::comparedToEarlyImpl	(	const OdDAI::ApplicationInstance *	pOther,
		OdRx::Ordering &	ordering ) const

overridevirtual

Early-bound version of instances comparison.

Parameters

pOther	[in] Other application instance.
ordering	[out] Receives the ordering (comparison) status.

Returns: true if comparison was performed, false if method has no implementation, so late-bound version could be applied.

Remarks

If the method returns true, the ordering parameter can receive one of the following statuses:

Value Description kLessThan -1 This object < Other Object. kEqual 0 This object = Other Object. kGreaterThan 1 This object > Other Object. kNotOrderable 2 This class is not orderable.

Reimplemented from OdIfc4x4::IfcRelConnects.

Reimplemented in OdIfc4x4::IfcRelSpaceBoundary1stLevel, and OdIfc4x4::IfcRelSpaceBoundary2ndLevel.

◆ getAttr() [1/2]

virtual OdRxValue OdIfc4x4::IfcRelSpaceBoundary::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4x4::IfcRoot.

Reimplemented in OdIfc4x4::IfcRelSpaceBoundary1stLevel, and OdIfc4x4::IfcRelSpaceBoundary2ndLevel.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc4x4::IfcRelSpaceBoundary::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4x4::IfcRoot.

Reimplemented in OdIfc4x4::IfcRelSpaceBoundary1stLevel, and OdIfc4x4::IfcRelSpaceBoundary2ndLevel.

◆ getConnectionGeometry()

const OdDAIObjectId & OdIfc4x4::IfcRelSpaceBoundary::getConnectionGeometry ( ) const

Returns the value of ConnectionGeometry attribute. This attribute represents physical representation of the space boundary. Provided as a curve or surface given within the LCS of the space.

Returns: Returns the value of ConnectionGeometry attribute.

Remarks: IFC2x CHANGE: The data type has been changed from IfcConnectionSurfaceGeometry to IfcConnectionGeometry with upward compatibility for file based exchange.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc4x4::IfcRelSpaceBoundary::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc4x4::IfcRelConnects.

Reimplemented in OdIfc4x4::IfcRelSpaceBoundary1stLevel, and OdIfc4x4::IfcRelSpaceBoundary2ndLevel.

◆ getInternalOrExternalBoundary()

IfcInternalOrExternalEnum OdIfc4x4::IfcRelSpaceBoundary::getInternalOrExternalBoundary ( ) const

Returns the value of InternalOrExternalBoundary attribute. This attribute defines whether the Space Boundary is internal (Internal), or external, i.e. adjacent to open space (that can be an partially enclosed space, such as terrace (External).

Returns: Returns the value of InternalOrExternalBoundary attribute.

◆ getPhysicalOrVirtualBoundary()

IfcPhysicalOrVirtualEnum OdIfc4x4::IfcRelSpaceBoundary::getPhysicalOrVirtualBoundary ( ) const

Returns the value of PhysicalOrVirtualBoundary attribute. This attribute defines, whether the Space Boundary is physical (Physical) or virtual (Virtual).

Returns: Returns the value of PhysicalOrVirtualBoundary attribute.

◆ getRelatedBuildingElement()

const OdDAIObjectId & OdIfc4x4::IfcRelSpaceBoundary::getRelatedBuildingElement ( ) const

Returns the value of RelatedBuildingElement attribute. This attribute represents reference to Building Element, that defines the Space Boundaries.

Returns: Returns the value of RelatedBuildingElement attribute.

Remarks: IFC2x CHANGE: The data type has been changed from IfcBuildingElement to IfcElement with upward compatibility for file based exchange. IFC4 CHANGE: The attribute has been changed to be mandatory.

◆ inFields()

virtual OdResult OdIfc4x4::IfcRelSpaceBoundary::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4x4::IfcRoot.

Reimplemented in OdIfc4x4::IfcRelSpaceBoundary1stLevel, and OdIfc4x4::IfcRelSpaceBoundary2ndLevel.

◆ isKindOf()

virtual bool OdIfc4x4::IfcRelSpaceBoundary::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc4x4::IfcRelConnects.

Reimplemented in OdIfc4x4::IfcRelSpaceBoundary1stLevel, and OdIfc4x4::IfcRelSpaceBoundary2ndLevel.

◆ outFields()

virtual OdResult OdIfc4x4::IfcRelSpaceBoundary::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4x4::IfcRoot.

Reimplemented in OdIfc4x4::IfcRelSpaceBoundary1stLevel, and OdIfc4x4::IfcRelSpaceBoundary2ndLevel.

◆ putAttr() [1/2]

virtual bool OdIfc4x4::IfcRelSpaceBoundary::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4x4::IfcRoot.

Reimplemented in OdIfc4x4::IfcRelSpaceBoundary1stLevel, and OdIfc4x4::IfcRelSpaceBoundary2ndLevel.

◆ putAttr() [2/2]

virtual bool OdIfc4x4::IfcRelSpaceBoundary::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4x4::IfcRoot.

Reimplemented in OdIfc4x4::IfcRelSpaceBoundary1stLevel, and OdIfc4x4::IfcRelSpaceBoundary2ndLevel.

◆ relatingSpace()

IfcSpaceBoundarySelect OdIfc4x4::IfcRelSpaceBoundary::relatingSpace ( )

Returns the value of RelatingSpace attribute. This attribute represents reference to one spaces that is delimited by this boundary.

Returns: Returns the value of RelatingSpace attribute.

◆ setConnectionGeometry()

void OdIfc4x4::IfcRelSpaceBoundary::setConnectionGeometry ( const OdDAIObjectId & ConnectionGeometry )

Sets the value of ConnectionGeometry attribute. This attribute represents physical representation of the space boundary. Provided as a curve or surface given within the LCS of the space.

Parameters

ConnectionGeometry [in] ConnectionGeometry to set.

Remarks: IFC2x CHANGE: The data type has been changed from IfcConnectionSurfaceGeometry to IfcConnectionGeometry with upward compatibility for file based exchange.

◆ setInternalOrExternalBoundary()

void OdIfc4x4::IfcRelSpaceBoundary::setInternalOrExternalBoundary ( IfcInternalOrExternalEnum InternalOrExternalBoundary )

Sets the value of InternalOrExternalBoundary attribute. This attribute defines whether the Space Boundary is internal (Internal), or external, i.e. adjacent to open space (that can be an partially enclosed space, such as terrace (External).

Parameters

InternalOrExternalBoundary [in] InternalOrExternalBoundary to set.

◆ setInverseCounterParts()

virtual void OdIfc4x4::IfcRelSpaceBoundary::setInverseCounterParts ( )

overridevirtual

Sets the object ID of this instance to inverse attributes of related instances according to schema specification of inverse attributes.

Reimplemented in OdIfc4x4::IfcRelSpaceBoundary1stLevel, and OdIfc4x4::IfcRelSpaceBoundary2ndLevel.

◆ setPhysicalOrVirtualBoundary()

void OdIfc4x4::IfcRelSpaceBoundary::setPhysicalOrVirtualBoundary ( IfcPhysicalOrVirtualEnum PhysicalOrVirtualBoundary )

Sets the value of PhysicalOrVirtualBoundary attribute. This attribute defines, whether the Space Boundary is physical (Physical) or virtual (Virtual).

Parameters

PhysicalOrVirtualBoundary [in] PhysicalOrVirtualBoundary to set.

◆ setRelatedBuildingElement()

void OdIfc4x4::IfcRelSpaceBoundary::setRelatedBuildingElement ( const OdDAIObjectId & RelatedBuildingElement )

Sets the value of RelatedBuildingElement attribute. This attribute represents reference to Building Element, that defines the Space Boundaries.

Parameters

RelatedBuildingElement [in] RelatedBuildingElement to set.

Remarks: IFC2x CHANGE: The data type has been changed from IfcBuildingElement to IfcElement with upward compatibility for file based exchange. IFC4 CHANGE: The attribute has been changed to be mandatory.

◆ testAttr() [1/2]

virtual bool OdIfc4x4::IfcRelSpaceBoundary::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4x4::IfcRoot.

Reimplemented in OdIfc4x4::IfcRelSpaceBoundary1stLevel, and OdIfc4x4::IfcRelSpaceBoundary2ndLevel.

◆ testAttr() [2/2]

virtual bool OdIfc4x4::IfcRelSpaceBoundary::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4x4::IfcRoot.

Reimplemented in OdIfc4x4::IfcRelSpaceBoundary1stLevel, and OdIfc4x4::IfcRelSpaceBoundary2ndLevel.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc4x4::IfcRelSpaceBoundary::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc4x4::IfcRelConnects.

Reimplemented in OdIfc4x4::IfcRelSpaceBoundary1stLevel, and OdIfc4x4::IfcRelSpaceBoundary2ndLevel.

◆ unsetAttr() [1/2]

virtual void OdIfc4x4::IfcRelSpaceBoundary::unsetAttr ( const char * explicitAttrName )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrName [in] Explicit name of the attribute to reset.

Reimplemented from OdIfc4x4::IfcRoot.

Reimplemented in OdIfc4x4::IfcRelSpaceBoundary1stLevel, and OdIfc4x4::IfcRelSpaceBoundary2ndLevel.

◆ unsetAttr() [2/2]

virtual void OdIfc4x4::IfcRelSpaceBoundary::unsetAttr ( const OdIfc::OdIfcAttribute explicitAttrDef )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrDef [in] Explicit definition that represents an attribute to reset.

Reimplemented from OdIfc4x4::IfcRoot.

Reimplemented in OdIfc4x4::IfcRelSpaceBoundary1stLevel, and OdIfc4x4::IfcRelSpaceBoundary2ndLevel.

Member Data Documentation

◆ m_ConnectionGeometry

OdDAIObjectId OdIfc4x4::IfcRelSpaceBoundary::m_ConnectionGeometry

protected

Definition at line 341 of file IFC4X4/IfcRelSpaceBoundaryAutoImpl.h.

◆ m_InternalOrExternalBoundary

OdDAI::Enum OdIfc4x4::IfcRelSpaceBoundary::m_InternalOrExternalBoundary

protected

Definition at line 343 of file IFC4X4/IfcRelSpaceBoundaryAutoImpl.h.

◆ m_PhysicalOrVirtualBoundary

OdDAI::Enum OdIfc4x4::IfcRelSpaceBoundary::m_PhysicalOrVirtualBoundary

protected

Definition at line 342 of file IFC4X4/IfcRelSpaceBoundaryAutoImpl.h.

◆ m_RelatedBuildingElement

OdDAIObjectId OdIfc4x4::IfcRelSpaceBoundary::m_RelatedBuildingElement

protected

Definition at line 340 of file IFC4X4/IfcRelSpaceBoundaryAutoImpl.h.

◆ m_RelatingSpace

OdDAI::Select OdIfc4x4::IfcRelSpaceBoundary::m_RelatingSpace

protected

Definition at line 339 of file IFC4X4/IfcRelSpaceBoundaryAutoImpl.h.

The documentation for this class was generated from the following file:

IFC4X4/IfcRelSpaceBoundaryAutoImpl.h

Public Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ IfcRelSpaceBoundary()

Member Function Documentation

◆ comparedToEarlyImpl()

◆ getAttr() [1/2]

◆ getAttr() [2/2]

◆ getConnectionGeometry()

◆ getInstanceType()

◆ getInternalOrExternalBoundary()

◆ getPhysicalOrVirtualBoundary()

◆ getRelatedBuildingElement()

◆ inFields()

◆ isKindOf()

◆ outFields()

◆ putAttr() [1/2]

◆ putAttr() [2/2]

◆ relatingSpace()

◆ setConnectionGeometry()

◆ setInternalOrExternalBoundary()

◆ setInverseCounterParts()

◆ setPhysicalOrVirtualBoundary()

◆ setRelatedBuildingElement()

◆ testAttr() [1/2]

◆ testAttr() [2/2]

◆ type()

◆ unsetAttr() [1/2]

◆ unsetAttr() [2/2]

Member Data Documentation

◆ m_ConnectionGeometry

◆ m_InternalOrExternalBoundary

◆ m_PhysicalOrVirtualBoundary

◆ m_RelatedBuildingElement

◆ m_RelatingSpace
