#include <IfcStructuralLoadTemperatureAutoImpl.h>

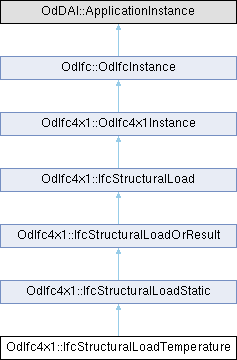

Inheritance diagram for OdIfc4x1::IfcStructuralLoadTemperature:

Public Member Functions
double	getDeltaTConstant () const

void	setDeltaTConstant (double DeltaTConstant)

double	getDeltaTY () const

void	setDeltaTY (double DeltaTY)

double	getDeltaTZ () const

void	setDeltaTZ (double DeltaTZ)

	IfcStructuralLoadTemperature ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc4x1::IfcStructuralLoad
const OdAnsiString &	getName () const

void	setName (const OdAnsiString &Name)

	IfcStructuralLoad ()

Public Member Functions inherited from OdIfc4x1::OdIfc4x1Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
double	m_DeltaTConstant

double	m_DeltaTY

double	m_DeltaTZ

Protected Attributes inherited from OdIfc4x1::IfcStructuralLoad
OdAnsiString	m_Name

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

IfcStructuralLoadTemperature defines actions which are caused by a temperature change.

Example - As shown on the image below, the change of temperature is specified with a constant value which is applied to the complete section and values for temperature differences between outer fibers of the section.

\changes

IFC4 changes: Attribute DeltaT_Constant renamed to DeltaTConstant Attribute DeltaT_Y renamed to DeltaTY Attribute DeltaT_Z renamed to DeltaTZ

Definition at line 53 of file Ifc4x1/IfcStructuralLoadTemperatureAutoImpl.h.

Constructor & Destructor Documentation

◆ IfcStructuralLoadTemperature()

OdIfc4x1::IfcStructuralLoadTemperature::IfcStructuralLoadTemperature ( )

Default constructor for the IfcStructuralLoadTemperature class.

Member Function Documentation

◆ getAttr() [1/2]

virtual OdRxValue OdIfc4x1::IfcStructuralLoadTemperature::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4x1::IfcStructuralLoad.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc4x1::IfcStructuralLoadTemperature::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4x1::IfcStructuralLoad.

◆ getDeltaTConstant()

double OdIfc4x1::IfcStructuralLoadTemperature::getDeltaTConstant ( ) const

Returns the value of DeltaTConstant attribute. This attribute represents temperature change which affects the complete section of the structural member, or the uniform portion of a non-uniform temperature change.

Returns: Returns the value of DeltaTConstant attribute.

Remarks: A positive value describes an increase in temperature. I.e. a positive constant temperature change causes elongation of a member, or compression in the member if there are respective restraints.

◆ getDeltaTY()

double OdIfc4x1::IfcStructuralLoadTemperature::getDeltaTY ( ) const

Returns the value of DeltaTY attribute. This attribute represents a non-uniform temperature change, specified as the difference of the temperature change at the outer fibre of the positive y direction minus the temperature change at the outer fibre of the negative y direction of the analysis member.

Returns: Returns the value of DeltaTY attribute.

Remarks: A positive non-uniform temperature change in y induces a negative curvature of the member about z, or a positive bending moment about z if there are respective restraints. y and z are local member axes.

◆ getDeltaTZ()

double OdIfc4x1::IfcStructuralLoadTemperature::getDeltaTZ ( ) const

Returns the value of DeltaTZ attribute. This attribute represents a non-uniform temperature change, specified as the difference of the temperature change at the outer fibre of the positive z direction minus the temperature change at the outer fibre of the negative z direction of the analysis member.

Returns: Returns the value of DeltaTZ attribute.

Remarks: A positive non-uniform temperature change in z induces a positive curvature of the member about y, or a negative bending moment about y if there are respective restraints. y and z are local member axes.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc4x1::IfcStructuralLoadTemperature::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc4x1::IfcStructuralLoadStatic.

◆ inFields()

virtual OdResult OdIfc4x1::IfcStructuralLoadTemperature::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4x1::IfcStructuralLoad.

◆ isKindOf()

virtual bool OdIfc4x1::IfcStructuralLoadTemperature::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc4x1::IfcStructuralLoadStatic.

◆ outFields()

virtual OdResult OdIfc4x1::IfcStructuralLoadTemperature::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4x1::IfcStructuralLoad.

◆ putAttr() [1/2]

virtual bool OdIfc4x1::IfcStructuralLoadTemperature::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4x1::IfcStructuralLoad.

◆ putAttr() [2/2]

virtual bool OdIfc4x1::IfcStructuralLoadTemperature::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4x1::IfcStructuralLoad.

◆ setDeltaTConstant()

void OdIfc4x1::IfcStructuralLoadTemperature::setDeltaTConstant ( double DeltaTConstant )

Sets the value of DeltaTConstant attribute. This attribute represents temperature change which affects the complete section of the structural member, or the uniform portion of a non-uniform temperature change.

Parameters

DeltaTConstant [in] DeltaTConstant attribute to set.

Remarks: A positive value describes an increase in temperature. I.e. a positive constant temperature change causes elongation of a member, or compression in the member if there are respective restraints.

◆ setDeltaTY()

void OdIfc4x1::IfcStructuralLoadTemperature::setDeltaTY ( double DeltaTY )

Sets the value of DeltaTY attribute. This attribute represents a non-uniform temperature change, specified as the difference of the temperature change at the outer fibre of the positive y direction minus the temperature change at the outer fibre of the negative y direction of the analysis member.

Parameters

DeltaTY [in] DeltaTY attribute to set.

Remarks: A positive non-uniform temperature change in y induces a negative curvature of the member about z, or a positive bending moment about z if there are respective restraints. y and z are local member axes.

◆ setDeltaTZ()

void OdIfc4x1::IfcStructuralLoadTemperature::setDeltaTZ ( double DeltaTZ )

Sets the value of DeltaTZ attribute. This attribute represents a non-uniform temperature change, specified as the difference of the temperature change at the outer fibre of the positive z direction minus the temperature change at the outer fibre of the negative z direction of the analysis member.

Parameters

DeltaTZ [in] DeltaTZ attribute to set.

Remarks: A positive non-uniform temperature change in z induces a positive curvature of the member about y, or a negative bending moment about y if there are respective restraints. y and z are local member axes.

◆ testAttr() [1/2]

virtual bool OdIfc4x1::IfcStructuralLoadTemperature::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4x1::IfcStructuralLoad.

◆ testAttr() [2/2]

virtual bool OdIfc4x1::IfcStructuralLoadTemperature::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4x1::IfcStructuralLoad.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc4x1::IfcStructuralLoadTemperature::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc4x1::IfcStructuralLoadStatic.

◆ unsetAttr() [1/2]

virtual void OdIfc4x1::IfcStructuralLoadTemperature::unsetAttr ( const char * explicitAttrName )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrName [in] Explicit name of the attribute to reset.

Reimplemented from OdIfc4x1::IfcStructuralLoad.

◆ unsetAttr() [2/2]

virtual void OdIfc4x1::IfcStructuralLoadTemperature::unsetAttr ( const OdIfc::OdIfcAttribute explicitAttrDef )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrDef [in] Explicit definition that represents an attribute to reset.

Reimplemented from OdIfc4x1::IfcStructuralLoad.

Member Data Documentation

◆ m_DeltaTConstant

double OdIfc4x1::IfcStructuralLoadTemperature::m_DeltaTConstant

protected

Definition at line 246 of file Ifc4x1/IfcStructuralLoadTemperatureAutoImpl.h.

◆ m_DeltaTY

double OdIfc4x1::IfcStructuralLoadTemperature::m_DeltaTY

protected

Definition at line 247 of file Ifc4x1/IfcStructuralLoadTemperatureAutoImpl.h.

◆ m_DeltaTZ

double OdIfc4x1::IfcStructuralLoadTemperature::m_DeltaTZ

protected

Definition at line 248 of file Ifc4x1/IfcStructuralLoadTemperatureAutoImpl.h.

The documentation for this class was generated from the following file:

Ifc4x1/IfcStructuralLoadTemperatureAutoImpl.h
