#include <IfcTaskTimeAutoImpl.h>

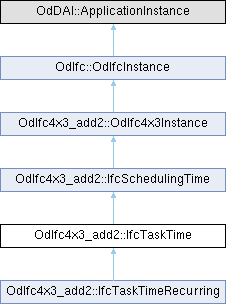

Inheritance diagram for OdIfc4x3_add2::IfcTaskTime:

Public Member Functions
IfcTaskDurationEnum	getDurationType () const

void	setDurationType (IfcTaskDurationEnum DurationType)

const OdAnsiString &	getScheduleDuration () const

void	setScheduleDuration (const OdAnsiString &ScheduleDuration)

const OdAnsiString &	getScheduleStart () const

void	setScheduleStart (const OdAnsiString &ScheduleStart)

const OdAnsiString &	getScheduleFinish () const

void	setScheduleFinish (const OdAnsiString &ScheduleFinish)

const OdAnsiString &	getEarlyStart () const

void	setEarlyStart (const OdAnsiString &EarlyStart)

const OdAnsiString &	getEarlyFinish () const

void	setEarlyFinish (const OdAnsiString &EarlyFinish)

const OdAnsiString &	getLateStart () const

void	setLateStart (const OdAnsiString &LateStart)

const OdAnsiString &	getLateFinish () const

void	setLateFinish (const OdAnsiString &LateFinish)

const OdAnsiString &	getFreeFloat () const

void	setFreeFloat (const OdAnsiString &FreeFloat)

const OdAnsiString &	getTotalFloat () const

void	setTotalFloat (const OdAnsiString &TotalFloat)

OdDAI::Boolean	getIsCritical () const

void	setIsCritical (OdDAI::Boolean IsCritical)

const OdAnsiString &	getStatusTime () const

void	setStatusTime (const OdAnsiString &StatusTime)

const OdAnsiString &	getActualDuration () const

void	setActualDuration (const OdAnsiString &ActualDuration)

const OdAnsiString &	getActualStart () const

void	setActualStart (const OdAnsiString &ActualStart)

const OdAnsiString &	getActualFinish () const

void	setActualFinish (const OdAnsiString &ActualFinish)

const OdAnsiString &	getRemainingTime () const

void	setRemainingTime (const OdAnsiString &RemainingTime)

double	getCompletion () const

void	setCompletion (double Completion)

	IfcTaskTime ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual bool	comparedToEarlyImpl (const OdDAI::ApplicationInstance *pOther, OdRx::Ordering &ordering) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc4x3_add2::IfcSchedulingTime
const OdAnsiString &	getName () const

void	setName (const OdAnsiString &Name)

IfcDataOriginEnum	getDataOrigin () const

void	setDataOrigin (IfcDataOriginEnum DataOrigin)

const OdAnsiString &	getUserDefinedDataOrigin () const

void	setUserDefinedDataOrigin (const OdAnsiString &UserDefinedDataOrigin)

	IfcSchedulingTime ()

Public Member Functions inherited from OdIfc4x3_add2::OdIfc4x3Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
OdDAI::Enum	m_DurationType

OdAnsiString	m_ScheduleDuration

OdAnsiString	m_ScheduleStart

OdAnsiString	m_ScheduleFinish

OdAnsiString	m_EarlyStart

OdAnsiString	m_EarlyFinish

OdAnsiString	m_LateStart

OdAnsiString	m_LateFinish

OdAnsiString	m_FreeFloat

OdAnsiString	m_TotalFloat

OdDAI::Boolean	m_IsCritical

OdAnsiString	m_StatusTime

OdAnsiString	m_ActualDuration

OdAnsiString	m_ActualStart

OdAnsiString	m_ActualFinish

OdAnsiString	m_RemainingTime

IfcPositiveRatioMeasure	m_Completion

Protected Attributes inherited from OdIfc4x3_add2::IfcSchedulingTime
OdAnsiString	m_Name

OdDAI::Enum	m_DataOrigin

OdAnsiString	m_UserDefinedDataOrigin

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

IfcTaskTime captures the time-related information about a task including the different types (actual or scheduled) of starting and ending times.

Definition at line 40 of file Ifc4x3/IfcTaskTimeAutoImpl.h.

Constructor & Destructor Documentation

◆ IfcTaskTime()

OdIfc4x3_add2::IfcTaskTime::IfcTaskTime ( )

Default constructor for the IfcTaskTime class.

Member Function Documentation

◆ comparedToEarlyImpl()

virtual bool OdIfc4x3_add2::IfcTaskTime::comparedToEarlyImpl	(	const OdDAI::ApplicationInstance *	pOther,
		OdRx::Ordering &	ordering ) const

overridevirtual

Early-bound version of instances comparison.

Parameters

pOther	[in] Other application instance.
ordering	[out] Receives the ordering (comparison) status.

Returns: true if comparison was performed, false if method has no implementation, so late-bound version could be applied.

Remarks

If the method returns true, the ordering parameter can receive one of the following statuses:

Value Description kLessThan -1 This object < Other Object. kEqual 0 This object = Other Object. kGreaterThan 1 This object > Other Object. kNotOrderable 2 This class is not orderable.

Reimplemented from OdIfc4x3_add2::IfcSchedulingTime.

Reimplemented in OdIfc4x3_add2::IfcTaskTimeRecurring.

◆ getActualDuration()

const OdAnsiString & OdIfc4x3_add2::IfcTaskTime::getActualDuration ( ) const

Returns the value of ActualDuration attribute. This attribute represents the actual duration of the task. The value is either provided as elapsed time or work time, which is defined by DurationType.

Returns: Returns the value of ActualDuration attribute.

◆ getActualFinish()

const OdAnsiString & OdIfc4x3_add2::IfcTaskTime::getActualFinish ( ) const

Returns the value of ActualFinish attribute. This attribute represents the date on which a task is actually finished.

Returns: Returns the value of ActualFinish attribute.

◆ getActualStart()

const OdAnsiString & OdIfc4x3_add2::IfcTaskTime::getActualStart ( ) const

Returns the value of ActualStart attribute. This attribute represents the date on which a task is actually started.

Returns: Returns the value of ActualStart attribute.

Remarks: The scheduled start date must be greater than or equal to the earliest start date. No constraint is applied to the actual start date with respect to the scheduled start date since a task can be started earlier than had originally been scheduled if circumstances allow.

◆ getAttr() [1/2]

virtual OdRxValue OdIfc4x3_add2::IfcTaskTime::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4x3_add2::IfcSchedulingTime.

Reimplemented in OdIfc4x3_add2::IfcTaskTimeRecurring.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc4x3_add2::IfcTaskTime::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4x3_add2::IfcSchedulingTime.

Reimplemented in OdIfc4x3_add2::IfcTaskTimeRecurring.

◆ getCompletion()

double OdIfc4x3_add2::IfcTaskTime::getCompletion ( ) const

Returns the value of Completion attribute. This attribute represents the extent of completion expressed as a ratio or percentage.

Returns: Returns the value of Completion attribute.

◆ getDurationType()

IfcTaskDurationEnum OdIfc4x3_add2::IfcTaskTime::getDurationType ( ) const

Returns the value of DurationType attribute. This attribute specifies the type of duration values for ScheduleDuration, ActualDuration and RemainingTime. The duration type is either work time or elapsed time.

Returns: Returns the value of DurationType attribute.

◆ getEarlyFinish()

const OdAnsiString & OdIfc4x3_add2::IfcTaskTime::getEarlyFinish ( ) const

Returns the value of EarlyFinish attribute. This attribute represents the earliest date on which a task can be finished.

Returns: Returns the value of EarlyFinish attribute.

◆ getEarlyStart()

const OdAnsiString & OdIfc4x3_add2::IfcTaskTime::getEarlyStart ( ) const

Returns the value of EarlyStart attribute. This attribute represents the earliest date on which a task can be started.

Returns: Returns the value of EarlyStart attribute.

◆ getFreeFloat()

const OdAnsiString & OdIfc4x3_add2::IfcTaskTime::getFreeFloat ( ) const

Returns the value of FreeFloat attribute. This attribute represents the amount of time during which the start or finish of a task can be varied without any effect on the overall program of work.

Returns: Returns the value of FreeFloat attribute.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc4x3_add2::IfcTaskTime::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc4x3_add2::IfcSchedulingTime.

Reimplemented in OdIfc4x3_add2::IfcTaskTimeRecurring.

◆ getIsCritical()

OdDAI::Boolean OdIfc4x3_add2::IfcTaskTime::getIsCritical ( ) const

Returns the value of IsCritical attribute. This attribute indicates whether a scheduled task is a critical item within the program.

Returns: Returns the value of IsCritical attribute.

Remarks: A task becomes critical when the float time becomes zero or negative.

◆ getLateFinish()

const OdAnsiString & OdIfc4x3_add2::IfcTaskTime::getLateFinish ( ) const

Returns the value of LateFinish attribute. This attribute represents the latest date on which a task can be finished.

Returns: Returns the value of LateFinish attribute.

◆ getLateStart()

const OdAnsiString & OdIfc4x3_add2::IfcTaskTime::getLateStart ( ) const

Returns the value of LateStart attribute. This attribute represents the latest date on which a task can be started.

Returns: Returns the value of LateStart attribute.

◆ getRemainingTime()

const OdAnsiString & OdIfc4x3_add2::IfcTaskTime::getRemainingTime ( ) const

Returns the value of RemainingTime attribute. This attribute represents the amount of time remaining to complete a task. The value is either provided as elapsed time or work time, which is defined by DurationType.

Returns: Returns the value of RemainingTime attribute.

Remarks: The time remaining in which to complete a task can be determined both for tasks which have not yet started and those which have. Remaining time for a task that has not started has the same value as the scheduled duration. For a task already started, remaining time is calculated as the difference between the scheduled finish and the point of analysis.

◆ getScheduleDuration()

const OdAnsiString & OdIfc4x3_add2::IfcTaskTime::getScheduleDuration ( ) const

Returns the value of ScheduleDuration attribute. This attribute represents the amount of time which is scheduled for completion of a task. The value can be measured or somehow calculated, which is defined byScheduleDataOrigin. The value is either provided as elapsed time or work time, which is defined by DurationType.

Returns: Returns the value of ScheduleDuration attribute.

Remarks: Scheduled duration can be calculated as the time from scheduled start date to scheduled finish date.

◆ getScheduleFinish()

const OdAnsiString & OdIfc4x3_add2::IfcTaskTime::getScheduleFinish ( ) const

Returns the value of ScheduleFinish attribute. This attribute represents the date on which a task is scheduled to be finished. The value can be measured or somehow calculated, which is defined by ScheduleDataOrigin.

Returns: Returns the value of ScheduleFinish attribute.

Remarks: The scheduled finish date must be greater than or equal to the earliest finish date.

◆ getScheduleStart()

const OdAnsiString & OdIfc4x3_add2::IfcTaskTime::getScheduleStart ( ) const

Returns the value of ScheduleStart attribute. This attribute represents the date on which a task is scheduled to be started. The value can be measured or somehow calculated, which is defined byScheduleDataOrigin.

Returns: Returns the value of ScheduleStart attribute.

Remarks: The scheduled start date must be greater than or equal to the earliest start date.

◆ getStatusTime()

const OdAnsiString & OdIfc4x3_add2::IfcTaskTime::getStatusTime ( ) const

Returns the value of StatusTime attribute. This attribute represents the date or time at which the status of the tasks within the schedule is analyzed.

Returns: Returns the value of StatusTime attribute.

◆ getTotalFloat()

const OdAnsiString & OdIfc4x3_add2::IfcTaskTime::getTotalFloat ( ) const

Returns the value of TotalFloat attribute. This attribute represents the difference between the duration available to carry out a task and the scheduled duration of the task.

Returns: Returns the value of TotalFloat attribute.

Remarks: Total Float time can be calculated as a the difference between the scheduled duration of a task and the available duration from earliest start to latest finish. Float time can be either positive, zero or negative. Where it is zero or negative, the task becomes critical.

◆ inFields()

virtual OdResult OdIfc4x3_add2::IfcTaskTime::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4x3_add2::IfcSchedulingTime.

Reimplemented in OdIfc4x3_add2::IfcTaskTimeRecurring.

◆ isKindOf()

virtual bool OdIfc4x3_add2::IfcTaskTime::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc4x3_add2::IfcSchedulingTime.

Reimplemented in OdIfc4x3_add2::IfcTaskTimeRecurring.

◆ outFields()

virtual OdResult OdIfc4x3_add2::IfcTaskTime::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4x3_add2::IfcSchedulingTime.

Reimplemented in OdIfc4x3_add2::IfcTaskTimeRecurring.

◆ putAttr() [1/2]

virtual bool OdIfc4x3_add2::IfcTaskTime::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4x3_add2::IfcSchedulingTime.

Reimplemented in OdIfc4x3_add2::IfcTaskTimeRecurring.

◆ putAttr() [2/2]

virtual bool OdIfc4x3_add2::IfcTaskTime::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4x3_add2::IfcSchedulingTime.

Reimplemented in OdIfc4x3_add2::IfcTaskTimeRecurring.

◆ setActualDuration()

void OdIfc4x3_add2::IfcTaskTime::setActualDuration ( const OdAnsiString & ActualDuration )

Sets the value of ActualDuration attribute. This attribute represents the actual duration of the task. The value is either provided as elapsed time or work time, which is defined by DurationType.

Parameters

ActualDuration [in] Actual duration to set.

◆ setActualFinish()

void OdIfc4x3_add2::IfcTaskTime::setActualFinish ( const OdAnsiString & ActualFinish )

Sets the value of ActualFinish attribute. This attribute represents the date on which a task is actually finished.

Parameters

ActualFinish [in] Actual finish to set.

◆ setActualStart()

void OdIfc4x3_add2::IfcTaskTime::setActualStart ( const OdAnsiString & ActualStart )

Sets the value of ActualStart attribute. This attribute represents the date on which a task is actually started.

Parameters

ActualStart [in] Actual start to set.

Remarks: The scheduled start date must be greater than or equal to the earliest start date. No constraint is applied to the actual start date with respect to the scheduled start date since a task can be started earlier than had originally been scheduled if circumstances allow.

◆ setCompletion()

void OdIfc4x3_add2::IfcTaskTime::setCompletion ( double Completion )

Sets the value of Completion attribute. This attribute represents the extent of completion expressed as a ratio or percentage.

Parameters

Completion [in] Completion to set.

◆ setDurationType()

void OdIfc4x3_add2::IfcTaskTime::setDurationType ( IfcTaskDurationEnum DurationType )

Sets the value of DurationType attribute. This attribute specifies the type of duration values for ScheduleDuration, ActualDuration and RemainingTime. The duration type is either work time or elapsed time.

Parameters

DurationType [in] Duration type to set.

◆ setEarlyFinish()

void OdIfc4x3_add2::IfcTaskTime::setEarlyFinish ( const OdAnsiString & EarlyFinish )

Sets the value of EarlyFinish attribute. This attribute represents the earliest date on which a task can be finished.

Parameters

EarlyFinish [in] Early finish to set.

◆ setEarlyStart()

void OdIfc4x3_add2::IfcTaskTime::setEarlyStart ( const OdAnsiString & EarlyStart )

Sets the value of EarlyStart attribute. This attribute represents the earliest date on which a task can be started.

Parameters

EarlyStart [in] Early start to set.

◆ setFreeFloat()

void OdIfc4x3_add2::IfcTaskTime::setFreeFloat ( const OdAnsiString & FreeFloat )

Sets the value of FreeFloat attribute. This attribute represents the amount of time during which the start or finish of a task can be varied without any effect on the overall program of work.

Parameters

FreeFloat [in] Free float to set.

◆ setIsCritical()

void OdIfc4x3_add2::IfcTaskTime::setIsCritical ( OdDAI::Boolean IsCritical )

Sets the value of IsCritical attribute. This attribute indicates whether a scheduled task is a critical item within the program.

Parameters

IsCritical [in] IsCritical attribute to set.

Remarks: A task becomes critical when the float time becomes zero or negative.

◆ setLateFinish()

void OdIfc4x3_add2::IfcTaskTime::setLateFinish ( const OdAnsiString & LateFinish )

Sets the value of LateFinish attribute. This attribute represents the latest date on which a task can be finished.

Parameters

LateFinish [in] Late finish to set.

◆ setLateStart()

void OdIfc4x3_add2::IfcTaskTime::setLateStart ( const OdAnsiString & LateStart )

Sets the value of LateStart attribute. This attribute represents the latest date on which a task can be started.

Parameters

LateStart [in] Late start to set.

◆ setRemainingTime()

void OdIfc4x3_add2::IfcTaskTime::setRemainingTime ( const OdAnsiString & RemainingTime )

Sets the value of RemainingTime attribute. This attribute represents the amount of time remaining to complete a task. The value is either provided as elapsed time or work time, which is defined by DurationType.

Parameters

RemainingTime [in] Remaining time to set.

Remarks: The time remaining in which to complete a task can be determined both for tasks which have not yet started and those which have. Remaining time for a task that has not started has the same value as the scheduled duration. For a task already started, remaining time is calculated as the difference between the scheduled finish and the point of analysis.

◆ setScheduleDuration()

void OdIfc4x3_add2::IfcTaskTime::setScheduleDuration ( const OdAnsiString & ScheduleDuration )

Sets the value of ScheduleDuration attribute. This attribute represents the amount of time which is scheduled for completion of a task. The value can be measured or somehow calculated, which is defined byScheduleDataOrigin. The value is either provided as elapsed time or work time, which is defined by DurationType.

Parameters

ScheduleDuration [in] Schedule duration to set.

Remarks: Scheduled duration can be calculated as the time from scheduled start date to scheduled finish date.

◆ setScheduleFinish()

void OdIfc4x3_add2::IfcTaskTime::setScheduleFinish ( const OdAnsiString & ScheduleFinish )

Sets the value of ScheduleFinish attribute. This attribute represents the date on which a task is scheduled to be finished. The value can be measured or somehow calculated, which is defined by ScheduleDataOrigin.

Parameters

ScheduleFinish [in] Schedule finish to set.

Remarks: The scheduled finish date must be greater than or equal to the earliest finish date.

◆ setScheduleStart()

void OdIfc4x3_add2::IfcTaskTime::setScheduleStart ( const OdAnsiString & ScheduleStart )

Sets the value of ScheduleStart attribute. This attribute represents the date on which a task is scheduled to be started. The value can be measured or somehow calculated, which is defined byScheduleDataOrigin.

Parameters

ScheduleStart [in] Schedule start to set.

Remarks: The scheduled start date must be greater than or equal to the earliest start date.

◆ setStatusTime()

void OdIfc4x3_add2::IfcTaskTime::setStatusTime ( const OdAnsiString & StatusTime )

Sets the value of StatusTime attribute. This attribute represents the date or time at which the status of the tasks within the schedule is analyzed.

Parameters

StatusTime [in] Status time to set.

◆ setTotalFloat()

void OdIfc4x3_add2::IfcTaskTime::setTotalFloat ( const OdAnsiString & TotalFloat )

Sets the value of TotalFloat attribute. This attribute represents the difference between the duration available to carry out a task and the scheduled duration of the task.

Parameters

TotalFloat [in] Total float to set.

Remarks: Total Float time can be calculated as a the difference between the scheduled duration of a task and the available duration from earliest start to latest finish. Float time can be either positive, zero or negative. Where it is zero or negative, the task becomes critical.

◆ testAttr() [1/2]

virtual bool OdIfc4x3_add2::IfcTaskTime::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4x3_add2::IfcSchedulingTime.

Reimplemented in OdIfc4x3_add2::IfcTaskTimeRecurring.

◆ testAttr() [2/2]

virtual bool OdIfc4x3_add2::IfcTaskTime::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4x3_add2::IfcSchedulingTime.

Reimplemented in OdIfc4x3_add2::IfcTaskTimeRecurring.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc4x3_add2::IfcTaskTime::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc4x3_add2::IfcSchedulingTime.

Reimplemented in OdIfc4x3_add2::IfcTaskTimeRecurring.

◆ unsetAttr() [1/2]

virtual void OdIfc4x3_add2::IfcTaskTime::unsetAttr ( const char * explicitAttrName )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrName [in] Explicit name of the attribute to reset.

Reimplemented from OdIfc4x3_add2::IfcSchedulingTime.

Reimplemented in OdIfc4x3_add2::IfcTaskTimeRecurring.

◆ unsetAttr() [2/2]

virtual void OdIfc4x3_add2::IfcTaskTime::unsetAttr ( const OdIfc::OdIfcAttribute explicitAttrDef )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrDef [in] Explicit definition that represents an attribute to reset.

Reimplemented from OdIfc4x3_add2::IfcSchedulingTime.

Reimplemented in OdIfc4x3_add2::IfcTaskTimeRecurring.

Member Data Documentation

◆ m_ActualDuration

OdAnsiString OdIfc4x3_add2::IfcTaskTime::m_ActualDuration

protected

Definition at line 506 of file Ifc4x3/IfcTaskTimeAutoImpl.h.

◆ m_ActualFinish

OdAnsiString OdIfc4x3_add2::IfcTaskTime::m_ActualFinish

protected

Definition at line 508 of file Ifc4x3/IfcTaskTimeAutoImpl.h.

◆ m_ActualStart

OdAnsiString OdIfc4x3_add2::IfcTaskTime::m_ActualStart

protected

Definition at line 507 of file Ifc4x3/IfcTaskTimeAutoImpl.h.

◆ m_Completion

IfcPositiveRatioMeasure OdIfc4x3_add2::IfcTaskTime::m_Completion

protected

Definition at line 510 of file Ifc4x3/IfcTaskTimeAutoImpl.h.

◆ m_DurationType

OdDAI::Enum OdIfc4x3_add2::IfcTaskTime::m_DurationType

protected

Definition at line 494 of file Ifc4x3/IfcTaskTimeAutoImpl.h.

◆ m_EarlyFinish

OdAnsiString OdIfc4x3_add2::IfcTaskTime::m_EarlyFinish

protected

Definition at line 499 of file Ifc4x3/IfcTaskTimeAutoImpl.h.

◆ m_EarlyStart

OdAnsiString OdIfc4x3_add2::IfcTaskTime::m_EarlyStart

protected

Definition at line 498 of file Ifc4x3/IfcTaskTimeAutoImpl.h.

◆ m_FreeFloat

OdAnsiString OdIfc4x3_add2::IfcTaskTime::m_FreeFloat

protected

Definition at line 502 of file Ifc4x3/IfcTaskTimeAutoImpl.h.

◆ m_IsCritical

OdDAI::Boolean OdIfc4x3_add2::IfcTaskTime::m_IsCritical

protected

Definition at line 504 of file Ifc4x3/IfcTaskTimeAutoImpl.h.

◆ m_LateFinish

OdAnsiString OdIfc4x3_add2::IfcTaskTime::m_LateFinish

protected

Definition at line 501 of file Ifc4x3/IfcTaskTimeAutoImpl.h.

◆ m_LateStart

OdAnsiString OdIfc4x3_add2::IfcTaskTime::m_LateStart

protected

Definition at line 500 of file Ifc4x3/IfcTaskTimeAutoImpl.h.

◆ m_RemainingTime

OdAnsiString OdIfc4x3_add2::IfcTaskTime::m_RemainingTime

protected

Definition at line 509 of file Ifc4x3/IfcTaskTimeAutoImpl.h.

◆ m_ScheduleDuration

OdAnsiString OdIfc4x3_add2::IfcTaskTime::m_ScheduleDuration

protected

Definition at line 495 of file Ifc4x3/IfcTaskTimeAutoImpl.h.

◆ m_ScheduleFinish

OdAnsiString OdIfc4x3_add2::IfcTaskTime::m_ScheduleFinish

protected

Definition at line 497 of file Ifc4x3/IfcTaskTimeAutoImpl.h.

◆ m_ScheduleStart

OdAnsiString OdIfc4x3_add2::IfcTaskTime::m_ScheduleStart

protected

Definition at line 496 of file Ifc4x3/IfcTaskTimeAutoImpl.h.

◆ m_StatusTime

OdAnsiString OdIfc4x3_add2::IfcTaskTime::m_StatusTime

protected

Definition at line 505 of file Ifc4x3/IfcTaskTimeAutoImpl.h.

◆ m_TotalFloat

OdAnsiString OdIfc4x3_add2::IfcTaskTime::m_TotalFloat

protected

Definition at line 503 of file Ifc4x3/IfcTaskTimeAutoImpl.h.

The documentation for this class was generated from the following file:

Ifc4x3/IfcTaskTimeAutoImpl.h

Public Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ IfcTaskTime()

Member Function Documentation

◆ comparedToEarlyImpl()

◆ getActualDuration()

◆ getActualFinish()

◆ getActualStart()

◆ getAttr() [1/2]

◆ getAttr() [2/2]

◆ getCompletion()

◆ getDurationType()

◆ getEarlyFinish()

◆ getEarlyStart()

◆ getFreeFloat()

◆ getInstanceType()

◆ getIsCritical()

◆ getLateFinish()

◆ getLateStart()

◆ getRemainingTime()

◆ getScheduleDuration()

◆ getScheduleFinish()

◆ getScheduleStart()

◆ getStatusTime()

◆ getTotalFloat()

◆ inFields()

◆ isKindOf()

◆ outFields()

◆ putAttr() [1/2]

◆ putAttr() [2/2]

◆ setActualDuration()

◆ setActualFinish()

◆ setActualStart()

◆ setCompletion()

◆ setDurationType()

◆ setEarlyFinish()

◆ setEarlyStart()

◆ setFreeFloat()

◆ setIsCritical()

◆ setLateFinish()

◆ setLateStart()

◆ setRemainingTime()

◆ setScheduleDuration()

◆ setScheduleFinish()

◆ setScheduleStart()

◆ setStatusTime()

◆ setTotalFloat()

◆ testAttr() [1/2]

◆ testAttr() [2/2]

◆ type()

◆ unsetAttr() [1/2]

◆ unsetAttr() [2/2]

Member Data Documentation

◆ m_ActualDuration

◆ m_ActualFinish

◆ m_ActualStart

◆ m_Completion

◆ m_DurationType

◆ m_EarlyFinish

◆ m_EarlyStart

◆ m_FreeFloat

◆ m_IsCritical

◆ m_LateFinish

◆ m_LateStart

◆ m_RemainingTime

◆ m_ScheduleDuration

◆ m_ScheduleFinish

◆ m_ScheduleStart

◆ m_StatusTime

◆ m_TotalFloat
