OdGiLightTraitsData Class Reference

#include <GiLightTraitsData.h>

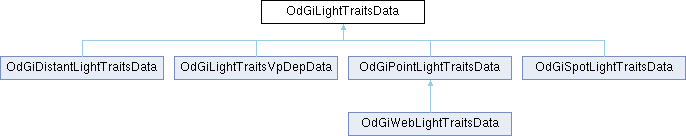

Inheritance diagram for OdGiLightTraitsData:

Public Types
enum	LightType {   kInvalidLight = -1 , kPointLight = OdGiDrawable::kPointLight , kSpotLight = OdGiDrawable::kSpotLight , kDistantLight = OdGiDrawable::kDistantLight ,   kWebLight = OdGiDrawable::kWebLight }

Public Member Functions
bool	isOn () const
void	setOn (bool value)
double	intensity () const
void	setIntensity (double dIntensity)
OdCmEntityColor	color () const
void	setColor (const OdCmEntityColor &color)
OdGiShadowParameters	shadowParameters () const
void	setShadowParameters (const OdGiShadowParameters &params)
LightType	type () const
void	save (OdGsFiler *pFiler) const
void	load (OdGsFiler *pFiler)
void	setLightTransform (const OdGeMatrix3d &xForm)
void	addLightTransform (const OdGeMatrix3d &xForm)
void	resetLightTransform ()
bool	isLightTransformed () const
const OdGeMatrix3d &	lightTransformationMatrix () const

Static Public Member Functions
static LightType	drawableLightType (const OdGiDrawable *pDrawable)
static void	deleteLightTraitsData (OdGiLightTraitsData *pLightTraits)

Protected Types
enum	LightFlags { kFlagIsOn = (1 << 0) , kFlagIsTransformed = (1 << 1) , kLastFlag = kFlagIsTransformed }

Protected Member Functions
	OdGiLightTraitsData ()

Protected Attributes
OdUInt32	m_uFlags
LightType	m_type

Detailed Description

Corresponding C++ library: TD_Gi <group OdGi_Classes>

See also

<link tv_working_with_lights, Work with Lights>

Definition at line 39 of file GiLightTraitsData.h.

Member Enumeration Documentation

LightFlags

enum OdGiLightTraitsData::LightFlags

protected

Enumerator
kFlagIsOn
kFlagIsTransformed
kLastFlag

Definition at line 71 of file GiLightTraitsData.h.

LightType

enum OdGiLightTraitsData::LightType

Represents light types.

Enumerator
kInvalidLight	Invalid light.
kPointLight	Point light.
kSpotLight	Spot light.
kDistantLight	Distant light.
kWebLight	Web light.

Definition at line 49 of file GiLightTraitsData.h.

Constructor & Destructor Documentation

OdGiLightTraitsData()

OdGiLightTraitsData::OdGiLightTraitsData ( )

inlineprotected

Definition at line 81 of file GiLightTraitsData.h.

Member Function Documentation

addLightTransform()

void OdGiLightTraitsData::addLightTransform ( const OdGeMatrix3d & xForm )

inline

Multiplies transformation matrix with exist transformation matrix.

Parameters

xForm

[in] Transformation matrix.

Definition at line 194 of file GiLightTraitsData.h.

color()

OdCmEntityColor OdGiLightTraitsData::color ( ) const

inline

Retrieves the color of the emitted light.

Returns

the color of the emitted light as OdCmEntityColor instance.

Definition at line 124 of file GiLightTraitsData.h.

deleteLightTraitsData()

void OdGiLightTraitsData::deleteLightTraitsData ( OdGiLightTraitsData * pLightTraits )

inlinestatic

Deletes the specified light traits.

Parameters

pLightTraits

[in] Pointer to light traits to delete.

Definition at line 930 of file GiLightTraitsData.h.

drawableLightType()

OdGiLightTraitsData::LightType OdGiLightTraitsData::drawableLightType ( const OdGiDrawable * pDrawable )

inlinestatic

Retrieves a light type.

Returns

light type as a value from the LightType enumeration.

Definition at line 217 of file GiLightTraitsData.h.

intensity()

double OdGiLightTraitsData::intensity ( ) const

inline

Retrieves intensity of a light source.

Returns

the intensity of the light source as a value of the double type.

Definition at line 109 of file GiLightTraitsData.h.

isLightTransformed()

bool OdGiLightTraitsData::isLightTransformed ( ) const

inline

Retrieves transformation matrix state.

Returns

Transformation matrix state.

Definition at line 207 of file GiLightTraitsData.h.

isOn()

bool OdGiLightTraitsData::isOn ( ) const

inline

Checks whether light is enabled.

Returns

true if light is enabled, false otherwise.

Definition at line 94 of file GiLightTraitsData.h.

lightTransformationMatrix()

const OdGeMatrix3d & OdGiLightTraitsData::lightTransformationMatrix ( ) const

inline

Retrieves current transformation matrix.

Returns

Transformation matrix.

Definition at line 214 of file GiLightTraitsData.h.

load()

void OdGiLightTraitsData::load ( OdGsFiler * pFiler )

inline

Loads the light traits from a specified filer.

Parameters

pFiler

[in] Pointer to a filer.

Definition at line 242 of file GiLightTraitsData.h.

resetLightTransform()

void OdGiLightTraitsData::resetLightTransform ( )

inline

Resets exist transformation matrix.

Definition at line 200 of file GiLightTraitsData.h.

save()

void OdGiLightTraitsData::save ( OdGsFiler * pFiler ) const

inline

Saves the light traits to a specified filer.

Parameters

pFiler

[in] Pointer to a filer.

Definition at line 232 of file GiLightTraitsData.h.

setColor()

void OdGiLightTraitsData::setColor ( const OdCmEntityColor & color )

inline

Specifies the color of the emitted light.

Parameters

color

[in] Color of the emitted light.

Definition at line 131 of file GiLightTraitsData.h.

setIntensity()

void OdGiLightTraitsData::setIntensity ( double dIntensity )

inline

Specifies intensity of a light source.

Parameters

dIntensity

[in] Light source intensity.

Definition at line 116 of file GiLightTraitsData.h.

setLightTransform()

void OdGiLightTraitsData::setLightTransform ( const OdGeMatrix3d & xForm )

inline

Sets light transformation matrix.

Parameters

xForm

[in] Transformation matrix.

Definition at line 186 of file GiLightTraitsData.h.

setOn()

void OdGiLightTraitsData::setOn ( bool value )

inline

Specifies whether light is enabled.

Parameters

value

[in] Flag that specifies whether light is enabled.

Definition at line 101 of file GiLightTraitsData.h.

setShadowParameters()

void OdGiLightTraitsData::setShadowParameters ( const OdGiShadowParameters & params )

inline

Specifies shadow parameters for this light source.

Parameters

params

[in] Shadow parameters.

See also

<link gi_shadows_rendering, Shadows Visualization>

Definition at line 150 of file GiLightTraitsData.h.

shadowParameters()

OdGiShadowParameters OdGiLightTraitsData::shadowParameters ( ) const

inline

Retrieves shadow parameters of this light source.

Returns

shadow parameters as OdGiShadowParameters instance.

See also

<link gi_shadows_rendering, Shadows Visualization>

Definition at line 141 of file GiLightTraitsData.h.

type()

LightType OdGiLightTraitsData::type ( ) const

inline

Retrieves a light type.

Returns

light type as a value from the LightType enumeration.

Definition at line 158 of file GiLightTraitsData.h.

Member Data Documentation

m_type

LightType OdGiLightTraitsData::m_type

protected

Definition at line 78 of file GiLightTraitsData.h.

m_uFlags

OdUInt32 OdGiLightTraitsData::m_uFlags

protected

Definition at line 77 of file GiLightTraitsData.h.

---

The documentation for this class was generated from the following file:

• GiLightTraitsData.h
