OdGiMaterialTraits Class Reference

#include <GiMaterial.h>

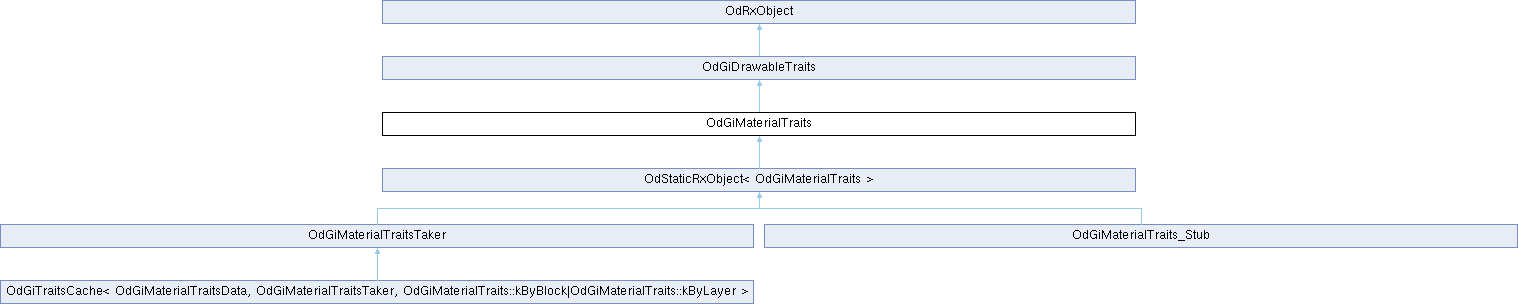

Inheritance diagram for OdGiMaterialTraits:

Public Types
enum	IlluminationModel { kBlinnShader = 0 , kMetalShader }
enum	ChannelFlags {   kNone = 0x00000 , kUseDiffuse = 0x00001 , kUseSpecular = 0x00002 , kUseReflection = 0x00004 ,   kUseOpacity = 0x00008 , kUseBump = 0x00010 , kUseRefraction = 0x00020 , kUseNormalMap = 0x00040 ,   kUseEmission = 0x00080 , kUseTint = 0x00100 , kUseRoughness = 0x00200 , kUseCutouts = 0x00400 ,   kUseAll , kUseAllInternal = (kUseAll | kUseEmission | kUseTint | kUseRoughness | kUseCutouts) }
enum	Mode { kRealistic = 0 , kAdvanced }
enum	{ kByBlock = (OdGiDrawable::kLastFlag << 1) , kByLayer = (OdGiDrawable::kLastFlag << 2) }
enum	LuminanceMode { kSelfIllumination = 0 , kLuminance , kEmissionColor }
enum	NormalMapMethod { kTangentSpace , kReliefPattern }
enum	GlobalIlluminationMode { kGlobalIlluminationNone , kGlobalIlluminationCast , kGlobalIlluminationReceive , kGlobalIlluminationCastAndReceive }
enum	FinalGatherMode { kFinalGatherNone , kFinalGatherCast , kFinalGatherReceive , kFinalGatherCastAndReceive }
enum	DiffuseColorMode { kDiffuseRealisticColor = 0 , kDiffuseShadingColor , kDiffuseStyleDependent }
enum	ReflectionMethod { kRayTracedReflections , kEnvironmentReflection }

Public Member Functions
	ODRX_DECLARE_MEMBERS (OdGiMaterialTraits)
virtual void	ambient (OdGiMaterialColor &ambientColor) const =0
virtual void	diffuse (OdGiMaterialColor &diffuseColor, OdGiMaterialMap &diffuseMap) const =0
virtual void	specular (OdGiMaterialColor &specularColor, OdGiMaterialMap &specularMap, double &glossFactor) const =0
virtual void	reflection (OdGiMaterialMap &reflectionMap) const =0
virtual void	opacity (double &opacityPercentage, OdGiMaterialMap &opacityMap) const =0
virtual void	bump (OdGiMaterialMap &bumpMap) const =0
virtual void	refraction (double &refractionIndex, OdGiMaterialMap &refractionMap) const =0
virtual double	translucence () const =0
virtual double	selfIllumination () const =0
virtual double	reflectivity () const =0
virtual IlluminationModel	illuminationModel () const =0
virtual ChannelFlags	channelFlags () const =0
virtual Mode	mode () const =0
virtual void	setAmbient (const OdGiMaterialColor &ambientColor)=0
virtual void	setDiffuse (const OdGiMaterialColor &diffuseColor, const OdGiMaterialMap &diffuseMap)=0
virtual void	setSpecular (const OdGiMaterialColor &specularColor, const OdGiMaterialMap &specularMap, double glossFactor)=0
virtual void	setReflection (const OdGiMaterialMap &reflectionMap)=0
virtual void	setOpacity (double opacityPercentage, const OdGiMaterialMap &opacityMap)=0
virtual void	setBump (const OdGiMaterialMap &bumpMap)=0
virtual void	setRefraction (double refractionIndex, const OdGiMaterialMap &refractionMap)=0
virtual void	setTranslucence (double value)=0
virtual void	setSelfIllumination (double value)=0
virtual void	setReflectivity (double value)=0
virtual void	setIlluminationModel (IlluminationModel model)=0
virtual void	setChannelFlags (ChannelFlags flags)=0
virtual void	setMode (Mode value)=0
virtual void	setColorBleedScale (double scale)=0
virtual double	colorBleedScale () const =0
virtual void	setIndirectBumpScale (double scale)=0
virtual double	indirectBumpScale () const =0
virtual void	setReflectanceScale (double scale)=0
virtual double	reflectanceScale () const =0
virtual void	setTransmittanceScale (double scale)=0
virtual double	transmittanceScale () const =0
virtual void	setTwoSided (bool flag)=0
virtual bool	twoSided () const =0
virtual void	setLuminanceMode (LuminanceMode mode)=0
virtual LuminanceMode	luminanceMode () const =0
virtual void	setLuminance (double value)=0
virtual double	luminance () const =0
virtual void	setNormalMap (const OdGiMaterialMap &normalMap, NormalMapMethod method, double strength)=0
virtual void	normalMap (OdGiMaterialMap &normalMap, NormalMapMethod &method, double &strength) const =0
virtual void	setGlobalIllumination (GlobalIlluminationMode mode)=0
virtual GlobalIlluminationMode	globalIllumination () const =0
virtual void	setFinalGather (FinalGatherMode mode)=0
virtual FinalGatherMode	finalGather () const =0
virtual void	setEmission (const OdGiMaterialColor &emissionColor, const OdGiMaterialMap &emissionMap)=0
virtual void	emission (OdGiMaterialColor &emissionColor, OdGiMaterialMap &emissionMap) const =0
virtual void	setTint (const OdGiMaterialColor &tintColor)=0
virtual void	tint (OdGiMaterialColor &tintColor) const =0
virtual void	setShadingAmbient (const OdGiMaterialColor &ambientColor)=0
virtual void	shadingAmbient (OdGiMaterialColor &ambientColor) const =0
virtual void	setShadingDiffuse (const OdGiMaterialColor &diffuseColor)=0
virtual void	shadingDiffuse (OdGiMaterialColor &diffuseColor) const =0
virtual void	setShadingSpecular (const OdGiMaterialColor &specularColor)=0
virtual void	shadingSpecular (OdGiMaterialColor &specularColor) const =0
virtual void	setShadingOpacity (double opacityPercentage)=0
virtual void	shadingOpacity (double &opacityPercentage) const =0
virtual void	setDiffuseColorMode (DiffuseColorMode diffuseColorMode)=0
virtual DiffuseColorMode	diffuseColorMode () const =0
virtual void	setShadowsOpacityEffect (double effectPercentage, double nonShadowLightsMergeEffect=1.0)=0
virtual double	shadowsOpacityEffect (double &nonShadowLightsMergeEffect) const =0
virtual void	setSpecularHighlightingOverride (double overrideVal)=0
virtual double	specularHighlightingOverride () const =0
virtual void	setRoughness (const OdGiMaterialMap &roughnessMap, double strength)=0
virtual void	roughness (OdGiMaterialMap &roughnessMap, double &strength) const =0
virtual void	setCutouts (const OdGiMaterialMap &cutoutsMap)=0
virtual void	cutouts (OdGiMaterialMap &cutoutsMap) const =0
virtual void	setReflectionMethod (ReflectionMethod method)=0
virtual ReflectionMethod	reflectionMethod () const =0
Public Member Functions inherited from OdGiDrawableTraits
	ODRX_DECLARE_MEMBERS (OdGiDrawableTraits)
Public Member Functions inherited from OdRxObject
	ODRX_HEAP_OPERATORS ()
	OdRxObject ()
virtual	~OdRxObject ()
virtual OdRxObject *	queryX (const OdRxClass *pClass) const
virtual OdRxObject *	x (const OdRxClass *pClass) const
virtual OdRxClass *	isA () const
virtual void	addRef ()=0
virtual void	release ()=0
virtual long	numRefs () const
bool	isKindOf (const OdRxClass *pClass) const
virtual OdRxObjectPtr	clone () const
virtual void	copyFrom (const OdRxObject *pSource)
virtual OdRx::Ordering	comparedTo (const OdRxObject *pOther) const
virtual bool	isEqualTo (const OdRxObject *pOther) const

Additional Inherited Members
Static Public Member Functions inherited from OdRxObject
static OdRxObjectPtr	cast (const OdRxObject *pointer)
static OdRxClass *	desc ()
static void	rxInit ()
static void	rxUninit ()

Detailed Description

This class defines the interface to material traits for the vectorization process. Corresponding C++ library: TD_Gi <group OdGi_Classes>

See also

<link tv_working_with_attributes_materials, Work with Materials>

Definition at line 47 of file GiMaterial.h.

Member Enumeration Documentation

anonymous enum

anonymous enum

Enumerator
kByBlock
kByLayer

Definition at line 113 of file GiMaterial.h.

ChannelFlags

enum OdGiMaterialTraits::ChannelFlags

Specifies material channels.

Enumerator
kNone	No material channels enabled.
kUseDiffuse	Enables diffuse material channel.
kUseSpecular	Enables specular material channel.
kUseReflection	Enables reflection material channel.
kUseOpacity	Enables opacity material channel.
kUseBump	Enables bump material channel.
kUseRefraction	Enables refraction material channel.
kUseNormalMap	Enables normal map material channel.
kUseEmission	Enables emission material channel.
kUseTint	Enables tint material channel.
kUseRoughness	Enables roughness material channel.
kUseCutouts	Enables cutouts material channel.
kUseAll	Enables all material channels.
kUseAllInternal	Enables all material channels including extension channels.

Definition at line 67 of file GiMaterial.h.

DiffuseColorMode

enum OdGiMaterialTraits::DiffuseColorMode

Specifies the diffuse color mode.

Enumerator
kDiffuseRealisticColor	Use the color specified in the diffuse material channel.
kDiffuseShadingColor	Use the color specified by the setShadingDiffuse() method.
kDiffuseStyleDependent	Chosen color depends on the active visual style.

Definition at line 179 of file GiMaterial.h.

FinalGatherMode

enum OdGiMaterialTraits::FinalGatherMode

Specifies the final gathering mode.

Enumerator
kFinalGatherNone	No final gathering.
kFinalGatherCast	The final gathering is casting.
kFinalGatherReceive	The final gathering is receiving.
kFinalGatherCastAndReceive	The final gathering is casting and receiving.

Definition at line 163 of file GiMaterial.h.

GlobalIlluminationMode

enum OdGiMaterialTraits::GlobalIlluminationMode

Specifies the global illumination.

Enumerator
kGlobalIlluminationNone	No global illumination.
kGlobalIlluminationCast	The global illumination is casting light.
kGlobalIlluminationReceive	The global illumination is receiving light.
kGlobalIlluminationCastAndReceive	The global illumination is casting and receiving light.

Definition at line 148 of file GiMaterial.h.

IlluminationModel

enum OdGiMaterialTraits::IlluminationModel

This enumeration specifies an illumination model used in the rendering process when working with materials.

Enumerator
kBlinnShader	Blinn shader uses the light's color to determine the reflection color.
kMetalShader	Metal shader calculates the reflected light's color using the material's diffuse color and the light's color.

Definition at line 56 of file GiMaterial.h.

LuminanceMode

enum OdGiMaterialTraits::LuminanceMode

Specifies the luminance modes.

Enumerator
kSelfIllumination	Compute luminance from self-illumination parameters.
kLuminance	Use luminance specified by the setLuminance() method.
kEmissionColor	Compute luminance using an emission material channel.

Definition at line 124 of file GiMaterial.h.

Mode

enum OdGiMaterialTraits::Mode

Specifies the material model.

Enumerator
kRealistic	Realistic material model.
kAdvanced	Advanced material model.

Definition at line 104 of file GiMaterial.h.

NormalMapMethod

enum OdGiMaterialTraits::NormalMapMethod

Specifies the normal maps processing method.

Enumerator
kTangentSpace	Method of tangent spaces is used to compute the normal map.
kReliefPattern	Handle normal map as relief pattern material channel.

Definition at line 137 of file GiMaterial.h.

ReflectionMethod

enum OdGiMaterialTraits::ReflectionMethod

Specifies the normal maps.

Enumerator
kRayTracedReflections	True ray-traced reflections.
kEnvironmentReflection	Reflection based onto environment maps.

Definition at line 192 of file GiMaterial.h.

Member Function Documentation

ambient()

virtual void OdGiMaterialTraits::ambient ( OdGiMaterialColor & ambientColor ) const

pure virtual

Returns the ambient color component of this MaterialTraits object.

Parameters

ambientColor

[out] Receives the ambient color.

Remarks

The ambient color component is most apparent when there is no direct illumination on the entity.

Implemented in OdGiMaterialTraits_Stub, and OdGiMaterialTraitsTaker.

bump()

virtual void OdGiMaterialTraits::bump ( OdGiMaterialMap & bumpMap ) const

pure virtual

Returns the bump component of this MaterialTraits object.

Parameters

bumpMap

[out] Receives the bump map.

Implemented in OdGiMaterialTraits_Stub, and OdGiMaterialTraitsTaker.

channelFlags()

virtual ChannelFlags OdGiMaterialTraits::channelFlags ( ) const

pure virtual

Returns the material channels in use by this MaterialTraits object.

Returns

a set of flags that represent which channels are used.

Implemented in OdGiMaterialTraits_Stub, and OdGiMaterialTraitsTaker.

colorBleedScale()

virtual double OdGiMaterialTraits::colorBleedScale ( ) const

pure virtual

Returns the color bleed scale of this MaterialTraits object.

Returns

color bleed scale as a value of the double type.

Implemented in OdGiMaterialTraits_Stub, and OdGiMaterialTraitsTaker.

cutouts()

virtual void OdGiMaterialTraits::cutouts ( OdGiMaterialMap & cutoutsMap ) const

pure virtual

Returns the cutouts component of this MaterialTraits object.

Parameters

cutoutsMap

[out] Receives the cutouts map.

Implemented in OdGiMaterialTraits_Stub, and OdGiMaterialTraitsTaker.

diffuse()

virtual void OdGiMaterialTraits::diffuse ( OdGiMaterialColor & diffuseColor, OdGiMaterialMap & diffuseMap ) const

pure virtual

Returns the diffuse component of this MaterialTraits object.

Parameters

diffuseColor	[out] Receives the diffuse color.
diffuseMap	[out] Receives the diffuse map.

Remarks

The diffuse component is most apparent when there is direct illumination on the entity.

Implemented in OdGiMaterialTraits_Stub, and OdGiMaterialTraitsTaker.

diffuseColorMode()

virtual DiffuseColorMode OdGiMaterialTraits::diffuseColorMode ( ) const

pure virtual

Returns current diffuse, ambient, specular color and opacity behavior.

Returns

diffuse color mode as a value from the DiffuseColorMode enumeration.

Implemented in OdGiMaterialTraits_Stub, and OdGiMaterialTraitsTaker.

emission()

virtual void OdGiMaterialTraits::emission ( OdGiMaterialColor & emissionColor, OdGiMaterialMap & emissionMap ) const

pure virtual

Returns the emission component of this MaterialTraits object.

Parameters

emissionColor	[out] Receives the emission color.
emissionMap	[out] Receives the emission map.

Implemented in OdGiMaterialTraits_Stub, and OdGiMaterialTraitsTaker.

finalGather()

virtual FinalGatherMode OdGiMaterialTraits::finalGather ( ) const

pure virtual

Returns the final gather mode of this MaterialTraits object.

Returns

final gathering mode as a value from the FinalGatherMode enumeration.

Implemented in OdGiMaterialTraits_Stub, and OdGiMaterialTraitsTaker.

globalIllumination()

virtual GlobalIlluminationMode OdGiMaterialTraits::globalIllumination ( ) const

pure virtual

Returns the global illumination mode of this MaterialTraits object.

Returns

global illumination mode as a value from the GlobalIlluminationMode enumeration.

Implemented in OdGiMaterialTraits_Stub, and OdGiMaterialTraitsTaker.

illuminationModel()

virtual IlluminationModel OdGiMaterialTraits::illuminationModel ( ) const

pure virtual

Returns the illumination model of this MaterialTraits object.

Returns

one of two shaders that define illumination model: kBlinnShader or kMetalShader.

Implemented in OdGiMaterialTraits_Stub, and OdGiMaterialTraitsTaker.

indirectBumpScale()

virtual double OdGiMaterialTraits::indirectBumpScale ( ) const

pure virtual

Returns the indirect bump scale of this MaterialTraits object.

Returns

indirect bump scale as a value of the double type.

Implemented in OdGiMaterialTraits_Stub, and OdGiMaterialTraitsTaker.

luminance()

virtual double OdGiMaterialTraits::luminance ( ) const

pure virtual

Returns the luminance of this MaterialTraits object.

Returns

luminance amount as a value of the double type.

Implemented in OdGiMaterialTraits_Stub, and OdGiMaterialTraitsTaker.

luminanceMode()

virtual LuminanceMode OdGiMaterialTraits::luminanceMode ( ) const

pure virtual

Returns the luminance mode of this MaterialTraits object.

Returns

a value from the LuminanceMode enumeration that represents one of the luminance modes.

Implemented in OdGiMaterialTraits_Stub, and OdGiMaterialTraitsTaker.

mode()

virtual Mode OdGiMaterialTraits::mode ( ) const

pure virtual

Returns the mode of this MaterialTraits object.

Returns

one of two render modes: kRealistic or kAdvanced.

Implemented in OdGiMaterialTraits_Stub, and OdGiMaterialTraitsTaker.

normalMap()

virtual void OdGiMaterialTraits::normalMap ( OdGiMaterialMap & normalMap, NormalMapMethod & method, double & strength ) const

pure virtual

Retrieves the normalMap component of this MaterialTraits object.

Parameters

normalMap	[out] Receives the normal map.
method	[out] Receives the normal map method.
strength	[out] Receives the normal map strength factor.

Implemented in OdGiMaterialTraits_Stub, and OdGiMaterialTraitsTaker.

ODRX_DECLARE_MEMBERS()

OdGiMaterialTraits::ODRX_DECLARE_MEMBERS

(

OdGiMaterialTraits

)

opacity()

virtual void OdGiMaterialTraits::opacity ( double & opacityPercentage, OdGiMaterialMap & opacityMap ) const

pure virtual

Returns the opacity component of this MaterialTraits object.

Parameters

opacityPercentage	[out] Receives the opacity percentage.
opacityMap	[out] Receives the opacity map.

Implemented in OdGiMaterialTraits_Stub, and OdGiMaterialTraitsTaker.

reflectanceScale()

virtual double OdGiMaterialTraits::reflectanceScale ( ) const

pure virtual

Returns the reflectance scale of this MaterialTraits object.

Returns

reference scale as a value of the double type.

Implemented in OdGiMaterialTraits_Stub, and OdGiMaterialTraitsTaker.

reflection()

virtual void OdGiMaterialTraits::reflection ( OdGiMaterialMap & reflectionMap ) const

pure virtual

Returns the reflection component of this MaterialTraits object.

Parameters

reflectionMap

[out] Receives the reflection map.

Remarks

The reflection component creates a mirror finish on the entity.

Implemented in OdGiMaterialTraits_Stub, and OdGiMaterialTraitsTaker.

reflectionMethod()

virtual ReflectionMethod OdGiMaterialTraits::reflectionMethod ( ) const

pure virtual

Returns the reflection method of this MaterialTraits object.

Returns

reflection method as a value from the ReflectionMethod enumeration.

Implemented in OdGiMaterialTraits_Stub, and OdGiMaterialTraitsTaker.

reflectivity()

virtual double OdGiMaterialTraits::reflectivity ( ) const

pure virtual

Returns the reflectivity of this MaterialTraits object.

Returns

reflectivity amount as a value of the double type.

Implemented in OdGiMaterialTraits_Stub, and OdGiMaterialTraitsTaker.

refraction()

virtual void OdGiMaterialTraits::refraction ( double & refractionIndex, OdGiMaterialMap & refractionMap ) const

pure virtual

Returns the refraction component of this MaterialTraits object.

Parameters

refractionIndex	[out] Receives the refraction index.
refractionMap	[out] Receives the refraction map.

Implemented in OdGiMaterialTraits_Stub, and OdGiMaterialTraitsTaker.

roughness()

virtual void OdGiMaterialTraits::roughness ( OdGiMaterialMap & roughnessMap, double & strength ) const

pure virtual

Returns the roughness component of this MaterialTraits object.

Parameters

roughnessMap	[out] Receives the roughness map.
strength	[out] Receives roughness effect strength.

Implemented in OdGiMaterialTraits_Stub, and OdGiMaterialTraitsTaker.

selfIllumination()

virtual double OdGiMaterialTraits::selfIllumination ( ) const

pure virtual

Returns the self illumination of this MaterialTraits object.

Returns

translucence amount as a value of the double type.

Implemented in OdGiMaterialTraits_Stub, and OdGiMaterialTraitsTaker.

setAmbient()

virtual void OdGiMaterialTraits::setAmbient ( const OdGiMaterialColor & ambientColor )

pure virtual

Sets the ambient color component of this MaterialTraits object.

Parameters

ambientColor

[in] Ambient color.

Remarks

The ambient color component is most apparent when there is no direct illumination on the entity.

Implemented in OdGiMaterialTraits_Stub, and OdGiMaterialTraitsTaker.

setBump()

virtual void OdGiMaterialTraits::setBump ( const OdGiMaterialMap & bumpMap )

pure virtual

Sets the bump component of this MaterialTraits object.

Parameters

bumpMap

[in] Bump map.

Implemented in OdGiMaterialTraits_Stub, and OdGiMaterialTraitsTaker.

setChannelFlags()

virtual void OdGiMaterialTraits::setChannelFlags ( ChannelFlags flags )

pure virtual

Sets the material channels to be used by this MaterialTraits object.

Parameters

value

[in] Channels to be used.

Implemented in OdGiMaterialTraits_Stub, and OdGiMaterialTraitsTaker.

setColorBleedScale()

virtual void OdGiMaterialTraits::setColorBleedScale ( double scale )

pure virtual

Sets the color bleed scale of this MaterialTraits object.

Parameters

scale

[in] Color bleed scale.

Implemented in OdGiMaterialTraits_Stub, and OdGiMaterialTraitsTaker.

setCutouts()

virtual void OdGiMaterialTraits::setCutouts ( const OdGiMaterialMap & cutoutsMap )

pure virtual

Sets the cutouts component of this MaterialTraits object.

Parameters

cutoutsMap

[in] Cutouts map.

Implemented in OdGiMaterialTraits_Stub, and OdGiMaterialTraitsTaker.

setDiffuse()

virtual void OdGiMaterialTraits::setDiffuse ( const OdGiMaterialColor & diffuseColor, const OdGiMaterialMap & diffuseMap )

pure virtual

Sets the diffuse component of this MaterialTraits object.

Parameters

diffuseColor	[in] Diffuse color.
diffuseMap	[in] Diffuse map.

Remarks

The diffuse component is most apparent when there is direct illumination on the entity.

Implemented in OdGiMaterialTraits_Stub, and OdGiMaterialTraitsTaker.

setDiffuseColorMode()

virtual void OdGiMaterialTraits::setDiffuseColorMode ( DiffuseColorMode diffuseColorMode )

pure virtual

Sets diffuse, ambient, specual color and opacity behavior.

Parameters

diffuseColorMode

[in] New setting for diffuse color and opacity mode.

Implemented in OdGiMaterialTraits_Stub, and OdGiMaterialTraitsTaker.

setEmission()

virtual void OdGiMaterialTraits::setEmission ( const OdGiMaterialColor & emissionColor, const OdGiMaterialMap & emissionMap )

pure virtual

Sets the emission component of this MaterialTraits object.

Parameters

emissionColor	[in] Emission color.
emissionMap	[in] Emission map.

Implemented in OdGiMaterialTraits_Stub, and OdGiMaterialTraitsTaker.

setFinalGather()

virtual void OdGiMaterialTraits::setFinalGather ( FinalGatherMode mode )

pure virtual

Sets the final gather mode of this MaterialTraits object.

Parameters

mode	[in] Final gather mode.

Implemented in OdGiMaterialTraits_Stub, and OdGiMaterialTraitsTaker.

setGlobalIllumination()

virtual void OdGiMaterialTraits::setGlobalIllumination ( GlobalIlluminationMode mode )

pure virtual

Sets the global illumination mode of this MaterialTraits object.

Parameters

mode	[in] Global illumination mode.

Implemented in OdGiMaterialTraits_Stub, and OdGiMaterialTraitsTaker.

setIlluminationModel()

virtual void OdGiMaterialTraits::setIlluminationModel ( IlluminationModel model )

pure virtual

Sets the illumination model of this MaterialTraits object.

Parameters

model

[in] Illumination model.

Implemented in OdGiMaterialTraits_Stub, and OdGiMaterialTraitsTaker.

setIndirectBumpScale()

virtual void OdGiMaterialTraits::setIndirectBumpScale ( double scale )

pure virtual

Sets the indirect bump scale of this MaterialTraits object.

Parameters

scale

[in] Indirect bump scale.

Implemented in OdGiMaterialTraits_Stub, and OdGiMaterialTraitsTaker.

setLuminance()

virtual void OdGiMaterialTraits::setLuminance ( double value )

pure virtual

Sets the luminance of this MaterialTraits object.

Parameters

value

[in] Luminance value.

Implemented in OdGiMaterialTraits_Stub, and OdGiMaterialTraitsTaker.

setLuminanceMode()

virtual void OdGiMaterialTraits::setLuminanceMode ( LuminanceMode mode )

pure virtual

Sets the luminance mode of this MaterialTraits object.

Parameters

mode	[in] Luminance mode.

Implemented in OdGiMaterialTraits_Stub, and OdGiMaterialTraitsTaker.

setMode()

virtual void OdGiMaterialTraits::setMode ( Mode value )

pure virtual

Sets the mode of this MaterialTraits object.

Parameters

value

[in] Mode value.

Implemented in OdGiMaterialTraits_Stub, and OdGiMaterialTraitsTaker.

setNormalMap()

virtual void OdGiMaterialTraits::setNormalMap ( const OdGiMaterialMap & normalMap, NormalMapMethod method, double strength )

pure virtual

Sets the normalMap component of this MaterialTraits object.

Parameters

normalMap	[in] Normal map.
method	[in] Normal map method.
strength	[in] Strength factor.

Implemented in OdGiMaterialTraits_Stub, and OdGiMaterialTraitsTaker.

setOpacity()

virtual void OdGiMaterialTraits::setOpacity ( double opacityPercentage, const OdGiMaterialMap & opacityMap )

pure virtual

Sets the opacity component of this MaterialTraits object.

Parameters

opacityPercentage	[in] Opacity percentage.
opacityMap	[in] Opacity map.

Implemented in OdGiMaterialTraits_Stub, and OdGiMaterialTraitsTaker.

setReflectanceScale()

virtual void OdGiMaterialTraits::setReflectanceScale ( double scale )

pure virtual

Sets the reflectance scale of this MaterialTraits object.

Parameters

scale

[in] Reflectance scale.

Implemented in OdGiMaterialTraits_Stub, and OdGiMaterialTraitsTaker.

setReflection()

virtual void OdGiMaterialTraits::setReflection ( const OdGiMaterialMap & reflectionMap )

pure virtual

Sets the reflection component of this MaterialTraits object.

Parameters

reflectionMap

[in] Reflection map.

Remarks

The reflection component creates a mirror finish on the entity.

Implemented in OdGiMaterialTraits_Stub, and OdGiMaterialTraitsTaker.

setReflectionMethod()

virtual void OdGiMaterialTraits::setReflectionMethod ( ReflectionMethod method )

pure virtual

Sets the reflection method of this MaterialTraits object.

Parameters

method

[in] Reflection method.

Implemented in OdGiMaterialTraits_Stub, and OdGiMaterialTraitsTaker.

setReflectivity()

virtual void OdGiMaterialTraits::setReflectivity ( double value )

pure virtual

Sets the reflectivity of this MaterialTraits object.

Parameters

value

[in] Reflectivity value.

Implemented in OdGiMaterialTraits_Stub, and OdGiMaterialTraitsTaker.

setRefraction()

virtual void OdGiMaterialTraits::setRefraction ( double refractionIndex, const OdGiMaterialMap & refractionMap )

pure virtual

Sets the refraction component of this MaterialTraits object.

Parameters

refractionIndex	[in] Refraction index.
refractionMap	[in] Refraction map.

Implemented in OdGiMaterialTraits_Stub, and OdGiMaterialTraitsTaker.

setRoughness()

virtual void OdGiMaterialTraits::setRoughness ( const OdGiMaterialMap & roughnessMap, double strength )

pure virtual

Sets the roughness component of this MaterialTraits object.

Parameters

roughnessMap	[in] Roughness map.
strength	[in] Roughness effect strength.

Implemented in OdGiMaterialTraits_Stub, and OdGiMaterialTraitsTaker.

setSelfIllumination()

virtual void OdGiMaterialTraits::setSelfIllumination ( double value )

pure virtual

Sets the self illumination of this MaterialTraits object.

Parameters

value

[in] Self illumination level.

Implemented in OdGiMaterialTraits_Stub, and OdGiMaterialTraitsTaker.

setShadingAmbient()

virtual void OdGiMaterialTraits::setShadingAmbient ( const OdGiMaterialColor & ambientColor )

pure virtual

Sets the shading ambient color component of this MaterialTraits object.

Parameters

ambientColor

[in] Shading ambient color.

Implemented in OdGiMaterialTraits_Stub, and OdGiMaterialTraitsTaker.

setShadingDiffuse()

virtual void OdGiMaterialTraits::setShadingDiffuse ( const OdGiMaterialColor & diffuseColor )

pure virtual

Sets the shading diffuse color component of this MaterialTraits object.

Parameters

diffuseColor

[in] Shading diffuse color.

Implemented in OdGiMaterialTraits_Stub, and OdGiMaterialTraitsTaker.

setShadingOpacity()

virtual void OdGiMaterialTraits::setShadingOpacity ( double opacityPercentage )

pure virtual

Sets the shading opacity component of this MaterialTraits object.

Parameters

opacityPercentage

[in] Shading opacity percentage.

Implemented in OdGiMaterialTraits_Stub, and OdGiMaterialTraitsTaker.

setShadingSpecular()

virtual void OdGiMaterialTraits::setShadingSpecular ( const OdGiMaterialColor & specularColor )

pure virtual

Sets the shading specular color component of this MaterialTraits object.

Parameters

specularColor

[in] Shading specular color.

Implemented in OdGiMaterialTraits_Stub, and OdGiMaterialTraitsTaker.

setShadowsOpacityEffect()

virtual void OdGiMaterialTraits::setShadowsOpacityEffect ( double effectPercentage, double nonShadowLightsMergeEffect = 1.0 )

pure virtual

Sets coefficient of opacity influence onto received shadows.

Parameters

effectPercentage	[in] Coefficient in 0.0-1.0 range.
nonShadowLightsMergeEffect	[in] Setup amount in 0.0-1.0 range of lights influence which is doesn't cast shadows.

Implemented in OdGiMaterialTraits_Stub, and OdGiMaterialTraitsTaker.

setSpecular()

virtual void OdGiMaterialTraits::setSpecular ( const OdGiMaterialColor & specularColor, const OdGiMaterialMap & specularMap, double glossFactor )

pure virtual

Sets the specular component of this MaterialTraits object.

Parameters

specularColor	[in] Specular color.
specularMap	[in] Specular map.
glossFactor	[in] Gloss factor.

Remarks

The specular component depends on the viewer's eye position and represents light source reflection highlights on the entity surface.

Implemented in OdGiMaterialTraits_Stub, and OdGiMaterialTraitsTaker.

setSpecularHighlightingOverride()

virtual void OdGiMaterialTraits::setSpecularHighlightingOverride ( double overrideVal )

pure virtual

Sets specular highlighting behavior override.

Parameters

overrideVal

[in] Specular highlighting override value.

Remarks

Positive override value represents absolute specular highlighting factor. Zero override value disables specular highlighting override. Negative override value provides maximal specular highlighting factor and means that highlighting factor must be taken from Visual Style.

Implemented in OdGiMaterialTraits_Stub, and OdGiMaterialTraitsTaker.

setTint()

virtual void OdGiMaterialTraits::setTint ( const OdGiMaterialColor & tintColor )

pure virtual

Sets the tint component of this MaterialTraits object.

Parameters

tintColor

[in] Tint color.

Implemented in OdGiMaterialTraits_Stub, and OdGiMaterialTraitsTaker.

setTranslucence()

virtual void OdGiMaterialTraits::setTranslucence ( double value )

pure virtual

Sets the translucence of this MaterialTraits object.

Parameters

value

[in] Translucence value.

Implemented in OdGiMaterialTraits_Stub, and OdGiMaterialTraitsTaker.

setTransmittanceScale()

virtual void OdGiMaterialTraits::setTransmittanceScale ( double scale )

pure virtual

Sets the transmittance scale of this MaterialTraits object.

Parameters

scale

[in] Transmittance scale.

Implemented in OdGiMaterialTraits_Stub, and OdGiMaterialTraitsTaker.

setTwoSided()

virtual void OdGiMaterialTraits::setTwoSided ( bool flag )

pure virtual

Sets the two-sided mode of this MaterialTraits object.

Parameters

flag	[in] Two-sided mode flag.

Implemented in OdGiMaterialTraits_Stub, and OdGiMaterialTraitsTaker.

shadingAmbient()

virtual void OdGiMaterialTraits::shadingAmbient ( OdGiMaterialColor & ambientColor ) const

pure virtual

Returns the shading ambient color component of this MaterialTraits object.

Parameters

ambientColor

[out] Receives the shading ambient color.

Implemented in OdGiMaterialTraits_Stub, and OdGiMaterialTraitsTaker.

shadingDiffuse()

virtual void OdGiMaterialTraits::shadingDiffuse ( OdGiMaterialColor & diffuseColor ) const

pure virtual

Returns the shading diffuse color component of this MaterialTraits object.

Parameters

diffuseColor

[out] Receives the shading diffuse color.

Implemented in OdGiMaterialTraits_Stub, and OdGiMaterialTraitsTaker.

shadingOpacity()

virtual void OdGiMaterialTraits::shadingOpacity ( double & opacityPercentage ) const

pure virtual

Returns the shading opacity component of this MaterialTraits object.

Parameters

opacityPercentage

[out] Receives the shading opacity percentage.

Implemented in OdGiMaterialTraits_Stub, and OdGiMaterialTraitsTaker.

shadingSpecular()

virtual void OdGiMaterialTraits::shadingSpecular ( OdGiMaterialColor & specularColor ) const

pure virtual

Returns the shading specular color component of this MaterialTraits object.

Parameters

specularColor

[out] Receives the shading specular color.

Implemented in OdGiMaterialTraits_Stub, and OdGiMaterialTraitsTaker.

shadowsOpacityEffect()

virtual double OdGiMaterialTraits::shadowsOpacityEffect ( double & nonShadowLightsMergeEffect ) const

pure virtual

Returns coefficient of opacity influence onto received shadows. Coefficient set to 1.0 by default, which is means that shadows opacity will fully depends from material opacity.

Parameters

nonShadowLightsMergeEffect

[out] Amount in 0.0-1.0 range of lights influence which is doesn't cast shadows.

Implemented in OdGiMaterialTraits_Stub, and OdGiMaterialTraitsTaker.

specular()

virtual void OdGiMaterialTraits::specular ( OdGiMaterialColor & specularColor, OdGiMaterialMap & specularMap, double & glossFactor ) const

pure virtual

Returns the specular component of this MaterialTraits object.

Parameters

specularColor	[out] Receives the specular color.
specularMap	[out] Receives the specular map.
glossFactor	[out] Receives the gloss factor.

Remarks

The specular component depends on the viewer's eye position and represents the light source reflection highlights on the entity surface.

Implemented in OdGiMaterialTraits_Stub, and OdGiMaterialTraitsTaker.

specularHighlightingOverride()

virtual double OdGiMaterialTraits::specularHighlightingOverride ( ) const

pure virtual

Returns specular highlighting behavior override.

Remarks

Positive override value represents absolute specular highlighting factor. Zero override value disables specular highlighting override. Negative override value provides maximal specular highlighting factor and means that highlighting factor must be taken from Visual Style.

Implemented in OdGiMaterialTraits_Stub, and OdGiMaterialTraitsTaker.

tint()

virtual void OdGiMaterialTraits::tint ( OdGiMaterialColor & tintColor ) const

pure virtual

Returns the tint component of this MaterialTraits object.

Parameters

tintColor

[out] Receives the tint color.

Implemented in OdGiMaterialTraits_Stub, and OdGiMaterialTraitsTaker.

translucence()

virtual double OdGiMaterialTraits::translucence ( ) const

pure virtual

Returns the translucence of this MaterialTraits object.

Returns

translucence amount as a value of the double type.

Implemented in OdGiMaterialTraits_Stub, and OdGiMaterialTraitsTaker.

transmittanceScale()

virtual double OdGiMaterialTraits::transmittanceScale ( ) const

pure virtual

Returns the transmittance scale of this MaterialTraits object.

Returns

transmittance scale as a value of the double type.

Implemented in OdGiMaterialTraits_Stub, and OdGiMaterialTraitsTaker.

twoSided()

virtual bool OdGiMaterialTraits::twoSided ( ) const

pure virtual

Returns the two-sided mode of this MaterialTraits object.

Implemented in OdGiMaterialTraits_Stub, and OdGiMaterialTraitsTaker.

---

The documentation for this class was generated from the following file:

• GiMaterial.h
