#include <IfcConstructionEquipmentResourceAutoImpl.h>

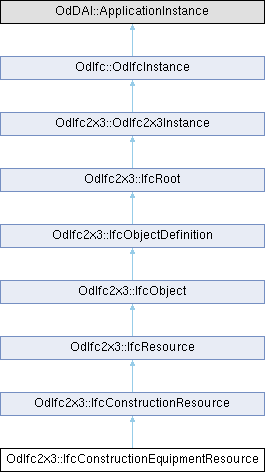

Inheritance diagram for OdIfc2x3::IfcConstructionEquipmentResource:

Public Member Functions
virtual OdDAI::Entity *	getInstanceType () const override

virtual bool	comparedToEarlyImpl (const OdDAI::ApplicationInstance *pOther, OdRx::Ordering &ordering) const override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

Public Member Functions inherited from OdIfc2x3::IfcConstructionResource
const OdAnsiString &	getResourceIdentifier () const

void	setResourceIdentifier (const OdAnsiString &ResourceIdentifier)

const OdAnsiString &	getResourceGroup () const

void	setResourceGroup (const OdAnsiString &ResourceGroup)

IfcResourceConsumptionEnum	getResourceConsumption () const

void	setResourceConsumption (IfcResourceConsumptionEnum ResourceConsumption)

const OdDAIObjectId &	getBaseQuantity () const

void	setBaseQuantity (const OdDAIObjectId &BaseQuantity)

	IfcConstructionResource ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc2x3::IfcResource
void	getInvResourceOf (OdDAIObjectIds &ResourceOf) const

Public Member Functions inherited from OdIfc2x3::IfcObject
const OdAnsiString &	getObjectType () const

void	setObjectType (const OdAnsiString &ObjectType)

void	getInvIsDefinedBy (OdDAIObjectIds &IsDefinedBy) const

	IfcObject ()

Public Member Functions inherited from OdIfc2x3::IfcObjectDefinition
void	getInvHasAssignments (OdDAIObjectIds &HasAssignments) const

void	getInvIsDecomposedBy (OdDAIObjectIds &IsDecomposedBy) const

void	getInvDecomposes (OdDAIObjectIds &Decomposes) const

void	getInvHasAssociations (OdDAIObjectIds &HasAssociations) const

Public Member Functions inherited from OdIfc2x3::IfcRoot
OdDAI::CompressedGUID	getGlobalId () const

void	setGlobalId (OdDAI::CompressedGUID GlobalId)

const OdDAIObjectId &	getOwnerHistory () const

void	setOwnerHistory (const OdDAIObjectId &OwnerHistory)

const OdAnsiString &	getName () const

void	setName (const OdAnsiString &Name)

const OdAnsiString &	getDescription () const

void	setDescription (const OdAnsiString &Description)

	IfcRoot ()

Public Member Functions inherited from OdIfc2x3::OdIfc2x3Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Protected Member Functions inherited from OdIfc2x3::IfcResource
virtual OdRxValue	getAttr (const char *attrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

Protected Attributes inherited from OdIfc2x3::IfcConstructionResource
OdAnsiString	m_ResourceIdentifier

OdAnsiString	m_ResourceGroup

OdDAI::Enum	m_ResourceConsumption

OdDAIObjectId	m_BaseQuantity

Protected Attributes inherited from OdIfc2x3::IfcObject
OdAnsiString	m_ObjectType

Protected Attributes inherited from OdIfc2x3::IfcRoot
OdDAI::CompressedGUID	m_GlobalId

OdDAIObjectId	m_OwnerHistory

OdAnsiString	m_Name

OdAnsiString	m_Description

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Detailed Description

IfcConstructionEquipmentResource is usage of construction equipment to assist in the performance of construction. Construction Equipment resources are wholly or partially consumed or occupied in the performance of construction.

Occurrences of IfcConstructionEquipmentResource are products that are used as resources to assist the process of construction. More specifically, they are products that are standalone items brought to a project to fulfill a particular purpose. Examples might be a tower crane or other mobile crane, a screwing machine, or a lifting hoist.

Instances of any subtype of IfcProduct can be assigned to the equipment resource using IfcRelAssignsToResource in order to characterize the equipment further, as described at the supertype IfcResource. Examples of relevant subtypes of IfcProduct are IfcTransportElement, IfcDiscreteAccessory, or IfcProxy (for particular cases where more precise usage details are not available).

Object Typing - This concept can be applied to the following resources: IfcConstructionEquipmentResourceType
Quantity Sets - This concept can be applied to the following resources: Qto_ConstructionEquipmentResourceBaseQuantities
Resource Assignment - This concept can be applied to the following resources: IfcTransportationDevice
Resource Cost - This concept can be applied with the following combinations:

CostType

CostName ValueType IfcCostValue Usage IfcMonetaryMeasure IfcCostValue Operation IfcMonetaryMeasure IfcCostValue Deployment IfcMonetaryMeasure

Resource Quantity - This concept can be applied with the following combinations:

QuantityType

QuantityName IfcCostValue Usage

Definition at line 78 of file Ifc2x3/IfcConstructionEquipmentResourceAutoImpl.h.

Member Function Documentation

◆ comparedToEarlyImpl()

virtual bool OdIfc2x3::IfcConstructionEquipmentResource::comparedToEarlyImpl	(	const OdDAI::ApplicationInstance *	pOther,
		OdRx::Ordering &	ordering ) const

overridevirtual

Early-bound version of instances comparison.

Parameters

pOther	[in] Other application instance.
ordering	[out] Receives the ordering (comparison) status.

Returns: true if comparison was performed, false if method has no implementation, so late-bound version could be applied.

Remarks

If the method returns true, the ordering parameter can receive one of the following statuses:

Value Description kLessThan -1 This object < Other Object. kEqual 0 This object = Other Object. kGreaterThan 1 This object > Other Object. kNotOrderable 2 This class is not orderable.

Reimplemented from OdIfc2x3::IfcConstructionResource.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc2x3::IfcConstructionEquipmentResource::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc2x3::IfcConstructionResource.

◆ isKindOf()

virtual bool OdIfc2x3::IfcConstructionEquipmentResource::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc2x3::IfcConstructionResource.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc2x3::IfcConstructionEquipmentResource::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc2x3::IfcConstructionResource.

The documentation for this class was generated from the following file:

Ifc2x3/IfcConstructionEquipmentResourceAutoImpl.h
