#include <IfcActionRequestAutoImpl.h>

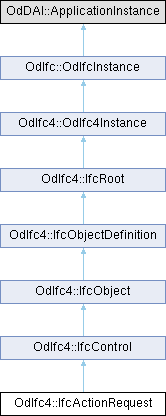

Inheritance diagram for OdIfc4::IfcActionRequest:

Public Member Functions
IfcActionRequestTypeEnum	getPredefinedType () const

void	setPredefinedType (IfcActionRequestTypeEnum PredefinedType)

const OdAnsiString &	getStatus () const

void	setStatus (const OdAnsiString &Status)

const OdAnsiString &	getLongDescription () const

void	setLongDescription (const OdAnsiString &LongDescription)

	IfcActionRequest ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual bool	comparedToEarlyImpl (const OdDAI::ApplicationInstance *pOther, OdRx::Ordering &ordering) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc4::IfcControl
const OdAnsiString &	getIdentification () const

void	setIdentification (const OdAnsiString &Identification)

void	getInvControls (OdDAIObjectIds &Controls) const

	IfcControl ()

Public Member Functions inherited from OdIfc4::IfcObject
const OdAnsiString &	getObjectType () const

void	setObjectType (const OdAnsiString &ObjectType)

void	getInvIsDeclaredBy (OdDAIObjectIds &IsDeclaredBy) const

void	getInvDeclares (OdDAIObjectIds &Declares) const

void	getInvIsTypedBy (OdDAIObjectIds &IsTypedBy) const

void	getInvIsDefinedBy (OdDAIObjectIds &IsDefinedBy) const

	IfcObject ()

Public Member Functions inherited from OdIfc4::IfcObjectDefinition
void	getInvHasAssignments (OdDAIObjectIds &HasAssignments) const

void	getInvNests (OdDAIObjectIds &Nests) const

void	getInvIsNestedBy (OdDAIObjectIds &IsNestedBy) const

void	getInvHasContext (OdDAIObjectIds &HasContext) const

void	getInvIsDecomposedBy (OdDAIObjectIds &IsDecomposedBy) const

void	getInvDecomposes (OdDAIObjectIds &Decomposes) const

void	getInvHasAssociations (OdDAIObjectIds &HasAssociations) const

Public Member Functions inherited from OdIfc4::IfcRoot
OdDAI::CompressedGUID	getGlobalId () const

void	setGlobalId (OdDAI::CompressedGUID GlobalId)

const OdDAIObjectId &	getOwnerHistory () const

void	setOwnerHistory (const OdDAIObjectId &OwnerHistory)

const OdAnsiString &	getName () const

void	setName (const OdAnsiString &Name)

const OdAnsiString &	getDescription () const

void	setDescription (const OdAnsiString &Description)

	IfcRoot ()

Public Member Functions inherited from OdIfc4::OdIfc4Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
OdDAI::Enum	m_PredefinedType

OdAnsiString	m_Status

OdAnsiString	m_LongDescription

Protected Attributes inherited from OdIfc4::IfcControl
OdAnsiString	m_Identification

Protected Attributes inherited from OdIfc4::IfcObject
OdAnsiString	m_ObjectType

Protected Attributes inherited from OdIfc4::IfcRoot
OdDAI::CompressedGUID	m_GlobalId

OdDAIObjectId	m_OwnerHistory

OdAnsiString	m_Name

OdAnsiString	m_Description

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Protected Member Functions inherited from OdIfc4::IfcObjectDefinition
virtual OdRxValue	getAttr (const char *attrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

Detailed Description

A request is the act or instance of asking for something, such as a request for information, bid submission, or performance of work. Requests may take many forms depending on the need including fault reports for maintenance, requests for small works, and purchase requests (where these are to be made through a help desk or buying function).

Approval - The Approval Association concept applies to this entity. Approvals may be associated to indicate the status of acceptance or rejection using the IfcRelAssociatesApproval relationship where RelatingApproval refers to an IfcApproval and RelatedObjects contains the IfcActionRequest. Approvals may be split into sub-approvals using IfcApprovalRelationship to track approval status separately for each party where RelatingApproval refers to the higher-level approval and RelatedApprovals contains one or more lower-level approvals. The hierarchy of approvals implies sequencing such that a higher-level approval is not executed until all of its lower-level approvals have been accepted.
Aggregation - As shown in the figure below, an IfcActionRequest may be aggregated into components.

Nesting - An IfcActionRequest entity may be nested into follow-up requests, in order of issue.
Control Assignment - As shown in the figure below, an IfcActionRequest may be assigned to the following entities using relationships as indicated: IfcActor (IfcRelAssignsToActor): Person or organization issuing the request such as a tenant or owner.

The IfcActionRequest may have assignments of its own using the IfcRelAssignsToControl relationship where RelatingControl refers to the IfcActionRequest and RelatedObjects contains one or more objects of the following types: IfcActor: Person or organization(s) fulfilling the request such as a facilities manager or contractor.

\changes

IFC4 changes: Attribute RequestID renamed to Identification and promoted to supertype IfcControl;

Definition at line 75 of file Ifc4/IfcActionRequestAutoImpl.h.

Constructor & Destructor Documentation

◆ IfcActionRequest()

OdIfc4::IfcActionRequest::IfcActionRequest ( )

Default constructor for the IfcActionRequest class.

Member Function Documentation

◆ comparedToEarlyImpl()

virtual bool OdIfc4::IfcActionRequest::comparedToEarlyImpl	(	const OdDAI::ApplicationInstance *	pOther,
		OdRx::Ordering &	ordering ) const

overridevirtual

Early-bound version of instances comparison.

Parameters

pOther	[in] Other application instance.
ordering	[out] Receives the ordering (comparison) status.

Returns: true if comparison was performed, false if method has no implementation, so late-bound version could be applied.

Remarks

If the method returns true, the ordering parameter can receive one of the following statuses:

Value Description kLessThan -1 This object < Other Object. kEqual 0 This object = Other Object. kGreaterThan 1 This object > Other Object. kNotOrderable 2 This class is not orderable.

Reimplemented from OdIfc4::IfcControl.

◆ getAttr() [1/2]

virtual OdRxValue OdIfc4::IfcActionRequest::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4::IfcControl.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc4::IfcActionRequest::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4::IfcControl.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc4::IfcActionRequest::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc4::IfcControl.

◆ getLongDescription()

const OdAnsiString & OdIfc4::IfcActionRequest::getLongDescription ( ) const

Returns the value of LongDescription attribute. This attribute represents detailed description of the permit.

Returns: Returns the value of LongDescription attribute.

Remarks: IFC4 CHANGE: The attribute has been added.

◆ getPredefinedType()

IfcActionRequestTypeEnum OdIfc4::IfcActionRequest::getPredefinedType ( ) const

Returns the value of PredefinedType attribute. This attribute represents the predefined type of sources through which a request can be made.

Returns: Returns the value of PredefinedType attribute.

Remarks: IFC4 CHANGE: The attribute has been added.

◆ getStatus()

const OdAnsiString & OdIfc4::IfcActionRequest::getStatus ( ) const

Returns the value of Status attribute. This attribute represents the status currently assigned to the request. Possible values include: Hold: wait to see if further requests are received before deciding on action NoAction: no action is required on this request Schedule: plan action to take place as part of maintenance or other task planning/scheduling Urgent: take action immediately

Returns: Returns the value of Status attribute.

Remarks: IFC4 CHANGE: The attribute has been added.

◆ inFields()

virtual OdResult OdIfc4::IfcActionRequest::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4::IfcControl.

◆ isKindOf()

virtual bool OdIfc4::IfcActionRequest::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc4::IfcControl.

◆ outFields()

virtual OdResult OdIfc4::IfcActionRequest::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4::IfcControl.

◆ putAttr() [1/2]

virtual bool OdIfc4::IfcActionRequest::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4::IfcControl.

◆ putAttr() [2/2]

virtual bool OdIfc4::IfcActionRequest::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4::IfcControl.

◆ setLongDescription()

void OdIfc4::IfcActionRequest::setLongDescription ( const OdAnsiString & LongDescription )

Sets the value of LongDescription attribute. This attribute represents detailed description of the permit.

Parameters

LongDescription [in] Long description to set.

Remarks: IFC4 CHANGE: The attribute has been added.

◆ setPredefinedType()

void OdIfc4::IfcActionRequest::setPredefinedType ( IfcActionRequestTypeEnum PredefinedType )

Sets the value of PredefinedType attribute. This attribute represents the predefined type of sources through which a request can be made.

Parameters

PredefinedType [in] Predefined type to set.

Remarks: IFC4 CHANGE: The attribute has been added.

◆ setStatus()

void OdIfc4::IfcActionRequest::setStatus ( const OdAnsiString & Status )

Sets the value of Status attribute. This attribute represents the status currently assigned to the request. Possible values include: Hold: wait to see if further requests are received before deciding on action NoAction: no action is required on this request Schedule: plan action to take place as part of maintenance or other task planning/scheduling Urgent: take action immediately

Parameters

Status [in] Status to set.

Remarks: IFC4 CHANGE: The attribute has been added.

◆ testAttr() [1/2]

virtual bool OdIfc4::IfcActionRequest::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4::IfcControl.

◆ testAttr() [2/2]

virtual bool OdIfc4::IfcActionRequest::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4::IfcControl.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc4::IfcActionRequest::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc4::IfcControl.

◆ unsetAttr() [1/2]

virtual void OdIfc4::IfcActionRequest::unsetAttr ( const char * explicitAttrName )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrName [in] Explicit name of the attribute to reset.

Reimplemented from OdIfc4::IfcControl.

◆ unsetAttr() [2/2]

virtual void OdIfc4::IfcActionRequest::unsetAttr ( const OdIfc::OdIfcAttribute explicitAttrDef )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrDef [in] Explicit definition that represents an attribute to reset.

Reimplemented from OdIfc4::IfcControl.

Member Data Documentation

◆ m_LongDescription

OdAnsiString OdIfc4::IfcActionRequest::m_LongDescription

protected

Definition at line 287 of file Ifc4/IfcActionRequestAutoImpl.h.

◆ m_PredefinedType

OdDAI::Enum OdIfc4::IfcActionRequest::m_PredefinedType

protected

Definition at line 285 of file Ifc4/IfcActionRequestAutoImpl.h.

◆ m_Status

OdAnsiString OdIfc4::IfcActionRequest::m_Status

protected

Definition at line 286 of file Ifc4/IfcActionRequestAutoImpl.h.

The documentation for this class was generated from the following file:

Ifc4/IfcActionRequestAutoImpl.h

Public Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ IfcActionRequest()

Member Function Documentation

◆ comparedToEarlyImpl()

◆ getAttr() [1/2]

◆ getAttr() [2/2]

◆ getInstanceType()

◆ getLongDescription()

◆ getPredefinedType()

◆ getStatus()

◆ inFields()

◆ isKindOf()

◆ outFields()

◆ putAttr() [1/2]

◆ putAttr() [2/2]

◆ setLongDescription()

◆ setPredefinedType()

◆ setStatus()

◆ testAttr() [1/2]

◆ testAttr() [2/2]

◆ type()

◆ unsetAttr() [1/2]

◆ unsetAttr() [2/2]

Member Data Documentation

◆ m_LongDescription

◆ m_PredefinedType

◆ m_Status
