#include <IfcBuildingAutoImpl.h>

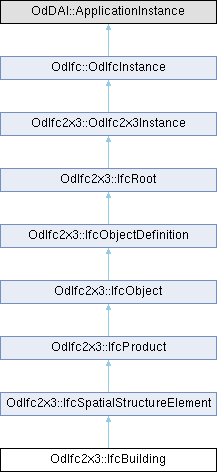

Inheritance diagram for OdIfc2x3::IfcBuilding:

Public Member Functions
double	getElevationOfRefHeight () const

void	setElevationOfRefHeight (double ElevationOfRefHeight)

double	getElevationOfTerrain () const

void	setElevationOfTerrain (double ElevationOfTerrain)

const OdDAIObjectId &	getBuildingAddress () const

void	setBuildingAddress (const OdDAIObjectId &BuildingAddress)

	IfcBuilding ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual bool	comparedToEarlyImpl (const OdDAI::ApplicationInstance *pOther, OdRx::Ordering &ordering) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc2x3::IfcSpatialStructureElement
const OdAnsiString &	getLongName () const

void	setLongName (const OdAnsiString &LongName)

IfcElementCompositionEnum	getCompositionType () const

void	setCompositionType (IfcElementCompositionEnum CompositionType)

void	getInvReferencesElements (OdDAIObjectIds &ReferencesElements) const

void	getInvServicedBySystems (OdDAIObjectIds &ServicedBySystems) const

void	getInvContainsElements (OdDAIObjectIds &ContainsElements) const

	IfcSpatialStructureElement ()

Public Member Functions inherited from OdIfc2x3::IfcProduct
const OdDAIObjectId &	getObjectPlacement () const

void	setObjectPlacement (const OdDAIObjectId &ObjectPlacement)

const OdDAIObjectId &	getRepresentation () const

void	setRepresentation (const OdDAIObjectId &Representation)

void	getInvReferencedBy (OdDAIObjectIds &ReferencedBy) const

virtual void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc2x3::IfcObject
const OdAnsiString &	getObjectType () const

void	setObjectType (const OdAnsiString &ObjectType)

void	getInvIsDefinedBy (OdDAIObjectIds &IsDefinedBy) const

	IfcObject ()

Public Member Functions inherited from OdIfc2x3::IfcObjectDefinition
void	getInvHasAssignments (OdDAIObjectIds &HasAssignments) const

void	getInvIsDecomposedBy (OdDAIObjectIds &IsDecomposedBy) const

void	getInvDecomposes (OdDAIObjectIds &Decomposes) const

void	getInvHasAssociations (OdDAIObjectIds &HasAssociations) const

Public Member Functions inherited from OdIfc2x3::IfcRoot
OdDAI::CompressedGUID	getGlobalId () const

void	setGlobalId (OdDAI::CompressedGUID GlobalId)

const OdDAIObjectId &	getOwnerHistory () const

void	setOwnerHistory (const OdDAIObjectId &OwnerHistory)

const OdAnsiString &	getName () const

void	setName (const OdAnsiString &Name)

const OdAnsiString &	getDescription () const

void	setDescription (const OdAnsiString &Description)

	IfcRoot ()

Public Member Functions inherited from OdIfc2x3::OdIfc2x3Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
double	m_ElevationOfRefHeight

double	m_ElevationOfTerrain

OdDAIObjectId	m_BuildingAddress

Protected Attributes inherited from OdIfc2x3::IfcSpatialStructureElement
OdAnsiString	m_LongName

OdDAI::Enum	m_CompositionType

Protected Attributes inherited from OdIfc2x3::IfcProduct
OdDAIObjectId	m_ObjectPlacement

OdDAIObjectId	m_Representation

Protected Attributes inherited from OdIfc2x3::IfcObject
OdAnsiString	m_ObjectType

Protected Attributes inherited from OdIfc2x3::IfcRoot
OdDAI::CompressedGUID	m_GlobalId

OdDAIObjectId	m_OwnerHistory

OdAnsiString	m_Name

OdAnsiString	m_Description

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

A building represents a structure that provides shelter for its occupants or contents and stands in one place. The building also provides a basic element within the spatial structure hierarchy for the components of a building project (together with site, storey, and space). A building is (if specified) associated to a site. The site can include a collection of buildings that are organized as a building complex. A building can be decomposed in parts to define a building sections: COMPLEX: building complex ELEMENT: building PARTIAL: building section

The IfcBuilding is used to build the spatial structure of a building (that serves as the primary project breakdown and is required to be hierarchical).

Definition at line 49 of file Ifc2x3/IfcBuildingAutoImpl.h.

Constructor & Destructor Documentation

◆ IfcBuilding()

OdIfc2x3::IfcBuilding::IfcBuilding ( )

Default constructor for the IfcBuilding class.

Member Function Documentation

◆ comparedToEarlyImpl()

virtual bool OdIfc2x3::IfcBuilding::comparedToEarlyImpl	(	const OdDAI::ApplicationInstance *	pOther,
		OdRx::Ordering &	ordering ) const

overridevirtual

Early-bound version of instances comparison.

Parameters

pOther	[in] Other application instance.
ordering	[out] Receives the ordering (comparison) status.

Returns: true if comparison was performed, false if method has no implementation, so late-bound version could be applied.

Remarks

If the method returns true, the ordering parameter can receive one of the following statuses:

Value Description kLessThan -1 This object < Other Object. kEqual 0 This object = Other Object. kGreaterThan 1 This object > Other Object. kNotOrderable 2 This class is not orderable.

Reimplemented from OdIfc2x3::IfcSpatialStructureElement.

◆ getAttr() [1/2]

virtual OdRxValue OdIfc2x3::IfcBuilding::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc2x3::IfcSpatialStructureElement.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc2x3::IfcBuilding::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc2x3::IfcSpatialStructureElement.

◆ getBuildingAddress()

const OdDAIObjectId & OdIfc2x3::IfcBuilding::getBuildingAddress ( ) const

Returns the postal address of the building.

Returns: Identifier of the object that represents the postal address of the building.

◆ getElevationOfRefHeight()

double OdIfc2x3::IfcBuilding::getElevationOfRefHeight ( ) const

Returns the elevation above sea level of the reference height used for all storey elevation measures.

Returns: Elevation of the reference height that is usually the ground floor level.

◆ getElevationOfTerrain()

double OdIfc2x3::IfcBuilding::getElevationOfTerrain ( ) const

Returns the elevation above the minimal terrain level around the foot print of the building, given in elevation above sea level.

Returns: Elevation above the minimal terrain level.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc2x3::IfcBuilding::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc2x3::IfcSpatialStructureElement.

◆ inFields()

virtual OdResult OdIfc2x3::IfcBuilding::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc2x3::IfcSpatialStructureElement.

◆ isKindOf()

virtual bool OdIfc2x3::IfcBuilding::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc2x3::IfcSpatialStructureElement.

◆ outFields()

virtual OdResult OdIfc2x3::IfcBuilding::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc2x3::IfcSpatialStructureElement.

◆ putAttr() [1/2]

virtual bool OdIfc2x3::IfcBuilding::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc2x3::IfcSpatialStructureElement.

◆ putAttr() [2/2]

virtual bool OdIfc2x3::IfcBuilding::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc2x3::IfcSpatialStructureElement.

◆ setBuildingAddress()

void OdIfc2x3::IfcBuilding::setBuildingAddress ( const OdDAIObjectId & BuildingAddress )

Sets the postal address of the building.

Parameters

BuildingAddress [in] Identifier of the object that represents the postal address of the building.

◆ setElevationOfRefHeight()

void OdIfc2x3::IfcBuilding::setElevationOfRefHeight ( double ElevationOfRefHeight )

Sets the elevation above sea level of the reference height used for all storey elevation measures.

Parameters

ElevationOfRefHeight [in] Elevation of the reference height.

◆ setElevationOfTerrain()

void OdIfc2x3::IfcBuilding::setElevationOfTerrain ( double ElevationOfTerrain )

Sets the elevation above the minimal terrain level around the foot print of the building, given in elevation above sea level.

Parameters

ElevationOfTerrain [in] Elevation above the minimal terrain level.

◆ testAttr() [1/2]

virtual bool OdIfc2x3::IfcBuilding::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc2x3::IfcSpatialStructureElement.

◆ testAttr() [2/2]

virtual bool OdIfc2x3::IfcBuilding::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc2x3::IfcSpatialStructureElement.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc2x3::IfcBuilding::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc2x3::IfcSpatialStructureElement.

◆ unsetAttr() [1/2]

virtual void OdIfc2x3::IfcBuilding::unsetAttr ( const char * explicitAttrName )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrName [in] Explicit name of the attribute to reset.

Reimplemented from OdIfc2x3::IfcSpatialStructureElement.

◆ unsetAttr() [2/2]

virtual void OdIfc2x3::IfcBuilding::unsetAttr ( const OdIfc::OdIfcAttribute explicitAttrDef )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrDef [in] Explicit definition that represents an attribute to reset.

Reimplemented from OdIfc2x3::IfcSpatialStructureElement.

Member Data Documentation

◆ m_BuildingAddress

OdDAIObjectId OdIfc2x3::IfcBuilding::m_BuildingAddress

protected

Definition at line 233 of file Ifc2x3/IfcBuildingAutoImpl.h.

◆ m_ElevationOfRefHeight

double OdIfc2x3::IfcBuilding::m_ElevationOfRefHeight

protected

Definition at line 231 of file Ifc2x3/IfcBuildingAutoImpl.h.

◆ m_ElevationOfTerrain

double OdIfc2x3::IfcBuilding::m_ElevationOfTerrain

protected

Definition at line 232 of file Ifc2x3/IfcBuildingAutoImpl.h.

The documentation for this class was generated from the following file:

Ifc2x3/IfcBuildingAutoImpl.h

Public Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ IfcBuilding()

Member Function Documentation

◆ comparedToEarlyImpl()

◆ getAttr() [1/2]

◆ getAttr() [2/2]

◆ getBuildingAddress()

◆ getElevationOfRefHeight()

◆ getElevationOfTerrain()

◆ getInstanceType()

◆ inFields()

◆ isKindOf()

◆ outFields()

◆ putAttr() [1/2]

◆ putAttr() [2/2]

◆ setBuildingAddress()

◆ setElevationOfRefHeight()

◆ setElevationOfTerrain()

◆ testAttr() [1/2]

◆ testAttr() [2/2]

◆ type()

◆ unsetAttr() [1/2]

◆ unsetAttr() [2/2]

Member Data Documentation

◆ m_BuildingAddress

◆ m_ElevationOfRefHeight

◆ m_ElevationOfTerrain
