#include <IfcStructuralAnalysisModelAutoImpl.h>

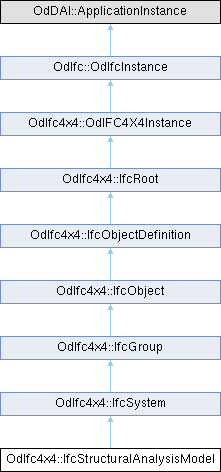

Inheritance diagram for OdIfc4x4::IfcStructuralAnalysisModel:

Public Member Functions
IfcAnalysisModelTypeEnum	getPredefinedType () const

void	setPredefinedType (IfcAnalysisModelTypeEnum PredefinedType)

const OdDAIObjectId &	getOrientationOf2DPlane () const

void	setOrientationOf2DPlane (const OdDAIObjectId &OrientationOf2DPlane)

void	getLoadedBy (OdDAIObjectIds &LoadedBy) const

OdDAI::SetOfOdDAIObjectId &	loadedBy ()

void	getHasResults (OdDAIObjectIds &HasResults) const

OdDAI::SetOfOdDAIObjectId &	hasResults ()

const OdDAIObjectId &	getSharedPlacement () const

void	setSharedPlacement (const OdDAIObjectId &SharedPlacement)

	IfcStructuralAnalysisModel ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual void	setInverseCounterParts () override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual bool	comparedToEarlyImpl (const OdDAI::ApplicationInstance *pOther, OdRx::Ordering &ordering) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc4x4::IfcSystem
void	getInvServicesBuildings (OdDAIObjectIds &ServicesBuildings) const

void	getInvServicesFacilities (OdDAIObjectIds &ServicesFacilities) const

Public Member Functions inherited from OdIfc4x4::IfcGroup
void	getInvIsGroupedBy (OdDAIObjectIds &IsGroupedBy) const

void	getInvReferencedInStructures (OdDAIObjectIds &ReferencedInStructures) const

Public Member Functions inherited from OdIfc4x4::IfcObject
const OdAnsiString &	getObjectType () const

void	setObjectType (const OdAnsiString &ObjectType)

void	getInvIsDeclaredBy (OdDAIObjectIds &IsDeclaredBy) const

void	getInvDeclares (OdDAIObjectIds &Declares) const

void	getInvIsTypedBy (OdDAIObjectIds &IsTypedBy) const

void	getInvIsDefinedBy (OdDAIObjectIds &IsDefinedBy) const

	IfcObject ()

Public Member Functions inherited from OdIfc4x4::IfcObjectDefinition
void	getInvHasAssignments (OdDAIObjectIds &HasAssignments) const

void	getInvNests (OdDAIObjectIds &Nests) const

void	getInvIsNestedBy (OdDAIObjectIds &IsNestedBy) const

void	getInvHasContext (OdDAIObjectIds &HasContext) const

void	getInvIsDecomposedBy (OdDAIObjectIds &IsDecomposedBy) const

void	getInvDecomposes (OdDAIObjectIds &Decomposes) const

void	getInvHasAssociations (OdDAIObjectIds &HasAssociations) const

Public Member Functions inherited from OdIfc4x4::IfcRoot
OdDAI::CompressedGUID	getGlobalId () const

void	setGlobalId (OdDAI::CompressedGUID GlobalId)

const OdDAIObjectId &	getOwnerHistory () const

void	setOwnerHistory (const OdDAIObjectId &OwnerHistory)

const OdAnsiString &	getName () const

void	setName (const OdAnsiString &Name)

const OdAnsiString &	getDescription () const

void	setDescription (const OdAnsiString &Description)

	IfcRoot ()

Public Member Functions inherited from OdIfc4x4::OdIFC4X4Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
OdDAI::Enum	m_PredefinedType

OdDAIObjectId	m_OrientationOf2DPlane

OdDAI::SetOfOdDAIObjectId	m_LoadedBy

OdDAI::SetOfOdDAIObjectId	m_HasResults

OdDAIObjectId	m_SharedPlacement

Protected Attributes inherited from OdIfc4x4::IfcObject
OdAnsiString	m_ObjectType

Protected Attributes inherited from OdIfc4x4::IfcRoot
OdDAI::CompressedGUID	m_GlobalId

OdDAIObjectId	m_OwnerHistory

OdAnsiString	m_Name

OdAnsiString	m_Description

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Protected Member Functions inherited from OdIfc4x4::IfcSystem
virtual OdRxValue	getAttr (const char *attrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

Detailed Description

The IfcStructuralAnalysisModel is used to assemble all information needed to represent a structural analysis model. It encompasses certain general properties (such as analysis type), references to all contained structural members, structural supports or connections, as well as loads and the respective load results.

Important functionalities for the description of an analysis model are derived from existing IFC entities: From IfcSystem it inherits the ability to couple the built system via IfcRelReferencedInSpatialStructure to one or more IfcSpatialElement subtypes as necessary. From IfcGroup it inherits the inverse attribute IsGroupedBy, pointing to the relationship class IfcRelAssignsToGroup. This allows the grouping of structural members (instances of IfcStructuralMember), and supports (instances of IfcStructuralConnection which belong to a specific analysis model. From IfcObjectDefinition it inherits the inverse attribute IsDecomposedBy pointing to the relationship class IfcRelAggregates. It provides the hierarchy between the separate (partial) analysis models.

Definition at line 51 of file IFC4X4/IfcStructuralAnalysisModelAutoImpl.h.

Constructor & Destructor Documentation

◆ IfcStructuralAnalysisModel()

OdIfc4x4::IfcStructuralAnalysisModel::IfcStructuralAnalysisModel ( )

Default constructor for the IfcStructuralAnalysisModel class.

Member Function Documentation

◆ comparedToEarlyImpl()

virtual bool OdIfc4x4::IfcStructuralAnalysisModel::comparedToEarlyImpl	(	const OdDAI::ApplicationInstance *	pOther,
		OdRx::Ordering &	ordering ) const

overridevirtual

Early-bound version of instances comparison.

Parameters

pOther	[in] Other application instance.
ordering	[out] Receives the ordering (comparison) status.

Returns: true if comparison was performed, false if method has no implementation, so late-bound version could be applied.

Remarks

If the method returns true, the ordering parameter can receive one of the following statuses:

Value Description kLessThan -1 This object < Other Object. kEqual 0 This object = Other Object. kGreaterThan 1 This object > Other Object. kNotOrderable 2 This class is not orderable.

Reimplemented from OdIfc4x4::IfcSystem.

◆ getAttr() [1/2]

virtual OdRxValue OdIfc4x4::IfcStructuralAnalysisModel::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4x4::IfcGroup.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc4x4::IfcStructuralAnalysisModel::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4x4::IfcSystem.

◆ getHasResults()

void OdIfc4x4::IfcStructuralAnalysisModel::getHasResults ( OdDAIObjectIds & HasResults ) const

Gets the value of HasResults attribute. This attribute represents references to all result groups available for this structural analysis model.

Parameters

HasResults [out] Receives the HasResults attribute.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc4x4::IfcStructuralAnalysisModel::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc4x4::IfcSystem.

◆ getLoadedBy()

void OdIfc4x4::IfcStructuralAnalysisModel::getLoadedBy ( OdDAIObjectIds & LoadedBy ) const

Sets the value of LoadedBy attribute. This attribute represents references to all load groups to be analyzed.

Parameters

LoadedBy [out] Receives the LoadedBy attribute.

◆ getOrientationOf2DPlane()

const OdDAIObjectId & OdIfc4x4::IfcStructuralAnalysisModel::getOrientationOf2DPlane ( ) const

Returns the value of OrientationOf2DPlane attribute. This attribute defines the upright direction to the focused plane (z-axes) if the selected model type (PredefinedType) describes a 2D system.

Returns: Returns the value of OrientationOf2DPlane attribute.

Remarks: This attribute is needed because all data for the structural analysis model (structural members, structural activities) are defined by using 3D space. The orientation is given in relation to the coordinate system of the project. With 3D systems this value is not asserted.

◆ getPredefinedType()

IfcAnalysisModelTypeEnum OdIfc4x4::IfcStructuralAnalysisModel::getPredefinedType ( ) const

Returns the value of PredefinedType attribute. This attribute represents a type of the structural analysis model.

Returns: Returns the value of PredefinedType attribute.

◆ getSharedPlacement()

const OdDAIObjectId & OdIfc4x4::IfcStructuralAnalysisModel::getSharedPlacement ( ) const

Returns the value of SharedPlacement attribute. This attribute allows easy retrieval of the common object placement.

Returns: Returns the value of SharedPlacement attribute.

◆ hasResults()

OdDAI::SetOfOdDAIObjectId & OdIfc4x4::IfcStructuralAnalysisModel::hasResults ( )

Returns the value of HasResults attribute. This attribute represents references to all result groups available for this structural analysis model.

Returns: Returns the value of HasResults attribute.

◆ inFields()

virtual OdResult OdIfc4x4::IfcStructuralAnalysisModel::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4x4::IfcSystem.

◆ isKindOf()

virtual bool OdIfc4x4::IfcStructuralAnalysisModel::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc4x4::IfcSystem.

◆ loadedBy()

OdDAI::SetOfOdDAIObjectId & OdIfc4x4::IfcStructuralAnalysisModel::loadedBy ( )

Returns the value of LoadedBy attribute. This attribute represents references to all load groups to be analyzed.

Returns: Returns the value of LoadedBy attribute.

◆ outFields()

virtual OdResult OdIfc4x4::IfcStructuralAnalysisModel::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4x4::IfcSystem.

◆ putAttr() [1/2]

virtual bool OdIfc4x4::IfcStructuralAnalysisModel::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4x4::IfcGroup.

◆ putAttr() [2/2]

virtual bool OdIfc4x4::IfcStructuralAnalysisModel::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4x4::IfcSystem.

◆ setInverseCounterParts()

virtual void OdIfc4x4::IfcStructuralAnalysisModel::setInverseCounterParts ( )

overridevirtual

Sets the object ID of this instance to inverse attributes of related instances according to schema specification of inverse attributes.

◆ setOrientationOf2DPlane()

void OdIfc4x4::IfcStructuralAnalysisModel::setOrientationOf2DPlane ( const OdDAIObjectId & OrientationOf2DPlane )

Sets the value of OrientationOf2DPlane attribute. This attribute defines the upright direction to the focused plane (z-axes) if the selected model type (PredefinedType) describes a 2D system.

Parameters

OrientationOf2DPlane [in] Orientation of 2D plane to set.

Remarks: This attribute is needed because all data for the structural analysis model (structural members, structural activities) are defined by using 3D space. The orientation is given in relation to the coordinate system of the project. With 3D systems this value is not asserted.

◆ setPredefinedType()

void OdIfc4x4::IfcStructuralAnalysisModel::setPredefinedType ( IfcAnalysisModelTypeEnum PredefinedType )

Sets the value of PredefinedType attribute. This attribute represents a type of the structural analysis model.

Parameters

PredefinedType [in] Predefined type to set.

◆ setSharedPlacement()

void OdIfc4x4::IfcStructuralAnalysisModel::setSharedPlacement ( const OdDAIObjectId & SharedPlacement )

Sets the value of SharedPlacement attribute. This attribute allows easy retrieval of the common object placement.

Parameters

SharedPlacement [in] Shared placement to set.

◆ testAttr() [1/2]

virtual bool OdIfc4x4::IfcStructuralAnalysisModel::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4x4::IfcSystem.

◆ testAttr() [2/2]

virtual bool OdIfc4x4::IfcStructuralAnalysisModel::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4x4::IfcSystem.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc4x4::IfcStructuralAnalysisModel::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc4x4::IfcSystem.

◆ unsetAttr() [1/2]

virtual void OdIfc4x4::IfcStructuralAnalysisModel::unsetAttr ( const char * explicitAttrName )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrName [in] Explicit name of the attribute to reset.

Reimplemented from OdIfc4x4::IfcSystem.

◆ unsetAttr() [2/2]

virtual void OdIfc4x4::IfcStructuralAnalysisModel::unsetAttr ( const OdIfc::OdIfcAttribute explicitAttrDef )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrDef [in] Explicit definition that represents an attribute to reset.

Reimplemented from OdIfc4x4::IfcSystem.

Member Data Documentation

◆ m_HasResults

OdDAI::SetOfOdDAIObjectId OdIfc4x4::IfcStructuralAnalysisModel::m_HasResults

protected

Definition at line 284 of file IFC4X4/IfcStructuralAnalysisModelAutoImpl.h.

◆ m_LoadedBy

OdDAI::SetOfOdDAIObjectId OdIfc4x4::IfcStructuralAnalysisModel::m_LoadedBy

protected

Definition at line 282 of file IFC4X4/IfcStructuralAnalysisModelAutoImpl.h.

◆ m_OrientationOf2DPlane

OdDAIObjectId OdIfc4x4::IfcStructuralAnalysisModel::m_OrientationOf2DPlane

protected

Definition at line 281 of file IFC4X4/IfcStructuralAnalysisModelAutoImpl.h.

◆ m_PredefinedType

OdDAI::Enum OdIfc4x4::IfcStructuralAnalysisModel::m_PredefinedType

protected

Definition at line 280 of file IFC4X4/IfcStructuralAnalysisModelAutoImpl.h.

◆ m_SharedPlacement

OdDAIObjectId OdIfc4x4::IfcStructuralAnalysisModel::m_SharedPlacement

protected

Definition at line 286 of file IFC4X4/IfcStructuralAnalysisModelAutoImpl.h.

The documentation for this class was generated from the following file:

IFC4X4/IfcStructuralAnalysisModelAutoImpl.h

Public Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ IfcStructuralAnalysisModel()

Member Function Documentation

◆ comparedToEarlyImpl()

◆ getAttr() [1/2]

◆ getAttr() [2/2]

◆ getHasResults()

◆ getInstanceType()

◆ getLoadedBy()

◆ getOrientationOf2DPlane()

◆ getPredefinedType()

◆ getSharedPlacement()

◆ hasResults()

◆ inFields()

◆ isKindOf()

◆ loadedBy()

◆ outFields()

◆ putAttr() [1/2]

◆ putAttr() [2/2]

◆ setInverseCounterParts()

◆ setOrientationOf2DPlane()

◆ setPredefinedType()

◆ setSharedPlacement()

◆ testAttr() [1/2]

◆ testAttr() [2/2]

◆ type()

◆ unsetAttr() [1/2]

◆ unsetAttr() [2/2]

Member Data Documentation

◆ m_HasResults

◆ m_LoadedBy

◆ m_OrientationOf2DPlane

◆ m_PredefinedType

◆ m_SharedPlacement
