#include <IfcExternalInformationAutoImpl.h>

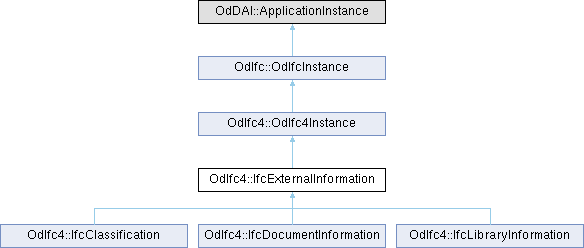

Inheritance diagram for OdIfc4::IfcExternalInformation:

Public Member Functions
virtual OdDAI::Entity *	getInstanceType () const override

virtual bool	comparedToEarlyImpl (const OdDAI::ApplicationInstance *pOther, OdRx::Ordering &ordering) const override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

Public Member Functions inherited from OdIfc4::OdIfc4Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

virtual OdRxValue	getAttr (const OdIfcAttribute attrDef) const

virtual bool	testAttr (const char *explicitAttrName) const

virtual bool	testAttr (const OdIfcAttribute explicitAttrDef) const

virtual void	unsetAttr (const char *explicitAttrName)

virtual void	unsetAttr (const OdIfcAttribute explicitAttrDef)

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val)

virtual bool	putAttr (const OdIfcAttribute explicitAttrDef, const OdRxValue &val)

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Detailed Description

IfcExternalInformation is the identification of an information source that is not explicitly represented in the current model or in the project database (as an implementation of the current model). The IfcExternalInformation identifies the external source (classification, document, or library), but not the particular items such as a dictionary entry, a classification notation, or a document reference within the external source.

Remarks: This definition may not be instantiated.

Definition at line 51 of file Ifc4/IfcExternalInformationAutoImpl.h.

Member Function Documentation

◆ comparedToEarlyImpl()

virtual bool OdIfc4::IfcExternalInformation::comparedToEarlyImpl	(	const OdDAI::ApplicationInstance *	pOther,
		OdRx::Ordering &	ordering ) const

overridevirtual

Early-bound version of instances comparison.

Parameters

pOther	[in] Other application instance.
ordering	[out] Receives the ordering (comparison) status.

Returns: true if comparison was performed, false if method has no implementation, so late-bound version could be applied.

Remarks

If the method returns true, the ordering parameter can receive one of the following statuses:

Value Description kLessThan -1 This object < Other Object. kEqual 0 This object = Other Object. kGreaterThan 1 This object > Other Object. kNotOrderable 2 This class is not orderable.

Reimplemented in OdIfc4::IfcClassification, OdIfc4::IfcDocumentInformation, and OdIfc4::IfcLibraryInformation.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc4::IfcExternalInformation::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented in OdIfc4::IfcClassification, OdIfc4::IfcDocumentInformation, and OdIfc4::IfcLibraryInformation.

◆ isKindOf()

virtual bool OdIfc4::IfcExternalInformation::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc4::IfcClassification, OdIfc4::IfcDocumentInformation, and OdIfc4::IfcLibraryInformation.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc4::IfcExternalInformation::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc4::IfcClassification, OdIfc4::IfcDocumentInformation, and OdIfc4::IfcLibraryInformation.

The documentation for this class was generated from the following file:

Ifc4/IfcExternalInformationAutoImpl.h
