#include <IfcControlAutoImpl.h>

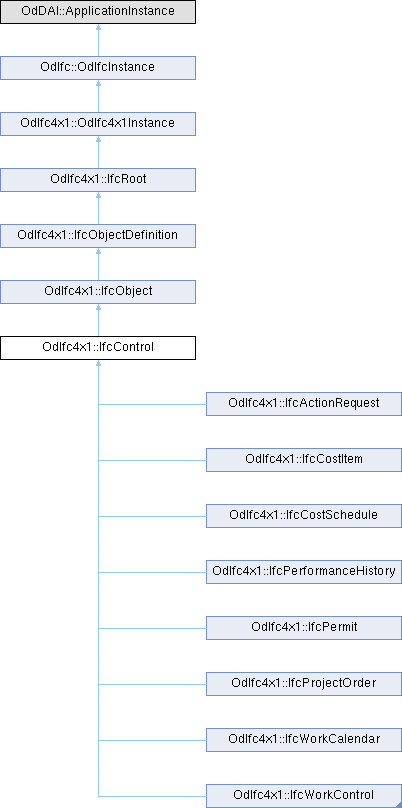

Inheritance diagram for OdIfc4x1::IfcControl:

Public Member Functions
const OdAnsiString &	getIdentification () const

void	setIdentification (const OdAnsiString &Identification)

void	getInvControls (OdDAIObjectIds &Controls) const

	IfcControl ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc4x1::IfcObject
const OdAnsiString &	getObjectType () const

void	setObjectType (const OdAnsiString &ObjectType)

void	getInvIsDeclaredBy (OdDAIObjectIds &IsDeclaredBy) const

void	getInvDeclares (OdDAIObjectIds &Declares) const

void	getInvIsTypedBy (OdDAIObjectIds &IsTypedBy) const

void	getInvIsDefinedBy (OdDAIObjectIds &IsDefinedBy) const

	IfcObject ()

Public Member Functions inherited from OdIfc4x1::IfcObjectDefinition
void	getInvHasAssignments (OdDAIObjectIds &HasAssignments) const

void	getInvNests (OdDAIObjectIds &Nests) const

void	getInvIsNestedBy (OdDAIObjectIds &IsNestedBy) const

void	getInvHasContext (OdDAIObjectIds &HasContext) const

void	getInvIsDecomposedBy (OdDAIObjectIds &IsDecomposedBy) const

void	getInvDecomposes (OdDAIObjectIds &Decomposes) const

void	getInvHasAssociations (OdDAIObjectIds &HasAssociations) const

Public Member Functions inherited from OdIfc4x1::IfcRoot
OdDAI::CompressedGUID	getGlobalId () const

void	setGlobalId (OdDAI::CompressedGUID GlobalId)

const OdDAIObjectId &	getOwnerHistory () const

void	setOwnerHistory (const OdDAIObjectId &OwnerHistory)

const OdAnsiString &	getName () const

void	setName (const OdAnsiString &Name)

const OdAnsiString &	getDescription () const

void	setDescription (const OdAnsiString &Description)

	IfcRoot ()

Public Member Functions inherited from OdIfc4x1::OdIfc4x1Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
OdAnsiString	m_Identification

Protected Attributes inherited from OdIfc4x1::IfcObject
OdAnsiString	m_ObjectType

Protected Attributes inherited from OdIfc4x1::IfcRoot
OdDAI::CompressedGUID	m_GlobalId

OdDAIObjectId	m_OwnerHistory

OdAnsiString	m_Name

OdAnsiString	m_Description

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Friends
class	IfcRelAssignsToControl

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Protected Member Functions inherited from OdIfc4x1::IfcObjectDefinition
virtual OdRxValue	getAttr (const char *attrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

Detailed Description

IfcControl is the abstract generalization of all concepts that control or constrain the utilization of products, processes, or resources in general. It can be seen as a regulation, cost schedule, request or order, or other requirements applied to a product, process or resource whose requirements and provisions must be fulfilled. EXAMPLE: Controls include action requests, cost schedules, project orders, work plans, and work calendars.

Control Assignment - The Control Assignment concept applies to this entity. Controls have assignments from products, processes, or other objects by using the relationship object IfcRelAssignsToControl.

Definition at line 47 of file Ifc4x1/IfcControlAutoImpl.h.

Constructor & Destructor Documentation

◆ IfcControl()

OdIfc4x1::IfcControl::IfcControl ( )

Default constructor for the IfcControl class.

Member Function Documentation

◆ getAttr() [1/2]

virtual OdRxValue OdIfc4x1::IfcControl::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4x1::IfcObject.

Reimplemented in OdIfc4x1::IfcActionRequest, OdIfc4x1::IfcCostItem, OdIfc4x1::IfcCostSchedule, OdIfc4x1::IfcPerformanceHistory, OdIfc4x1::IfcPermit, OdIfc4x1::IfcProjectOrder, OdIfc4x1::IfcWorkCalendar, OdIfc4x1::IfcWorkControl, OdIfc4x1::IfcWorkPlan, and OdIfc4x1::IfcWorkSchedule.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc4x1::IfcControl::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4x1::IfcObject.

Reimplemented in OdIfc4x1::IfcActionRequest, OdIfc4x1::IfcCostItem, OdIfc4x1::IfcCostSchedule, OdIfc4x1::IfcPerformanceHistory, OdIfc4x1::IfcPermit, OdIfc4x1::IfcProjectOrder, OdIfc4x1::IfcWorkCalendar, OdIfc4x1::IfcWorkControl, OdIfc4x1::IfcWorkPlan, and OdIfc4x1::IfcWorkSchedule.

◆ getIdentification()

const OdAnsiString & OdIfc4x1::IfcControl::getIdentification ( ) const

Returns the value of Identification attribute. This attribute represents an identifying designation given to a control. It is the identifier at the occurrence level.

Returns: Returns the value of Identification attribute.

Remarks: IFC4 CHANGE: Attribute unified by promoting from various subtypes of IfcControl.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc4x1::IfcControl::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc4x1::IfcObject.

Reimplemented in OdIfc4x1::IfcActionRequest, OdIfc4x1::IfcCostItem, OdIfc4x1::IfcCostSchedule, OdIfc4x1::IfcPerformanceHistory, OdIfc4x1::IfcPermit, OdIfc4x1::IfcProjectOrder, OdIfc4x1::IfcWorkCalendar, OdIfc4x1::IfcWorkControl, OdIfc4x1::IfcWorkPlan, and OdIfc4x1::IfcWorkSchedule.

◆ getInvControls()

void OdIfc4x1::IfcControl::getInvControls ( OdDAIObjectIds & Controls ) const

Returns the value of Controls attribute. This attribute represents reference to the relationship that associates the control to the object(s) being controlled.

Parameters

Controls [out] Receives the value of Controls attribute.

◆ inFields()

virtual OdResult OdIfc4x1::IfcControl::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4x1::IfcObject.

Reimplemented in OdIfc4x1::IfcActionRequest, OdIfc4x1::IfcCostItem, OdIfc4x1::IfcCostSchedule, OdIfc4x1::IfcPerformanceHistory, OdIfc4x1::IfcPermit, OdIfc4x1::IfcProjectOrder, OdIfc4x1::IfcWorkCalendar, OdIfc4x1::IfcWorkControl, OdIfc4x1::IfcWorkPlan, and OdIfc4x1::IfcWorkSchedule.

◆ isKindOf()

virtual bool OdIfc4x1::IfcControl::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc4x1::IfcObject.

Reimplemented in OdIfc4x1::IfcActionRequest, OdIfc4x1::IfcCostItem, OdIfc4x1::IfcCostSchedule, OdIfc4x1::IfcPerformanceHistory, OdIfc4x1::IfcPermit, OdIfc4x1::IfcProjectOrder, OdIfc4x1::IfcWorkCalendar, OdIfc4x1::IfcWorkControl, OdIfc4x1::IfcWorkPlan, and OdIfc4x1::IfcWorkSchedule.

◆ outFields()

virtual OdResult OdIfc4x1::IfcControl::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4x1::IfcObject.

Reimplemented in OdIfc4x1::IfcActionRequest, OdIfc4x1::IfcCostItem, OdIfc4x1::IfcCostSchedule, OdIfc4x1::IfcPerformanceHistory, OdIfc4x1::IfcPermit, OdIfc4x1::IfcProjectOrder, OdIfc4x1::IfcWorkCalendar, OdIfc4x1::IfcWorkControl, OdIfc4x1::IfcWorkPlan, and OdIfc4x1::IfcWorkSchedule.

◆ putAttr() [1/2]

virtual bool OdIfc4x1::IfcControl::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4x1::IfcObject.

Reimplemented in OdIfc4x1::IfcActionRequest, OdIfc4x1::IfcCostItem, OdIfc4x1::IfcCostSchedule, OdIfc4x1::IfcPerformanceHistory, OdIfc4x1::IfcPermit, OdIfc4x1::IfcProjectOrder, OdIfc4x1::IfcWorkCalendar, OdIfc4x1::IfcWorkControl, OdIfc4x1::IfcWorkPlan, and OdIfc4x1::IfcWorkSchedule.

◆ putAttr() [2/2]

virtual bool OdIfc4x1::IfcControl::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4x1::IfcObject.

Reimplemented in OdIfc4x1::IfcActionRequest, OdIfc4x1::IfcCostItem, OdIfc4x1::IfcCostSchedule, OdIfc4x1::IfcPerformanceHistory, OdIfc4x1::IfcPermit, OdIfc4x1::IfcProjectOrder, OdIfc4x1::IfcWorkCalendar, OdIfc4x1::IfcWorkControl, OdIfc4x1::IfcWorkPlan, and OdIfc4x1::IfcWorkSchedule.

◆ setIdentification()

void OdIfc4x1::IfcControl::setIdentification ( const OdAnsiString & Identification )

Sets the value of Identification attribute. This attribute represents an identifying designation given to a control. It is the identifier at the occurrence level.

Parameters

Identification [in] Identification to set.

Remarks: IFC4 CHANGE: Attribute unified by promoting from various subtypes of IfcControl.

◆ testAttr() [1/2]

virtual bool OdIfc4x1::IfcControl::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4x1::IfcObject.

Reimplemented in OdIfc4x1::IfcActionRequest, OdIfc4x1::IfcCostItem, OdIfc4x1::IfcCostSchedule, OdIfc4x1::IfcPerformanceHistory, OdIfc4x1::IfcPermit, OdIfc4x1::IfcProjectOrder, OdIfc4x1::IfcWorkCalendar, OdIfc4x1::IfcWorkControl, OdIfc4x1::IfcWorkPlan, and OdIfc4x1::IfcWorkSchedule.

◆ testAttr() [2/2]

virtual bool OdIfc4x1::IfcControl::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4x1::IfcObject.

Reimplemented in OdIfc4x1::IfcActionRequest, OdIfc4x1::IfcCostItem, OdIfc4x1::IfcCostSchedule, OdIfc4x1::IfcPerformanceHistory, OdIfc4x1::IfcPermit, OdIfc4x1::IfcProjectOrder, OdIfc4x1::IfcWorkCalendar, OdIfc4x1::IfcWorkControl, OdIfc4x1::IfcWorkPlan, and OdIfc4x1::IfcWorkSchedule.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc4x1::IfcControl::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc4x1::IfcObject.

Reimplemented in OdIfc4x1::IfcActionRequest, OdIfc4x1::IfcCostItem, OdIfc4x1::IfcCostSchedule, OdIfc4x1::IfcPerformanceHistory, OdIfc4x1::IfcPermit, OdIfc4x1::IfcProjectOrder, OdIfc4x1::IfcWorkCalendar, OdIfc4x1::IfcWorkControl, OdIfc4x1::IfcWorkPlan, and OdIfc4x1::IfcWorkSchedule.

◆ unsetAttr() [1/2]

virtual void OdIfc4x1::IfcControl::unsetAttr ( const char * explicitAttrName )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrName [in] Explicit name of the attribute to reset.

Reimplemented from OdIfc4x1::IfcObject.

Reimplemented in OdIfc4x1::IfcActionRequest, OdIfc4x1::IfcCostItem, OdIfc4x1::IfcCostSchedule, OdIfc4x1::IfcPerformanceHistory, OdIfc4x1::IfcPermit, OdIfc4x1::IfcProjectOrder, OdIfc4x1::IfcWorkCalendar, OdIfc4x1::IfcWorkControl, OdIfc4x1::IfcWorkPlan, and OdIfc4x1::IfcWorkSchedule.

◆ unsetAttr() [2/2]

virtual void OdIfc4x1::IfcControl::unsetAttr ( const OdIfc::OdIfcAttribute explicitAttrDef )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrDef [in] Explicit definition that represents an attribute to reset.

Reimplemented from OdIfc4x1::IfcObject.

Reimplemented in OdIfc4x1::IfcActionRequest, OdIfc4x1::IfcCostItem, OdIfc4x1::IfcCostSchedule, OdIfc4x1::IfcPerformanceHistory, OdIfc4x1::IfcPermit, OdIfc4x1::IfcProjectOrder, OdIfc4x1::IfcWorkCalendar, OdIfc4x1::IfcWorkControl, OdIfc4x1::IfcWorkPlan, and OdIfc4x1::IfcWorkSchedule.

Friends And Related Symbol Documentation

◆ IfcRelAssignsToControl

friend class IfcRelAssignsToControl

friend

Definition at line 200 of file Ifc4x1/IfcControlAutoImpl.h.

Member Data Documentation

◆ m_Identification

OdAnsiString OdIfc4x1::IfcControl::m_Identification

protected

Definition at line 197 of file Ifc4x1/IfcControlAutoImpl.h.

The documentation for this class was generated from the following file:

Ifc4x1/IfcControlAutoImpl.h

Public Member Functions

Protected Attributes

Friends

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ IfcControl()

Member Function Documentation

◆ getAttr() [1/2]

◆ getAttr() [2/2]

◆ getIdentification()

◆ getInstanceType()

◆ getInvControls()

◆ inFields()

◆ isKindOf()

◆ outFields()

◆ putAttr() [1/2]

◆ putAttr() [2/2]

◆ setIdentification()

◆ testAttr() [1/2]

◆ testAttr() [2/2]

◆ type()

◆ unsetAttr() [1/2]

◆ unsetAttr() [2/2]

Friends And Related Symbol Documentation

◆ IfcRelAssignsToControl

Member Data Documentation

◆ m_Identification
