#include <IfcStructuralLoadStaticAutoImpl.h>

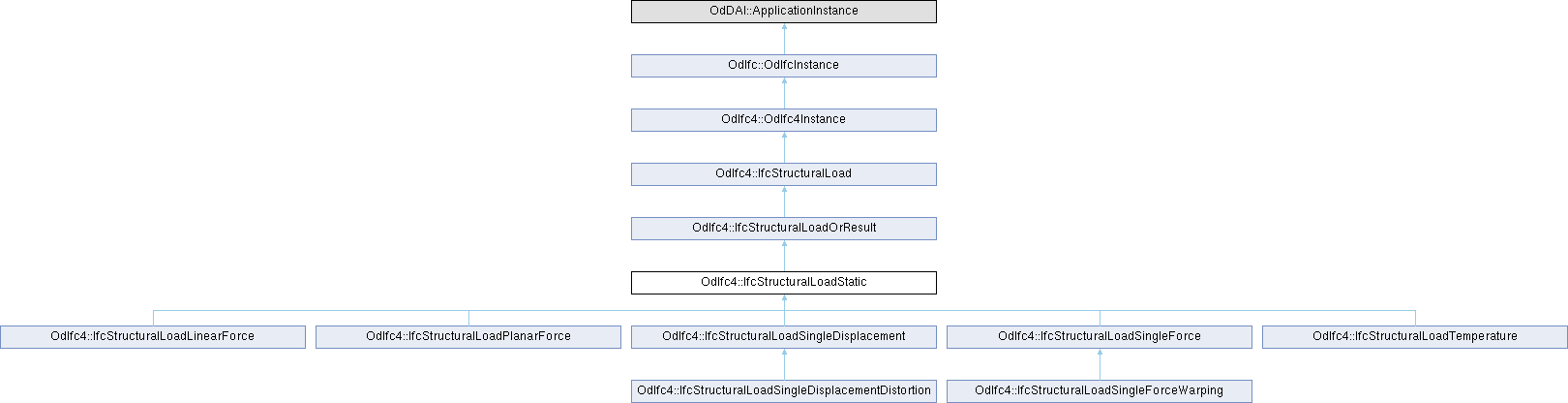

Inheritance diagram for OdIfc4::IfcStructuralLoadStatic:

Public Member Functions
virtual OdDAI::Entity *	getInstanceType () const override

virtual bool	comparedToEarlyImpl (const OdDAI::ApplicationInstance *pOther, OdRx::Ordering &ordering) const override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

Public Member Functions inherited from OdIfc4::IfcStructuralLoad
const OdAnsiString &	getName () const

void	setName (const OdAnsiString &Name)

	IfcStructuralLoad ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc4::OdIfc4Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Protected Attributes inherited from OdIfc4::IfcStructuralLoad
OdAnsiString	m_Name

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Detailed Description

The abstract entity IfcStructuralLoadStatic is the supertype of all static loads (actions or reactions) which can be defined. Within scope are single i.e. concentrated forces and moments, linear i.e. one-dimensionally distributed forces and moments, planar i.e. two-dimensionally distributed forces, furthermore displacements and temperature loads.

Remarks: This definition may not be instantiated

\changes

IFC4 changes: Supertype changed from "IfcStructuralLoad" to "IfcStructuralLoadOrResult"

Definition at line 50 of file Ifc4/IfcStructuralLoadStaticAutoImpl.h.

Member Function Documentation

◆ comparedToEarlyImpl()

virtual bool OdIfc4::IfcStructuralLoadStatic::comparedToEarlyImpl	(	const OdDAI::ApplicationInstance *	pOther,
		OdRx::Ordering &	ordering ) const

overridevirtual

Early-bound version of instances comparison.

Parameters

pOther	[in] Other application instance.
ordering	[out] Receives the ordering (comparison) status.

Returns: true if comparison was performed, false if method has no implementation, so late-bound version could be applied.

Remarks

If the method returns true, the ordering parameter can receive one of the following statuses:

Value Description kLessThan -1 This object < Other Object. kEqual 0 This object = Other Object. kGreaterThan 1 This object > Other Object. kNotOrderable 2 This class is not orderable.

Reimplemented from OdIfc4::IfcStructuralLoadOrResult.

Reimplemented in OdIfc4::IfcStructuralLoadLinearForce, OdIfc4::IfcStructuralLoadPlanarForce, OdIfc4::IfcStructuralLoadSingleDisplacement, OdIfc4::IfcStructuralLoadSingleDisplacementDistortion, OdIfc4::IfcStructuralLoadSingleForce, OdIfc4::IfcStructuralLoadSingleForceWarping, and OdIfc4::IfcStructuralLoadTemperature.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc4::IfcStructuralLoadStatic::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc4::IfcStructuralLoadOrResult.

Reimplemented in OdIfc4::IfcStructuralLoadLinearForce, OdIfc4::IfcStructuralLoadPlanarForce, OdIfc4::IfcStructuralLoadSingleDisplacement, OdIfc4::IfcStructuralLoadSingleDisplacementDistortion, OdIfc4::IfcStructuralLoadSingleForce, OdIfc4::IfcStructuralLoadSingleForceWarping, and OdIfc4::IfcStructuralLoadTemperature.

◆ isKindOf()

virtual bool OdIfc4::IfcStructuralLoadStatic::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc4::IfcStructuralLoadOrResult.

Reimplemented in OdIfc4::IfcStructuralLoadLinearForce, OdIfc4::IfcStructuralLoadPlanarForce, OdIfc4::IfcStructuralLoadSingleDisplacement, OdIfc4::IfcStructuralLoadSingleDisplacementDistortion, OdIfc4::IfcStructuralLoadSingleForce, OdIfc4::IfcStructuralLoadSingleForceWarping, and OdIfc4::IfcStructuralLoadTemperature.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc4::IfcStructuralLoadStatic::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc4::IfcStructuralLoadOrResult.

Reimplemented in OdIfc4::IfcStructuralLoadLinearForce, OdIfc4::IfcStructuralLoadPlanarForce, OdIfc4::IfcStructuralLoadSingleDisplacement, OdIfc4::IfcStructuralLoadSingleDisplacementDistortion, OdIfc4::IfcStructuralLoadSingleForce, OdIfc4::IfcStructuralLoadSingleForceWarping, and OdIfc4::IfcStructuralLoadTemperature.

The documentation for this class was generated from the following file:

Ifc4/IfcStructuralLoadStaticAutoImpl.h
