#include <IfcRelVoidsElementAutoImpl.h>

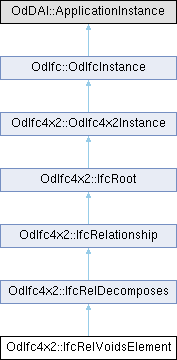

Inheritance diagram for OdIfc4x2::IfcRelVoidsElement:

Public Member Functions
const OdDAIObjectId &	getRelatingBuildingElement () const

void	setRelatingBuildingElement (const OdDAIObjectId &RelatingBuildingElement)

const OdDAIObjectId &	getRelatedOpeningElement () const

void	setRelatedOpeningElement (const OdDAIObjectId &RelatedOpeningElement)

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual void	setInverseCounterParts () override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc4x2::IfcRoot
OdDAI::CompressedGUID	getGlobalId () const

void	setGlobalId (OdDAI::CompressedGUID GlobalId)

const OdDAIObjectId &	getOwnerHistory () const

void	setOwnerHistory (const OdDAIObjectId &OwnerHistory)

const OdAnsiString &	getName () const

void	setName (const OdAnsiString &Name)

const OdAnsiString &	getDescription () const

void	setDescription (const OdAnsiString &Description)

	IfcRoot ()

Public Member Functions inherited from OdIfc4x2::OdIfc4x2Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
OdDAIObjectId	m_RelatingBuildingElement

OdDAIObjectId	m_RelatedOpeningElement

Protected Attributes inherited from OdIfc4x2::IfcRoot
OdDAI::CompressedGUID	m_GlobalId

OdDAIObjectId	m_OwnerHistory

OdAnsiString	m_Name

OdAnsiString	m_Description

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

IfcRelVoidsElement is an objectified relationship between a building element and one opening element that creates a void in the element. It is a one-to-one relationship. This relationship implies a Boolean operation of subtraction between the geometric bodies of the element and the opening.

Example - The following image shows the insertion of a void into a wall that is represented by the relationship IfcRelVoidsElement. The opening is created within the wall by IfcWall(StandardCase) - IfcRelVoidsElement - IfcOpeningElement.

\changes

IFC4 changes: Supertype changed from IfcRelConnects to IfcRelDecomposes.

Definition at line 54 of file Ifc4x2/IfcRelVoidsElementAutoImpl.h.

Member Function Documentation

◆ getAttr() [1/2]

virtual OdRxValue OdIfc4x2::IfcRelVoidsElement::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4x2::IfcRoot.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc4x2::IfcRelVoidsElement::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4x2::IfcRoot.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc4x2::IfcRelVoidsElement::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc4x2::IfcRelDecomposes.

◆ getRelatedOpeningElement()

const OdDAIObjectId & OdIfc4x2::IfcRelVoidsElement::getRelatedOpeningElement ( ) const

Returns the value of RelatedOpeningElement attribute. This attribute represents reference to the feature subtraction element which defines a void in the associated element.

Returns: Returns the value of RelatedOpeningElement attribute.

Remarks: IFC2x CHANGE: The data type has been changed from IfcOpeningElement to IfcFeatureElementSubtraction with upward compatibility for file-based exchange.

◆ getRelatingBuildingElement()

const OdDAIObjectId & OdIfc4x2::IfcRelVoidsElement::getRelatingBuildingElement ( ) const

Returns the value of RelatingBuildingElement attribute. This attribute represents reference to element in which a void is created by associated feature subtraction element.

Returns: Returns the value of RelatingBuildingElement attribute.

Remarks: IFC2x CHANGE: The data type has been changed from IfcBuildingElement to IfcElement with upward compatibility for file-based exchange.

◆ inFields()

virtual OdResult OdIfc4x2::IfcRelVoidsElement::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4x2::IfcRoot.

◆ isKindOf()

virtual bool OdIfc4x2::IfcRelVoidsElement::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc4x2::IfcRelDecomposes.

◆ outFields()

virtual OdResult OdIfc4x2::IfcRelVoidsElement::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4x2::IfcRoot.

◆ putAttr() [1/2]

virtual bool OdIfc4x2::IfcRelVoidsElement::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4x2::IfcRoot.

◆ putAttr() [2/2]

virtual bool OdIfc4x2::IfcRelVoidsElement::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4x2::IfcRoot.

◆ setInverseCounterParts()

virtual void OdIfc4x2::IfcRelVoidsElement::setInverseCounterParts ( )

overridevirtual

Sets the object ID of this instance to inverse attributes of related instances according to schema specification of inverse attributes.

◆ setRelatedOpeningElement()

void OdIfc4x2::IfcRelVoidsElement::setRelatedOpeningElement ( const OdDAIObjectId & RelatedOpeningElement )

Sets the value of RelatedOpeningElement attribute. This attribute represents reference to the feature subtraction element which defines a void in the associated element.

Parameters

RelatedOpeningElement [in] RelatedOpeningElement to set.

Remarks: IFC2x CHANGE: The data type has been changed from IfcOpeningElement to IfcFeatureElementSubtraction with upward compatibility for file-based exchange.

◆ setRelatingBuildingElement()

void OdIfc4x2::IfcRelVoidsElement::setRelatingBuildingElement ( const OdDAIObjectId & RelatingBuildingElement )

Sets the value of RelatingBuildingElement attribute. This attribute represents reference to element in which a void is created by associated feature subtraction element.

Parameters

RelatingBuildingElement [in] Relating building element to set.

Remarks: IFC2x CHANGE: The data type has been changed from IfcBuildingElement to IfcElement with upward compatibility for file-based exchange.

◆ testAttr() [1/2]

virtual bool OdIfc4x2::IfcRelVoidsElement::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4x2::IfcRoot.

◆ testAttr() [2/2]

virtual bool OdIfc4x2::IfcRelVoidsElement::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4x2::IfcRoot.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc4x2::IfcRelVoidsElement::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc4x2::IfcRelDecomposes.

◆ unsetAttr() [1/2]

virtual void OdIfc4x2::IfcRelVoidsElement::unsetAttr ( const char * explicitAttrName )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrName [in] Explicit name of the attribute to reset.

Reimplemented from OdIfc4x2::IfcRoot.

◆ unsetAttr() [2/2]

virtual void OdIfc4x2::IfcRelVoidsElement::unsetAttr ( const OdIfc::OdIfcAttribute explicitAttrDef )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrDef [in] Explicit definition that represents an attribute to reset.

Reimplemented from OdIfc4x2::IfcRoot.

Member Data Documentation

◆ m_RelatedOpeningElement

OdDAIObjectId OdIfc4x2::IfcRelVoidsElement::m_RelatedOpeningElement

protected

Definition at line 217 of file Ifc4x2/IfcRelVoidsElementAutoImpl.h.

◆ m_RelatingBuildingElement

OdDAIObjectId OdIfc4x2::IfcRelVoidsElement::m_RelatingBuildingElement

protected

Definition at line 216 of file Ifc4x2/IfcRelVoidsElementAutoImpl.h.

The documentation for this class was generated from the following file:

Ifc4x2/IfcRelVoidsElementAutoImpl.h
