#include <IfcZoneAutoImpl.h>

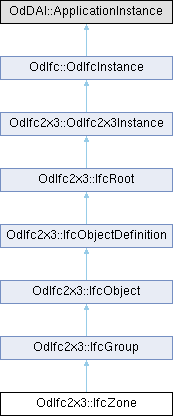

Inheritance diagram for OdIfc2x3::IfcZone:

Public Member Functions
virtual OdDAI::Entity *	getInstanceType () const override

virtual bool	comparedToEarlyImpl (const OdDAI::ApplicationInstance *pOther, OdRx::Ordering &ordering) const override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

Public Member Functions inherited from OdIfc2x3::IfcGroup
OdDAIObjectId	getInvIsGroupedBy () const

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc2x3::IfcObject
const OdAnsiString &	getObjectType () const

void	setObjectType (const OdAnsiString &ObjectType)

void	getInvIsDefinedBy (OdDAIObjectIds &IsDefinedBy) const

	IfcObject ()

Public Member Functions inherited from OdIfc2x3::IfcObjectDefinition
void	getInvHasAssignments (OdDAIObjectIds &HasAssignments) const

void	getInvIsDecomposedBy (OdDAIObjectIds &IsDecomposedBy) const

void	getInvDecomposes (OdDAIObjectIds &Decomposes) const

void	getInvHasAssociations (OdDAIObjectIds &HasAssociations) const

Public Member Functions inherited from OdIfc2x3::IfcRoot
OdDAI::CompressedGUID	getGlobalId () const

void	setGlobalId (OdDAI::CompressedGUID GlobalId)

const OdDAIObjectId &	getOwnerHistory () const

void	setOwnerHistory (const OdDAIObjectId &OwnerHistory)

const OdAnsiString &	getName () const

void	setName (const OdAnsiString &Name)

const OdAnsiString &	getDescription () const

void	setDescription (const OdAnsiString &Description)

	IfcRoot ()

Public Member Functions inherited from OdIfc2x3::OdIfc2x3Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Protected Member Functions inherited from OdIfc2x3::IfcGroup
virtual OdRxValue	getAttr (const char *attrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

Protected Member Functions inherited from OdIfc2x3::IfcObjectDefinition
virtual OdRxValue	getAttr (const char *attrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

Protected Attributes inherited from OdIfc2x3::IfcObject
OdAnsiString	m_ObjectType

Protected Attributes inherited from OdIfc2x3::IfcRoot
OdDAI::CompressedGUID	m_GlobalId

OdDAIObjectId	m_OwnerHistory

OdAnsiString	m_Name

OdAnsiString	m_Description

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Detailed Description

A zone is a group of spaces, partial spaces or other zones. Zone structures may not be hierarchical (in contrary to the spatial structure of a project - see IfcSpatialStructureElement), i.e. one individual IfcSpace can be associated with zero, one, or several IfcZone's. IfcSpace's are grouped into an IfcZone by using the objectified relationship IfcRelAssignsToGroup as specified at the supertype IfcGroup.

Property Sets for Objects - The Property Sets for Objects concept template applies to this entity under Pset_ZoneCommon name as shown in table below:

Template

PropertyName Value Single Value Reference IfcIdentifier Single Value IsExternal IfcBoolean Single Value GrossPlannedArea IfcAreaMeasure Single Value NetPlannedArea IfcAreaMeasure Single Value PubliclyAccessible IfcBoolean Single Value HandicapAccessible IfcBoolean

The concept also applies to this entity under the Pset_ZoneCommon name:

Template PropertyName Value Single Value Name IfcLabel Single Value Description IfcLabel Single Value TotalAirflow IfcVolumetricFlowRateMeasure Single Value EnergyGainTotal IfcPowerMeasure Single Value AirflowSensible IfcVolumetricFlowRateMeasure Single Value EnergyGainSensible IfcPowerMeasure Single Value EnergyLoss IfcPowerMeasure Single Value LightingDiversity IfcPositiveRatioMeasure Single Value InfiltrationDiversitySummer IfcPositiveRatioMeasure Single Value InfiltrationDiversityWinter IfcPositiveRatioMeasure Single Value ApplianceDiversity IfcPositiveRatioMeasure Single Value LoadSafetyFactor IfcPositiveRatioMeasure Single Value HeatingTemperatureDelta IfcThermodynamicTemperatureMeasure Single Value CoolingTemperatureDelta IfcThermodynamicTemperatureMeasure Single Value Ventilation IfcVolumetricFlowRateMeasure Single Value FanPower IfcPowerMeasure Enumerated Value AirSideSystemType IfcLabel Enumerated Value AirSideSystemDistributionType IfcLabel

Group Assignment - An IfcZone is a spatial system under which individual IfcSpace's (and other IfcZone's) are grouped. In contrary to the IfcSpatialZone entity, IfcZone is a mere grouping, it can not define an own geometric representation and placement. Therefore it cannot be used for spatial zones having a different shape and size compared to the shape and size of aggregated spaces.

In case of a zone denoting a (fire) compartment, the following types should be used, if applicable, as values of the ObjectType attribute: 'FireCompartment': a zone of spaces, collected to represent a single fire compartment. 'ElevatorShaft': a collection of spaces within an elevator, potentially going through many storeys. 'RisingDuct': A collection of vertical airspaces. 'RunningDuct': A collection of horizontal airspaces.

Definition at line 89 of file Ifc2x3/IfcZoneAutoImpl.h.

Member Function Documentation

◆ comparedToEarlyImpl()

virtual bool OdIfc2x3::IfcZone::comparedToEarlyImpl	(	const OdDAI::ApplicationInstance *	pOther,
		OdRx::Ordering &	ordering ) const

overridevirtual

Early-bound version of instances comparison.

Parameters

pOther	[in] Other application instance.
ordering	[out] Receives the ordering (comparison) status.

Returns: true if comparison was performed, false if method has no implementation, so late-bound version could be applied.

Remarks

If the method returns true, the ordering parameter can receive one of the following statuses:

Value Description kLessThan -1 This object < Other Object. kEqual 0 This object = Other Object. kGreaterThan 1 This object > Other Object. kNotOrderable 2 This class is not orderable.

Reimplemented from OdIfc2x3::IfcGroup.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc2x3::IfcZone::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc2x3::IfcGroup.

◆ isKindOf()

virtual bool OdIfc2x3::IfcZone::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc2x3::IfcGroup.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc2x3::IfcZone::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc2x3::IfcGroup.

The documentation for this class was generated from the following file:

Ifc2x3/IfcZoneAutoImpl.h
