#include <IfcConnectionPointEccentricityAutoImpl.h>

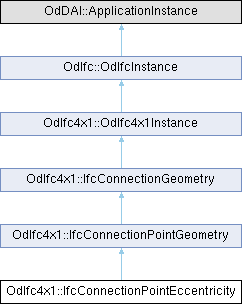

Inheritance diagram for OdIfc4x1::IfcConnectionPointEccentricity:

Public Member Functions
double	getEccentricityInX () const

void	setEccentricityInX (double EccentricityInX)

double	getEccentricityInY () const

void	setEccentricityInY (double EccentricityInY)

double	getEccentricityInZ () const

void	setEccentricityInZ (double EccentricityInZ)

	IfcConnectionPointEccentricity ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc4x1::IfcConnectionPointGeometry
IfcPointOrVertexPoint	pointOnRelatingElement ()

IfcPointOrVertexPoint	pointOnRelatedElement ()

	IfcConnectionPointGeometry ()

Public Member Functions inherited from OdIfc4x1::OdIfc4x1Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
double	m_EccentricityInX

double	m_EccentricityInY

double	m_EccentricityInZ

Protected Attributes inherited from OdIfc4x1::IfcConnectionPointGeometry
OdDAI::Select	m_PointOnRelatingElement

OdDAI::Select	m_PointOnRelatedElement

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

IfcConnectionPointEccentricity describes the geometric constraints that facilitate the physical connection of two objects at a point or vertex point with associated point coordinates. There is a physical distance, or eccentricity, between the connection points of both object. The eccentricity can be either specified by: Providing the PointOnRelatingElement and the PointOnRelatedElement, where both point coordinates are not identical within a common parent coordinate system Providing the PointOnRelatingElement and the three distance measures, EccentricityInX, EccentricityInY, and EccentricityInZ (or only EccentricityInX, and EccentricityInY if the underlying coordinate system is two-dimensional) Providing both

Definition at line 47 of file Ifc4x1/IfcConnectionPointEccentricityAutoImpl.h.

Constructor & Destructor Documentation

◆ IfcConnectionPointEccentricity()

OdIfc4x1::IfcConnectionPointEccentricity::IfcConnectionPointEccentricity ( )

Default constructor for the IfcConnectionPointEccentricity class.

Member Function Documentation

◆ getAttr() [1/2]

virtual OdRxValue OdIfc4x1::IfcConnectionPointEccentricity::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4x1::IfcConnectionPointGeometry.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc4x1::IfcConnectionPointEccentricity::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4x1::IfcConnectionPointGeometry.

◆ getEccentricityInX()

double OdIfc4x1::IfcConnectionPointEccentricity::getEccentricityInX ( ) const

Returns the value of EccentricityInX attribute. This attribute represents distance in x direction between the two points (or vertices) engaged in the point connection.

Returns: Returns the value of EccentricityInX attribute.

◆ getEccentricityInY()

double OdIfc4x1::IfcConnectionPointEccentricity::getEccentricityInY ( ) const

Returns the value of EccentricityInY attribute. This attribute represents distance in y direction between the two points (or vertices) engaged in the point connection.

Returns: Returns the value of EccentricityInY attribute.

◆ getEccentricityInZ()

double OdIfc4x1::IfcConnectionPointEccentricity::getEccentricityInZ ( ) const

Returns the value of EccentricityInZ attribute. This attribute represents distance in z direction between the two points (or vertices) engaged in the point connection.

Returns: Returns the value of EccentricityInZ attribute.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc4x1::IfcConnectionPointEccentricity::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc4x1::IfcConnectionPointGeometry.

◆ inFields()

virtual OdResult OdIfc4x1::IfcConnectionPointEccentricity::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4x1::IfcConnectionPointGeometry.

◆ isKindOf()

virtual bool OdIfc4x1::IfcConnectionPointEccentricity::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc4x1::IfcConnectionPointGeometry.

◆ outFields()

virtual OdResult OdIfc4x1::IfcConnectionPointEccentricity::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4x1::IfcConnectionPointGeometry.

◆ putAttr() [1/2]

virtual bool OdIfc4x1::IfcConnectionPointEccentricity::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4x1::IfcConnectionPointGeometry.

◆ putAttr() [2/2]

virtual bool OdIfc4x1::IfcConnectionPointEccentricity::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4x1::IfcConnectionPointGeometry.

◆ setEccentricityInX()

void OdIfc4x1::IfcConnectionPointEccentricity::setEccentricityInX ( double EccentricityInX )

Sets the value of EccentricityInX attribute. This attribute represents distance in x direction between the two points (or vertices) engaged in the point connection.

Parameters

EccentricityInX [in] Eccentricity in X to set.

◆ setEccentricityInY()

void OdIfc4x1::IfcConnectionPointEccentricity::setEccentricityInY ( double EccentricityInY )

Sets the value of EccentricityInY attribute. This attribute represents distance in y direction between the two points (or vertices) engaged in the point connection.

Parameters

EccentricityInY [in] Eccentricity in Y to set.

◆ setEccentricityInZ()

void OdIfc4x1::IfcConnectionPointEccentricity::setEccentricityInZ ( double EccentricityInZ )

Sets the value of EccentricityInZ attribute. This attribute represents distance in z direction between the two points (or vertices) engaged in the point connection.

Parameters

EccentricityInZ [in] Eccentricity in Z to set.

◆ testAttr() [1/2]

virtual bool OdIfc4x1::IfcConnectionPointEccentricity::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4x1::IfcConnectionPointGeometry.

◆ testAttr() [2/2]

virtual bool OdIfc4x1::IfcConnectionPointEccentricity::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4x1::IfcConnectionPointGeometry.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc4x1::IfcConnectionPointEccentricity::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc4x1::IfcConnectionPointGeometry.

◆ unsetAttr() [1/2]

virtual void OdIfc4x1::IfcConnectionPointEccentricity::unsetAttr ( const char * explicitAttrName )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrName [in] Explicit name of the attribute to reset.

Reimplemented from OdIfc4x1::IfcConnectionPointGeometry.

◆ unsetAttr() [2/2]

virtual void OdIfc4x1::IfcConnectionPointEccentricity::unsetAttr ( const OdIfc::OdIfcAttribute explicitAttrDef )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrDef [in] Explicit definition that represents an attribute to reset.

Reimplemented from OdIfc4x1::IfcConnectionPointGeometry.

Member Data Documentation

◆ m_EccentricityInX

double OdIfc4x1::IfcConnectionPointEccentricity::m_EccentricityInX

protected

Definition at line 216 of file Ifc4x1/IfcConnectionPointEccentricityAutoImpl.h.

◆ m_EccentricityInY

double OdIfc4x1::IfcConnectionPointEccentricity::m_EccentricityInY

protected

Definition at line 217 of file Ifc4x1/IfcConnectionPointEccentricityAutoImpl.h.

◆ m_EccentricityInZ

double OdIfc4x1::IfcConnectionPointEccentricity::m_EccentricityInZ

protected

Definition at line 218 of file Ifc4x1/IfcConnectionPointEccentricityAutoImpl.h.

The documentation for this class was generated from the following file:

Ifc4x1/IfcConnectionPointEccentricityAutoImpl.h
