#include <GiFastExtCalc.h>

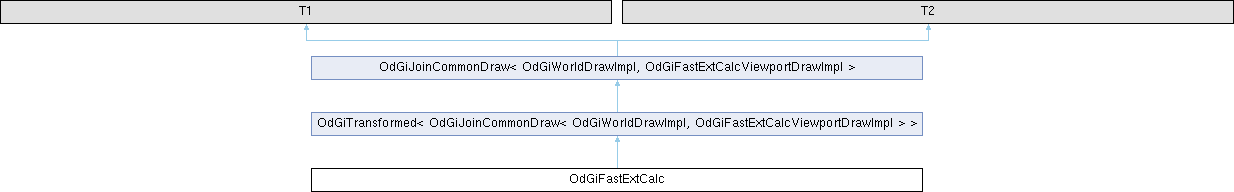

Inheritance diagram for OdGiFastExtCalc:

Public Member Functions
bool	isSetExtentsCalled () const

void	setDrawingInitiated (bool bSet)

bool	isDrawingInitiated () const

void	addTextExtents (const OdGePoint3d &locExtMin, const OdGePoint3d &locExtMax, const OdGePoint3d &position, const OdGeVector3d &normal, const OdGeVector3d &direction)

void	resetExtents ()

void	getExtents (OdGeExtents3d &extents) const

void	setDrawInvisible (bool bSet)

bool	isDrawInvisible () const

void	setDrawInvisibleNested (bool bSet)

bool	isDrawInvisibleNested () const

void	resetFirstDrawFlag ()

void	setViewportDrawEnabled (bool bSet)

bool	isViewportDrawEnabled () const

OdGiWorldDraw *	getWorldDraw () const

OdGiViewportDraw *	getViewportDraw () const

OdGiWorldGeometry *	getWorldGeometry () const

OdGiViewportGeometry *	getViewportGeometry () const

bool	regenAbort () const

double	deviation (const OdGiDeviationType deviationType, const OdGePoint3d &pointOnCurve) const

OdGiRegenType	regenType () const

void	circle (const OdGePoint3d &center, double radius, const OdGeVector3d &normal)

void	circle (const OdGePoint3d &firstPoint, const OdGePoint3d &secondPoint, const OdGePoint3d &thirdPoint)

void	circularArc (const OdGePoint3d &center, double radius, const OdGeVector3d &normal, const OdGeVector3d &startVector, double sweepAngle, OdGiArcType arcType=kOdGiArcSimple)

void	circularArc (const OdGePoint3d &firstPoint, const OdGePoint3d &secondPoint, const OdGePoint3d &thirdPoint, OdGiArcType arcType=kOdGiArcSimple)

void	polyline (OdInt32 numVertices, const OdGePoint3d vertexList, const OdGeVector3d pNormal=0, OdGsMarker baseSubEntMarker=-1)

void	polygon (OdInt32 numVertices, const OdGePoint3d *vertexList)

void	pline (const OdGiPolyline &polyline, OdUInt32 fromIndex=0, OdUInt32 numSegs=0)

void	shape (const OdGePoint3d &position, const OdGeVector3d &normal, const OdGeVector3d &direction, int shapeNumber, const OdGiTextStyle *pTextStyle)

void	text (const OdGePoint3d &position, const OdGeVector3d &normal, const OdGeVector3d &direction, double height, double width, double oblique, const OdString &msg)

void	text (const OdGePoint3d &position, const OdGeVector3d &normal, const OdGeVector3d &direction, const OdChar msg, OdInt32 length, bool raw, const OdGiTextStyle pTextStyle)

void	xline (const OdGePoint3d &firstPoint, const OdGePoint3d &secondPoint)

void	ray (const OdGePoint3d &basePoint, const OdGePoint3d &throughPoint)

void	nurbs (const OdGeNurbCurve3d &nurbsCurve)

void	ellipArc (const OdGeEllipArc3d &ellipArc, const OdGePoint3d *endPointsOverrides=0, OdGiArcType arcType=kOdGiArcSimple)

void	mesh (OdInt32 numRows, OdInt32 numColumns, const OdGePoint3d vertexList, const OdGiEdgeData pEdgeData=0, const OdGiFaceData pFaceData=0, const OdGiVertexData pVertexData=0)

void	shell (OdInt32 numVertices, const OdGePoint3d vertexList, OdInt32 faceListSize, const OdInt32 faceList, const OdGiEdgeData pEdgeData=0, const OdGiFaceData pFaceData=0, const OdGiVertexData *pVertexData=0)

void	worldLine (const OdGePoint3d points[2])

void	image (const OdGiImageBGRA32 &img, const OdGePoint3d &origin, const OdGeVector3d &uVec, const OdGeVector3d &vVec, OdGiRasterImage::TransparencyMode trpMode=OdGiRasterImage::kTransparency8Bit)

void	edge (const OdGiEdge2dArray &edges)

void	polypoint (OdInt32 numPoints, const OdGePoint3d vertexList, const OdCmEntityColor pColors, const OdCmTransparency pTransparency, const OdGeVector3d pNormals, const OdGsMarker *pSubEntMarkers, OdInt32 nPointSize)

void	polyPolygon (OdUInt32 numIndices, const OdUInt32 pNumPositions, const OdGePoint3d pPositions, const OdUInt32 pNumPoints, const OdGePoint3d pPoints, const OdCmEntityColor pOutlineColors=NULL, const OdUInt32 pOutlinePsLinetypes=NULL, const OdCmEntityColor pFillColors=NULL, const OdCmTransparency pFillTransparencies=NULL)

void	rowOfDots (OdInt32 numPoints, const OdGePoint3d &startPoint, const OdGeVector3d &dirToNextPoint)

void	pointCloud (const OdGiPointCloud &pCloud)

void	setExtents (const OdGePoint3d *newExtents)

void	pushClipBoundary (OdGiClipBoundary *pBoundary)

void	popClipBoundary ()

void	pushModelTransform (const OdGeMatrix3d &xfm)

void	popModelTransform ()

void	draw (const OdGiDrawable *pDrawable)

Public Member Functions inherited from OdGiTransformed< OdGiJoinCommonDraw< OdGiWorldDrawImpl, OdGiFastExtCalcViewportDrawImpl > >
void	pushModelTransform (const OdGeMatrix3d &xMat)

void	pushModelTransform (const OdGeVector3d &vNormal)

void	popModelTransform ()

OdGeMatrix3d	getModelToWorldTransform () const

OdGeMatrix3d	getWorldToModelTransform () const

void	pushModelTransform (const OdGeMatrix3d &xMat)

void	pushModelTransform (const OdGeVector3d &vNormal)

void	popModelTransform ()

OdGeMatrix3d	getModelToWorldTransform () const

OdGeMatrix3d	getWorldToModelTransform () const

Public Member Functions inherited from OdGiJoinCommonDraw< T1, T2 >
	ODRX_USING_HEAP_OPERATORS (T1)

virtual OdGiGeometry &	rawGeometry () const

virtual OdGiSubEntityTraits &	subEntityTraits () const

virtual bool	isDragging () const

virtual OdGiContext *	context () const

virtual OdUInt32	numberOfIsolines () const

virtual const OdGiPathNode *	currentGiPath () const

virtual bool	displayModelerSilhouettes () const

Protected Member Functions
	ODRX_USING_HEAP_OPERATORS (OdGiFastExtCalcBase)

	OdGiFastExtCalc ()

Detailed Description

This class is an implementation of the subWorldDraw() framework to quickly calculate the WCS extents of an OdGiDrawable object.

Remarks: This class is the same as OdGiExtCalc, but calculates the extents with lower precision to improve speed. Corresponding C++ library: TD_Gi <group OdGi_Classes>

Definition at line 52 of file GiFastExtCalc.h.

Constructor & Destructor Documentation

◆ OdGiFastExtCalc()

OdGiFastExtCalc::OdGiFastExtCalc ( )

protected

Member Function Documentation

◆ addTextExtents()

void OdGiFastExtCalc::addTextExtents	(	const OdGePoint3d &	locExtMin,
		const OdGePoint3d &	locExtMax,
		const OdGePoint3d &	position,
		const OdGeVector3d &	normal,
		const OdGeVector3d &	direction )

◆ circle() [1/2]

void OdGiFastExtCalc::circle	(	const OdGePoint3d &	center,
		double	radius,
		const OdGeVector3d &	normal )

◆ circle() [2/2]

void OdGiFastExtCalc::circle	(	const OdGePoint3d &	firstPoint,
		const OdGePoint3d &	secondPoint,
		const OdGePoint3d &	thirdPoint )

◆ circularArc() [1/2]

void OdGiFastExtCalc::circularArc	(	const OdGePoint3d &	center,
		double	radius,
		const OdGeVector3d &	normal,
		const OdGeVector3d &	startVector,
		double	sweepAngle,
		OdGiArcType	arcType = kOdGiArcSimple )

◆ circularArc() [2/2]

void OdGiFastExtCalc::circularArc	(	const OdGePoint3d &	firstPoint,
		const OdGePoint3d &	secondPoint,
		const OdGePoint3d &	thirdPoint,
		OdGiArcType	arcType = kOdGiArcSimple )

◆ deviation()

double OdGiFastExtCalc::deviation	(	const OdGiDeviationType	t,
		const OdGePoint3d &	p ) const

virtual

Retrieves the recommended maximum deviation of the current vectorization for the specified point on a curve.

Parameters

t	[in] Deviation type.
p	[in] Point on a curve.

Returns: recommended maximum difference (with respect to the current active viewport) between the actual curve or surface, and the tessellated curve or surface.

Remarks: deviationType must be one of the following:

Value kOdGiMaxDevForCircle 0
kOdGiMaxDevForCurve 1
kOdGiMaxDevForBoundary 2
kOdGiMaxDevForIsoline 3 kOdGiMaxDevForFacet 4

Remarks: This method uses circle zoom percent or FacetRes as appropriate.

Reimplemented from OdGiJoinCommonDraw< T1, T2 >.

◆ draw()

void OdGiFastExtCalc::draw ( const OdGiDrawable * pDrawable )

◆ edge()

void OdGiFastExtCalc::edge ( const OdGiEdge2dArray & edges )

◆ ellipArc()

void OdGiFastExtCalc::ellipArc	(	const OdGeEllipArc3d &	ellipArc,
		const OdGePoint3d *	endPointsOverrides = 0,
		OdGiArcType	arcType = kOdGiArcSimple )

◆ getExtents()

void OdGiFastExtCalc::getExtents ( OdGeExtents3d & extents ) const

Returns the accumulated extents for the OdGiDrawable object associated with this Vectorization object.

Parameters

extents [out] Receives the extents.

◆ getViewportDraw()

OdGiViewportDraw * OdGiFastExtCalc::getViewportDraw ( ) const

Returns pointer onto OdGiViewportDraw interface.

◆ getViewportGeometry()

OdGiViewportGeometry * OdGiFastExtCalc::getViewportGeometry ( ) const

Returns pointer onto OdGiViewportGeometry interface.

◆ getWorldDraw()

OdGiWorldDraw * OdGiFastExtCalc::getWorldDraw ( ) const

Returns pointer onto OdGiWorldDraw interface.

◆ getWorldGeometry()

OdGiWorldGeometry * OdGiFastExtCalc::getWorldGeometry ( ) const

Returns pointer onto OdGiWorldGeometry interface.

◆ image()

void OdGiFastExtCalc::image	(	const OdGiImageBGRA32 &	img,
		const OdGePoint3d &	origin,
		const OdGeVector3d &	uVec,
		const OdGeVector3d &	vVec,
		OdGiRasterImage::TransparencyMode	trpMode = OdGiRasterImage::kTransparency8Bit )

◆ isDrawingInitiated()

bool OdGiFastExtCalc::isDrawingInitiated ( ) const

inline

Definition at line 294 of file GiFastExtCalc.h.

◆ isDrawInvisible()

bool OdGiFastExtCalc::isDrawInvisible ( ) const

inline

Returns whether invisible entities are to be drawn.

Definition at line 304 of file GiFastExtCalc.h.

◆ isDrawInvisibleNested()

bool OdGiFastExtCalc::isDrawInvisibleNested ( ) const

inline

Returns whether invisible nested entities are to be drawn.

Definition at line 314 of file GiFastExtCalc.h.

◆ isSetExtentsCalled()

bool OdGiFastExtCalc::isSetExtentsCalled ( ) const

inline

Definition at line 284 of file GiFastExtCalc.h.

◆ isViewportDrawEnabled()

bool OdGiFastExtCalc::isViewportDrawEnabled ( ) const

inline

Returns whether viewportDraw method will be called after worldDraw method.

Definition at line 329 of file GiFastExtCalc.h.

◆ mesh()

void OdGiFastExtCalc::mesh	(	OdInt32	numRows,
		OdInt32	numColumns,
		const OdGePoint3d *	vertexList,
		const OdGiEdgeData *	pEdgeData = 0,
		const OdGiFaceData *	pFaceData = 0,
		const OdGiVertexData *	pVertexData = 0 )

◆ nurbs()

void OdGiFastExtCalc::nurbs ( const OdGeNurbCurve3d & nurbsCurve )

◆ ODRX_USING_HEAP_OPERATORS()

OdGiFastExtCalc::ODRX_USING_HEAP_OPERATORS ( OdGiFastExtCalcBase )

protected

◆ pline()

void OdGiFastExtCalc::pline	(	const OdGiPolyline &	polyline,
		OdUInt32	fromIndex = 0,
		OdUInt32	numSegs = 0 )

◆ pointCloud()

void OdGiFastExtCalc::pointCloud ( const OdGiPointCloud & pCloud )

◆ polygon()

void OdGiFastExtCalc::polygon	(	OdInt32	numVertices,
		const OdGePoint3d *	vertexList )

◆ polyline()

void OdGiFastExtCalc::polyline	(	OdInt32	numVertices,
		const OdGePoint3d *	vertexList,
		const OdGeVector3d *	pNormal = 0,
		OdGsMarker	baseSubEntMarker = -1 )

◆ polypoint()

void OdGiFastExtCalc::polypoint	(	OdInt32	numPoints,
		const OdGePoint3d *	vertexList,
		const OdCmEntityColor *	pColors,
		const OdCmTransparency *	pTransparency,
		const OdGeVector3d *	pNormals,
		const OdGsMarker *	pSubEntMarkers,
		OdInt32	nPointSize )

◆ polyPolygon()

void OdGiFastExtCalc::polyPolygon	(	OdUInt32	numIndices,
		const OdUInt32 *	pNumPositions,
		const OdGePoint3d *	pPositions,
		const OdUInt32 *	pNumPoints,
		const OdGePoint3d *	pPoints,
		const OdCmEntityColor *	pOutlineColors = NULL,
		const OdUInt32 *	pOutlinePsLinetypes = NULL,
		const OdCmEntityColor *	pFillColors = NULL,
		const OdCmTransparency *	pFillTransparencies = NULL )

◆ popClipBoundary()

void OdGiFastExtCalc::popClipBoundary ( )

◆ popModelTransform()

void OdGiFastExtCalc::popModelTransform ( )

◆ pushClipBoundary()

void OdGiFastExtCalc::pushClipBoundary ( OdGiClipBoundary * pBoundary )

◆ pushModelTransform()

void OdGiFastExtCalc::pushModelTransform ( const OdGeMatrix3d & xfm )

◆ ray()

void OdGiFastExtCalc::ray	(	const OdGePoint3d &	basePoint,
		const OdGePoint3d &	throughPoint )

◆ regenAbort()

bool OdGiFastExtCalc::regenAbort ( ) const

virtual

Checks whether the vectorization process associated with this object should be aborted.

Returns: true if this vectorization process should be aborted, false otherwise.

Reimplemented from OdGiJoinCommonDraw< T1, T2 >.

◆ regenType()

OdGiRegenType OdGiFastExtCalc::regenType ( ) const

virtual

Returns the regeneration type for this object.

Remarks: regenType() returns one of the following:

Value eOdGiRegenTypeInvalid 0 kOdGiStandardDisplay 2 kOdGiHideOrShadeCommand 3 kOdGiRenderCommand 4 kOdGiForExplode 5 kOdGiSaveWorldDrawForProxy 6 kOdGiForExtents 7

Reimplemented from OdGiJoinCommonDraw< T1, T2 >.

◆ resetExtents()

void OdGiFastExtCalc::resetExtents ( )

Resets the accumulated extents for the OdGiDrawable object associated with this Vectorization object.

◆ resetFirstDrawFlag()

void OdGiFastExtCalc::resetFirstDrawFlag ( )

inline

Resets flag which is set after first draw call. This flag informs extents calculator that nested entities draw.

Definition at line 319 of file GiFastExtCalc.h.

◆ rowOfDots()

void OdGiFastExtCalc::rowOfDots	(	OdInt32	numPoints,
		const OdGePoint3d &	startPoint,
		const OdGeVector3d &	dirToNextPoint )

◆ setDrawingInitiated()

void OdGiFastExtCalc::setDrawingInitiated ( bool bSet )

inline

Definition at line 289 of file GiFastExtCalc.h.

◆ setDrawInvisible()

void OdGiFastExtCalc::setDrawInvisible ( bool bSet )

inline

Sets whether invisible entities will be drawn.

Parameters

bSet	[in] true - to draw invisible entities, false - do not draw.

Definition at line 299 of file GiFastExtCalc.h.

◆ setDrawInvisibleNested()

void OdGiFastExtCalc::setDrawInvisibleNested ( bool bSet )

inline

Sets whether invisible nested entities will be drawn.

Parameters

bSet	[in] true - to draw invisible nested entities, false - do not draw.

Definition at line 309 of file GiFastExtCalc.h.

◆ setExtents()

void OdGiFastExtCalc::setExtents ( const OdGePoint3d * newExtents )

◆ setViewportDrawEnabled()

void OdGiFastExtCalc::setViewportDrawEnabled ( bool bSet )

inline

Sets whether viewportDraw method will be called after worldDraw method.

Parameters

bSet	[in] true - to enable viewportDraw call, false - to disable viewportDraw call.

Definition at line 324 of file GiFastExtCalc.h.

◆ shape()

void OdGiFastExtCalc::shape	(	const OdGePoint3d &	position,
		const OdGeVector3d &	normal,
		const OdGeVector3d &	direction,
		int	shapeNumber,
		const OdGiTextStyle *	pTextStyle )

Introduces a shape into this vectorization context.

Parameters

position	[in] Position of the shape.
shapeNumber	[in] Shape number.
pTextStyle	[in] Pointer to the TextStyle for the shape.
direction	[in] Baseline direction for the shape.
normal	[in] Normal vector.

◆ shell()

void OdGiFastExtCalc::shell	(	OdInt32	numVertices,
		const OdGePoint3d *	vertexList,
		OdInt32	faceListSize,
		const OdInt32 *	faceList,
		const OdGiEdgeData *	pEdgeData = 0,
		const OdGiFaceData *	pFaceData = 0,
		const OdGiVertexData *	pVertexData = 0 )

◆ text() [1/2]

void OdGiFastExtCalc::text	(	const OdGePoint3d &	position,
		const OdGeVector3d &	normal,
		const OdGeVector3d &	direction,
		const OdChar *	msg,
		OdInt32	length,
		bool	raw,
		const OdGiTextStyle *	pTextStyle )

◆ text() [2/2]

void OdGiFastExtCalc::text	(	const OdGePoint3d &	position,
		const OdGeVector3d &	normal,
		const OdGeVector3d &	direction,
		double	height,
		double	width,
		double	oblique,
		const OdString &	msg )

◆ worldLine()

void OdGiFastExtCalc::worldLine ( const OdGePoint3d points[2] )

◆ xline()

void OdGiFastExtCalc::xline	(	const OdGePoint3d &	firstPoint,
		const OdGePoint3d &	secondPoint )

The documentation for this class was generated from the following file:

GiFastExtCalc.h

Public Member Functions

Protected Member Functions

Detailed Description

Constructor & Destructor Documentation

◆ OdGiFastExtCalc()

Member Function Documentation

◆ addTextExtents()

◆ circle() [1/2]

◆ circle() [2/2]

◆ circularArc() [1/2]

◆ circularArc() [2/2]

◆ deviation()

◆ draw()

◆ edge()

◆ ellipArc()

◆ getExtents()

◆ getViewportDraw()

◆ getViewportGeometry()

◆ getWorldDraw()

◆ getWorldGeometry()

◆ image()

◆ isDrawingInitiated()

◆ isDrawInvisible()

◆ isDrawInvisibleNested()

◆ isSetExtentsCalled()

◆ isViewportDrawEnabled()

◆ mesh()

◆ nurbs()

◆ ODRX_USING_HEAP_OPERATORS()

◆ pline()

◆ pointCloud()

◆ polygon()

◆ polyline()

◆ polypoint()

◆ polyPolygon()

◆ popClipBoundary()

◆ popModelTransform()

◆ pushClipBoundary()

◆ pushModelTransform()

◆ ray()

◆ regenAbort()

◆ regenType()

◆ resetExtents()

◆ resetFirstDrawFlag()

◆ rowOfDots()

◆ setDrawingInitiated()

◆ setDrawInvisible()

◆ setDrawInvisibleNested()

◆ setExtents()

◆ setViewportDrawEnabled()

◆ shape()

◆ shell()

◆ text() [1/2]

◆ text() [2/2]

◆ worldLine()

◆ xline()
