OdGiViewportDraw Class Reference

#include <GiViewportDraw.h>

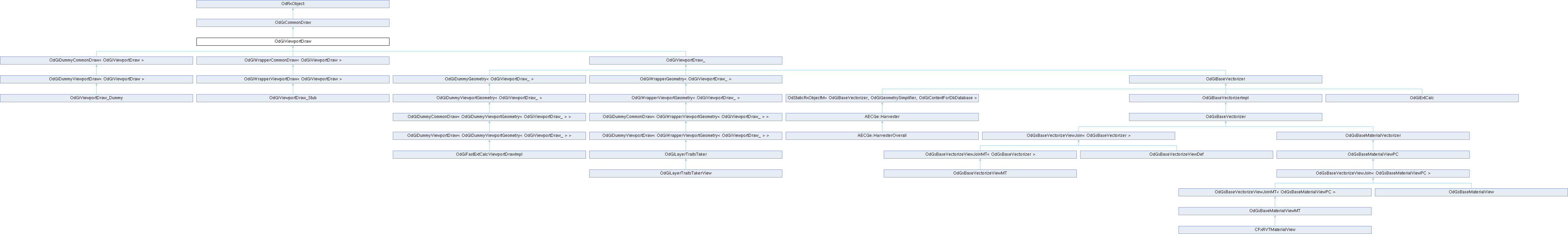

Inheritance diagram for OdGiViewportDraw:

Public Member Functions
	ODRX_DECLARE_MEMBERS (OdGiViewportDraw)
virtual OdGiViewport &	viewport () const =0
virtual OdGiViewportGeometry &	geometry () const =0
virtual OdUInt32	sequenceNumber () const =0
virtual bool	isValidId (const OdUInt32 viewportId) const =0
virtual OdDbStub *	viewportObjectId () const =0
Public Member Functions inherited from OdGiCommonDraw
	ODRX_DECLARE_MEMBERS (OdGiCommonDraw)
virtual OdGiRegenType	regenType () const =0
virtual bool	regenAbort () const =0
virtual OdGiSubEntityTraits &	subEntityTraits () const =0
virtual OdGiGeometry &	rawGeometry () const =0
virtual bool	isDragging () const =0
virtual double	deviation (const OdGiDeviationType deviationType, const OdGePoint3d &pointOnCurve) const =0
virtual OdUInt32	numberOfIsolines () const =0
virtual OdGiContext *	context () const =0
virtual const OdGiPathNode *	currentGiPath () const
virtual bool	displayModelerSilhouettes () const
Public Member Functions inherited from OdRxObject
	ODRX_HEAP_OPERATORS ()
	OdRxObject ()
virtual	~OdRxObject ()
virtual OdRxObject *	queryX (const OdRxClass *pClass) const
virtual OdRxObject *	x (const OdRxClass *pClass) const
virtual OdRxClass *	isA () const
virtual void	addRef ()=0
virtual void	release ()=0
virtual long	numRefs () const
bool	isKindOf (const OdRxClass *pClass) const
virtual OdRxObjectPtr	clone () const
virtual void	copyFrom (const OdRxObject *pSource)
virtual OdRx::Ordering	comparedTo (const OdRxObject *pOther) const
virtual bool	isEqualTo (const OdRxObject *pOther) const

Additional Inherited Members
Static Public Member Functions inherited from OdRxObject
static OdRxObjectPtr	cast (const OdRxObject *pointer)
static OdRxClass *	desc ()
static void	rxInit ()
static void	rxUninit ()

Detailed Description

This class defines the functionality for viewport -dependent entity-level vectorization.

Remarks

Consider a circular cone. A circular cone can be drawn as a circle and two silhouette lines. The circle could be drawn with the subWorldDraw() function, but the silhouette lines are dependent on the view direction, and must be computed with by subViewportDraw().

See also

TD_Gi

<group OdGi_Classes>

Definition at line 49 of file GiViewportDraw.h.

Member Function Documentation

geometry()

virtual OdGiViewportGeometry & OdGiViewportDraw::geometry ( ) const

pure virtual

Returns the OdGiViewportGeometry object associated with this object.

Remarks

This instance contains the functions that can be used by an entity to vectorize itself.

Implemented in OdGiViewportDraw_, OdGiViewportDraw_Dummy, OdGiViewportDraw_Stub, and OdGiWrapperViewportDraw< OdGiViewportDraw >.

isValidId()

virtual bool OdGiViewportDraw::isValidId ( const OdUInt32 viewportId ) const

pure virtual

Checks whether the specified Viewport ID is a valid Viewport ID.

Parameters

viewportId

[in] Viewport ID.

Returns

true if the specified Viewport ID is a valid Viewport ID, false otherwise.

Remarks

viewportId is typically obtained from viewport().viewportId().

Implemented in OdGiBaseVectorizer, OdGiBaseVectorizerImpl, OdGiDummyViewportDraw< OdGiDummyViewportGeometry< OdGiViewportDraw_ > >, OdGiDummyViewportDraw< OdGiViewportDraw >, OdGiDummyViewportDraw< OdGiWrapperViewportGeometry< OdGiViewportDraw_ > >, OdGiLayerTraitsTaker, OdGiLayerTraitsTakerView, and OdGiWrapperViewportDraw< OdGiViewportDraw >.

ODRX_DECLARE_MEMBERS()

OdGiViewportDraw::ODRX_DECLARE_MEMBERS

(

OdGiViewportDraw

)

sequenceNumber()

virtual OdUInt32 OdGiViewportDraw::sequenceNumber ( ) const

pure virtual

Returns the number of viewports that have been deleted from the current database during this editing session.

Implemented in OdGiBaseVectorizer, OdGiBaseVectorizerImpl, OdGiDummyViewportDraw< OdGiDummyViewportGeometry< OdGiViewportDraw_ > >, OdGiDummyViewportDraw< OdGiViewportDraw >, OdGiDummyViewportDraw< OdGiWrapperViewportGeometry< OdGiViewportDraw_ > >, OdGiLayerTraitsTaker, OdGiLayerTraitsTakerView, and OdGiWrapperViewportDraw< OdGiViewportDraw >.

viewport()

virtual OdGiViewport & OdGiViewportDraw::viewport ( ) const

pure virtual

Returns a reference to the OdGiViewport object associated with this object.

Remarks

The OdGiViewport contains information specific to the viewport being drawn.

Implemented in OdGiBaseVectorizer, OdGiBaseVectorizerImpl, OdGiDummyViewportDraw< OdGiDummyViewportGeometry< OdGiViewportDraw_ > >, OdGiDummyViewportDraw< OdGiViewportDraw >, OdGiDummyViewportDraw< OdGiWrapperViewportGeometry< OdGiViewportDraw_ > >, OdGiLayerTraitsTaker, OdGiLayerTraitsTakerView, and OdGiWrapperViewportDraw< OdGiViewportDraw >.

viewportObjectId()

virtual OdDbStub * OdGiViewportDraw::viewportObjectId ( ) const

pure virtual

Returns the Object ID of the OdDbViewport object associated with this object.

Remarks

Returns NULL if TileMode == 1.

Implemented in OdGiBaseVectorizer, OdGiBaseVectorizerImpl, OdGiDummyViewportDraw< OdGiDummyViewportGeometry< OdGiViewportDraw_ > >, OdGiDummyViewportDraw< OdGiViewportDraw >, OdGiDummyViewportDraw< OdGiWrapperViewportGeometry< OdGiViewportDraw_ > >, OdGiLayerTraitsTaker, OdGiLayerTraitsTakerView, and OdGiWrapperViewportDraw< OdGiViewportDraw >.

---

The documentation for this class was generated from the following file:

• GiViewportDraw.h
