#include <IfcWindowStyleAutoImpl.h>

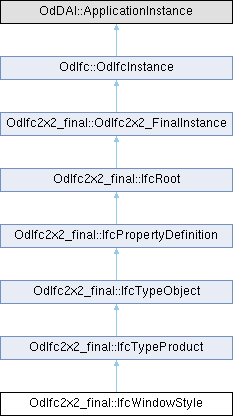

Inheritance diagram for OdIfc2x2_final::IfcWindowStyle:

Public Member Functions
IfcWindowStyleConstructionEnum	getConstructionType () const

void	setConstructionType (IfcWindowStyleConstructionEnum ConstructionType)

IfcWindowStyleOperationEnum	getOperationType () const

void	setOperationType (IfcWindowStyleOperationEnum OperationType)

OdDAI::Boolean	getParameterTakesPrecedence () const

void	setParameterTakesPrecedence (OdDAI::Boolean ParameterTakesPrecedence)

OdDAI::Boolean	getSizeable () const

void	setSizeable (OdDAI::Boolean Sizeable)

	IfcWindowStyle ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc2x2_final::IfcTypeProduct
void	getRepresentationMaps (OdDAIObjectIds &RepresentationMaps) const

OdDAI::ListOfOdDAIObjectId &	representationMaps ()

const OdAnsiString &	getTag () const

void	setTag (const OdAnsiString &Tag)

	IfcTypeProduct ()

Public Member Functions inherited from OdIfc2x2_final::IfcTypeObject
const OdAnsiString &	getApplicableOccurrence () const

void	setApplicableOccurrence (const OdAnsiString &ApplicableOccurrence)

void	getHasPropertySets (OdDAIObjectIds &HasPropertySets) const

OdDAI::ListOfOdDAIObjectId &	hasPropertySets ()

void	getInvObjectTypeOf (OdDAIObjectIds &ObjectTypeOf) const

	IfcTypeObject ()

Public Member Functions inherited from OdIfc2x2_final::IfcPropertyDefinition
void	getInvHasAssociations (OdDAIObjectIds &HasAssociations) const

Public Member Functions inherited from OdIfc2x2_final::IfcRoot
OdDAI::CompressedGUID	getGlobalId () const

void	setGlobalId (OdDAI::CompressedGUID GlobalId)

const OdDAIObjectId &	getOwnerHistory () const

void	setOwnerHistory (const OdDAIObjectId &OwnerHistory)

const OdAnsiString &	getName () const

void	setName (const OdAnsiString &Name)

const OdAnsiString &	getDescription () const

void	setDescription (const OdAnsiString &Description)

	IfcRoot ()

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
OdDAI::Enum	m_ConstructionType

OdDAI::Enum	m_OperationType

OdDAI::Boolean	m_ParameterTakesPrecedence

OdDAI::Boolean	m_Sizeable

Protected Attributes inherited from OdIfc2x2_final::IfcTypeProduct
OdDAI::ListOfOdDAIObjectId	m_RepresentationMaps

OdAnsiString	m_Tag

Protected Attributes inherited from OdIfc2x2_final::IfcTypeObject
OdAnsiString	m_ApplicableOccurrence

OdDAI::ListOfOdDAIObjectId	m_HasPropertySets

Protected Attributes inherited from OdIfc2x2_final::IfcRoot
OdDAI::CompressedGUID	m_GlobalId

OdDAIObjectId	m_OwnerHistory

OdAnsiString	m_Name

OdAnsiString	m_Description

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

The window style defines a particular style of windows, which can be included into the spatial context of the building model through instances of IfcWindow. A window style defines the overall parameter of the window style and refers to the particular parameter of the lining and one (or several) panels through IfcWindowLiningProperties and IfcWindowPanelProperties.

Definition at line 43 of file Ifc2x2_Final/IfcWindowStyleAutoImpl.h.

Constructor & Destructor Documentation

◆ IfcWindowStyle()

OdIfc2x2_final::IfcWindowStyle::IfcWindowStyle ( )

Default constructor for the IfcWindowStyle class.

Member Function Documentation

◆ getAttr() [1/2]

virtual OdRxValue OdIfc2x2_final::IfcWindowStyle::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc2x2_final::IfcTypeProduct.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc2x2_final::IfcWindowStyle::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc2x2_final::IfcTypeProduct.

◆ getConstructionType()

IfcWindowStyleConstructionEnum OdIfc2x2_final::IfcWindowStyle::getConstructionType ( ) const

Returns the value of ConstructionType attribute. This attribute represents the basic construction and material type of the window.

Returns: Returns the value of ConstructionType attribute.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc2x2_final::IfcWindowStyle::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc2x2_final::IfcTypeProduct.

◆ getOperationType()

IfcWindowStyleOperationEnum OdIfc2x2_final::IfcWindowStyle::getOperationType ( ) const

Returns the value of OperationType attribute. This attribute represents the general layout and operation of the window style.

Returns: Returns the value of OperationType attribute.

◆ getParameterTakesPrecedence()

OdDAI::Boolean OdIfc2x2_final::IfcWindowStyle::getParameterTakesPrecedence ( ) const

Returns the value of ParameterTakesPrecedence attribute. This attribute indicates whether the parameter given in the attached lining and panel properties exactly define the geometry (TRUE), or whether the attached style shape take precedence (FALSE). In the last case the parameter have only informative value.

Returns: Returns the value of ParameterTakesPrecedence attribute.

◆ getSizeable()

OdDAI::Boolean OdIfc2x2_final::IfcWindowStyle::getSizeable ( ) const

Returns the value of Sizeable attribute. This attribute indicates whether the attached ShapeStyle can be sized (using scale factor of transformation), or not (FALSE). If not, the ShapeStyle should be inserted by the IfcWindow (using IfcMappedItem) with the scale factor = 1.

Returns: Returns the value of Sizeable attribute.

◆ inFields()

virtual OdResult OdIfc2x2_final::IfcWindowStyle::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc2x2_final::IfcTypeProduct.

◆ isKindOf()

virtual bool OdIfc2x2_final::IfcWindowStyle::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc2x2_final::IfcTypeProduct.

◆ outFields()

virtual OdResult OdIfc2x2_final::IfcWindowStyle::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc2x2_final::IfcTypeProduct.

◆ putAttr() [1/2]

virtual bool OdIfc2x2_final::IfcWindowStyle::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc2x2_final::IfcTypeProduct.

◆ putAttr() [2/2]

virtual bool OdIfc2x2_final::IfcWindowStyle::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc2x2_final::IfcTypeProduct.

◆ setConstructionType()

void OdIfc2x2_final::IfcWindowStyle::setConstructionType ( IfcWindowStyleConstructionEnum ConstructionType )

Sets the value of ConstructionType attribute. This attribute represents the basic construction and material type of the window.

Parameters

ConstructionType [in] ConstructionType attribute to set.

◆ setOperationType()

void OdIfc2x2_final::IfcWindowStyle::setOperationType ( IfcWindowStyleOperationEnum OperationType )

Sets the value of OperationType attribute. This attribute represents the general layout and operation of the window style.

Parameters

OperationType [in] OperationType attribute to set.

◆ setParameterTakesPrecedence()

void OdIfc2x2_final::IfcWindowStyle::setParameterTakesPrecedence ( OdDAI::Boolean ParameterTakesPrecedence )

Sets the value of ParameterTakesPrecedence attribute. This attribute indicates whether the parameter given in the attached lining and panel properties exactly define the geometry (TRUE), or whether the attached style shape take precedence (FALSE). In the last case the parameter have only informative value.

Parameters

ParameterTakesPrecedence [in] ParameterTakesPrecedence attribute to set.

◆ setSizeable()

void OdIfc2x2_final::IfcWindowStyle::setSizeable ( OdDAI::Boolean Sizeable )

Sets the value of Sizeable attribute. This attribute indicates whether the attached ShapeStyle can be sized (using scale factor of transformation), or not (FALSE). If not, the ShapeStyle should be inserted by the IfcWindow (using IfcMappedItem) with the scale factor = 1.

Parameters

Sizeable [in] Sizeable attribute to set.

◆ testAttr() [1/2]

virtual bool OdIfc2x2_final::IfcWindowStyle::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc2x2_final::IfcTypeProduct.

◆ testAttr() [2/2]

virtual bool OdIfc2x2_final::IfcWindowStyle::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc2x2_final::IfcTypeProduct.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc2x2_final::IfcWindowStyle::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc2x2_final::IfcTypeProduct.

◆ unsetAttr() [1/2]

virtual void OdIfc2x2_final::IfcWindowStyle::unsetAttr ( const char * explicitAttrName )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrName [in] Explicit name of the attribute to reset.

Reimplemented from OdIfc2x2_final::IfcTypeProduct.

◆ unsetAttr() [2/2]

virtual void OdIfc2x2_final::IfcWindowStyle::unsetAttr ( const OdIfc::OdIfcAttribute explicitAttrDef )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrDef [in] Explicit definition that represents an attribute to reset.

Reimplemented from OdIfc2x2_final::IfcTypeProduct.

Member Data Documentation

◆ m_ConstructionType

OdDAI::Enum OdIfc2x2_final::IfcWindowStyle::m_ConstructionType

protected

Definition at line 235 of file Ifc2x2_Final/IfcWindowStyleAutoImpl.h.

◆ m_OperationType

OdDAI::Enum OdIfc2x2_final::IfcWindowStyle::m_OperationType

protected

Definition at line 236 of file Ifc2x2_Final/IfcWindowStyleAutoImpl.h.

◆ m_ParameterTakesPrecedence

OdDAI::Boolean OdIfc2x2_final::IfcWindowStyle::m_ParameterTakesPrecedence

protected

Definition at line 237 of file Ifc2x2_Final/IfcWindowStyleAutoImpl.h.

◆ m_Sizeable

OdDAI::Boolean OdIfc2x2_final::IfcWindowStyle::m_Sizeable

protected

Definition at line 238 of file Ifc2x2_Final/IfcWindowStyleAutoImpl.h.

The documentation for this class was generated from the following file:

Ifc2x2_Final/IfcWindowStyleAutoImpl.h

Public Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ IfcWindowStyle()

Member Function Documentation

◆ getAttr() [1/2]

◆ getAttr() [2/2]

◆ getConstructionType()

◆ getInstanceType()

◆ getOperationType()

◆ getParameterTakesPrecedence()

◆ getSizeable()

◆ inFields()

◆ isKindOf()

◆ outFields()

◆ putAttr() [1/2]

◆ putAttr() [2/2]

◆ setConstructionType()

◆ setOperationType()

◆ setParameterTakesPrecedence()

◆ setSizeable()

◆ testAttr() [1/2]

◆ testAttr() [2/2]

◆ type()

◆ unsetAttr() [1/2]

◆ unsetAttr() [2/2]

Member Data Documentation

◆ m_ConstructionType

◆ m_OperationType

◆ m_ParameterTakesPrecedence

◆ m_Sizeable
