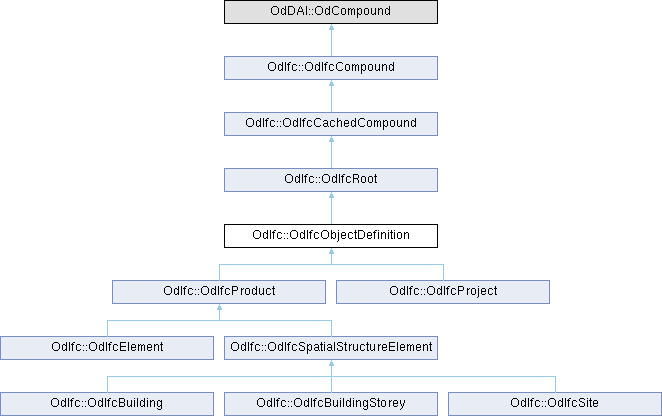

Inheritance diagram for OdIfc::OdIfcObjectDefinition:

Public Member Functions
void	compose () override

const OdDAIObjectIds &	getIsNestedBy () const

OdDAIObjectIds	extractIsNestedBy () const

Public Member Functions inherited from OdIfc::OdIfcCachedCompound
	OdIfcCachedCompound ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

Public Member Functions inherited from OdIfc::OdIfcCompound
void	compose () override

OdIfcEntityType	type ()

OdRxValue	getAttr (const OdIfcAttribute attrDef) const

virtual OdRxValue	getAttr (const OdAnsiString &attrName) const

OdIfcModel *	owningModel () const

bool	isKindOf (OdIfcEntityType type) const

bool	isInstanceOf (OdIfcEntityType entityType) const

const OdAnsiString &	typeName ()

OdIfcFile *	owningIfcFile () const

OdStepFile *	owningStepFile () const override

virtual bool	isPersistent () const

virtual OdDbStub *	id () const

virtual OdDbStub *	ownerId () const

virtual void	xmitPropagateModify ()

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcCompound
static const OdIfcInstance *	earlyAccess (const OdIfcCompound *compound)

Protected Attributes inherited from OdIfc::OdIfcCachedCompound
OdGsCache *	m_pGsNode

Protected Attributes inherited from OdIfc::OdIfcCompound
OdIfcInstance *	m_pEntInst

Detailed Description

A base class that implements an IFC object definition. The object definition determines an entity, process, type, or occurrence.

Definition at line 42 of file IfcObjectDefinition.h.

Member Function Documentation

void OdIfc::OdIfcObjectDefinition::compose ( )

override

Composes the object definition.

OdDAIObjectIds OdIfc::OdIfcObjectDefinition::extractIsNestedBy ( ) const

Retrieves an ordered sequence of instances that are nesting this IfcProduct.

Returns: An array of DAI identifiers, which represents the sequence of instances.

const OdDAIObjectIds & OdIfc::OdIfcObjectDefinition::getIsNestedBy ( ) const

Retrieves an ordered sequence of IfcRelNests instances of the IfcProduct.

Returns: An array of DAI identifiers, which represents IfcRelNests instances sequence.

The documentation for this class was generated from the following file:
