#include <IfcRelAssociatesMaterialAutoImpl.h>

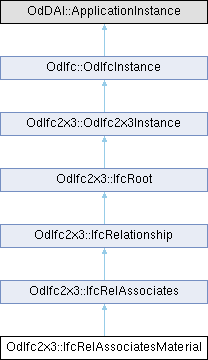

Inheritance diagram for OdIfc2x3::IfcRelAssociatesMaterial:

Public Member Functions
IfcMaterialSelect	relatingMaterial ()

	IfcRelAssociatesMaterial ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual bool	comparedToEarlyImpl (const OdDAI::ApplicationInstance *pOther, OdRx::Ordering &ordering) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc2x3::IfcRelAssociates
void	getRelatedObjects (OdDAIObjectIds &RelatedObjects) const

OdDAI::SetOfOdDAIObjectId &	relatedObjects ()

virtual void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc2x3::IfcRoot
OdDAI::CompressedGUID	getGlobalId () const

void	setGlobalId (OdDAI::CompressedGUID GlobalId)

const OdDAIObjectId &	getOwnerHistory () const

void	setOwnerHistory (const OdDAIObjectId &OwnerHistory)

const OdAnsiString &	getName () const

void	setName (const OdAnsiString &Name)

const OdAnsiString &	getDescription () const

void	setDescription (const OdAnsiString &Description)

	IfcRoot ()

Public Member Functions inherited from OdIfc2x3::OdIfc2x3Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
OdDAI::Select	m_RelatingMaterial

Protected Attributes inherited from OdIfc2x3::IfcRelAssociates
OdDAI::SetOfOdDAIObjectId	m_RelatedObjects

Protected Attributes inherited from OdIfc2x3::IfcRoot
OdDAI::CompressedGUID	m_GlobalId

OdDAIObjectId	m_OwnerHistory

OdAnsiString	m_Name

OdAnsiString	m_Description

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

IfcRelAssociatesMaterial is an objectified relationship between a material definition and elements or element types to which this material definition applies.

The material definition can be: Assigned to an element occurrence as a specific usage of a layer set or profile set Assigned to an element occurrence or element type as a layer set, profile set, constituent set or a single material

Materials can be arranged by layers and applied to layered elements. Typical elements are walls and slabs. An IfcMaterialLayerSet, for layered elements with an indication of the layering direction and individual layer thicknesses An IfcMaterialLayerSetUsage, i.e. a material layer set with positioning information along the reference axis or surface of the element. NOTE: As a material layer set usage is an occurrence based information, that applies to each individual element, it cannot be assigned to an element type.

Material can be applied to profiles. Typical elements using profile material are beam, column, member An IfcMaterialProfileSet, i.e. a set of material assigned to a set of profiles, with a single material assigned to a single profile as the default. An IfcMaterialProfileSetUsage, i.e. a material profile set with positioning information relative to the element axis, also referred to as cardinal point. NOTE: As a material profile set usage is an occurrence based information, that applies to each individual element, it cannot be assigned to an element type.

Materials can be arranged by identified parts of a component based element. Typical elements are doors/windows (with components such as lining, framing and glazing), or distribution elements.

The IfcRelAssociatesMaterial relationship is a special type of the IfcRelAssociates relationship. It can be applied to subtypes of IfcElement and subtypes of IfcElementType. The IfcElement has an inverse relation to its material definition by the HasAssociations attribute, inherited from IfcObject. The IfcElementType has an inverse relation to its material definition by the HasAssociations attribute, inherited from IfcPropertyDefinition.

Remarks: As a material layer set usage is an occurrence based information, that applies to each individual element, it cannot be assigned to an element type. As a material profile set usage is an occurrence based information, that applies to each individual element, it cannot be assigned to an element type.

Definition at line 67 of file Ifc2x3/IfcRelAssociatesMaterialAutoImpl.h.

Constructor & Destructor Documentation

◆ IfcRelAssociatesMaterial()

OdIfc2x3::IfcRelAssociatesMaterial::IfcRelAssociatesMaterial ( )

Default constructor for the IfcRelAssociatesMaterial class.

Member Function Documentation

◆ comparedToEarlyImpl()

virtual bool OdIfc2x3::IfcRelAssociatesMaterial::comparedToEarlyImpl	(	const OdDAI::ApplicationInstance *	pOther,
		OdRx::Ordering &	ordering ) const

overridevirtual

Early-bound version of instances comparison.

Parameters

pOther	[in] Other application instance.
ordering	[out] Receives the ordering (comparison) status.

Returns: true if comparison was performed, false if method has no implementation, so late-bound version could be applied.

Remarks

If the method returns true, the ordering parameter can receive one of the following statuses:

Value Description kLessThan -1 This object < Other Object. kEqual 0 This object = Other Object. kGreaterThan 1 This object > Other Object. kNotOrderable 2 This class is not orderable.

Reimplemented from OdIfc2x3::IfcRelAssociates.

◆ getAttr() [1/2]

virtual OdRxValue OdIfc2x3::IfcRelAssociatesMaterial::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc2x3::IfcRelAssociates.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc2x3::IfcRelAssociatesMaterial::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc2x3::IfcRelAssociates.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc2x3::IfcRelAssociatesMaterial::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc2x3::IfcRelAssociates.

◆ inFields()

virtual OdResult OdIfc2x3::IfcRelAssociatesMaterial::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc2x3::IfcRelAssociates.

◆ isKindOf()

virtual bool OdIfc2x3::IfcRelAssociatesMaterial::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc2x3::IfcRelAssociates.

◆ outFields()

virtual OdResult OdIfc2x3::IfcRelAssociatesMaterial::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc2x3::IfcRelAssociates.

◆ putAttr() [1/2]

virtual bool OdIfc2x3::IfcRelAssociatesMaterial::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc2x3::IfcRelAssociates.

◆ putAttr() [2/2]

virtual bool OdIfc2x3::IfcRelAssociatesMaterial::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc2x3::IfcRelAssociates.

◆ relatingMaterial()

IfcMaterialSelect OdIfc2x3::IfcRelAssociatesMaterial::relatingMaterial ( )

Returns the value of RelatingMaterial attribute. This attribute represents material definition assigned to the elements or element types.

Returns: Returns the value of RelatingMaterial attribute.

◆ testAttr() [1/2]

virtual bool OdIfc2x3::IfcRelAssociatesMaterial::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc2x3::IfcRelAssociates.

◆ testAttr() [2/2]

virtual bool OdIfc2x3::IfcRelAssociatesMaterial::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc2x3::IfcRelAssociates.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc2x3::IfcRelAssociatesMaterial::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc2x3::IfcRelAssociates.

◆ unsetAttr() [1/2]

virtual void OdIfc2x3::IfcRelAssociatesMaterial::unsetAttr ( const char * explicitAttrName )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrName [in] Explicit name of the attribute to reset.

Reimplemented from OdIfc2x3::IfcRelAssociates.

◆ unsetAttr() [2/2]

virtual void OdIfc2x3::IfcRelAssociatesMaterial::unsetAttr ( const OdIfc::OdIfcAttribute explicitAttrDef )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrDef [in] Explicit definition that represents an attribute to reset.

Reimplemented from OdIfc2x3::IfcRelAssociates.

Member Data Documentation

◆ m_RelatingMaterial

OdDAI::Select OdIfc2x3::IfcRelAssociatesMaterial::m_RelatingMaterial

protected

Definition at line 218 of file Ifc2x3/IfcRelAssociatesMaterialAutoImpl.h.

The documentation for this class was generated from the following file:

Ifc2x3/IfcRelAssociatesMaterialAutoImpl.h
