#include <IfcTriangulatedFaceSetAutoImpl.h>

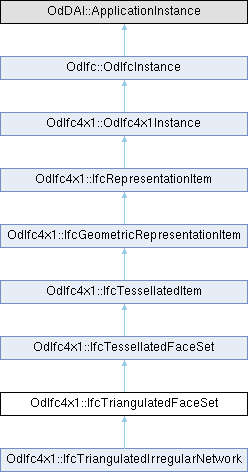

Inheritance diagram for OdIfc4x1::IfcTriangulatedFaceSet:

Public Member Functions
void	getNormals (OdArray< OdArray< double > > &Normals) const

OdDAI::List< OdDAI::Aggr * > &	normals ()

OdDAI::Boolean	getClosed () const

void	setClosed (OdDAI::Boolean Closed)

void	getCoordIndex (OdArray< OdArray< int > > &CoordIndex) const

OdDAI::List< OdDAI::Aggr * > &	coordIndex ()

void	getPnIndex (OdArray< int > &PnIndex) const

OdDAI::ListOfInt &	pnIndex ()

	IfcTriangulatedFaceSet ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc4x1::IfcTessellatedFaceSet
const OdDAIObjectId &	getCoordinates () const

void	setCoordinates (const OdDAIObjectId &Coordinates)

void	getInvHasColours (OdDAIObjectIds &HasColours) const

void	getInvHasTextures (OdDAIObjectIds &HasTextures) const

Public Member Functions inherited from OdIfc4x1::IfcRepresentationItem
void	getInvLayerAssignment (OdDAIObjectIds &LayerAssignment) const

void	getInvStyledByItem (OdDAIObjectIds &StyledByItem) const

Public Member Functions inherited from OdIfc4x1::OdIfc4x1Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
OdDAI::List< OdDAI::Aggr * >	m_Normals

OdDAI::Boolean	m_Closed

OdDAI::List< OdDAI::Aggr * >	m_CoordIndex

OdDAI::ListOfInt	m_PnIndex

Protected Attributes inherited from OdIfc4x1::IfcTessellatedFaceSet
OdDAIObjectId	m_Coordinates

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

The IfcTriangulatedFaceSet is a tessellated face set with all faces being bound by triangles. The faces are constructed by implicit polylines defined by three Cartesian points. Depending on the value of the attribute Closed the instance of IfcTriangulatedFaceSet represents: if TRUE, a boundary representation (or B-rep); if FALSE, a face based surface representation.

Details - The coordinates of each point are provided by a one-based index into an ordered list of Cartesian points provided by the two-dimensional list CoordIndex, where the first dimension of the two-dimensional list addresses the list of triangular faces; the second dimension of the two-dimensional list provides exactly three indices. Each index points to a Cartesian point being a vertex of the triangle.

Depending on the provision of PnIndex the indices point either directly into the IfcCartesianPointList3D referenced by Coordinates defined at the supertype IfcTessellatedFaceSet, or they point into the PnIndex where the integer values at that position provides the location of the coordinate values within the IfcCartesianPointList3D. The image below shows an example of the handling of point index.

The image below shows usage of the IfcTriangulatedFaceSet without (as default) and with using the PnIndex.

Optionally normals can be provided. Only normals per vector are supported allowing for visually curved triangles when the three normals of the corresponding three vertices of a triangle are not co-linear to the normal of the triangular face. If they are identical, normals are omitted.

Normals are provided by the two-dimensional list Normals, where The first dimension of the two-dimensional list addresses the corresponding list of vertex indices of the triangular faces; The second dimension of the two-dimensional list provides exactly three real values to determine the direction of the normal at this vertex of the triangle.

The indices in the CoordIndex point into the list of Normals. The indices of CoordIndex are applied to both points, either directly or via the PnIndex and normals. The image below shows an example of handling normals.

The image below shows the use of IfcTriangulatedFaceSet without annotation. The diagram of the IfcTriangulatedFaceSet represents the indices and the ordered list into which the indices point. The index starts with 1 (indexed as 1 to N), if the greatest index in CoordIndex in N, then the IfcCartesianPointList has N lists of 3:3 coordinates.

In the example below, the IfcTriangulatedFaceSet is represented by:

CoordIndex:
((1,6,5), (1,2,6), (6,2,7), (7,2,3), (7,8,6), (6,8,5), (5,8,1), (1,8,4), (4,2,1), (2,4,3), (4,8,7), (7,3,4))

IfcCartesianPointList3D:
((0.,0.,0.), (1.,0.,0.), (1.,1.,0.), (0.,1.,0.), (0.,0.,2.), (1.,0.,2.), (1.,1.,2.), (0.,1.,2.))

Definition at line 90 of file Ifc4x1/IfcTriangulatedFaceSetAutoImpl.h.

Constructor & Destructor Documentation

◆ IfcTriangulatedFaceSet()

OdIfc4x1::IfcTriangulatedFaceSet::IfcTriangulatedFaceSet ( )

Default constructor for the IfcTriangulatedFaceSet class.

Member Function Documentation

◆ coordIndex()

OdDAI::List< OdDAI::Aggr * > & OdIfc4x1::IfcTriangulatedFaceSet::coordIndex ( )

Returns the value of CoordIndex attribute. This attribute represents two-dimensional list for the indexed-based triangles, where: The first dimension represents the triangles (from 1 to N). The second dimension has three values representing the indices to three vertex points (from 1 to 3).

Returns: Returns the value of CoordIndex attribute.

Remarks: The coordinates of the vertices are provided by the indexed list of SELF\IfcTessellatedFaceSet.Coordinates.CoordList.

◆ getAttr() [1/2]

virtual OdRxValue OdIfc4x1::IfcTriangulatedFaceSet::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4x1::IfcTessellatedFaceSet.

Reimplemented in OdIfc4x1::IfcTriangulatedIrregularNetwork.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc4x1::IfcTriangulatedFaceSet::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4x1::IfcTessellatedFaceSet.

Reimplemented in OdIfc4x1::IfcTriangulatedIrregularNetwork.

◆ getClosed()

OdDAI::Boolean OdIfc4x1::IfcTriangulatedFaceSet::getClosed ( ) const

Returns the value of Closed attribute. This attribute indicates whether the IfcTriangulatedFaceSet is a closed shell.

Returns: Returns the value of Closed attribute.

◆ getCoordIndex()

void OdIfc4x1::IfcTriangulatedFaceSet::getCoordIndex ( OdArray< OdArray< int > > & CoordIndex ) const

Gets the value of CoordIndex attribute. This attribute represents two-dimensional list for the indexed-based triangles, where: The first dimension represents the triangles (from 1 to N). The second dimension has three values representing the indices to three vertex points (from 1 to 3).

Parameters

CoordIndex [out] Receives the CoordIndex attribute.

Remarks: The coordinates of the vertices are provided by the indexed list of SELF\IfcTessellatedFaceSet.Coordinates.CoordList.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc4x1::IfcTriangulatedFaceSet::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc4x1::IfcTessellatedFaceSet.

Reimplemented in OdIfc4x1::IfcTriangulatedIrregularNetwork.

◆ getNormals()

void OdIfc4x1::IfcTriangulatedFaceSet::getNormals ( OdArray< OdArray< double > > & Normals ) const

Gets the value of Normals attribute. This attribute represents an ordered list of three directions for normals. It is a two-dimensional list of directions provided by three parameter values. The first dimension corresponds to the vertex indices of the Coordindex. The second dimension has three values: [1] the x-direction, [2] the y-direction and [3] the z-directions.

Parameters

Normals [out] Receives the Normals attribute value.

◆ getPnIndex()

void OdIfc4x1::IfcTriangulatedFaceSet::getPnIndex ( OdArray< int > & PnIndex ) const

Gets the value of PnIndex attribute. This attribute represents the list of integers defining the locations in the IfcCartesianPointList3D to obtain the point coordinates for the indices within the CoordIndex. If the PnIndex is not provided the indices point directly to the IfcCartesianPointList3D.

Parameters

PnIndex [out] Receives the PnIndex attribute.

◆ inFields()

virtual OdResult OdIfc4x1::IfcTriangulatedFaceSet::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4x1::IfcTessellatedFaceSet.

Reimplemented in OdIfc4x1::IfcTriangulatedIrregularNetwork.

◆ isKindOf()

virtual bool OdIfc4x1::IfcTriangulatedFaceSet::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc4x1::IfcTessellatedFaceSet.

Reimplemented in OdIfc4x1::IfcTriangulatedIrregularNetwork.

◆ normals()

OdDAI::List< OdDAI::Aggr * > & OdIfc4x1::IfcTriangulatedFaceSet::normals ( )

Returns the value of Normals attribute. This attribute represents an ordered list of three directions for normals. It is a two-dimensional list of directions provided by three parameter values. The first dimension corresponds to the vertex indices of the Coordindex. The second dimension has three values: [1] the x-direction, [2] the y-direction and [3] the z-directions.

Returns: Returns the value of Normals attribute.

◆ outFields()

virtual OdResult OdIfc4x1::IfcTriangulatedFaceSet::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4x1::IfcTessellatedFaceSet.

Reimplemented in OdIfc4x1::IfcTriangulatedIrregularNetwork.

◆ pnIndex()

OdDAI::ListOfInt & OdIfc4x1::IfcTriangulatedFaceSet::pnIndex ( )

Returns the value of PnIndex attribute. This attribute represents the list of integers defining the locations in the IfcCartesianPointList3D to obtain the point coordinates for the indices within the CoordIndex. If the PnIndex is not provided the indices point directly to the IfcCartesianPointList3D.

Returns: Returns the value of PnIndex attribute.

◆ putAttr() [1/2]

virtual bool OdIfc4x1::IfcTriangulatedFaceSet::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4x1::IfcTessellatedFaceSet.

Reimplemented in OdIfc4x1::IfcTriangulatedIrregularNetwork.

◆ putAttr() [2/2]

virtual bool OdIfc4x1::IfcTriangulatedFaceSet::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4x1::IfcTessellatedFaceSet.

Reimplemented in OdIfc4x1::IfcTriangulatedIrregularNetwork.

◆ setClosed()

void OdIfc4x1::IfcTriangulatedFaceSet::setClosed ( OdDAI::Boolean Closed )

Sets the value of Closed attribute. This attribute indicates whether the IfcTriangulatedFaceSet is a closed shell.

Parameters

Closed [in] Closed attribute to set.

◆ testAttr() [1/2]

virtual bool OdIfc4x1::IfcTriangulatedFaceSet::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4x1::IfcTessellatedFaceSet.

Reimplemented in OdIfc4x1::IfcTriangulatedIrregularNetwork.

◆ testAttr() [2/2]

virtual bool OdIfc4x1::IfcTriangulatedFaceSet::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4x1::IfcTessellatedFaceSet.

Reimplemented in OdIfc4x1::IfcTriangulatedIrregularNetwork.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc4x1::IfcTriangulatedFaceSet::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc4x1::IfcTessellatedFaceSet.

Reimplemented in OdIfc4x1::IfcTriangulatedIrregularNetwork.
