#include <IfcPermeableCoveringPropertiesAutoImpl.h>

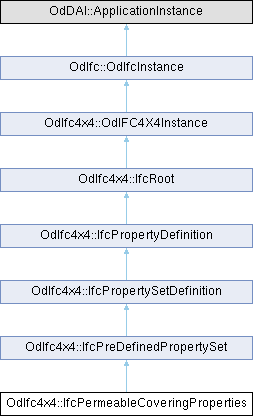

Inheritance diagram for OdIfc4x4::IfcPermeableCoveringProperties:

Public Member Functions
IfcPermeableCoveringOperationEnum	getOperationType () const

void	setOperationType (IfcPermeableCoveringOperationEnum OperationType)

IfcWindowPanelPositionEnum	getPanelPosition () const

void	setPanelPosition (IfcWindowPanelPositionEnum PanelPosition)

double	getFrameDepth () const

void	setFrameDepth (double FrameDepth)

double	getFrameThickness () const

void	setFrameThickness (double FrameThickness)

const OdDAIObjectId &	getShapeAspectStyle () const

void	setShapeAspectStyle (const OdDAIObjectId &ShapeAspectStyle)

	IfcPermeableCoveringProperties ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual bool	comparedToEarlyImpl (const OdDAI::ApplicationInstance *pOther, OdRx::Ordering &ordering) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc4x4::IfcPropertySetDefinition
void	getInvDefinesType (OdDAIObjectIds &DefinesType) const

void	getInvIsDefinedBy (OdDAIObjectIds &IsDefinedBy) const

void	getInvDefinesOccurrence (OdDAIObjectIds &DefinesOccurrence) const

Public Member Functions inherited from OdIfc4x4::IfcPropertyDefinition
void	getInvHasContext (OdDAIObjectIds &HasContext) const

void	getInvHasAssociations (OdDAIObjectIds &HasAssociations) const

Public Member Functions inherited from OdIfc4x4::IfcRoot
OdDAI::CompressedGUID	getGlobalId () const

void	setGlobalId (OdDAI::CompressedGUID GlobalId)

const OdDAIObjectId &	getOwnerHistory () const

void	setOwnerHistory (const OdDAIObjectId &OwnerHistory)

const OdAnsiString &	getName () const

void	setName (const OdAnsiString &Name)

const OdAnsiString &	getDescription () const

void	setDescription (const OdAnsiString &Description)

	IfcRoot ()

Public Member Functions inherited from OdIfc4x4::OdIFC4X4Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
OdDAI::Enum	m_OperationType

OdDAI::Enum	m_PanelPosition

IfcPositiveLengthMeasure	m_FrameDepth

IfcPositiveLengthMeasure	m_FrameThickness

OdDAIObjectId	m_ShapeAspectStyle

Protected Attributes inherited from OdIfc4x4::IfcRoot
OdDAI::CompressedGUID	m_GlobalId

OdDAIObjectId	m_OwnerHistory

OdAnsiString	m_Name

OdAnsiString	m_Description

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Protected Member Functions inherited from OdIfc4x4::IfcPropertySetDefinition
virtual OdRxValue	getAttr (const char *attrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

Detailed Description

This entity is a description of a panel within a door or window (as fillers for opening) which allows for air flow. It is given by its properties (IfcPermeableCoveringProperties). A permeable covering is a casement, such as a component, fixed or opening, consisting essentially of a frame and the infilling. The infilling is normally a grill, a louver or a screen. The way of operation is defined in the operation type.

Details - The IfcPermeableCoveringProperties are included in the list of properties (HasPropertySets) of the IfcWindowStyle or the IfcDoorStyle. More information about the permeable covering can be included in the same list of the window or door style using the IfcPropertySet for dynamic extensions. This particularly applies for additional properties for the various operation types.

\changes

IFC4 changes: Supertype changed from IfcPropertySetDefinition to IfcPreDefinedPropertySet.

Definition at line 57 of file IFC4X4/IfcPermeableCoveringPropertiesAutoImpl.h.

Constructor & Destructor Documentation

◆ IfcPermeableCoveringProperties()

OdIfc4x4::IfcPermeableCoveringProperties::IfcPermeableCoveringProperties ( )

Default constructor for the IfcPermeableCoveringProperties class.

Member Function Documentation

◆ comparedToEarlyImpl()

virtual bool OdIfc4x4::IfcPermeableCoveringProperties::comparedToEarlyImpl	(	const OdDAI::ApplicationInstance *	pOther,
		OdRx::Ordering &	ordering ) const

overridevirtual

Early-bound version of instances comparison.

Parameters

pOther	[in] Other application instance.
ordering	[out] Receives the ordering (comparison) status.

Returns: true if comparison was performed, false if method has no implementation, so late-bound version could be applied.

Remarks

If the method returns true, the ordering parameter can receive one of the following statuses:

Value Description kLessThan -1 This object < Other Object. kEqual 0 This object = Other Object. kGreaterThan 1 This object > Other Object. kNotOrderable 2 This class is not orderable.

Reimplemented from OdIfc4x4::IfcPreDefinedPropertySet.

◆ getAttr() [1/2]

virtual OdRxValue OdIfc4x4::IfcPermeableCoveringProperties::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4x4::IfcRoot.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc4x4::IfcPermeableCoveringProperties::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4x4::IfcPropertySetDefinition.

◆ getFrameDepth()

double OdIfc4x4::IfcPermeableCoveringProperties::getFrameDepth ( ) const

Returns the value of FrameDepth attribute. This attribute represents depth of panel frame (used to include the permeable covering), measured from front face to back face horizontally (i.e. perpendicular to the window or door (elevation) plane.

Returns: Returns the value of FrameDepth attribute.

◆ getFrameThickness()

double OdIfc4x4::IfcPermeableCoveringProperties::getFrameThickness ( ) const

Returns the value of FrameThickness attribute. This attribute represents width of panel frame (used to include the permeable covering), measured from inside of panel (at permeable covering) to outside of panel (at lining), i.e. parallel to the window or door (elevation) plane.

Returns: Returns the value of FrameThickness attribute.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc4x4::IfcPermeableCoveringProperties::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc4x4::IfcPreDefinedPropertySet.

◆ getOperationType()

IfcPermeableCoveringOperationEnum OdIfc4x4::IfcPermeableCoveringProperties::getOperationType ( ) const

Returns the value of OperationType attribute. This attribute represents types of permeable covering operations. Also used to assign standard symbolic presentations according to national building standards.

Returns: Returns the value of OperationType attribute.

◆ getPanelPosition()

IfcWindowPanelPositionEnum OdIfc4x4::IfcPermeableCoveringProperties::getPanelPosition ( ) const

Returns the value of PanelPosition attribute. This attribute represents position of this permeable covering panel within the overall window or door type.

Returns: Returns the value of PanelPosition attribute.

◆ getShapeAspectStyle()

const OdDAIObjectId & OdIfc4x4::IfcPermeableCoveringProperties::getShapeAspectStyle ( ) const

Returns the value of ShapeAspectStyle attribute. This attribute represents optional link to a shape aspect definition, which points to the part of the geometric representation of the window style, which is used to represent the permeable covering.

Returns: Returns the value of ShapeAspectStyle attribute.

◆ inFields()

virtual OdResult OdIfc4x4::IfcPermeableCoveringProperties::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4x4::IfcPropertySetDefinition.

◆ isKindOf()

virtual bool OdIfc4x4::IfcPermeableCoveringProperties::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc4x4::IfcPreDefinedPropertySet.

◆ outFields()

virtual OdResult OdIfc4x4::IfcPermeableCoveringProperties::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4x4::IfcPropertySetDefinition.

◆ putAttr() [1/2]

virtual bool OdIfc4x4::IfcPermeableCoveringProperties::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4x4::IfcRoot.

◆ putAttr() [2/2]

virtual bool OdIfc4x4::IfcPermeableCoveringProperties::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4x4::IfcPropertySetDefinition.

◆ setFrameDepth()

void OdIfc4x4::IfcPermeableCoveringProperties::setFrameDepth ( double FrameDepth )

Sets the value of FrameDepth attribute. This attribute represents depth of panel frame (used to include the permeable covering), measured from front face to back face horizontally (i.e. perpendicular to the window or door (elevation) plane.

Parameters

FrameDepth [in] Frame depth to set.

◆ setFrameThickness()

void OdIfc4x4::IfcPermeableCoveringProperties::setFrameThickness ( double FrameThickness )

Sets the value of FrameThickness attribute. This attribute represents width of panel frame (used to include the permeable covering), measured from inside of panel (at permeable covering) to outside of panel (at lining), i.e. parallel to the window or door (elevation) plane.

Parameters

FrameThickness [in] Frame thickness to set.

◆ setOperationType()

void OdIfc4x4::IfcPermeableCoveringProperties::setOperationType ( IfcPermeableCoveringOperationEnum OperationType )

Sets the value of OperationType attribute. This attribute represents types of permeable covering operations. Also used to assign standard symbolic presentations according to national building standards.

Parameters

OperationType [in] Operation type to set.

◆ setPanelPosition()

void OdIfc4x4::IfcPermeableCoveringProperties::setPanelPosition ( IfcWindowPanelPositionEnum PanelPosition )

Sets the value of PanelPosition attribute. This attribute represents position of this permeable covering panel within the overall window or door type.

Parameters

PanelPosition [in] Panel position to set.

◆ setShapeAspectStyle()

void OdIfc4x4::IfcPermeableCoveringProperties::setShapeAspectStyle ( const OdDAIObjectId & ShapeAspectStyle )

Sets the value of ShapeAspectStyle attribute. This attribute represents optional link to a shape aspect definition, which points to the part of the geometric representation of the window style, which is used to represent the permeable covering.

Parameters

ShapeAspectStyle [in] Shape aspect style to set.

◆ testAttr() [1/2]

virtual bool OdIfc4x4::IfcPermeableCoveringProperties::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4x4::IfcPropertySetDefinition.

◆ testAttr() [2/2]

virtual bool OdIfc4x4::IfcPermeableCoveringProperties::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4x4::IfcPropertySetDefinition.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc4x4::IfcPermeableCoveringProperties::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc4x4::IfcPreDefinedPropertySet.

◆ unsetAttr() [1/2]

virtual void OdIfc4x4::IfcPermeableCoveringProperties::unsetAttr ( const char * explicitAttrName )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrName [in] Explicit name of the attribute to reset.

Reimplemented from OdIfc4x4::IfcPropertySetDefinition.

◆ unsetAttr() [2/2]

virtual void OdIfc4x4::IfcPermeableCoveringProperties::unsetAttr ( const OdIfc::OdIfcAttribute explicitAttrDef )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrDef [in] Explicit definition that represents an attribute to reset.

Reimplemented from OdIfc4x4::IfcPropertySetDefinition.

Member Data Documentation

◆ m_FrameDepth

IfcPositiveLengthMeasure OdIfc4x4::IfcPermeableCoveringProperties::m_FrameDepth

protected

Definition at line 285 of file IFC4X4/IfcPermeableCoveringPropertiesAutoImpl.h.

◆ m_FrameThickness

IfcPositiveLengthMeasure OdIfc4x4::IfcPermeableCoveringProperties::m_FrameThickness

protected

Definition at line 286 of file IFC4X4/IfcPermeableCoveringPropertiesAutoImpl.h.

◆ m_OperationType

OdDAI::Enum OdIfc4x4::IfcPermeableCoveringProperties::m_OperationType

protected

Definition at line 283 of file IFC4X4/IfcPermeableCoveringPropertiesAutoImpl.h.

◆ m_PanelPosition

OdDAI::Enum OdIfc4x4::IfcPermeableCoveringProperties::m_PanelPosition

protected

Definition at line 284 of file IFC4X4/IfcPermeableCoveringPropertiesAutoImpl.h.

◆ m_ShapeAspectStyle

OdDAIObjectId OdIfc4x4::IfcPermeableCoveringProperties::m_ShapeAspectStyle

protected

Definition at line 287 of file IFC4X4/IfcPermeableCoveringPropertiesAutoImpl.h.

The documentation for this class was generated from the following file:

IFC4X4/IfcPermeableCoveringPropertiesAutoImpl.h

Public Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ IfcPermeableCoveringProperties()

Member Function Documentation

◆ comparedToEarlyImpl()

◆ getAttr() [1/2]

◆ getAttr() [2/2]

◆ getFrameDepth()

◆ getFrameThickness()

◆ getInstanceType()

◆ getOperationType()

◆ getPanelPosition()

◆ getShapeAspectStyle()

◆ inFields()

◆ isKindOf()

◆ outFields()

◆ putAttr() [1/2]

◆ putAttr() [2/2]

◆ setFrameDepth()

◆ setFrameThickness()

◆ setOperationType()

◆ setPanelPosition()

◆ setShapeAspectStyle()

◆ testAttr() [1/2]

◆ testAttr() [2/2]

◆ type()

◆ unsetAttr() [1/2]

◆ unsetAttr() [2/2]

Member Data Documentation

◆ m_FrameDepth

◆ m_FrameThickness

◆ m_OperationType

◆ m_PanelPosition

◆ m_ShapeAspectStyle
