#include <IfcTrapeziumProfileDefAutoImpl.h>

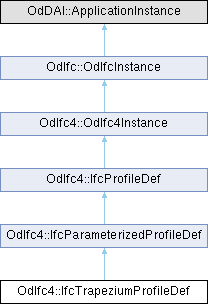

Inheritance diagram for OdIfc4::IfcTrapeziumProfileDef:

Public Member Functions
double	getBottomXDim () const

void	setBottomXDim (double BottomXDim)

double	getTopXDim () const

void	setTopXDim (double TopXDim)

double	getYDim () const

void	setYDim (double YDim)

double	getTopXOffset () const

void	setTopXOffset (double TopXOffset)

	IfcTrapeziumProfileDef ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual bool	comparedToEarlyImpl (const OdDAI::ApplicationInstance *pOther, OdRx::Ordering &ordering) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc4::IfcParameterizedProfileDef
const OdDAIObjectId &	getPosition () const

void	setPosition (const OdDAIObjectId &Position)

Public Member Functions inherited from OdIfc4::IfcProfileDef
IfcProfileTypeEnum	getProfileType () const

void	setProfileType (IfcProfileTypeEnum ProfileType)

const OdAnsiString &	getProfileName () const

void	setProfileName (const OdAnsiString &ProfileName)

void	getInvHasExternalReference (OdDAIObjectIds &HasExternalReference) const

void	getInvHasProperties (OdDAIObjectIds &HasProperties) const

	IfcProfileDef ()

Public Member Functions inherited from OdIfc4::OdIfc4Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
IfcPositiveLengthMeasure	m_BottomXDim

IfcPositiveLengthMeasure	m_TopXDim

IfcPositiveLengthMeasure	m_YDim

double	m_TopXOffset

Protected Attributes inherited from OdIfc4::IfcParameterizedProfileDef
OdDAIObjectId	m_Position

Protected Attributes inherited from OdIfc4::IfcProfileDef
OdDAI::Enum	m_ProfileType

OdAnsiString	m_ProfileName

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

IfcTrapeziumProfileDef defines a trapezium as the profile definition used by the swept surface geometry or the swept area solid. It is specified by its Top X and Bottom X extent and its Y extent as well as by the offset of the Top X extend, and placed within the 2D position coordinate system, established by the Position attribute. It is placed centric within the position coordinate system, in the center of the bounding box. The image below illustrates parameters of the trapezium profile definition.

The parameterized profile defines its own position coordinate system. The underlying coordinate system is defined by the swept surface or swept area solid that uses the profile definition. It is the xy plane of either: IfcSweptSurface.Position IfcSweptAreaSolid.Position

or in case of sectioned spines the xy plane of each list member of IfcSectionedSpine.CrossSectionPositions. By using offsets of the position location, the parameterized profile can be positioned centric (using x,y offsets = 0.), or at any position relative to the profile. Explicit coordinate offsets are used to define cardinal points (e.g. upper-left bound).

Remarks: This definition is DEPRECATED.

Definition at line 60 of file Ifc4/IfcTrapeziumProfileDefAutoImpl.h.

Constructor & Destructor Documentation

◆ IfcTrapeziumProfileDef()

OdIfc4::IfcTrapeziumProfileDef::IfcTrapeziumProfileDef ( )

Default constructor for the IfcTrapeziumProfileDef class.

Member Function Documentation

◆ comparedToEarlyImpl()

virtual bool OdIfc4::IfcTrapeziumProfileDef::comparedToEarlyImpl	(	const OdDAI::ApplicationInstance *	pOther,
		OdRx::Ordering &	ordering ) const

overridevirtual

Early-bound version of instances comparison.

Parameters

pOther	[in] Other application instance.
ordering	[out] Receives the ordering (comparison) status.

Returns: true if comparison was performed, false if method has no implementation, so late-bound version could be applied.

Remarks

If the method returns true, the ordering parameter can receive one of the following statuses:

Value Description kLessThan -1 This object < Other Object. kEqual 0 This object = Other Object. kGreaterThan 1 This object > Other Object. kNotOrderable 2 This class is not orderable.

Reimplemented from OdIfc4::IfcParameterizedProfileDef.

◆ getAttr() [1/2]

virtual OdRxValue OdIfc4::IfcTrapeziumProfileDef::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4::IfcParameterizedProfileDef.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc4::IfcTrapeziumProfileDef::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4::IfcParameterizedProfileDef.

◆ getBottomXDim()

double OdIfc4::IfcTrapeziumProfileDef::getBottomXDim ( ) const

Returns the value of BottomXDim attribute. This attribute represents the extent of the bottom line measured along the implicit x-axis.

Returns: Returns the value of BottomXDim attribute.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc4::IfcTrapeziumProfileDef::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc4::IfcParameterizedProfileDef.

◆ getTopXDim()

double OdIfc4::IfcTrapeziumProfileDef::getTopXDim ( ) const

Returns the value of TopXDim attribute. This attribute represents the extent of the top line measured along the implicit x-axis.

Returns: Returns the value of TopXDim attribute.

◆ getTopXOffset()

double OdIfc4::IfcTrapeziumProfileDef::getTopXOffset ( ) const

Returns the value of TopXOffset attribute. This attribute represents offset from the beginning of the top line to the bottom line, measured along the implicit x-axis.

Returns: Returns the value of TopXOffset attribute.

◆ getYDim()

double OdIfc4::IfcTrapeziumProfileDef::getYDim ( ) const

Returns the value of YDim attribute. This attribute represents the extent of the distance between the parallel bottom and top lines measured along the implicit y-axis.

Returns: Returns the value of YDim attribute.

◆ inFields()

virtual OdResult OdIfc4::IfcTrapeziumProfileDef::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4::IfcParameterizedProfileDef.

◆ isKindOf()

virtual bool OdIfc4::IfcTrapeziumProfileDef::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc4::IfcParameterizedProfileDef.

◆ outFields()

virtual OdResult OdIfc4::IfcTrapeziumProfileDef::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4::IfcParameterizedProfileDef.

◆ putAttr() [1/2]

virtual bool OdIfc4::IfcTrapeziumProfileDef::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4::IfcParameterizedProfileDef.

◆ putAttr() [2/2]

virtual bool OdIfc4::IfcTrapeziumProfileDef::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4::IfcParameterizedProfileDef.

◆ setBottomXDim()

void OdIfc4::IfcTrapeziumProfileDef::setBottomXDim ( double BottomXDim )

Sets the value of BottomXDim attribute. This attribute represents the extent of the bottom line measured along the implicit x-axis.

Parameters

BottomXDim [in] BottomXDim attribute to set.

◆ setTopXDim()

void OdIfc4::IfcTrapeziumProfileDef::setTopXDim ( double TopXDim )

Sets the value of TopXDim attribute. This attribute represents the extent of the top line measured along the implicit x-axis.

Parameters

TopXDim [in] TopXDim to set.

◆ setTopXOffset()

void OdIfc4::IfcTrapeziumProfileDef::setTopXOffset ( double TopXOffset )

Sets the value of TopXOffset attribute. This attribute represents offset from the beginning of the top line to the bottom line, measured along the implicit x-axis.

Parameters

TopXOffset [in] TopXOffset to set.

◆ setYDim()

void OdIfc4::IfcTrapeziumProfileDef::setYDim ( double YDim )

Sets the value of YDim attribute. This attribute represents the extent of the distance between the parallel bottom and top lines measured along the implicit y-axis.

Parameters

YDim	[in] YDim to set.

◆ testAttr() [1/2]

virtual bool OdIfc4::IfcTrapeziumProfileDef::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4::IfcParameterizedProfileDef.

◆ testAttr() [2/2]

virtual bool OdIfc4::IfcTrapeziumProfileDef::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4::IfcParameterizedProfileDef.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc4::IfcTrapeziumProfileDef::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc4::IfcParameterizedProfileDef.

◆ unsetAttr() [1/2]

virtual void OdIfc4::IfcTrapeziumProfileDef::unsetAttr ( const char * explicitAttrName )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrName [in] Explicit name of the attribute to reset.

Reimplemented from OdIfc4::IfcParameterizedProfileDef.

◆ unsetAttr() [2/2]

virtual void OdIfc4::IfcTrapeziumProfileDef::unsetAttr ( const OdIfc::OdIfcAttribute explicitAttrDef )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrDef [in] Explicit definition that represents an attribute to reset.

Reimplemented from OdIfc4::IfcParameterizedProfileDef.

Member Data Documentation

◆ m_BottomXDim

IfcPositiveLengthMeasure OdIfc4::IfcTrapeziumProfileDef::m_BottomXDim

protected

Definition at line 263 of file Ifc4/IfcTrapeziumProfileDefAutoImpl.h.

◆ m_TopXDim

IfcPositiveLengthMeasure OdIfc4::IfcTrapeziumProfileDef::m_TopXDim

protected

Definition at line 264 of file Ifc4/IfcTrapeziumProfileDefAutoImpl.h.

◆ m_TopXOffset

double OdIfc4::IfcTrapeziumProfileDef::m_TopXOffset

protected

Definition at line 266 of file Ifc4/IfcTrapeziumProfileDefAutoImpl.h.

◆ m_YDim

IfcPositiveLengthMeasure OdIfc4::IfcTrapeziumProfileDef::m_YDim

protected

Definition at line 265 of file Ifc4/IfcTrapeziumProfileDefAutoImpl.h.

The documentation for this class was generated from the following file:

Ifc4/IfcTrapeziumProfileDefAutoImpl.h

Public Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ IfcTrapeziumProfileDef()

Member Function Documentation

◆ comparedToEarlyImpl()

◆ getAttr() [1/2]

◆ getAttr() [2/2]

◆ getBottomXDim()

◆ getInstanceType()

◆ getTopXDim()

◆ getTopXOffset()

◆ getYDim()

◆ inFields()

◆ isKindOf()

◆ outFields()

◆ putAttr() [1/2]

◆ putAttr() [2/2]

◆ setBottomXDim()

◆ setTopXDim()

◆ setTopXOffset()

◆ setYDim()

◆ testAttr() [1/2]

◆ testAttr() [2/2]

◆ type()

◆ unsetAttr() [1/2]

◆ unsetAttr() [2/2]

Member Data Documentation

◆ m_BottomXDim

◆ m_TopXDim

◆ m_TopXOffset

◆ m_YDim
