#include <IfcConversionBasedUnitAutoImpl.h>

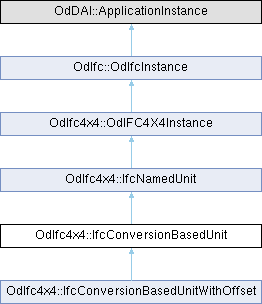

Inheritance diagram for OdIfc4x4::IfcConversionBasedUnit:

Public Member Functions
const OdAnsiString &	getName () const

void	setName (const OdAnsiString &Name)

const OdDAIObjectId &	getConversionFactor () const

void	setConversionFactor (const OdDAIObjectId &ConversionFactor)

void	getInvHasExternalReference (OdDAIObjectIds &HasExternalReference) const

	IfcConversionBasedUnit ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual bool	comparedToEarlyImpl (const OdDAI::ApplicationInstance *pOther, OdRx::Ordering &ordering) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc4x4::IfcNamedUnit
const OdDAIObjectId &	getDimensions () const

void	setDimensions (const OdDAIObjectId &Dimensions)

IfcUnitEnum	getUnitType () const

void	setUnitType (IfcUnitEnum UnitType)

	IfcNamedUnit ()

Public Member Functions inherited from OdIfc4x4::OdIFC4X4Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
OdAnsiString	m_Name

OdDAIObjectId	m_ConversionFactor

Protected Attributes inherited from OdIfc4x4::IfcNamedUnit
OdDAIObjectId	m_Dimensions

OdDAI::Enum	m_UnitType

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Friends
class	IfcExternalReferenceRelationship

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

An IfcConversionBasedUnit is used to define a unit that has a conversion rate to a base unit. To identify some commonly used conversion based units, the standard designations (case insensitive) for the Name attribute are indicated in the table below.

Name Description inch Indicates project directives issued by the actor. foot Indicates groups for which the actor is responsible. US survey foot Indicates products for which the actor is responsible. yard Indicates processes for which the actor is responsible. mile Indicates resources for which the actor is responsible. square inch Area measure equal to 0.0006452 square meters square foot Area measure equal to 0.09290 square meters square yard Area measure equal to 0.83612736 square meters acre Area measure equal to 4046.86 square meters square mile Area measure equal to 2 588 881 square meters cubic inch Volume measure equal to 0.00001639 cubic meters cubic foot Volume measure equal to 0.02832 cubic meters cubic yard Volume measure equal to 0.7636 cubic meters litre Volume measure equal to 0.001 cubic meters fluid ounce UK Volume measure equal to 0.0000284130625 cubic meters fluid ounce US Volume measure equal to 0.00002957353 cubic meters pint UK Volume measure equal to 0.000568 cubic meters pint US Volume measure equal to 0.000473 cubic meters gallon UK Volume measure equal to 0.004546 cubic meters gallon US Volume measure equal to 0.003785 cubic meters degree Angle measure equal to π/180 rad ounce Mass measure equal to 28.35 g pound Mass measure equal to 0.454 kg ton UK Mass measure equal to 1016.0469088 kg, also known as long ton, gross ton, shipper's ton ton US Mass measure equal to 907.18474 kg, also known as short ton, net ton lbf Force measure equal to 4.4482216153 N, pound-force kip Force measure equal to 4448.2216153 N, kilopound-force psi Pressure measure equal to 6894.7572932 Pa, pound-force per square inch ksi Pressure measure equal to 6894757.2932 Pa, kilopound-force per square inch minute Time measure equal to 60 s hour Time measure equal to 3600 s day Time measure equal to 86400 s btu Energy measure equal to 1055.056 J, British Thermal Unit

Definition at line 79 of file IFC4X4/IfcConversionBasedUnitAutoImpl.h.

Constructor & Destructor Documentation

◆ IfcConversionBasedUnit()

OdIfc4x4::IfcConversionBasedUnit::IfcConversionBasedUnit ( )

Default constructor for the IfcConversionBasedUnit class.

Member Function Documentation

◆ comparedToEarlyImpl()

virtual bool OdIfc4x4::IfcConversionBasedUnit::comparedToEarlyImpl	(	const OdDAI::ApplicationInstance *	pOther,
		OdRx::Ordering &	ordering ) const

overridevirtual

Early-bound version of instances comparison.

Parameters

pOther	[in] Other application instance.
ordering	[out] Receives the ordering (comparison) status.

Returns: true if comparison was performed, false if method has no implementation, so late-bound version could be applied.

Remarks

If the method returns true, the ordering parameter can receive one of the following statuses:

Value Description kLessThan -1 This object < Other Object. kEqual 0 This object = Other Object. kGreaterThan 1 This object > Other Object. kNotOrderable 2 This class is not orderable.

Reimplemented from OdIfc4x4::IfcNamedUnit.

Reimplemented in OdIfc4x4::IfcConversionBasedUnitWithOffset.

◆ getAttr() [1/2]

virtual OdRxValue OdIfc4x4::IfcConversionBasedUnit::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4x4::IfcNamedUnit.

Reimplemented in OdIfc4x4::IfcConversionBasedUnitWithOffset.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc4x4::IfcConversionBasedUnit::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4x4::IfcNamedUnit.

Reimplemented in OdIfc4x4::IfcConversionBasedUnitWithOffset.

◆ getConversionFactor()

const OdDAIObjectId & OdIfc4x4::IfcConversionBasedUnit::getConversionFactor ( ) const

Returns the value of ConversionFactor attribute. This attribute represents the physical quantity from which the converted unit is derived.

Returns: Returns the value of ConversionFactor attribute.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc4x4::IfcConversionBasedUnit::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc4x4::IfcNamedUnit.

Reimplemented in OdIfc4x4::IfcConversionBasedUnitWithOffset.

◆ getInvHasExternalReference()

void OdIfc4x4::IfcConversionBasedUnit::getInvHasExternalReference ( OdDAIObjectIds & HasExternalReference ) const

Returns the value of HasExternalReference attribute. This attribute represents reference to external information, e.g. library, classification, or document information, which is associated with the conversion-based unit.

Parameters

HasExternalReference [out] Receives the value of HasExternalReference attribute.

◆ getName()

const OdAnsiString & OdIfc4x4::IfcConversionBasedUnit::getName ( ) const

Returns the value of Name attribute. This attribute represents the word, or group of words, by which the conversion based unit is referred to.

Returns: Returns the value of Name attribute.

◆ inFields()

virtual OdResult OdIfc4x4::IfcConversionBasedUnit::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4x4::IfcNamedUnit.

Reimplemented in OdIfc4x4::IfcConversionBasedUnitWithOffset.

◆ isKindOf()

virtual bool OdIfc4x4::IfcConversionBasedUnit::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc4x4::IfcNamedUnit.

Reimplemented in OdIfc4x4::IfcConversionBasedUnitWithOffset.

◆ outFields()

virtual OdResult OdIfc4x4::IfcConversionBasedUnit::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4x4::IfcNamedUnit.

Reimplemented in OdIfc4x4::IfcConversionBasedUnitWithOffset.

◆ putAttr() [1/2]

virtual bool OdIfc4x4::IfcConversionBasedUnit::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4x4::IfcNamedUnit.

Reimplemented in OdIfc4x4::IfcConversionBasedUnitWithOffset.

◆ putAttr() [2/2]

virtual bool OdIfc4x4::IfcConversionBasedUnit::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4x4::IfcNamedUnit.

Reimplemented in OdIfc4x4::IfcConversionBasedUnitWithOffset.

◆ setConversionFactor()

void OdIfc4x4::IfcConversionBasedUnit::setConversionFactor ( const OdDAIObjectId & ConversionFactor )

Sets the value of ConversionFactor attribute. This attribute represents the physical quantity from which the converted unit is derived.

Parameters

ConversionFactor [in] Conversion factor to set.

◆ setName()

void OdIfc4x4::IfcConversionBasedUnit::setName ( const OdAnsiString & Name )

Sets the value of Name attribute. This attribute represents the word, or group of words, by which the conversion based unit is referred to.

Parameters

Name	[in] Name to set.

◆ testAttr() [1/2]

virtual bool OdIfc4x4::IfcConversionBasedUnit::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4x4::IfcNamedUnit.

Reimplemented in OdIfc4x4::IfcConversionBasedUnitWithOffset.

◆ testAttr() [2/2]

virtual bool OdIfc4x4::IfcConversionBasedUnit::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4x4::IfcNamedUnit.

Reimplemented in OdIfc4x4::IfcConversionBasedUnitWithOffset.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc4x4::IfcConversionBasedUnit::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc4x4::IfcNamedUnit.

Reimplemented in OdIfc4x4::IfcConversionBasedUnitWithOffset.
