#include <IfcSectionedSurfaceAutoImpl.h>

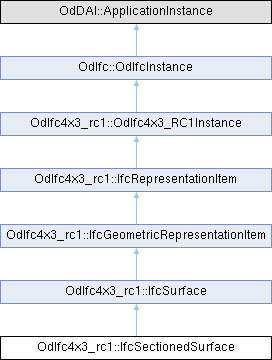

Inheritance diagram for OdIfc4x3_rc1::IfcSectionedSurface:

Public Member Functions
const OdDAIObjectId &	getDirectrix () const

void	setDirectrix (const OdDAIObjectId &Directrix)

void	getCrossSectionPositions (OdDAIObjectIds &CrossSectionPositions) const

OdDAI::ListOfOdDAIObjectId &	crossSectionPositions ()

void	getCrossSections (OdDAIObjectIds &CrossSections) const

OdDAI::ListOfOdDAIObjectId &	crossSections ()

OdDAI::Boolean	getFixedAxisVertical () const

void	setFixedAxisVertical (OdDAI::Boolean FixedAxisVertical)

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual bool	comparedToEarlyImpl (const OdDAI::ApplicationInstance *pOther, OdRx::Ordering &ordering) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc4x3_rc1::IfcRepresentationItem
void	getInvLayerAssignment (OdDAIObjectIds &LayerAssignment) const

void	getInvStyledByItem (OdDAIObjectIds &StyledByItem) const

Public Member Functions inherited from OdIfc4x3_rc1::OdIfc4x3_RC1Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
OdDAIObjectId	m_Directrix

OdDAI::ListOfOdDAIObjectId	m_CrossSectionPositions

OdDAI::ListOfOdDAIObjectId	m_CrossSections

OdDAI::Boolean	m_FixedAxisVertical

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

A kind of surface constructed by sweeping potentially varying open cross sections along a curve horizontally (or near horizontally).

Details - The surface is generated by sweeping the CrossSections between CrossSectionPositions; linear interpolation is assumed, unless transitions curves between cross section points are indicated by OpenCrossProfileDef.Tags.

The profile normal is derived from the associated IfcAxis2PlacementLinear, not necessarily the tangent of the Directrix. The profile Y axis is oriented according to Axis attribute of IfcAxis2PlacementLinear and the X is derived from the cross product of Directrix and the Axis attribute of IfcAxis2PlacementLinear. The image below illustrates an IfcSectionedSurface defined using IfcOpenCrossProfileDef.

In case of branching longitudinal breaklines, the IfcSectionedSurface uses IfcOpenCrossProfileDef instances with varying number of cross section points. In that case, the point in two consecutive cross sections that are connected are identified by the same tag value.

The image below illustrates an IfcSectionedSurface featuring branching longitudinal breaklines.

Definition at line 60 of file Ifc4x3_RC1/IfcSectionedSurfaceAutoImpl.h.

Member Function Documentation

◆ comparedToEarlyImpl()

virtual bool OdIfc4x3_rc1::IfcSectionedSurface::comparedToEarlyImpl	(	const OdDAI::ApplicationInstance *	pOther,
		OdRx::Ordering &	ordering ) const

overridevirtual

Early-bound version of instances comparison.

Parameters

pOther	[in] Other application instance.
ordering	[out] Receives the ordering (comparison) status.

Returns: true if comparison was performed, false if method has no implementation, so late-bound version could be applied.

Remarks

If the method returns true, the ordering parameter can receive one of the following statuses:

Value Description kLessThan -1 This object < Other Object. kEqual 0 This object = Other Object. kGreaterThan 1 This object > Other Object. kNotOrderable 2 This class is not orderable.

Reimplemented from OdIfc4x3_rc1::IfcSurface.

◆ crossSectionPositions()

OdDAI::ListOfOdDAIObjectId & OdIfc4x3_rc1::IfcSectionedSurface::crossSectionPositions ( )

Returns the value of CrossSectionPositions attribute. This attribute represents list of distance expressions in sequentially increasing order paired with CrossSections, indicating the position of the corresponding section along the Directrix.

Returns: Returns the value of CrossSectionPositions attribute.

◆ crossSections()

OdDAI::ListOfOdDAIObjectId & OdIfc4x3_rc1::IfcSectionedSurface::crossSections ( )

Returns the value of CrossSections attribute. This attribute represents list of cross sections in sequential order along the Directrix.

Returns: Returns the value of CrossSections attribute.

◆ getAttr() [1/2]

virtual OdRxValue OdIfc4x3_rc1::IfcSectionedSurface::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc4x3_rc1::IfcSectionedSurface::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4x3_rc1::IfcRepresentationItem.

◆ getCrossSectionPositions()

void OdIfc4x3_rc1::IfcSectionedSurface::getCrossSectionPositions ( OdDAIObjectIds & CrossSectionPositions ) const

Gets the value of CrossSectionPositions attribute. This attribute represents list of distance expressions in sequentially increasing order paired with CrossSections, indicating the position of the corresponding section along the Directrix.

Parameters

CrossSectionPositions [out] Receives the cross section positions.

◆ getCrossSections()

void OdIfc4x3_rc1::IfcSectionedSurface::getCrossSections ( OdDAIObjectIds & CrossSections ) const

Gets the value of CrossSections attribute. This attribute represents list of cross sections in sequential order along the Directrix.

Parameters

CrossSections [out] Receives the cross sections.

◆ getDirectrix()

const OdDAIObjectId & OdIfc4x3_rc1::IfcSectionedSurface::getDirectrix ( ) const

Returns the value of Directrix attribute. This attribute represents the curve used to define the sweeping operation.

Returns: Returns the value of Directrix attribute.

◆ getFixedAxisVertical()

OdDAI::Boolean OdIfc4x3_rc1::IfcSectionedSurface::getFixedAxisVertical ( ) const

Returns the value of FixedAxisVertical attribute. This attribute indicates whether sections are oriented with the Y axis of each profile facing upwards in +Z direction (True), or vertically perpendicular to the Directrix varying according to slope (False).

Returns: Returns the value of FixedAxisVertical attribute.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc4x3_rc1::IfcSectionedSurface::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc4x3_rc1::IfcSurface.

◆ inFields()

virtual OdResult OdIfc4x3_rc1::IfcSectionedSurface::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4x3_rc1::IfcRepresentationItem.

◆ isKindOf()

virtual bool OdIfc4x3_rc1::IfcSectionedSurface::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc4x3_rc1::IfcSurface.

◆ outFields()

virtual OdResult OdIfc4x3_rc1::IfcSectionedSurface::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4x3_rc1::IfcRepresentationItem.

◆ putAttr() [1/2]

virtual bool OdIfc4x3_rc1::IfcSectionedSurface::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc::OdIfcInstance.

◆ putAttr() [2/2]

virtual bool OdIfc4x3_rc1::IfcSectionedSurface::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4x3_rc1::IfcRepresentationItem.

◆ setDirectrix()

void OdIfc4x3_rc1::IfcSectionedSurface::setDirectrix ( const OdDAIObjectId & Directrix )

Sets the value of Directrix attribute. This attribute represents the curve used to define the sweeping operation.

Parameters

Directrix [in] Directrix to set.

◆ setFixedAxisVertical()

void OdIfc4x3_rc1::IfcSectionedSurface::setFixedAxisVertical ( OdDAI::Boolean FixedAxisVertical )

Sets the value of FixedAxisVertical attribute. This attribute indicates whether sections are oriented with the Y axis of each profile facing upwards in +Z direction (True), or vertically perpendicular to the Directrix varying according to slope (False).

Parameters

FixedAxisVertical [in] Fixed axis vertical to set.

◆ testAttr() [1/2]

virtual bool OdIfc4x3_rc1::IfcSectionedSurface::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4x3_rc1::IfcRepresentationItem.

◆ testAttr() [2/2]

virtual bool OdIfc4x3_rc1::IfcSectionedSurface::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4x3_rc1::IfcRepresentationItem.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc4x3_rc1::IfcSectionedSurface::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc4x3_rc1::IfcSurface.

◆ unsetAttr() [1/2]

virtual void OdIfc4x3_rc1::IfcSectionedSurface::unsetAttr ( const char * explicitAttrName )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrName [in] Explicit name of the attribute to reset.

Reimplemented from OdIfc4x3_rc1::IfcRepresentationItem.

◆ unsetAttr() [2/2]

virtual void OdIfc4x3_rc1::IfcSectionedSurface::unsetAttr ( const OdIfc::OdIfcAttribute explicitAttrDef )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrDef [in] Explicit definition that represents an attribute to reset.

Reimplemented from OdIfc4x3_rc1::IfcRepresentationItem.

Member Data Documentation

◆ m_CrossSectionPositions

OdDAI::ListOfOdDAIObjectId OdIfc4x3_rc1::IfcSectionedSurface::m_CrossSectionPositions

protected

Definition at line 265 of file Ifc4x3_RC1/IfcSectionedSurfaceAutoImpl.h.

◆ m_CrossSections

OdDAI::ListOfOdDAIObjectId OdIfc4x3_rc1::IfcSectionedSurface::m_CrossSections

protected

Definition at line 266 of file Ifc4x3_RC1/IfcSectionedSurfaceAutoImpl.h.

◆ m_Directrix

OdDAIObjectId OdIfc4x3_rc1::IfcSectionedSurface::m_Directrix

protected

Definition at line 264 of file Ifc4x3_RC1/IfcSectionedSurfaceAutoImpl.h.

◆ m_FixedAxisVertical

OdDAI::Boolean OdIfc4x3_rc1::IfcSectionedSurface::m_FixedAxisVertical

protected

Definition at line 267 of file Ifc4x3_RC1/IfcSectionedSurfaceAutoImpl.h.

The documentation for this class was generated from the following file:

Ifc4x3_RC1/IfcSectionedSurfaceAutoImpl.h

Public Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ comparedToEarlyImpl()

◆ crossSectionPositions()

◆ crossSections()

◆ getAttr() [1/2]

◆ getAttr() [2/2]

◆ getCrossSectionPositions()

◆ getCrossSections()

◆ getDirectrix()

◆ getFixedAxisVertical()

◆ getInstanceType()

◆ inFields()

◆ isKindOf()

◆ outFields()

◆ putAttr() [1/2]

◆ putAttr() [2/2]

◆ setDirectrix()

◆ setFixedAxisVertical()

◆ testAttr() [1/2]

◆ testAttr() [2/2]

◆ type()

◆ unsetAttr() [1/2]

◆ unsetAttr() [2/2]

Member Data Documentation

◆ m_CrossSectionPositions

◆ m_CrossSections

◆ m_Directrix

◆ m_FixedAxisVertical
