#include <IfcEdgeCurveAutoImpl.h>

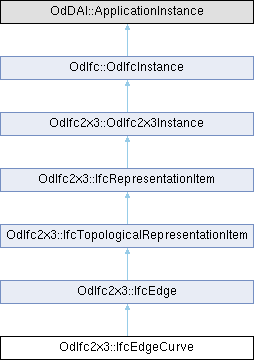

Inheritance diagram for OdIfc2x3::IfcEdgeCurve:

Public Member Functions
const OdDAIObjectId &	getEdgeGeometry () const

void	setEdgeGeometry (const OdDAIObjectId &EdgeGeometry)

OdDAI::Boolean	getSameSense () const

void	setSameSense (OdDAI::Boolean SameSense)

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual bool	comparedToEarlyImpl (const OdDAI::ApplicationInstance *pOther, OdRx::Ordering &ordering) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc2x3::IfcEdge
const OdDAIObjectId &	getEdgeStart () const

void	setEdgeStart (const OdDAIObjectId &EdgeStart)

const OdDAIObjectId &	getEdgeEnd () const

void	setEdgeEnd (const OdDAIObjectId &EdgeEnd)

Public Member Functions inherited from OdIfc2x3::IfcRepresentationItem
void	getInvLayerAssignments (OdDAIObjectIds &LayerAssignments) const

void	getInvStyledByItem (OdDAIObjectIds &StyledByItem) const

Public Member Functions inherited from OdIfc2x3::OdIfc2x3Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
OdDAIObjectId	m_EdgeGeometry

OdDAI::Boolean	m_SameSense

Protected Attributes inherited from OdIfc2x3::IfcEdge
OdDAIObjectId	m_EdgeStart

OdDAIObjectId	m_EdgeEnd

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

An IfcEdgeCurve defines two vertices that are connected topologically including the geometric representation of the connection.

Details - The image below illustrates an example where the edge geometry is specified by an unbounded curve, here IfcCircle. The bounds are provided by the EdgeStart and EdgeEnd, the topological direction of the IfcEdgeCurve opposes the direction of the IfcCircle by SameSense = FALSE.

Definition at line 48 of file Ifc2x3/IfcEdgeCurveAutoImpl.h.

Member Function Documentation

◆ comparedToEarlyImpl()

virtual bool OdIfc2x3::IfcEdgeCurve::comparedToEarlyImpl	(	const OdDAI::ApplicationInstance *	pOther,
		OdRx::Ordering &	ordering ) const

overridevirtual

Early-bound version of instances comparison.

Parameters

pOther	[in] Other application instance.
ordering	[out] Receives the ordering (comparison) status.

Returns: true if comparison was performed, false if method has no implementation, so late-bound version could be applied.

Remarks

If the method returns true, the ordering parameter can receive one of the following statuses:

Value Description kLessThan -1 This object < Other Object. kEqual 0 This object = Other Object. kGreaterThan 1 This object > Other Object. kNotOrderable 2 This class is not orderable.

Reimplemented from OdIfc2x3::IfcEdge.

◆ getAttr() [1/2]

virtual OdRxValue OdIfc2x3::IfcEdgeCurve::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc2x3::IfcEdge.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc2x3::IfcEdgeCurve::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc2x3::IfcEdge.

◆ getEdgeGeometry()

const OdDAIObjectId & OdIfc2x3::IfcEdgeCurve::getEdgeGeometry ( ) const

Returns the value of EdgeGeometry attribute. This attribute represents the curve which defines the shape and spatial location of the edge. This curve can be unbounded and is implicitly trimmed by the vertices of the edge; this defines the edge domain. Multiple edges can reference the same curve.

Returns: Returns the value of EdgeGeometry attribute.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc2x3::IfcEdgeCurve::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc2x3::IfcEdge.

◆ getSameSense()

OdDAI::Boolean OdIfc2x3::IfcEdgeCurve::getSameSense ( ) const

Returns the value of SameSense attribute. This attribute indicates whether the senses of the edge and the curve defining the edge geometry are the same. The sense of an edge is from the edge start vertex to the edge end vertex; the sense of a curve is in the direction of increasing parameter.

Returns: Returns the value of SameSense attribute.

◆ inFields()

virtual OdResult OdIfc2x3::IfcEdgeCurve::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc2x3::IfcEdge.

◆ isKindOf()

virtual bool OdIfc2x3::IfcEdgeCurve::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc2x3::IfcEdge.

◆ outFields()

virtual OdResult OdIfc2x3::IfcEdgeCurve::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc2x3::IfcEdge.

◆ putAttr() [1/2]

virtual bool OdIfc2x3::IfcEdgeCurve::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc2x3::IfcEdge.

◆ putAttr() [2/2]

virtual bool OdIfc2x3::IfcEdgeCurve::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc2x3::IfcEdge.

◆ setEdgeGeometry()

void OdIfc2x3::IfcEdgeCurve::setEdgeGeometry ( const OdDAIObjectId & EdgeGeometry )

Sets the value of EdgeGeometry attribute. This attribute represents the curve which defines the shape and spatial location of the edge. This curve can be unbounded and is implicitly trimmed by the vertices of the edge; this defines the edge domain. Multiple edges can reference the same curve.

Parameters

EdgeGeometry [in] Edge geometry to set.

◆ setSameSense()

void OdIfc2x3::IfcEdgeCurve::setSameSense ( OdDAI::Boolean SameSense )

Sets the value of SameSense attribute. This attribute indicates whether the senses of the edge and the curve defining the edge geometry are the same. The sense of an edge is from the edge start vertex to the edge end vertex; the sense of a curve is in the direction of increasing parameter.

Parameters

SameSense [in] SameSense attribute to set.

◆ testAttr() [1/2]

virtual bool OdIfc2x3::IfcEdgeCurve::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc2x3::IfcEdge.

◆ testAttr() [2/2]

virtual bool OdIfc2x3::IfcEdgeCurve::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc2x3::IfcEdge.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc2x3::IfcEdgeCurve::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc2x3::IfcEdge.

◆ unsetAttr() [1/2]

virtual void OdIfc2x3::IfcEdgeCurve::unsetAttr ( const char * explicitAttrName )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrName [in] Explicit name of the attribute to reset.

Reimplemented from OdIfc2x3::IfcEdge.

◆ unsetAttr() [2/2]

virtual void OdIfc2x3::IfcEdgeCurve::unsetAttr ( const OdIfc::OdIfcAttribute explicitAttrDef )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrDef [in] Explicit definition that represents an attribute to reset.

Reimplemented from OdIfc2x3::IfcEdge.

Member Data Documentation

◆ m_EdgeGeometry

OdDAIObjectId OdIfc2x3::IfcEdgeCurve::m_EdgeGeometry

protected

Definition at line 224 of file Ifc2x3/IfcEdgeCurveAutoImpl.h.

◆ m_SameSense

OdDAI::Boolean OdIfc2x3::IfcEdgeCurve::m_SameSense

protected

Definition at line 225 of file Ifc2x3/IfcEdgeCurveAutoImpl.h.

The documentation for this class was generated from the following file:

Ifc2x3/IfcEdgeCurveAutoImpl.h
