#include <IfcElementQuantityAutoImpl.h>

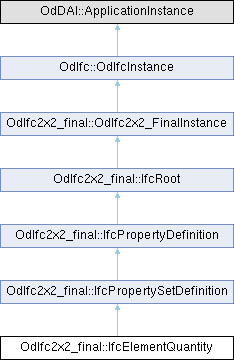

Inheritance diagram for OdIfc2x2_final::IfcElementQuantity:

Public Member Functions
const OdAnsiString &	getMethodOfMeasurement () const

void	setMethodOfMeasurement (const OdAnsiString &MethodOfMeasurement)

void	getQuantities (OdDAIObjectIds &Quantities) const

OdDAI::SetOfOdDAIObjectId &	quantities ()

	IfcElementQuantity ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc2x2_final::IfcPropertySetDefinition
void	getInvPropertyDefinitionOf (OdDAIObjectIds &PropertyDefinitionOf) const

void	getInvDefinesType (OdDAIObjectIds &DefinesType) const

Public Member Functions inherited from OdIfc2x2_final::IfcPropertyDefinition
void	getInvHasAssociations (OdDAIObjectIds &HasAssociations) const

Public Member Functions inherited from OdIfc2x2_final::IfcRoot
OdDAI::CompressedGUID	getGlobalId () const

void	setGlobalId (OdDAI::CompressedGUID GlobalId)

const OdDAIObjectId &	getOwnerHistory () const

void	setOwnerHistory (const OdDAIObjectId &OwnerHistory)

const OdAnsiString &	getName () const

void	setName (const OdAnsiString &Name)

const OdAnsiString &	getDescription () const

void	setDescription (const OdAnsiString &Description)

	IfcRoot ()

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
OdAnsiString	m_MethodOfMeasurement

OdDAI::SetOfOdDAIObjectId	m_Quantities

Protected Attributes inherited from OdIfc2x2_final::IfcRoot
OdDAI::CompressedGUID	m_GlobalId

OdDAIObjectId	m_OwnerHistory

OdAnsiString	m_Name

OdAnsiString	m_Description

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Protected Member Functions inherited from OdIfc2x2_final::IfcPropertySetDefinition
virtual OdRxValue	getAttr (const char *attrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

Detailed Description

An IfcElementQuantity defines a set of derived measures of an element's physical property. Elements could be spatial structure elements (like buildings, storeys, or spaces) or building elements (like walls, slabs, finishes). The IfcElementQuantity gets assigned to the element by using the IfcRelDefinesByProperties relationship.

The IfcElementQuantity can have the following subtypes of IfcPhysicalQuantity within its SET of Quantities, which count for the basis measure types used: Count measure Weight measure Length measure Area measure Volume measure Time measure

Base quantities are quantity definitions that are independent of a particular method of measurement and therefore internationally applicable. Base quantities are defined as gross and net values and provided by measurement of the correct geometric shape representation of the element. This specification includes a set of base quantity definition. See each subtype of IfcElement for applicable base quantities.

Definition at line 54 of file Ifc2x2_Final/IfcElementQuantityAutoImpl.h.

Constructor & Destructor Documentation

◆ IfcElementQuantity()

OdIfc2x2_final::IfcElementQuantity::IfcElementQuantity ( )

Default constructor for the IfcElementQuantity class.

Member Function Documentation

◆ getAttr() [1/2]

virtual OdRxValue OdIfc2x2_final::IfcElementQuantity::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc2x2_final::IfcRoot.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc2x2_final::IfcElementQuantity::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc2x2_final::IfcPropertySetDefinition.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc2x2_final::IfcElementQuantity::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc2x2_final::IfcPropertySetDefinition.

◆ getMethodOfMeasurement()

const OdAnsiString & OdIfc2x2_final::IfcElementQuantity::getMethodOfMeasurement ( ) const

Returns the value of MethodOfMeasurement attribute. This attribute represents name of the method of measurement used to calculate the element quantity. The method of measurement attribute has to be made recognizable by further agreements.

Returns: Returns the value of MethodOfMeasurement attribute.

Remarks: IFC2x2 Addendum 1 change: The attribute has been changed to be optional.

◆ getQuantities()

void OdIfc2x2_final::IfcElementQuantity::getQuantities ( OdDAIObjectIds & Quantities ) const

Returns the value of Quantities attribute. This attribute represents the individual quantities for the element, can be a set of length, area, volume, weight or count based quantities.

Parameters

Quantities [out] Receives the Quantities attribute.

◆ inFields()

virtual OdResult OdIfc2x2_final::IfcElementQuantity::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc2x2_final::IfcPropertySetDefinition.

◆ isKindOf()

virtual bool OdIfc2x2_final::IfcElementQuantity::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc2x2_final::IfcPropertySetDefinition.

◆ outFields()

virtual OdResult OdIfc2x2_final::IfcElementQuantity::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc2x2_final::IfcPropertySetDefinition.

◆ putAttr() [1/2]

virtual bool OdIfc2x2_final::IfcElementQuantity::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc2x2_final::IfcRoot.

◆ putAttr() [2/2]

virtual bool OdIfc2x2_final::IfcElementQuantity::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc2x2_final::IfcPropertySetDefinition.

◆ quantities()

OdDAI::SetOfOdDAIObjectId & OdIfc2x2_final::IfcElementQuantity::quantities ( )

Returns the value of Quantities attribute. This attribute represents the individual quantities for the element, can be a set of length, area, volume, weight or count based quantities.

Returns: Returns the value of Quantities attribute.

◆ setMethodOfMeasurement()

void OdIfc2x2_final::IfcElementQuantity::setMethodOfMeasurement ( const OdAnsiString & MethodOfMeasurement )

Sets the value of MethodOfMeasurement attribute. This attribute represents name of the method of measurement used to calculate the element quantity. The method of measurement attribute has to be made recognizable by further agreements.

Parameters

MethodOfMeasurement [in] Method of measurement to set.

Remarks: IFC2x2 Addendum 1 change: The attribute has been changed to be optional.

◆ testAttr() [1/2]

virtual bool OdIfc2x2_final::IfcElementQuantity::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc2x2_final::IfcPropertySetDefinition.

◆ testAttr() [2/2]

virtual bool OdIfc2x2_final::IfcElementQuantity::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc2x2_final::IfcPropertySetDefinition.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc2x2_final::IfcElementQuantity::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc2x2_final::IfcPropertySetDefinition.

◆ unsetAttr() [1/2]

virtual void OdIfc2x2_final::IfcElementQuantity::unsetAttr ( const char * explicitAttrName )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrName [in] Explicit name of the attribute to reset.

Reimplemented from OdIfc2x2_final::IfcPropertySetDefinition.

◆ unsetAttr() [2/2]

virtual void OdIfc2x2_final::IfcElementQuantity::unsetAttr ( const OdIfc::OdIfcAttribute explicitAttrDef )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrDef [in] Explicit definition that represents an attribute to reset.

Reimplemented from OdIfc2x2_final::IfcPropertySetDefinition.

Member Data Documentation

◆ m_MethodOfMeasurement

OdAnsiString OdIfc2x2_final::IfcElementQuantity::m_MethodOfMeasurement

protected

Definition at line 216 of file Ifc2x2_Final/IfcElementQuantityAutoImpl.h.

◆ m_Quantities

OdDAI::SetOfOdDAIObjectId OdIfc2x2_final::IfcElementQuantity::m_Quantities

protected

Definition at line 217 of file Ifc2x2_Final/IfcElementQuantityAutoImpl.h.

The documentation for this class was generated from the following file:

Ifc2x2_Final/IfcElementQuantityAutoImpl.h
