Public Member Functions | List of all members
OdIfc2x3::IfcPlane Class Reference

#include <IfcPlaneAutoImpl.h>

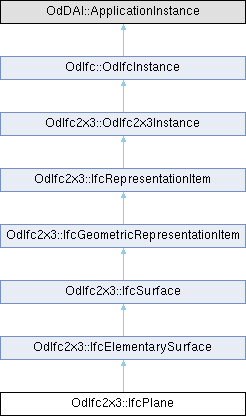

Inheritance diagram for OdIfc2x3::IfcPlane:
OdIfc2x3::IfcElementarySurface OdIfc2x3::IfcSurface OdIfc2x3::IfcGeometricRepresentationItem OdIfc2x3::IfcRepresentationItem OdIfc2x3::OdIfc2x3Instance OdIfc::OdIfcInstance

Public Member Functions

virtual OdDAI::Entity * getInstanceType () const override

virtual bool comparedToEarlyImpl (const OdDAI::ApplicationInstance *pOther, OdRx::Ordering &ordering) const override

virtual bool isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType type () const override

- Public Member Functions inherited from OdIfc2x3::IfcElementarySurface
const OdDAIObjectId & getPosition () const

void setPosition (const OdDAIObjectId &Position)

virtual OdResult inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdRxValue getAttr (const char *attrName) const override

virtual void unsetAttr (const char *explicitAttrName) override

virtual bool testAttr (const char *explicitAttrName) const override

virtual bool putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual OdRxValue getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

- Public Member Functions inherited from OdIfc2x3::IfcRepresentationItem
void getInvLayerAssignments (OdDAIObjectIds &LayerAssignments) const

void getInvStyledByItem (OdDAIObjectIds &StyledByItem) const

- Public Member Functions inherited from OdIfc2x3::OdIfc2x3Instance
void setInverseCounterParts () override

- Public Member Functions inherited from OdIfc::OdIfcInstance
 ODRX_DECLARE_MEMBERS (OdIfcInstance)

 OdIfcInstance ()

 ~OdIfcInstance ()

bool isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult resolved ()

void resolve (IfcOpResult resolved, void *resPtr)

void unresolve ()

virtual void setGsNode (OdGsCache *pGsNode)

virtual OdGsCache * gsNode () const

virtual OdUInt32 subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub * ownerId () const


Additional Inherited Members

- Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d * asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d * asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d * asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d * asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d * asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d * asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor * asRgbColor (const OdIfcInstance *inst)

- Protected Attributes inherited from OdIfc2x3::IfcElementarySurface
OdDAIObjectId m_Position

- Protected Attributes inherited from OdIfc::OdIfcInstance
void * m_resPtr

IfcOpResult m_resolved


Detailed Description

The planar surface is an unbounded surface in the direction of x and y. Bounded planar surfaces are defined by using a subtype of IfcBoundedSurface with BasisSurface being a plane.

Definition at line 41 of file Ifc2x3/IfcPlaneAutoImpl.h.

Member Function Documentation

◆ comparedToEarlyImpl()

virtual bool OdIfc2x3::IfcPlane::comparedToEarlyImpl ( const OdDAI::ApplicationInstance * pOther,
OdRx::Ordering & ordering ) const
overridevirtual

Early-bound version of instances comparison.

Parameters
pOther[in] Other application instance.
ordering[out] Receives the ordering (comparison) status.
Returns
true if comparison was performed, false if method has no implementation, so late-bound version could be applied.
Remarks
If the method returns true, the ordering parameter can receive one of the following statuses:
Value Description kLessThan -1 This object < Other Object. kEqual 0 This object = Other Object. kGreaterThan 1 This object > Other Object. kNotOrderable 2 This class is not orderable.

Reimplemented from OdIfc2x3::IfcElementarySurface.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc2x3::IfcPlane::getInstanceType ( ) const
overridevirtual

Returns a type of a class instance.

Returns
Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc2x3::IfcElementarySurface.

◆ isKindOf()

virtual bool OdIfc2x3::IfcPlane::isKindOf ( OdIfc::OdIfcEntityType entityType) const
overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters
entityType[in] Entity to check.
Returns
true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc2x3::IfcElementarySurface.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc2x3::IfcPlane::type ( ) const
overridevirtual

Returns the type of this entity.

Returns
A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc2x3::IfcElementarySurface.

The documentation for this class was generated from the following file:
