#include <IfcFacilityAutoImpl.h>

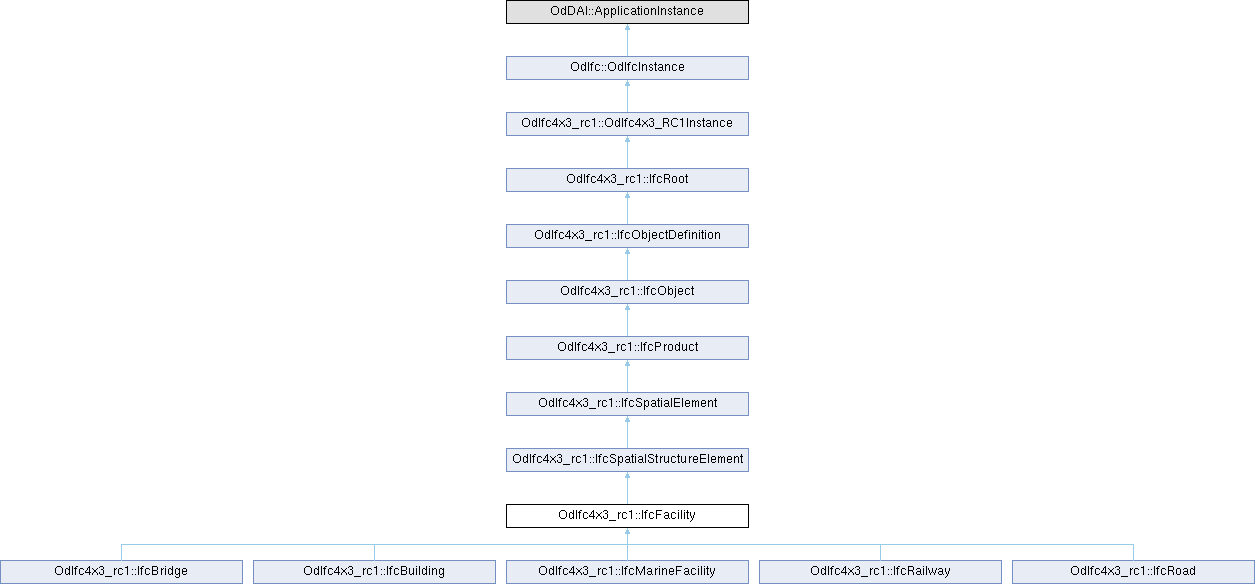

Inheritance diagram for OdIfc4x3_rc1::IfcFacility:

Public Member Functions
virtual OdDAI::Entity *	getInstanceType () const override

virtual bool	comparedToEarlyImpl (const OdDAI::ApplicationInstance *pOther, OdRx::Ordering &ordering) const override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

Public Member Functions inherited from OdIfc4x3_rc1::IfcSpatialStructureElement
IfcElementCompositionEnum	getCompositionType () const

void	setCompositionType (IfcElementCompositionEnum CompositionType)

	IfcSpatialStructureElement ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc4x3_rc1::IfcSpatialElement
const OdAnsiString &	getLongName () const

void	setLongName (const OdAnsiString &LongName)

void	getInvContainsElements (OdDAIObjectIds &ContainsElements) const

void	getInvServicedBySystems (OdDAIObjectIds &ServicedBySystems) const

void	getInvReferencesElements (OdDAIObjectIds &ReferencesElements) const

	IfcSpatialElement ()

Public Member Functions inherited from OdIfc4x3_rc1::IfcProduct
const OdDAIObjectId &	getObjectPlacement () const

void	setObjectPlacement (const OdDAIObjectId &ObjectPlacement)

const OdDAIObjectId &	getRepresentation () const

void	setRepresentation (const OdDAIObjectId &Representation)

void	getInvReferencedBy (OdDAIObjectIds &ReferencedBy) const

void	getInvPositionedRelativeTo (OdDAIObjectIds &PositionedRelativeTo) const

void	getInvReferencedInStructures (OdDAIObjectIds &ReferencedInStructures) const

virtual void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc4x3_rc1::IfcObject
const OdAnsiString &	getObjectType () const

void	setObjectType (const OdAnsiString &ObjectType)

void	getInvIsDeclaredBy (OdDAIObjectIds &IsDeclaredBy) const

void	getInvDeclares (OdDAIObjectIds &Declares) const

void	getInvIsTypedBy (OdDAIObjectIds &IsTypedBy) const

void	getInvIsDefinedBy (OdDAIObjectIds &IsDefinedBy) const

	IfcObject ()

Public Member Functions inherited from OdIfc4x3_rc1::IfcObjectDefinition
void	getInvHasAssignments (OdDAIObjectIds &HasAssignments) const

void	getInvNests (OdDAIObjectIds &Nests) const

void	getInvIsNestedBy (OdDAIObjectIds &IsNestedBy) const

void	getInvHasContext (OdDAIObjectIds &HasContext) const

void	getInvIsDecomposedBy (OdDAIObjectIds &IsDecomposedBy) const

void	getInvDecomposes (OdDAIObjectIds &Decomposes) const

void	getInvHasAssociations (OdDAIObjectIds &HasAssociations) const

Public Member Functions inherited from OdIfc4x3_rc1::IfcRoot
OdDAI::CompressedGUID	getGlobalId () const

void	setGlobalId (OdDAI::CompressedGUID GlobalId)

const OdDAIObjectId &	getOwnerHistory () const

void	setOwnerHistory (const OdDAIObjectId &OwnerHistory)

const OdAnsiString &	getName () const

void	setName (const OdAnsiString &Name)

const OdAnsiString &	getDescription () const

void	setDescription (const OdAnsiString &Description)

	IfcRoot ()

Public Member Functions inherited from OdIfc4x3_rc1::OdIfc4x3_RC1Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Protected Attributes inherited from OdIfc4x3_rc1::IfcSpatialStructureElement
OdDAI::Enum	m_CompositionType

Protected Attributes inherited from OdIfc4x3_rc1::IfcSpatialElement
OdAnsiString	m_LongName

Protected Attributes inherited from OdIfc4x3_rc1::IfcProduct
OdDAIObjectId	m_ObjectPlacement

OdDAIObjectId	m_Representation

Protected Attributes inherited from OdIfc4x3_rc1::IfcObject
OdAnsiString	m_ObjectType

Protected Attributes inherited from OdIfc4x3_rc1::IfcRoot
OdDAI::CompressedGUID	m_GlobalId

OdDAIObjectId	m_OwnerHistory

OdAnsiString	m_Name

OdAnsiString	m_Description

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Detailed Description

A Facility (derived from IfcSpatialStructureElement) can be an IfcBuilding, an IfcBridge, an IfcRailway, an IfcRoad, an IfcMarineFacility.

Body Geometry - In the case of alignment based infrastructure, the geometric representation can be defined using IfcSectionedSolidHorizontal or IfcSweptAreaSolid.
Product Local Placement - The placement for IfcFacility is defined in its supertype IfcProduct. It is defined by either IfcLocalPlacement or by IfcLinearPlacement which define the local coordinate system that is referenced by all geometric representations. The PlacementRelTo relationship of IfcObjectPlacement point (if relative placement is used) to the IfcSpatialStructureElement of IfcSite type, or of IfcFacility type (e.g. to position a facility relative to a facility complex, or a facility section to a facility). If the relative placement is not used, the absolute placement is defined within the world coordinate system.
Spatial Composition - This concept can be applied to the following resources: IfcProject - Direct assignment to project, if the facility is the outermost spatial container, and no site information is provided for the building projects IfcSite - Assignment to site, if the facility is the spatial container for the building project with site information IfcFacility - Assignment to another facility as spatial container, e.g. if this facility represents a facility section
Spatial Decomposition - This concept can be applied to the following resources: IfcFacility - Spatial decomposition into other buildings, e.g. if this building represents a complex facilities that is subdivided into facility sections. IfcFacilityPartCommon IfcSpace

Definition at line 63 of file Ifc4x3_RC1/IfcFacilityAutoImpl.h.

Member Function Documentation

◆ comparedToEarlyImpl()

virtual bool OdIfc4x3_rc1::IfcFacility::comparedToEarlyImpl	(	const OdDAI::ApplicationInstance *	pOther,
		OdRx::Ordering &	ordering ) const

overridevirtual

Early-bound version of instances comparison.

Parameters

pOther	[in] Other application instance.
ordering	[out] Receives the ordering (comparison) status.

Returns: true if comparison was performed, false if method has no implementation, so late-bound version could be applied.

Remarks

If the method returns true, the ordering parameter can receive one of the following statuses:

Value Description kLessThan -1 This object < Other Object. kEqual 0 This object = Other Object. kGreaterThan 1 This object > Other Object. kNotOrderable 2 This class is not orderable.

Reimplemented from OdIfc4x3_rc1::IfcSpatialStructureElement.

Reimplemented in OdIfc4x3_rc1::IfcBridge, OdIfc4x3_rc1::IfcBuilding, OdIfc4x3_rc1::IfcMarineFacility, OdIfc4x3_rc1::IfcRailway, and OdIfc4x3_rc1::IfcRoad.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc4x3_rc1::IfcFacility::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc4x3_rc1::IfcSpatialStructureElement.

Reimplemented in OdIfc4x3_rc1::IfcBridge, OdIfc4x3_rc1::IfcBuilding, OdIfc4x3_rc1::IfcMarineFacility, OdIfc4x3_rc1::IfcRailway, and OdIfc4x3_rc1::IfcRoad.

◆ isKindOf()

virtual bool OdIfc4x3_rc1::IfcFacility::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc4x3_rc1::IfcSpatialStructureElement.

Reimplemented in OdIfc4x3_rc1::IfcBridge, OdIfc4x3_rc1::IfcBuilding, OdIfc4x3_rc1::IfcMarineFacility, OdIfc4x3_rc1::IfcRailway, and OdIfc4x3_rc1::IfcRoad.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc4x3_rc1::IfcFacility::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc4x3_rc1::IfcSpatialStructureElement.

Reimplemented in OdIfc4x3_rc1::IfcBridge, OdIfc4x3_rc1::IfcBuilding, OdIfc4x3_rc1::IfcMarineFacility, OdIfc4x3_rc1::IfcRailway, and OdIfc4x3_rc1::IfcRoad.

The documentation for this class was generated from the following file:

Ifc4x3_RC1/IfcFacilityAutoImpl.h
