#include <IfcObjectPlacementAutoImpl.h>

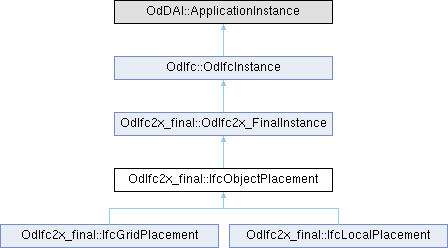

Inheritance diagram for OdIfc2x_final::IfcObjectPlacement:

Public Member Functions
void	getInvReferencedByPlacements (OdDAIObjectIds &ReferencedByPlacements) const

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val)

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Friends
class	IfcLocalPlacement

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Detailed Description

IfcObjectPlacement is an abstract supertype for the special types defining the object coordinate system. The IfcObjectPlacement has to be provided for each product that has a shape representation.

The object placement can be specified: Absolute: by an axis2 placement, relative to the world coordinate system Relative: by an axis2 placement, relative to the object placement of another product By grid reference: by the virtual intersection and reference direction specified by two axes of a design grid Linear placement: by distance along a curve, with possible offsets

Object placement has to unambiguously define the object coordinate system as either two-dimensional axis placement (IfcAxis2Placement2D) or three-dimensional axis placement (IfcAxis2Placement3D).

Remarks: This definition may not be instantiated

Definition at line 57 of file Ifc2x_Final/IfcObjectPlacementAutoImpl.h.

Member Function Documentation

◆ getAttr()

virtual OdRxValue OdIfc2x_final::IfcObjectPlacement::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc2x_final::IfcGridPlacement, and OdIfc2x_final::IfcLocalPlacement.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc2x_final::IfcObjectPlacement::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented in OdIfc2x_final::IfcGridPlacement, and OdIfc2x_final::IfcLocalPlacement.

◆ getInvReferencedByPlacements()

void OdIfc2x_final::IfcObjectPlacement::getInvReferencedByPlacements ( OdDAIObjectIds & ReferencedByPlacements ) const

Returns the value of ReferencedByPlacements attribute. This attribute represents placements that are specified relative to this placement of an object.

Parameters

ReferencedByPlacements [out] Receives the value of ReferencedByPlacements attribute.

◆ inFields()

virtual OdResult OdIfc2x_final::IfcObjectPlacement::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented in OdIfc2x_final::IfcGridPlacement, and OdIfc2x_final::IfcLocalPlacement.

◆ isKindOf()

virtual bool OdIfc2x_final::IfcObjectPlacement::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc2x_final::IfcGridPlacement, and OdIfc2x_final::IfcLocalPlacement.

◆ outFields()

virtual OdResult OdIfc2x_final::IfcObjectPlacement::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented in OdIfc2x_final::IfcGridPlacement, and OdIfc2x_final::IfcLocalPlacement.

◆ putAttr()

virtual bool OdIfc2x_final::IfcObjectPlacement::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc2x_final::IfcGridPlacement, and OdIfc2x_final::IfcLocalPlacement.

◆ testAttr() [1/2]

virtual bool OdIfc2x_final::IfcObjectPlacement::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc2x_final::IfcGridPlacement, and OdIfc2x_final::IfcLocalPlacement.

◆ testAttr() [2/2]

virtual bool OdIfc2x_final::IfcObjectPlacement::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc2x_final::IfcGridPlacement, and OdIfc2x_final::IfcLocalPlacement.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc2x_final::IfcObjectPlacement::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc2x_final::IfcGridPlacement, and OdIfc2x_final::IfcLocalPlacement.
