#include <IfcParameterizedProfileDefAutoImpl.h>

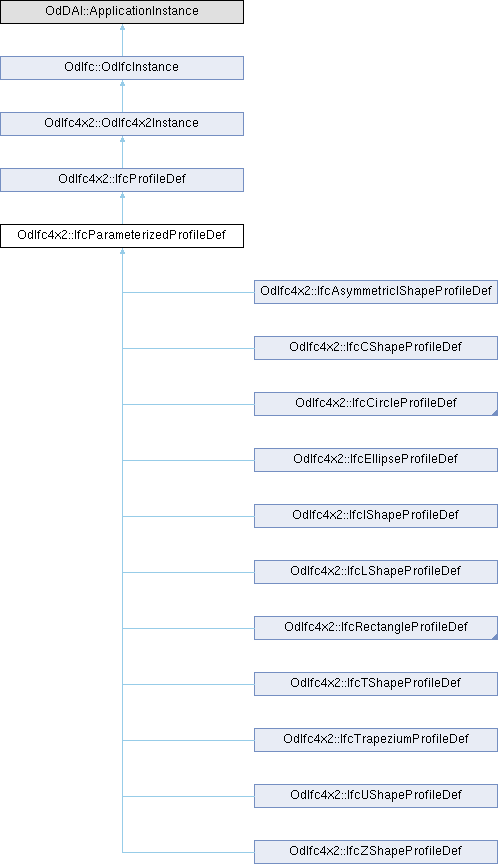

Inheritance diagram for OdIfc4x2::IfcParameterizedProfileDef:

Public Member Functions
const OdDAIObjectId &	getPosition () const

void	setPosition (const OdDAIObjectId &Position)

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc4x2::IfcProfileDef
IfcProfileTypeEnum	getProfileType () const

void	setProfileType (IfcProfileTypeEnum ProfileType)

const OdAnsiString &	getProfileName () const

void	setProfileName (const OdAnsiString &ProfileName)

void	getInvHasExternalReference (OdDAIObjectIds &HasExternalReference) const

void	getInvHasProperties (OdDAIObjectIds &HasProperties) const

	IfcProfileDef ()

Public Member Functions inherited from OdIfc4x2::OdIfc4x2Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
OdDAIObjectId	m_Position

Protected Attributes inherited from OdIfc4x2::IfcProfileDef
OdDAI::Enum	m_ProfileType

OdAnsiString	m_ProfileName

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

The parameterized profile definition defines a 2D position coordinate system to which the parameters of the different profiles relate to. All profiles are defined centric to the origin of the position coordinate system, or more specific, the origin [0.,0.] is in the center of the bounding box of the profile.

The Position attribute of IfcParameterizedProfileDef is used to position the profile within the XY plane of the underlying coordinate system of the swept surface geometry, the swept area solid or the sectioned spine. It can be used to position the profile at any point which becomes the origin [0.,0.,0.] of the extruded or rotated surface or solid. The Position attribute should not be used if the transformation can be specified in a containing object instead. In particular, this applies if the IfcParameterizedProfileDef is referenced as SweptArea in subtypes of IfcSweptAreaSolid or as CrossSections in IfcSectionedSpine.

Remarks: This definition may not be instantiated

\changes

IFC4 changes: Attribute Position is optional, changed from "False" to "True"

Definition at line 58 of file Ifc4x2/IfcParameterizedProfileDefAutoImpl.h.

Member Function Documentation

◆ getAttr() [1/2]

virtual OdRxValue OdIfc4x2::IfcParameterizedProfileDef::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4x2::IfcProfileDef.

Reimplemented in OdIfc4x2::IfcAsymmetricIShapeProfileDef, OdIfc4x2::IfcCircleHollowProfileDef, OdIfc4x2::IfcCircleProfileDef, OdIfc4x2::IfcCShapeProfileDef, OdIfc4x2::IfcEllipseProfileDef, OdIfc4x2::IfcIShapeProfileDef, OdIfc4x2::IfcLShapeProfileDef, OdIfc4x2::IfcRectangleHollowProfileDef, OdIfc4x2::IfcRectangleProfileDef, OdIfc4x2::IfcRoundedRectangleProfileDef, OdIfc4x2::IfcTrapeziumProfileDef, OdIfc4x2::IfcTShapeProfileDef, OdIfc4x2::IfcUShapeProfileDef, and OdIfc4x2::IfcZShapeProfileDef.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc4x2::IfcParameterizedProfileDef::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4x2::IfcProfileDef.

Reimplemented in OdIfc4x2::IfcAsymmetricIShapeProfileDef, OdIfc4x2::IfcCircleHollowProfileDef, OdIfc4x2::IfcCircleProfileDef, OdIfc4x2::IfcCShapeProfileDef, OdIfc4x2::IfcEllipseProfileDef, OdIfc4x2::IfcIShapeProfileDef, OdIfc4x2::IfcLShapeProfileDef, OdIfc4x2::IfcRectangleHollowProfileDef, OdIfc4x2::IfcRectangleProfileDef, OdIfc4x2::IfcRoundedRectangleProfileDef, OdIfc4x2::IfcTrapeziumProfileDef, OdIfc4x2::IfcTShapeProfileDef, OdIfc4x2::IfcUShapeProfileDef, and OdIfc4x2::IfcZShapeProfileDef.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc4x2::IfcParameterizedProfileDef::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc4x2::IfcProfileDef.

Reimplemented in OdIfc4x2::IfcAsymmetricIShapeProfileDef, OdIfc4x2::IfcCircleHollowProfileDef, OdIfc4x2::IfcCircleProfileDef, OdIfc4x2::IfcCShapeProfileDef, OdIfc4x2::IfcEllipseProfileDef, OdIfc4x2::IfcIShapeProfileDef, OdIfc4x2::IfcLShapeProfileDef, OdIfc4x2::IfcRectangleHollowProfileDef, OdIfc4x2::IfcRectangleProfileDef, OdIfc4x2::IfcRoundedRectangleProfileDef, OdIfc4x2::IfcTrapeziumProfileDef, OdIfc4x2::IfcTShapeProfileDef, OdIfc4x2::IfcUShapeProfileDef, and OdIfc4x2::IfcZShapeProfileDef.

◆ getPosition()

const OdDAIObjectId & OdIfc4x2::IfcParameterizedProfileDef::getPosition ( ) const

Returns the value of Position attribute. This attribute represents position coordinate system of the parameterized profile definition. If not specified, no translation and no rotation is applied.

Returns: Returns the value of Position attribute.

◆ inFields()

virtual OdResult OdIfc4x2::IfcParameterizedProfileDef::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4x2::IfcProfileDef.

Reimplemented in OdIfc4x2::IfcAsymmetricIShapeProfileDef, OdIfc4x2::IfcCircleHollowProfileDef, OdIfc4x2::IfcCircleProfileDef, OdIfc4x2::IfcCShapeProfileDef, OdIfc4x2::IfcEllipseProfileDef, OdIfc4x2::IfcIShapeProfileDef, OdIfc4x2::IfcLShapeProfileDef, OdIfc4x2::IfcRectangleHollowProfileDef, OdIfc4x2::IfcRectangleProfileDef, OdIfc4x2::IfcRoundedRectangleProfileDef, OdIfc4x2::IfcTrapeziumProfileDef, OdIfc4x2::IfcTShapeProfileDef, OdIfc4x2::IfcUShapeProfileDef, and OdIfc4x2::IfcZShapeProfileDef.

◆ isKindOf()

virtual bool OdIfc4x2::IfcParameterizedProfileDef::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc4x2::IfcProfileDef.

Reimplemented in OdIfc4x2::IfcAsymmetricIShapeProfileDef, OdIfc4x2::IfcCircleHollowProfileDef, OdIfc4x2::IfcCircleProfileDef, OdIfc4x2::IfcCShapeProfileDef, OdIfc4x2::IfcEllipseProfileDef, OdIfc4x2::IfcIShapeProfileDef, OdIfc4x2::IfcLShapeProfileDef, OdIfc4x2::IfcRectangleHollowProfileDef, OdIfc4x2::IfcRectangleProfileDef, OdIfc4x2::IfcRoundedRectangleProfileDef, OdIfc4x2::IfcTrapeziumProfileDef, OdIfc4x2::IfcTShapeProfileDef, OdIfc4x2::IfcUShapeProfileDef, and OdIfc4x2::IfcZShapeProfileDef.

◆ outFields()

virtual OdResult OdIfc4x2::IfcParameterizedProfileDef::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4x2::IfcProfileDef.

Reimplemented in OdIfc4x2::IfcAsymmetricIShapeProfileDef, OdIfc4x2::IfcCircleHollowProfileDef, OdIfc4x2::IfcCircleProfileDef, OdIfc4x2::IfcCShapeProfileDef, OdIfc4x2::IfcEllipseProfileDef, OdIfc4x2::IfcIShapeProfileDef, OdIfc4x2::IfcLShapeProfileDef, OdIfc4x2::IfcRectangleHollowProfileDef, OdIfc4x2::IfcRectangleProfileDef, OdIfc4x2::IfcRoundedRectangleProfileDef, OdIfc4x2::IfcTrapeziumProfileDef, OdIfc4x2::IfcTShapeProfileDef, OdIfc4x2::IfcUShapeProfileDef, and OdIfc4x2::IfcZShapeProfileDef.

◆ putAttr() [1/2]

virtual bool OdIfc4x2::IfcParameterizedProfileDef::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4x2::IfcProfileDef.

Reimplemented in OdIfc4x2::IfcAsymmetricIShapeProfileDef, OdIfc4x2::IfcCircleHollowProfileDef, OdIfc4x2::IfcCircleProfileDef, OdIfc4x2::IfcCShapeProfileDef, OdIfc4x2::IfcEllipseProfileDef, OdIfc4x2::IfcIShapeProfileDef, OdIfc4x2::IfcLShapeProfileDef, OdIfc4x2::IfcRectangleHollowProfileDef, OdIfc4x2::IfcRectangleProfileDef, OdIfc4x2::IfcRoundedRectangleProfileDef, OdIfc4x2::IfcTrapeziumProfileDef, OdIfc4x2::IfcTShapeProfileDef, OdIfc4x2::IfcUShapeProfileDef, and OdIfc4x2::IfcZShapeProfileDef.

◆ putAttr() [2/2]

virtual bool OdIfc4x2::IfcParameterizedProfileDef::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4x2::IfcProfileDef.

Reimplemented in OdIfc4x2::IfcAsymmetricIShapeProfileDef, OdIfc4x2::IfcCircleHollowProfileDef, OdIfc4x2::IfcCircleProfileDef, OdIfc4x2::IfcCShapeProfileDef, OdIfc4x2::IfcEllipseProfileDef, OdIfc4x2::IfcIShapeProfileDef, OdIfc4x2::IfcLShapeProfileDef, OdIfc4x2::IfcRectangleHollowProfileDef, OdIfc4x2::IfcRectangleProfileDef, OdIfc4x2::IfcRoundedRectangleProfileDef, OdIfc4x2::IfcTrapeziumProfileDef, OdIfc4x2::IfcTShapeProfileDef, OdIfc4x2::IfcUShapeProfileDef, and OdIfc4x2::IfcZShapeProfileDef.

◆ setPosition()

void OdIfc4x2::IfcParameterizedProfileDef::setPosition ( const OdDAIObjectId & Position )

Sets the value of Position attribute. This attribute represents position coordinate system of the parameterized profile definition. If not specified, no translation and no rotation is applied.

Parameters

Position [in] Position to set.

◆ testAttr() [1/2]

virtual bool OdIfc4x2::IfcParameterizedProfileDef::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4x2::IfcProfileDef.

Reimplemented in OdIfc4x2::IfcAsymmetricIShapeProfileDef, OdIfc4x2::IfcCircleHollowProfileDef, OdIfc4x2::IfcCircleProfileDef, OdIfc4x2::IfcCShapeProfileDef, OdIfc4x2::IfcEllipseProfileDef, OdIfc4x2::IfcIShapeProfileDef, OdIfc4x2::IfcLShapeProfileDef, OdIfc4x2::IfcRectangleHollowProfileDef, OdIfc4x2::IfcRectangleProfileDef, OdIfc4x2::IfcRoundedRectangleProfileDef, OdIfc4x2::IfcTrapeziumProfileDef, OdIfc4x2::IfcTShapeProfileDef, OdIfc4x2::IfcUShapeProfileDef, and OdIfc4x2::IfcZShapeProfileDef.

◆ testAttr() [2/2]

virtual bool OdIfc4x2::IfcParameterizedProfileDef::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4x2::IfcProfileDef.

Reimplemented in OdIfc4x2::IfcAsymmetricIShapeProfileDef, OdIfc4x2::IfcCircleHollowProfileDef, OdIfc4x2::IfcCircleProfileDef, OdIfc4x2::IfcCShapeProfileDef, OdIfc4x2::IfcEllipseProfileDef, OdIfc4x2::IfcIShapeProfileDef, OdIfc4x2::IfcLShapeProfileDef, OdIfc4x2::IfcRectangleHollowProfileDef, OdIfc4x2::IfcRectangleProfileDef, OdIfc4x2::IfcRoundedRectangleProfileDef, OdIfc4x2::IfcTrapeziumProfileDef, OdIfc4x2::IfcTShapeProfileDef, OdIfc4x2::IfcUShapeProfileDef, and OdIfc4x2::IfcZShapeProfileDef.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc4x2::IfcParameterizedProfileDef::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc4x2::IfcProfileDef.

Reimplemented in OdIfc4x2::IfcAsymmetricIShapeProfileDef, OdIfc4x2::IfcCircleHollowProfileDef, OdIfc4x2::IfcCircleProfileDef, OdIfc4x2::IfcCShapeProfileDef, OdIfc4x2::IfcEllipseProfileDef, OdIfc4x2::IfcIShapeProfileDef, OdIfc4x2::IfcLShapeProfileDef, OdIfc4x2::IfcRectangleHollowProfileDef, OdIfc4x2::IfcRectangleProfileDef, OdIfc4x2::IfcRoundedRectangleProfileDef, OdIfc4x2::IfcTrapeziumProfileDef, OdIfc4x2::IfcTShapeProfileDef, OdIfc4x2::IfcUShapeProfileDef, and OdIfc4x2::IfcZShapeProfileDef.
