#include <IfcTrimmedCurveAutoImpl.h>

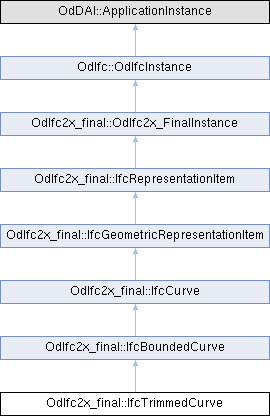

Inheritance diagram for OdIfc2x_final::IfcTrimmedCurve:

Public Member Functions
const OdDAIObjectId &	getBasisCurve () const

void	setBasisCurve (const OdDAIObjectId &BasisCurve)

void	getTrim1 (OdArray< OdDAI::Select > &Trim1) const

void	getTrim1WrapperArray (OdArray< IfcTrimmingSelect > &Trim1) const

OdDAI::SetOfSelect &	trim1 ()

void	getTrim2 (OdArray< OdDAI::Select > &Trim2) const

void	getTrim2WrapperArray (OdArray< IfcTrimmingSelect > &Trim2) const

OdDAI::SetOfSelect &	trim2 ()

OdDAI::Boolean	getSenseAgreement () const

void	setSenseAgreement (OdDAI::Boolean SenseAgreement)

IfcTrimmingPreference	getMasterRepresentation () const

void	setMasterRepresentation (IfcTrimmingPreference MasterRepresentation)

	IfcTrimmedCurve ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
OdDAIObjectId	m_BasisCurve

OdDAI::SetOfSelect	m_Trim1

OdDAI::SetOfSelect	m_Trim2

OdDAI::Boolean	m_SenseAgreement

OdDAI::Enum	m_MasterRepresentation

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

An IfcTrimmedCurve is a bounded curve that is trimmed at both ends.

Details - The trimming points can be provided by a Cartesian point or by a parameter value, based on the parameterization of the BasisCurve. The SenseAgreement attribute indicates whether the direction of the IfcTrimmedCurve agrees with or is opposed to the direction of the BasisCurve.

The image below shows the four arcs (dashed blue and green lines with arrow showing different orientations) that can be defined by the same BasisCurve (of IfcCircle type) and the same trimming points (specified by Cartesian points and parameter values) by using different assignments to Trim1 and Trim2 and SenseAgreement.

Definition at line 51 of file Ifc2x_Final/IfcTrimmedCurveAutoImpl.h.

Constructor & Destructor Documentation

◆ IfcTrimmedCurve()

OdIfc2x_final::IfcTrimmedCurve::IfcTrimmedCurve ( )

Default constructor for the IfcTrimmedCurve class.

Member Function Documentation

◆ getAttr() [1/2]

virtual OdRxValue OdIfc2x_final::IfcTrimmedCurve::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc2x_final::IfcTrimmedCurve::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc::OdIfcInstance.

◆ getBasisCurve()

const OdDAIObjectId & OdIfc2x_final::IfcTrimmedCurve::getBasisCurve ( ) const

Returns the value of BasisCurve attribute. This attribute represents the curve to be trimmed. For curves with multiple representations any parameter values specified as Trim1 or Trim2 refer to the master representation of the BasisCurve only.

Returns: Returns the value of BasisCurve attribute.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc2x_final::IfcTrimmedCurve::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc2x_final::IfcBoundedCurve.

◆ getMasterRepresentation()

IfcTrimmingPreference OdIfc2x_final::IfcTrimmedCurve::getMasterRepresentation ( ) const

Returns the value of MasterRepresentation attribute. This attribute represents the preferred way of trimming.

Returns: Returns the value of MasterRepresentation attribute.

◆ getSenseAgreement()

OdDAI::Boolean OdIfc2x_final::IfcTrimmedCurve::getSenseAgreement ( ) const

Returns the value of SenseAgreement attribute. This attribute indicates whether the direction of the trimmed curve agrees with or is opposed to the direction of the basis curve.

Returns: Returns the value of SenseAgreement attribute.

◆ getTrim1()

void OdIfc2x_final::IfcTrimmedCurve::getTrim1 ( OdArray< OdDAI::Select > & Trim1 ) const

Gets the value of Trim1 attribute. This attribute represents the first trimming point which can be specified as a Cartesian point, as a real parameter or both.

Parameters

Trim1 [out] Receives the Trim1 attribute.

◆ getTrim1WrapperArray()

void OdIfc2x_final::IfcTrimmedCurve::getTrim1WrapperArray ( OdArray< IfcTrimmingSelect > & Trim1 ) const

Gets the value of Trim1 attribute. This attribute represents the first trimming point which can be specified as a Cartesian point, as a real parameter or both.

Parameters

Trim1 [out] Receives the Trim1 attribute.

◆ getTrim2()

void OdIfc2x_final::IfcTrimmedCurve::getTrim2 ( OdArray< OdDAI::Select > & Trim2 ) const

Gets the value of Trim2 attribute. This attribute represents the second trimming point which can be specified as a Cartesian point, as a real parameter or both.

Parameters

Trim2 [in] Receives the Trim2 attribute.

◆ getTrim2WrapperArray()

void OdIfc2x_final::IfcTrimmedCurve::getTrim2WrapperArray ( OdArray< IfcTrimmingSelect > & Trim2 ) const

Gets the value of Trim2 attribute. This attribute represents the second trimming point which can be specified as a Cartesian point, as a real parameter or both.

Parameters

Trim2 [in] Receives the Trim2 attribute.

◆ inFields()

virtual OdResult OdIfc2x_final::IfcTrimmedCurve::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

◆ isKindOf()

virtual bool OdIfc2x_final::IfcTrimmedCurve::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc2x_final::IfcBoundedCurve.

◆ outFields()

virtual OdResult OdIfc2x_final::IfcTrimmedCurve::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

◆ putAttr() [1/2]

virtual bool OdIfc2x_final::IfcTrimmedCurve::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc::OdIfcInstance.

◆ putAttr() [2/2]

virtual bool OdIfc2x_final::IfcTrimmedCurve::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc::OdIfcInstance.

◆ setBasisCurve()

void OdIfc2x_final::IfcTrimmedCurve::setBasisCurve ( const OdDAIObjectId & BasisCurve )

Sets the value of BasisCurve attribute. This attribute represents the curve to be trimmed. For curves with multiple representations any parameter values specified as Trim1 or Trim2 refer to the master representation of the BasisCurve only.

Parameters

BasisCurve [in] Basis curve to set.

◆ setMasterRepresentation()

void OdIfc2x_final::IfcTrimmedCurve::setMasterRepresentation ( IfcTrimmingPreference MasterRepresentation )

Sets the value of MasterRepresentation attribute. This attribute represents the preferred way of trimming.

Parameters

MasterRepresentation [in] Master representation to set.

◆ setSenseAgreement()

void OdIfc2x_final::IfcTrimmedCurve::setSenseAgreement ( OdDAI::Boolean SenseAgreement )

Sets the value of SenseAgreement attribute. This attribute indicates whether the direction of the trimmed curve agrees with or is opposed to the direction of the basis curve.

Parameters

SenseAgreement [in] Sense agreement to set.

◆ testAttr() [1/2]

virtual bool OdIfc2x_final::IfcTrimmedCurve::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc::OdIfcInstance.

◆ testAttr() [2/2]

virtual bool OdIfc2x_final::IfcTrimmedCurve::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc::OdIfcInstance.

◆ trim1()

OdDAI::SetOfSelect & OdIfc2x_final::IfcTrimmedCurve::trim1 ( )

Returns the value of Trim1 attribute. This attribute represents the first trimming point which can be specified as a Cartesian point, as a real parameter or both.

Returns: Returns the value of Trim1 attribute.

◆ trim2()

OdDAI::SetOfSelect & OdIfc2x_final::IfcTrimmedCurve::trim2 ( )

Returns the value of Trim2 attribute. This attribute represents the second trimming point which can be specified as a Cartesian point, as a real parameter or both.

Returns: Returns the value of Trim2 attribute.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc2x_final::IfcTrimmedCurve::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc2x_final::IfcBoundedCurve.

◆ unsetAttr() [1/2]

virtual void OdIfc2x_final::IfcTrimmedCurve::unsetAttr ( const char * explicitAttrName )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrName [in] Explicit name of the attribute to reset.

Reimplemented from OdIfc::OdIfcInstance.

◆ unsetAttr() [2/2]

virtual void OdIfc2x_final::IfcTrimmedCurve::unsetAttr ( const OdIfc::OdIfcAttribute explicitAttrDef )

overridevirtual

Resets a value for the specified attribute.

Parameters

explicitAttrDef [in] Explicit definition that represents an attribute to reset.

Reimplemented from OdIfc::OdIfcInstance.

Member Data Documentation

◆ m_BasisCurve

OdDAIObjectId OdIfc2x_final::IfcTrimmedCurve::m_BasisCurve

protected

Definition at line 266 of file Ifc2x_Final/IfcTrimmedCurveAutoImpl.h.

◆ m_MasterRepresentation

OdDAI::Enum OdIfc2x_final::IfcTrimmedCurve::m_MasterRepresentation

protected

Definition at line 270 of file Ifc2x_Final/IfcTrimmedCurveAutoImpl.h.

◆ m_SenseAgreement

OdDAI::Boolean OdIfc2x_final::IfcTrimmedCurve::m_SenseAgreement

protected

Definition at line 269 of file Ifc2x_Final/IfcTrimmedCurveAutoImpl.h.

◆ m_Trim1

OdDAI::SetOfSelect OdIfc2x_final::IfcTrimmedCurve::m_Trim1

protected

Definition at line 267 of file Ifc2x_Final/IfcTrimmedCurveAutoImpl.h.

◆ m_Trim2

OdDAI::SetOfSelect OdIfc2x_final::IfcTrimmedCurve::m_Trim2

protected

Definition at line 268 of file Ifc2x_Final/IfcTrimmedCurveAutoImpl.h.

The documentation for this class was generated from the following file:

Ifc2x_Final/IfcTrimmedCurveAutoImpl.h

Public Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ IfcTrimmedCurve()

Member Function Documentation

◆ getAttr() [1/2]

◆ getAttr() [2/2]

◆ getBasisCurve()

◆ getInstanceType()

◆ getMasterRepresentation()

◆ getSenseAgreement()

◆ getTrim1()

◆ getTrim1WrapperArray()

◆ getTrim2()

◆ getTrim2WrapperArray()

◆ inFields()

◆ isKindOf()

◆ outFields()

◆ putAttr() [1/2]

◆ putAttr() [2/2]

◆ setBasisCurve()

◆ setMasterRepresentation()

◆ setSenseAgreement()

◆ testAttr() [1/2]

◆ testAttr() [2/2]

◆ trim1()

◆ trim2()

◆ type()

◆ unsetAttr() [1/2]

◆ unsetAttr() [2/2]

Member Data Documentation

◆ m_BasisCurve

◆ m_MasterRepresentation

◆ m_SenseAgreement

◆ m_Trim1

◆ m_Trim2
