#include <IfcWorkPlanAutoImpl.h>

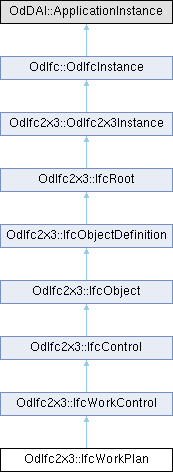

Inheritance diagram for OdIfc2x3::IfcWorkPlan:

Public Member Functions
virtual OdDAI::Entity *	getInstanceType () const override

virtual bool	comparedToEarlyImpl (const OdDAI::ApplicationInstance *pOther, OdRx::Ordering &ordering) const override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

Public Member Functions inherited from OdIfc2x3::IfcWorkControl
const OdAnsiString &	getIdentifier () const

void	setIdentifier (const OdAnsiString &Identifier)

IfcDateTimeSelect	creationDate ()

void	getCreators (OdDAIObjectIds &Creators) const

OdDAI::SetOfOdDAIObjectId &	creators ()

const OdAnsiString &	getPurpose () const

void	setPurpose (const OdAnsiString &Purpose)

double	getDuration () const

void	setDuration (double Duration)

double	getTotalFloat () const

void	setTotalFloat (double TotalFloat)

IfcDateTimeSelect	startTime ()

IfcDateTimeSelect	finishTime ()

IfcWorkControlTypeEnum	getWorkControlType () const

void	setWorkControlType (IfcWorkControlTypeEnum WorkControlType)

const OdAnsiString &	getUserDefinedControlType () const

void	setUserDefinedControlType (const OdAnsiString &UserDefinedControlType)

	IfcWorkControl ()

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc2x3::IfcControl
void	getInvControls (OdDAIObjectIds &Controls) const

Public Member Functions inherited from OdIfc2x3::IfcObject
const OdAnsiString &	getObjectType () const

void	setObjectType (const OdAnsiString &ObjectType)

void	getInvIsDefinedBy (OdDAIObjectIds &IsDefinedBy) const

	IfcObject ()

Public Member Functions inherited from OdIfc2x3::IfcObjectDefinition
void	getInvHasAssignments (OdDAIObjectIds &HasAssignments) const

void	getInvIsDecomposedBy (OdDAIObjectIds &IsDecomposedBy) const

void	getInvDecomposes (OdDAIObjectIds &Decomposes) const

void	getInvHasAssociations (OdDAIObjectIds &HasAssociations) const

Public Member Functions inherited from OdIfc2x3::IfcRoot
OdDAI::CompressedGUID	getGlobalId () const

void	setGlobalId (OdDAI::CompressedGUID GlobalId)

const OdDAIObjectId &	getOwnerHistory () const

void	setOwnerHistory (const OdDAIObjectId &OwnerHistory)

const OdAnsiString &	getName () const

void	setName (const OdAnsiString &Name)

const OdAnsiString &	getDescription () const

void	setDescription (const OdAnsiString &Description)

	IfcRoot ()

Public Member Functions inherited from OdIfc2x3::OdIfc2x3Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Protected Attributes inherited from OdIfc2x3::IfcWorkControl
OdAnsiString	m_Identifier

OdDAI::Select	m_CreationDate

OdDAI::SetOfOdDAIObjectId	m_Creators

OdAnsiString	m_Purpose

double	m_Duration

double	m_TotalFloat

OdDAI::Select	m_StartTime

OdDAI::Select	m_FinishTime

OdDAI::Enum	m_WorkControlType

OdAnsiString	m_UserDefinedControlType

Protected Attributes inherited from OdIfc2x3::IfcObject
OdAnsiString	m_ObjectType

Protected Attributes inherited from OdIfc2x3::IfcRoot
OdDAI::CompressedGUID	m_GlobalId

OdDAIObjectId	m_OwnerHistory

OdAnsiString	m_Name

OdAnsiString	m_Description

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Detailed Description

An IfcWorkPlan represents work plans in a construction or a facilities management project.

Details - A work plan contains a set of work schedules for different purposes (including construction and facilities management). Contained work schedules are defined through the IfcRelAggregates relationship. Through inheritance from IfcWorkControl it is also possible to define references to activities (for example, IfcTask) and resources used in the work plan.

A work plan has information such as start date, finish date, total free float, and so on. IfcWorkPlan can also refer to the construction project represented by the single IfcProject instance.

Figure below shows the backbone structure of a work plan that defines contained work schedules through IfcRelAggregates and, if not assigned otherwise to contained work schedules, assigned tasks and resources through IfcRelAssignsToControl.

If an assigned IfcTask is a root-level task, such task must be declared on the IfcProject using the IfcRelDeclares relationship.

Definition at line 55 of file Ifc2x3/IfcWorkPlanAutoImpl.h.

Member Function Documentation

◆ comparedToEarlyImpl()

virtual bool OdIfc2x3::IfcWorkPlan::comparedToEarlyImpl	(	const OdDAI::ApplicationInstance *	pOther,
		OdRx::Ordering &	ordering ) const

overridevirtual

Early-bound version of instances comparison.

Parameters

pOther	[in] Other application instance.
ordering	[out] Receives the ordering (comparison) status.

Returns: true if comparison was performed, false if method has no implementation, so late-bound version could be applied.

Remarks

If the method returns true, the ordering parameter can receive one of the following statuses:

Value Description kLessThan -1 This object < Other Object. kEqual 0 This object = Other Object. kGreaterThan 1 This object > Other Object. kNotOrderable 2 This class is not orderable.

Reimplemented from OdIfc2x3::IfcWorkControl.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc2x3::IfcWorkPlan::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc2x3::IfcWorkControl.

◆ isKindOf()

virtual bool OdIfc2x3::IfcWorkPlan::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc2x3::IfcWorkControl.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc2x3::IfcWorkPlan::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc2x3::IfcWorkControl.

The documentation for this class was generated from the following file:

Ifc2x3/IfcWorkPlanAutoImpl.h
