#include <IfcPropertySetDefinitionAutoImpl.h>

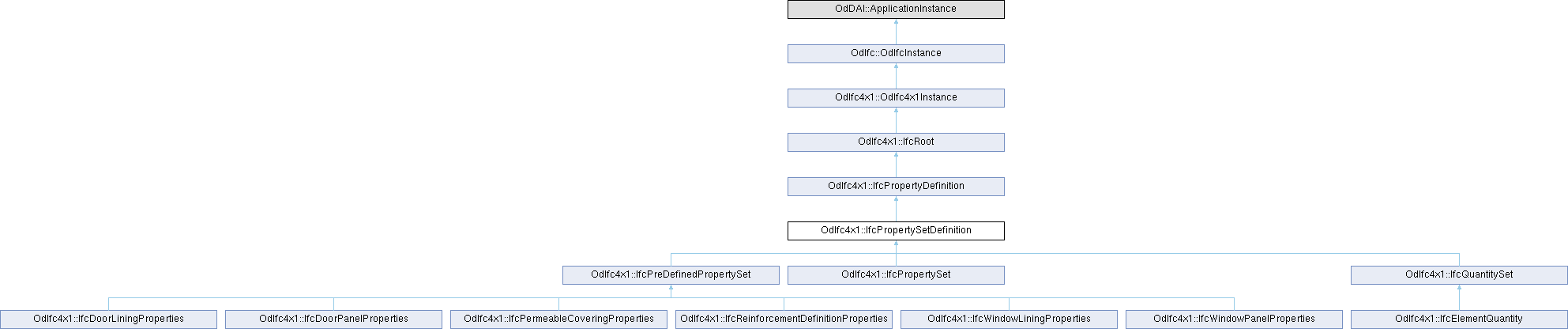

Inheritance diagram for OdIfc4x1::IfcPropertySetDefinition:

Public Member Functions
void	getInvDefinesType (OdDAIObjectIds &DefinesType) const

void	getInvIsDefinedBy (OdDAIObjectIds &IsDefinedBy) const

void	getInvDefinesOccurrence (OdDAIObjectIds &DefinesOccurrence) const

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual OdDAI::Entity *	getInstanceType () const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc4x1::IfcPropertyDefinition
void	getInvHasContext (OdDAIObjectIds &HasContext) const

void	getInvHasAssociations (OdDAIObjectIds &HasAssociations) const

Public Member Functions inherited from OdIfc4x1::IfcRoot
OdDAI::CompressedGUID	getGlobalId () const

void	setGlobalId (OdDAI::CompressedGUID GlobalId)

const OdDAIObjectId &	getOwnerHistory () const

void	setOwnerHistory (const OdDAIObjectId &OwnerHistory)

const OdAnsiString &	getName () const

void	setName (const OdAnsiString &Name)

const OdAnsiString &	getDescription () const

void	setDescription (const OdAnsiString &Description)

	IfcRoot ()

Public Member Functions inherited from OdIfc4x1::OdIfc4x1Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Member Functions
virtual OdRxValue	getAttr (const char *attrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

Friends
class	IfcTypeObject

class	IfcRelDefinesByTemplate

class	IfcRelDefinesByProperties

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Protected Attributes inherited from OdIfc4x1::IfcRoot
OdDAI::CompressedGUID	m_GlobalId

OdDAIObjectId	m_OwnerHistory

OdAnsiString	m_Name

OdAnsiString	m_Description

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Detailed Description

IfcPropertySetDefinition is a generalization of all individual property sets that can be assigned to an object or type object. The property set definition can be either: Dynamically extendable property sets - IfcPropertySet, a set of properties for which the IFC specification only provides a kind of "meta model", to be further declared by agreement. This means that no entity definition of the properties exists within the IFC specification. The declaration is done by assigning a significant string value to the Name attribute of the entity as defined in the entity IfcPropertySet and at each subtype of IfcProperty, referenced by the property set. Dynamically defined property sets can have an underlying template provided by IfcPropertySetTemplate. Statically defined property sets - IfcPreDefinedPropertySet, a property set entity that exists within the IFC specification. The semantic meaning of each statically defined property set is declared by its entity type and the meaning of the properties is defined by the name and data type of the explicit attribute representing it.

Property set definitions define information that is shared among multiple instances of objects, either object occurrences or object types. IfcPropertySetDefinition's (by their instantiable subtypes) can participate within the following relationships: Assignment to object types - a DefinesType direct relationship to IfcTypeObject that applies the property set, with all included properties, to the object type. Those properties apply to all object occurrences having the same object type. Assignment to object occurrences - an DefinesOccurrence relationship to IfcRelDefinesByProperties that applies the property set, with all included properties, to the object occurrence.

\changes

IFC4 changes: The subtype IfcPreDefinedPropertySet has been added. Name of the inverse attribute DefinesType changed to IsDefinedBy. Type of the inverse attribute DefinesType type changed from "SET OF [0:1] IfcTypeObject FOR HasPropertySets" to "SET OF [0:?] IfcRelDefinesByTemplate FOR RelatedPropertySets". Name of the inverse attribute PropertyDefinitionOf changed to DefinesType. Type of the inverse attribute PropertyDefinitionOf changed from "SET OF [0:1] IfcRelDefinesByProperties FOR RelatingPropertyDefinition" to "SET OF [0:?] IfcTypeObject FOR HasPropertySets".

Definition at line 65 of file Ifc4x1/IfcPropertySetDefinitionAutoImpl.h.

Member Function Documentation

◆ getAttr() [1/2]

virtual OdRxValue OdIfc4x1::IfcRoot::getAttr ( const char * attrName ) const

overrideprotectedvirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4x1::IfcPropertyDefinition.

Reimplemented in OdIfc4x1::IfcReinforcementDefinitionProperties, OdIfc4x1::IfcWindowLiningProperties, and OdIfc4x1::IfcWindowPanelProperties.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc4x1::IfcPropertySetDefinition::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc4x1::IfcPropertyDefinition.

Reimplemented in OdIfc4x1::IfcDoorLiningProperties, OdIfc4x1::IfcDoorPanelProperties, OdIfc4x1::IfcElementQuantity, OdIfc4x1::IfcPermeableCoveringProperties, OdIfc4x1::IfcPropertySet, OdIfc4x1::IfcReinforcementDefinitionProperties, OdIfc4x1::IfcWindowLiningProperties, and OdIfc4x1::IfcWindowPanelProperties.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc4x1::IfcPropertySetDefinition::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented from OdIfc4x1::IfcPropertyDefinition.

Reimplemented in OdIfc4x1::IfcDoorLiningProperties, OdIfc4x1::IfcDoorPanelProperties, OdIfc4x1::IfcElementQuantity, OdIfc4x1::IfcPermeableCoveringProperties, OdIfc4x1::IfcPreDefinedPropertySet, OdIfc4x1::IfcPropertySet, OdIfc4x1::IfcQuantitySet, OdIfc4x1::IfcReinforcementDefinitionProperties, OdIfc4x1::IfcWindowLiningProperties, and OdIfc4x1::IfcWindowPanelProperties.

◆ getInvDefinesOccurrence()

void OdIfc4x1::IfcPropertySetDefinition::getInvDefinesOccurrence ( OdDAIObjectIds & DefinesOccurrence ) const

Returns the value of DefinesOccurrence attribute. DefinesOccurrence is reference to the relation to one or many object occurrences that are characterized by the property set definition. A single property set can be assigned to multiple object occurrences using the objectified relationship IfcRefDefinesByProperties.

Parameters

DefinesOccurrence [out] Receives an array of object identifiers representing the IsDefinedBy attribute.

◆ getInvDefinesType()

void OdIfc4x1::IfcPropertySetDefinition::getInvDefinesType ( OdDAIObjectIds & DefinesType ) const

Returns the value of DefinesType attribute. DefinesType is the type of an object to which the property set is assigned. The property set acts as a shared property set to all occurrences of the type object.

Parameters

DefinesType [out] Receives an array of object identifiers representing the DefinesType attribute.

Remarks: The relationship between the IfcPropertySetDefinition and the IfcTypeObject is a direct relationship, not utilizing IfcRelDefinesByProperties, for maintaining compatibility with earlier releases of this standard.

◆ getInvIsDefinedBy()

void OdIfc4x1::IfcPropertySetDefinition::getInvIsDefinedBy ( OdDAIObjectIds & IsDefinedBy ) const

Returns the value of IsDefinedBy attribute. IsDefinedBy is a relation to the property set template, via the objectified relationship IfcRelDefinesByTemplate, that provides the definition template for the property set or quantity set and its properties, if it is specified.

Parameters

IsDefinedBy [out] Receives an array of object identifiers representing the IsDefinedBy attribute.

◆ inFields()

virtual OdResult OdIfc4x1::IfcPropertySetDefinition::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4x1::IfcPropertyDefinition.

Reimplemented in OdIfc4x1::IfcDoorLiningProperties, OdIfc4x1::IfcDoorPanelProperties, OdIfc4x1::IfcElementQuantity, OdIfc4x1::IfcPermeableCoveringProperties, OdIfc4x1::IfcPropertySet, OdIfc4x1::IfcReinforcementDefinitionProperties, OdIfc4x1::IfcWindowLiningProperties, and OdIfc4x1::IfcWindowPanelProperties.

◆ isKindOf()

virtual bool OdIfc4x1::IfcPropertySetDefinition::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc4x1::IfcPropertyDefinition.

Reimplemented in OdIfc4x1::IfcDoorLiningProperties, OdIfc4x1::IfcDoorPanelProperties, OdIfc4x1::IfcElementQuantity, OdIfc4x1::IfcPermeableCoveringProperties, OdIfc4x1::IfcPreDefinedPropertySet, OdIfc4x1::IfcPropertySet, OdIfc4x1::IfcQuantitySet, OdIfc4x1::IfcReinforcementDefinitionProperties, OdIfc4x1::IfcWindowLiningProperties, and OdIfc4x1::IfcWindowPanelProperties.

◆ outFields()

virtual OdResult OdIfc4x1::IfcPropertySetDefinition::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented from OdIfc4x1::IfcPropertyDefinition.

Reimplemented in OdIfc4x1::IfcDoorLiningProperties, OdIfc4x1::IfcDoorPanelProperties, OdIfc4x1::IfcElementQuantity, OdIfc4x1::IfcPermeableCoveringProperties, OdIfc4x1::IfcPropertySet, OdIfc4x1::IfcReinforcementDefinitionProperties, OdIfc4x1::IfcWindowLiningProperties, and OdIfc4x1::IfcWindowPanelProperties.

◆ putAttr() [1/2]

virtual bool OdIfc4x1::IfcRoot::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overrideprotectedvirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4x1::IfcPropertyDefinition.

Reimplemented in OdIfc4x1::IfcReinforcementDefinitionProperties, OdIfc4x1::IfcWindowLiningProperties, and OdIfc4x1::IfcWindowPanelProperties.

◆ putAttr() [2/2]

virtual bool OdIfc4x1::IfcPropertySetDefinition::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc4x1::IfcPropertyDefinition.

Reimplemented in OdIfc4x1::IfcDoorLiningProperties, OdIfc4x1::IfcDoorPanelProperties, OdIfc4x1::IfcElementQuantity, OdIfc4x1::IfcPermeableCoveringProperties, OdIfc4x1::IfcPropertySet, OdIfc4x1::IfcReinforcementDefinitionProperties, OdIfc4x1::IfcWindowLiningProperties, and OdIfc4x1::IfcWindowPanelProperties.

◆ testAttr() [1/2]

virtual bool OdIfc4x1::IfcPropertySetDefinition::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4x1::IfcPropertyDefinition.

Reimplemented in OdIfc4x1::IfcDoorLiningProperties, OdIfc4x1::IfcDoorPanelProperties, OdIfc4x1::IfcElementQuantity, OdIfc4x1::IfcPermeableCoveringProperties, OdIfc4x1::IfcPropertySet, OdIfc4x1::IfcReinforcementDefinitionProperties, OdIfc4x1::IfcWindowLiningProperties, and OdIfc4x1::IfcWindowPanelProperties.

◆ testAttr() [2/2]

virtual bool OdIfc4x1::IfcPropertySetDefinition::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc4x1::IfcPropertyDefinition.

Reimplemented in OdIfc4x1::IfcDoorLiningProperties, OdIfc4x1::IfcDoorPanelProperties, OdIfc4x1::IfcElementQuantity, OdIfc4x1::IfcPermeableCoveringProperties, OdIfc4x1::IfcPropertySet, OdIfc4x1::IfcReinforcementDefinitionProperties, OdIfc4x1::IfcWindowLiningProperties, and OdIfc4x1::IfcWindowPanelProperties.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc4x1::IfcPropertySetDefinition::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc4x1::IfcPropertyDefinition.

Reimplemented in OdIfc4x1::IfcDoorLiningProperties, OdIfc4x1::IfcDoorPanelProperties, OdIfc4x1::IfcElementQuantity, OdIfc4x1::IfcPermeableCoveringProperties, OdIfc4x1::IfcPreDefinedPropertySet, OdIfc4x1::IfcPropertySet, OdIfc4x1::IfcQuantitySet, OdIfc4x1::IfcReinforcementDefinitionProperties, OdIfc4x1::IfcWindowLiningProperties, and OdIfc4x1::IfcWindowPanelProperties.
