#include <IfcObjectPlacementAutoImpl.h>

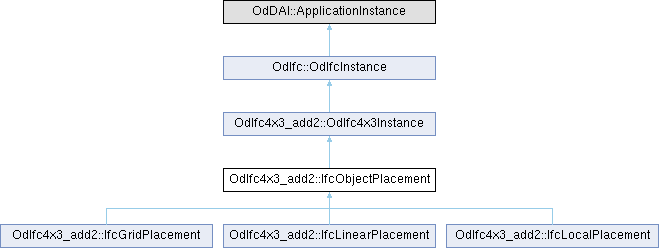

Inheritance diagram for OdIfc4x3_add2::IfcObjectPlacement:

Public Member Functions
const OdDAIObjectId &	getPlacementRelTo () const

void	setPlacementRelTo (const OdDAIObjectId &PlacementRelTo)

void	getInvPlacesObject (OdDAIObjectIds &PlacesObject) const

void	getInvReferencedByPlacements (OdDAIObjectIds &ReferencedByPlacements) const

virtual OdResult	inFields (OdDAI::OdSpfFilerBase *rdFiler) override

virtual OdResult	outFields (OdDAI::OdSpfFilerBase *wrFiler) override

virtual void	setInverseCounterParts () override

virtual OdDAI::Entity *	getInstanceType () const override

virtual OdRxValue	getAttr (const char *attrName) const override

virtual bool	comparedToEarlyImpl (const OdDAI::ApplicationInstance *pOther, OdRx::Ordering &ordering) const override

virtual void	unsetAttr (const char *explicitAttrName) override

virtual bool	testAttr (const char *explicitAttrName) const override

virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val) override

virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override

virtual OdIfc::OdIfcEntityType	type () const override

virtual OdRxValue	getAttr (const OdIfc::OdIfcAttribute attrDef) const override

virtual void	unsetAttr (const OdIfc::OdIfcAttribute explicitAttrDef) override

virtual bool	testAttr (const OdIfc::OdIfcAttribute explicitAttrDef) const override

virtual bool	putAttr (const OdIfc::OdIfcAttribute explicitAttrDef, const OdRxValue &val) override

Public Member Functions inherited from OdIfc4x3_add2::OdIfc4x3Instance
void	setInverseCounterParts () override

Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)

	OdIfcInstance ()

	~OdIfcInstance ()

bool	isInstanceOf (OdIfcEntityType entityType) const

IfcOpResult	resolved ()

void	resolve (IfcOpResult resolved, void *resPtr)

void	unresolve ()

virtual void	setGsNode (OdGsCache *pGsNode)

virtual OdGsCache *	gsNode () const

virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const

virtual bool	subWorldDraw (OdGiWorldDraw *wd) const

virtual OdDbStub *	ownerId () const

Protected Attributes
OdDAIObjectId	m_PlacementRelTo

Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr

IfcOpResult	m_resolved

Friends
class	IfcProduct

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)

static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)

static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)

static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)

static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)

static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)

static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)

static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)

Detailed Description

IfcObjectPlacement is an abstract supertype for the special types defining the object coordinate system. The IfcObjectPlacement has to be provided for each product that has a shape representation.

The object placement can be specified: Absolute: by an axis2 placement, relative to the world coordinate system Relative: by an axis2 placement, relative to the object placement of another product By grid reference: by the virtual intersection and reference direction specified by two axes of a design grid Linear placement: by distance along a curve, with possible offsets

Object placement has to unambiguously define the object coordinate system as either two-dimensional axis placement (IfcAxis2Placement2D) or three-dimensional axis placement (IfcAxis2Placement3D).

Remarks: This definition may not be instantiated

\changes

IFC4 changes: Type of the inverse attribute PlacesObject changed from "SET OF [1:1] IfcProduct FOR ObjectPlacement" to "SET OF [0:?] IfcProduct FOR ObjectPlacement" IFC4X3_RC1 changes: Type of the inverse attribute ReferencedByPlacements changed from "SET OF [0:?] IfcLocalPlacement FOR PlacementRelTo" to "SET OF [0:?] IfcObjectPlacement FOR PlacementRelTo"

Definition at line 64 of file Ifc4x3/IfcObjectPlacementAutoImpl.h.

Member Function Documentation

◆ comparedToEarlyImpl()

virtual bool OdIfc4x3_add2::IfcObjectPlacement::comparedToEarlyImpl	(	const OdDAI::ApplicationInstance *	pOther,
		OdRx::Ordering &	ordering ) const

overridevirtual

Early-bound version of instances comparison.

Parameters

pOther	[in] Other application instance.
ordering	[out] Receives the ordering (comparison) status.

Returns: true if comparison was performed, false if method has no implementation, so late-bound version could be applied.

Remarks

If the method returns true, the ordering parameter can receive one of the following statuses:

Value Description kLessThan -1 This object < Other Object. kEqual 0 This object = Other Object. kGreaterThan 1 This object > Other Object. kNotOrderable 2 This class is not orderable.

Reimplemented in OdIfc4x3_add2::IfcGridPlacement, OdIfc4x3_add2::IfcLinearPlacement, and OdIfc4x3_add2::IfcLocalPlacement.

◆ getAttr() [1/2]

virtual OdRxValue OdIfc4x3_add2::IfcObjectPlacement::getAttr ( const char * attrName ) const

overridevirtual

Returns an attribute value for the specified attribute name.

Parameters

attrName [in] Name of an attribute to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented in OdIfc4x3_add2::IfcGridPlacement, OdIfc4x3_add2::IfcLinearPlacement, and OdIfc4x3_add2::IfcLocalPlacement.

◆ getAttr() [2/2]

virtual OdRxValue OdIfc4x3_add2::IfcObjectPlacement::getAttr ( const OdIfc::OdIfcAttribute attrDef ) const

overridevirtual

Returns an attribute value for the specified attribute definition.

Parameters

attrDef [in] Attribute definition to query.

Returns: OdRxValue object that represents a generic variant type value.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc4x3_add2::IfcGridPlacement, OdIfc4x3_add2::IfcLinearPlacement, and OdIfc4x3_add2::IfcLocalPlacement.

◆ getInstanceType()

virtual OdDAI::Entity * OdIfc4x3_add2::IfcObjectPlacement::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns: Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented in OdIfc4x3_add2::IfcGridPlacement, OdIfc4x3_add2::IfcLinearPlacement, and OdIfc4x3_add2::IfcLocalPlacement.

◆ getInvPlacesObject()

void OdIfc4x3_add2::IfcObjectPlacement::getInvPlacesObject ( OdDAIObjectIds & PlacesObject ) const

Returns the value of PlacesObject attribute. This attribute represents a set of IfcObjectPlacement instances that provide a placement and an object coordinate system for instances of IfcProduct. If an IfcObjectPlacement is shared by many instances of IfcProduct it does not apply a semantic meaning of being a shared placement that needs to be maintained. The same instance of IfcObjectPlacement could be used to reduce exchange file size.

Parameters

PlacesObject [out] Receives the value of PlacesObject attribute.

◆ getInvReferencedByPlacements()

void OdIfc4x3_add2::IfcObjectPlacement::getInvReferencedByPlacements ( OdDAIObjectIds & ReferencedByPlacements ) const

Returns the value of ReferencedByPlacements attribute. This attribute represents placements that are specified relative to this placement of an object.

Parameters

ReferencedByPlacements [out] Receives the value of ReferencedByPlacements attribute.

◆ getPlacementRelTo()

const OdDAIObjectId & OdIfc4x3_add2::IfcObjectPlacement::getPlacementRelTo ( ) const

Returns the value of PlacementRelTo attribute. This attribute represents reference to object placement that provides the relative placement with its placement in a grid, local coordinate system or linear referenced placement. If it is omitted, then in the case of linear placement it is established by the origin of horizontal alignment of the referenced IfcAlignment Axis. In the case of local placement it is established by the geometric representation context.

Returns: Returns the value of PlacementRelTo attribute.

◆ inFields()

virtual OdResult OdIfc4x3_add2::IfcObjectPlacement::inFields ( OdDAI::OdSpfFilerBase * rdFiler )

overridevirtual

Reads object's data from the specified filer.

Parameters

rdFiler [in] Pointer to a filer from which to read the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented in OdIfc4x3_add2::IfcGridPlacement, OdIfc4x3_add2::IfcLinearPlacement, and OdIfc4x3_add2::IfcLocalPlacement.

◆ isKindOf()

virtual bool OdIfc4x3_add2::IfcObjectPlacement::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType [in] Entity to check.

Returns: true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc4x3_add2::IfcGridPlacement, OdIfc4x3_add2::IfcLinearPlacement, and OdIfc4x3_add2::IfcLocalPlacement.

◆ outFields()

virtual OdResult OdIfc4x3_add2::IfcObjectPlacement::outFields ( OdDAI::OdSpfFilerBase * wrFiler )

overridevirtual

Writes object's data the the specified filer.

Parameters

wrFiler [in] Pointer to a filer to which to write the data.

Returns: A value of OdResult type that contains the result of the method execution.

Reimplemented in OdIfc4x3_add2::IfcGridPlacement, OdIfc4x3_add2::IfcLinearPlacement, and OdIfc4x3_add2::IfcLocalPlacement.

◆ putAttr() [1/2]

virtual bool OdIfc4x3_add2::IfcObjectPlacement::putAttr	(	const char *	explicitAttrName,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrName	[in] Explicit name of the attribute to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc4x3_add2::IfcGridPlacement, OdIfc4x3_add2::IfcLinearPlacement, and OdIfc4x3_add2::IfcLocalPlacement.

◆ putAttr() [2/2]

virtual bool OdIfc4x3_add2::IfcObjectPlacement::putAttr	(	const OdIfc::OdIfcAttribute	explicitAttrDef,
		const OdRxValue &	val )

overridevirtual

Sets the specified attribute with a given value.

Parameters

explicitAttrDef	[in] Explicit attribute definition to set.
val	[in] Value to set.

Returns: true if the value is successfully set for the specified attribute, false otherwise.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc4x3_add2::IfcGridPlacement, OdIfc4x3_add2::IfcLinearPlacement, and OdIfc4x3_add2::IfcLocalPlacement.

◆ setInverseCounterParts()

virtual void OdIfc4x3_add2::IfcObjectPlacement::setInverseCounterParts ( )

overridevirtual

Sets the object ID of this instance to inverse attributes of related instances according to schema specification of inverse attributes.

◆ setPlacementRelTo()

void OdIfc4x3_add2::IfcObjectPlacement::setPlacementRelTo ( const OdDAIObjectId & PlacementRelTo )

Sets the value of PlacementRelTo attribute. This attribute represents reference to object placement that provides the relative placement with its placement in a grid, local coordinate system or linear referenced placement. If it is omitted, then in the case of linear placement it is established by the origin of horizontal alignment of the referenced IfcAlignment Axis. In the case of local placement it is established by the geometric representation context.

Parameters

PlacementRelTo [in] PlacementRelTo attribute to set.

◆ testAttr() [1/2]

virtual bool OdIfc4x3_add2::IfcObjectPlacement::testAttr ( const char * explicitAttrName ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrName [in] Explicit name of the attribute to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc4x3_add2::IfcGridPlacement, OdIfc4x3_add2::IfcLinearPlacement, and OdIfc4x3_add2::IfcLocalPlacement.

◆ testAttr() [2/2]

virtual bool OdIfc4x3_add2::IfcObjectPlacement::testAttr ( const OdIfc::OdIfcAttribute explicitAttrDef ) const

overridevirtual

Checks whether the specified attribute is set.

Parameters

explicitAttrDef [in] Attribute definition to test.

Returns: true if the specified attribute is set, false otherwise.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc4x3_add2::IfcGridPlacement, OdIfc4x3_add2::IfcLinearPlacement, and OdIfc4x3_add2::IfcLocalPlacement.

◆ type()

virtual OdIfc::OdIfcEntityType OdIfc4x3_add2::IfcObjectPlacement::type ( ) const

overridevirtual

Returns the type of this entity.

Returns: A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc4x3_add2::IfcGridPlacement, OdIfc4x3_add2::IfcLinearPlacement, and OdIfc4x3_add2::IfcLocalPlacement.
