OdIfc4x2::IfcConnectionGeometry Class Reference

#include <IfcConnectionGeometryAutoImpl.h>

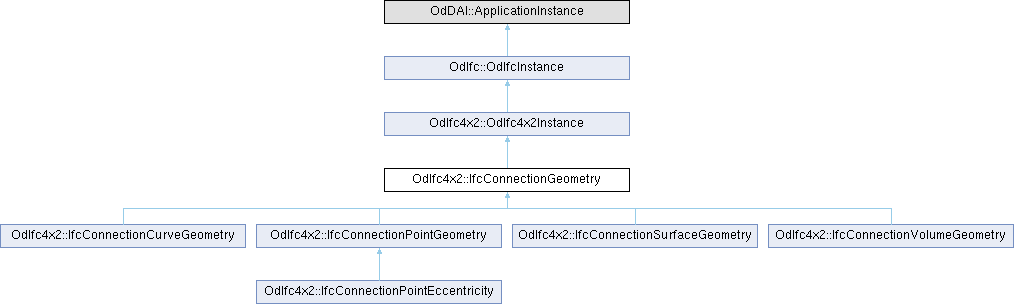

Inheritance diagram for OdIfc4x2::IfcConnectionGeometry:

Public Member Functions
virtual OdDAI::Entity *	getInstanceType () const override
virtual bool	isKindOf (OdIfc::OdIfcEntityType entityType) const override
virtual OdIfc::OdIfcEntityType	type () const override
Public Member Functions inherited from OdIfc4x2::OdIfc4x2Instance
void	setInverseCounterParts () override
Public Member Functions inherited from OdIfc::OdIfcInstance
	ODRX_DECLARE_MEMBERS (OdIfcInstance)
	OdIfcInstance ()
	~OdIfcInstance ()
bool	isInstanceOf (OdIfcEntityType entityType) const
virtual OdRxValue	getAttr (const OdIfcAttribute attrDef) const
virtual bool	testAttr (const char *explicitAttrName) const
virtual bool	testAttr (const OdIfcAttribute explicitAttrDef) const
virtual void	unsetAttr (const char *explicitAttrName)
virtual void	unsetAttr (const OdIfcAttribute explicitAttrDef)
virtual bool	putAttr (const char *explicitAttrName, const OdRxValue &val)
virtual bool	putAttr (const OdIfcAttribute explicitAttrDef, const OdRxValue &val)
IfcOpResult	resolved ()
void	resolve (IfcOpResult resolved, void *resPtr)
void	unresolve ()
virtual void	setGsNode (OdGsCache *pGsNode)
virtual OdGsCache *	gsNode () const
virtual OdUInt32	subSetAttributes (OdGiDrawableTraits *traits) const
virtual bool	subWorldDraw (OdGiWorldDraw *wd) const
virtual OdDbStub *	ownerId () const

Additional Inherited Members
Static Public Member Functions inherited from OdIfc::OdIfcInstance
static const OdGePoint3d *	asPoint3d (const OdIfcInstance *inst)
static const OdGePoint2d *	asPoint2d (const OdIfcInstance *inst)
static const OdGeVector3d *	asVector3d (const OdIfcInstance *inst)
static const OdGeVector2d *	asVector2d (const OdIfcInstance *inst)
static const OdGeMatrix2d *	asMatrix2d (const OdIfcInstance *inst)
static const OdGeMatrix3d *	asMatrix3d (const OdIfcInstance *inst)
static OdIfcCompoundPtr	asCompound (OdSmartPtr< OdIfcInstance > inst)
static const OdCmEntityColor *	asRgbColor (const OdIfcInstance *inst)
Protected Attributes inherited from OdIfc::OdIfcInstance
void *	m_resPtr
IfcOpResult	m_resolved

Detailed Description

IfcConnectionGeometry describes the geometric and topological constraints that facilitate the physical connection of two objects. It can be referred to as a control that applies to the element connection relationships.

The IfcConnectionGeometry provides connection constraints between geometric and topological elements, The following connection geometry/topology types are in scope: point | vertex point curve | edge curve surface | face surface solid model | closed shell

Remarks

This definition may not be instantiated.

Definition at line 55 of file Ifc4x2/IfcConnectionGeometryAutoImpl.h.

Member Function Documentation

getInstanceType()

virtual OdDAI::Entity * OdIfc4x2::IfcConnectionGeometry::getInstanceType ( ) const

overridevirtual

Returns a type of a class instance.

Returns

Pointer to the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdDAI__Entity.html>>OdDAI::Entity</exref> type that determines an entity definition within a schema.

Reimplemented in OdIfc4x2::IfcConnectionCurveGeometry, OdIfc4x2::IfcConnectionPointEccentricity, OdIfc4x2::IfcConnectionPointGeometry, OdIfc4x2::IfcConnectionSurfaceGeometry, and OdIfc4x2::IfcConnectionVolumeGeometry.

isKindOf()

virtual bool OdIfc4x2::IfcConnectionGeometry::isKindOf ( OdIfc::OdIfcEntityType entityType ) const

overridevirtual

Checks whether the specified instance is the object derived from or belongs to this class.

Parameters

entityType

[in] Entity to check.

Returns

true if the specified instance is the object derived from or belongs to this class, false otherwise.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc4x2::IfcConnectionCurveGeometry, OdIfc4x2::IfcConnectionPointEccentricity, OdIfc4x2::IfcConnectionPointGeometry, OdIfc4x2::IfcConnectionSurfaceGeometry, and OdIfc4x2::IfcConnectionVolumeGeometry.

type()

virtual OdIfc::OdIfcEntityType OdIfc4x2::IfcConnectionGeometry::type ( ) const

overridevirtual

Returns the type of this entity.

Returns

A value of the <exref target=https://docs.opendesign.com/tkernel_api_cpp/OdIfc__OdIfcEntityType.html>>OdIfc::OdIfcEntityType</exref> type that represents type of this entity.

Reimplemented from OdIfc::OdIfcInstance.

Reimplemented in OdIfc4x2::IfcConnectionCurveGeometry, OdIfc4x2::IfcConnectionPointEccentricity, OdIfc4x2::IfcConnectionPointGeometry, OdIfc4x2::IfcConnectionSurfaceGeometry, and OdIfc4x2::IfcConnectionVolumeGeometry.

---

The documentation for this class was generated from the following file:

• Ifc4x2/IfcConnectionGeometryAutoImpl.h
